02-13 - MUFFLER - EXHAUST SYSTEM - STANDARD/ASPIRATOR SPARK ARRESTER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • -
    REF
    INSTRUCTION; MOUNTING FOR STD & ASPIRATOR MUFFLERS, TIER II MODELS
  • 1
    1
    388283A1
    MUFFLER; Standard
  • 1A
    1
    87451543
    MUFFLER; Spark Arrestor & Aspirated
  • 2
    1
    299456A1
    CLAMP 80.5mm ID; Muffler
  • 3
    1
    86983217

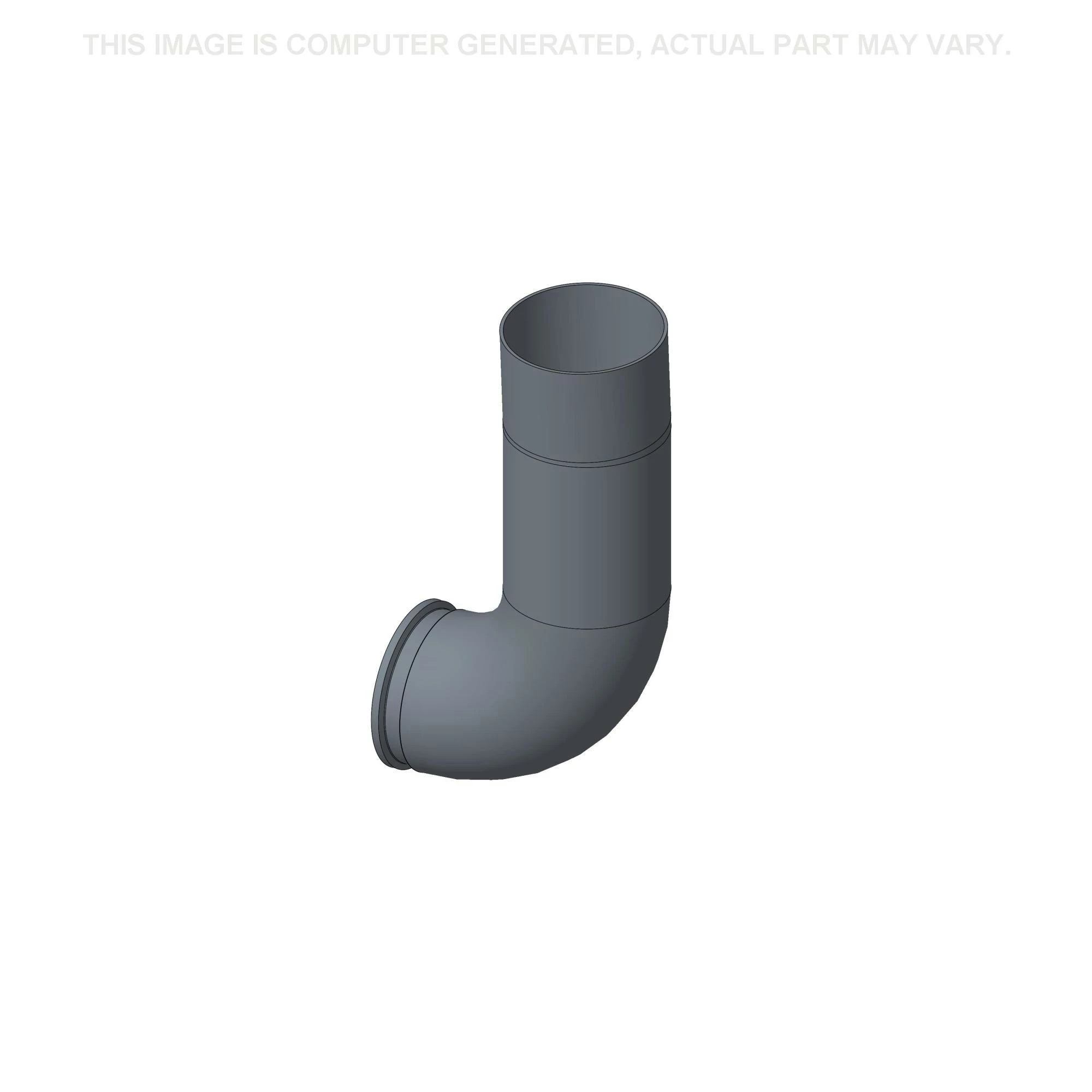

    TUBE 76.20 mm OD x 212, 90 mm L; Exhaust
  • 4
    1
    J903652
    CLAMP; V Band
  • 5
    1
    87409308

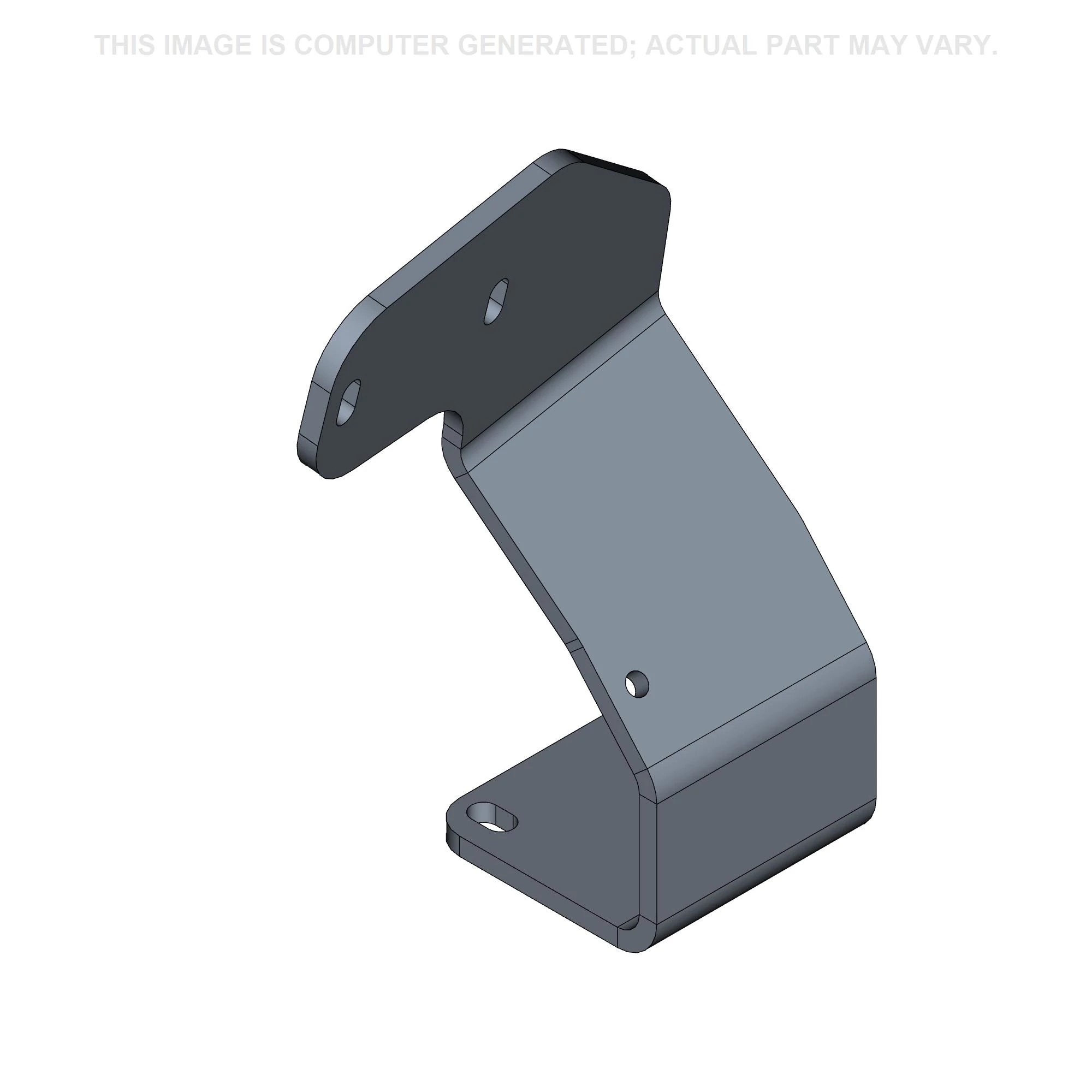

    BRACKET; Muffler, Rear
  • 6
    1
    87452053
    BRACKET; Muffler, Front
  • 7
    4
    896-15008
    WASHER 9mm ID x 21mm OD x 2.5mm Thk;
  • 8
    3
    896-15012
    WASHER 13.5mm ID x 28mm OD x 4mm Thk;
  • 10
    3
    896-15010
    WASHER 11mm ID x 24mm OD x 3mm Thk; Use With Spark Arrester
  • 11
    2
    827-12130
    BOLT Hex, M12 x 1.75 x 130mm, Cl 10.9;
  • 12
    3
    627-10025
    BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;
  • 13
    2
    87425898
    PLATE; Muffler
  • 14
    1
    408195A1
    PIPE, EXHAUST SYSTEM; Components Not Service Separately
  • 15
    1
    408196A1

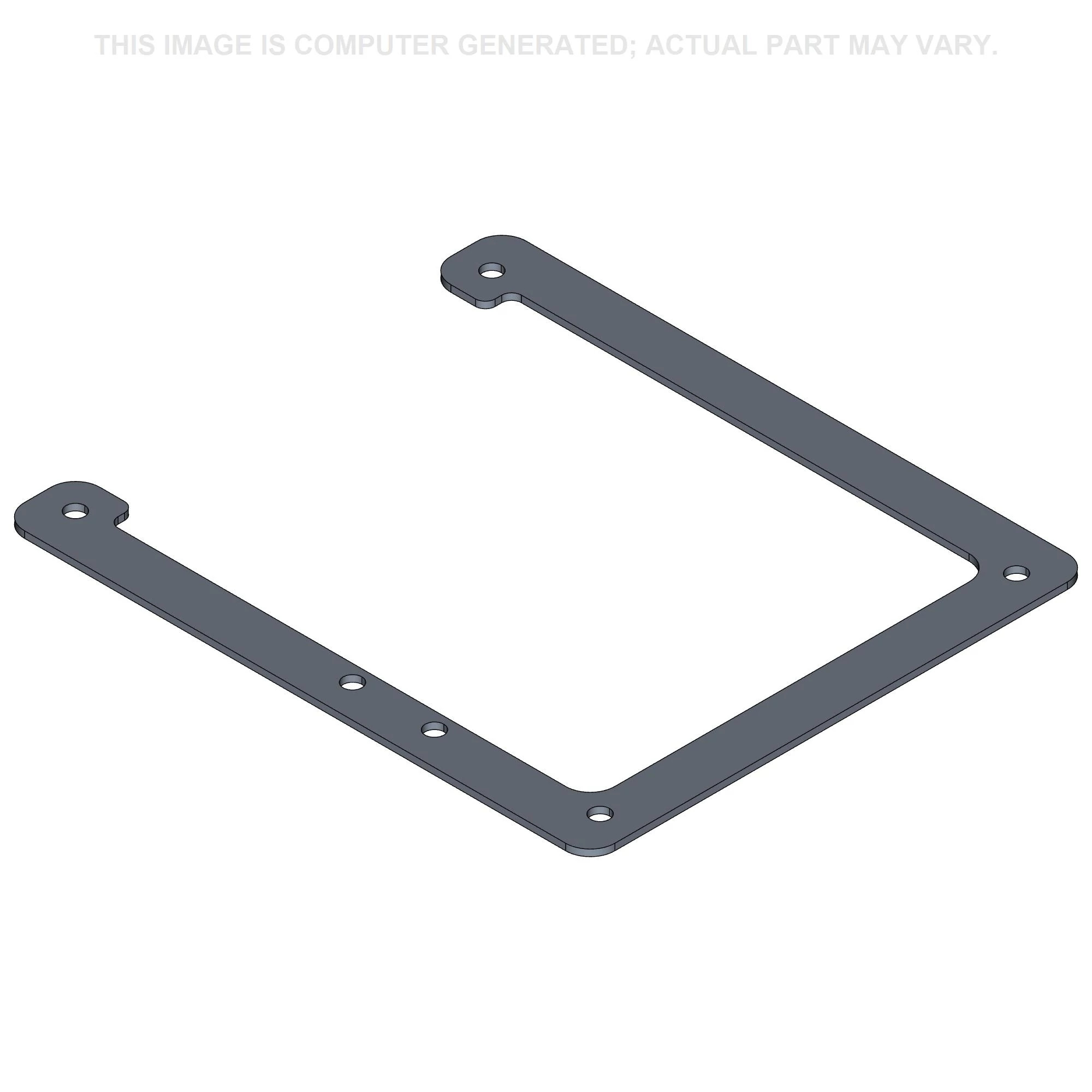

    PLATE; Exhaust Stack Backing
  • 16
    4
    832-10410
    LOCK NUT M10 x 1.5, Cl 8;
  • 17
    4
    895-18010
    WASHER 10.5mm ID x 18mm OD x 1.6mm Thk; Not Illustrated
  • 9
    4
    627-8025
    BOLT Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd;
