TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11RADIATOR; See Figure 02-005-01 01
-
22AIR HOSE;
-
34COLLAR 95mm-118mm, 15.9mm W;
-
41AIR CHANNEL;
-
51AIR DUCT;
-
64SUPPORT;
-
712BOLT Spcl, Hex Wshr, M12 x 25mm, Cl 10.9;
-
81HOSE;
-
91TUBE 13 mm ID, 17.5 mm OD, 1300 mm Length; 1300 mm
-
101BAND HOSE;
-
112SEAL;
-
121SUPPORT;
-
134BOLT M8 x 16mm; M8 x 16
-
141SEAL;
-
155RETAINER;
-
165BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;
-
175WASHER 9mm ID x 16mm OD x 1.6mm Thk;
-
181SUPPORT;
-
194BOLT M8 x 16mm; M8 x 16
-
201SEAL;
-
215RETAINER;
-
225BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;
-
235WASHER 9mm ID x 16mm OD x 1.6mm Thk;
-
241SUPPORT;
-
254BOLT M8 x 16mm; M8 x 16
-
262SEAL;
-
271SEAL;
-
281SEAL;
-
291RUBBER SEAL;
-
308RETAINER;
-
318BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;
-
328WASHER 9mm ID x 16mm OD x 1.6mm Thk;
-
332SEAL;
-
594BOLT; M20 x 55
-
604WASHER 21mm ID x 40mm OD x 4.5mm Thk; W20
-
61XSHIM;
-
62XSHIM;
-
631STAY;
-
641STAY;
-
654BOLT; M20 x 40
-
664WASHER 21mm ID x 40mm OD x 4.5mm Thk; W20
-
671RADIATOR HOSE; HOSE,LARGE
-
681RADIATOR HOSE; HOSE,LARGE
-
694COLLAR;
-
702RESERVOIR, COOLANT E;
-
711SUPPORT;
-
724BOLT; M12 x 30
-
731BRACKET;
-
742BOLT; M12 x 30
-
751HYD CONNECTOR;
-
762HOSE 50.00 mm;
-
775BAND HOSE;
-
781HOSE; 2250 mm
-
791HOSE; 2000 mm
-
802HOSE CLIP;
-
811INTAKE AIR HOSE;
-
821COLLAR;
-
831HOSE CLAMP;
-
841AIR CHANNEL;
-
851SUPPORT;
-
863BOLT Spcl, Hex Wshr, M12 x 25mm, Cl 10.9;
-
871AIR HOSE;
-

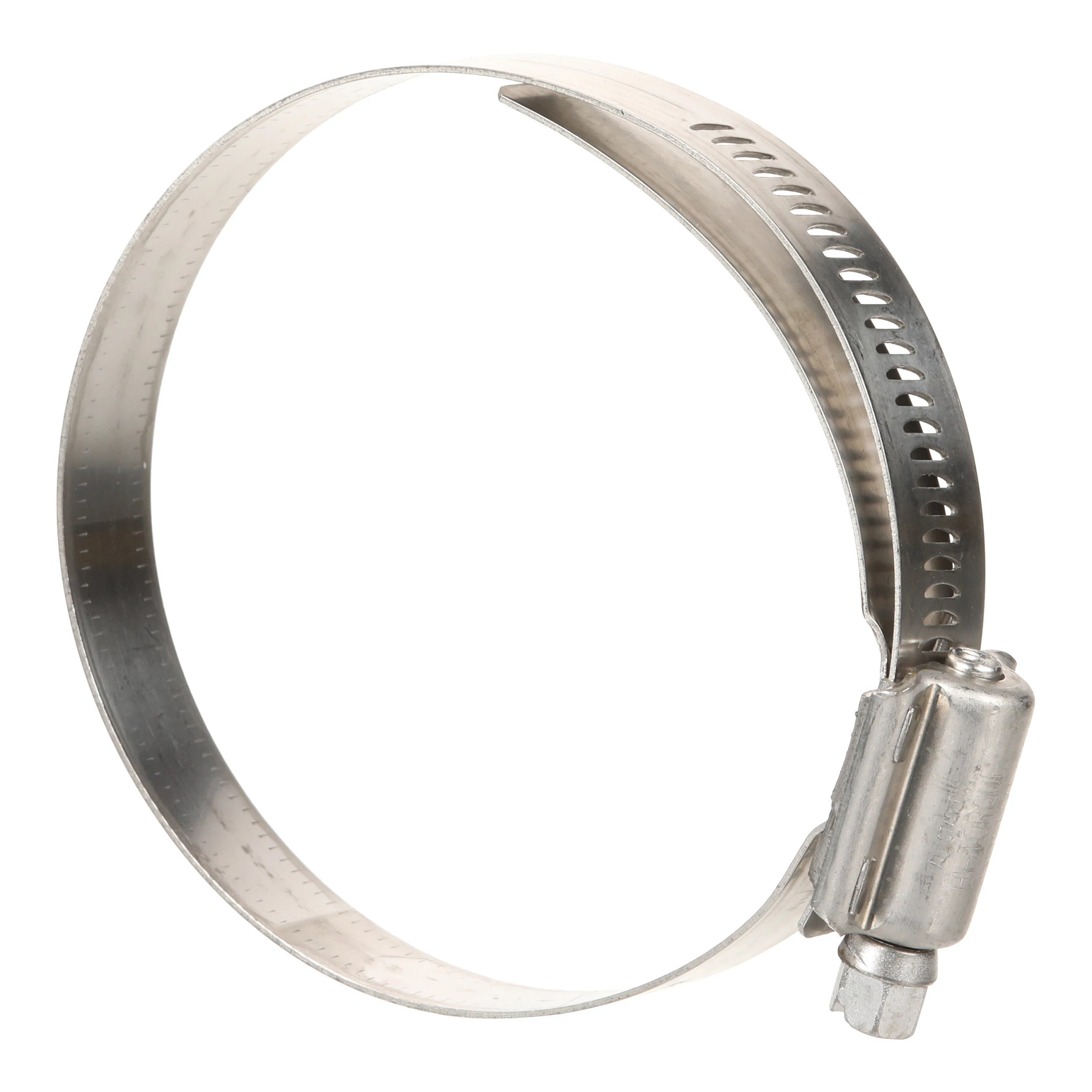

882HOSE CLAMP 83mm-105mm, 15.9mm W;
-
891INTAKE AIR HOSE;
-
902HOSE CLAMP 83mm-105mm, 15.9mm W;
-
911MOUNTING CLIP;
-
921CLAMP;
-
93XCABLE TIE; 250 mm
-
941WARNING DECAL;
Select All
Ref.
7Qty
12Availability
Part #
152718A1Description
BOLT Spcl, Hex Wshr, M12 x 25mm, Cl 10.9;Img
Alts
Ref.
9Qty
1Availability
Part #
150402A1Description
TUBE 13 mm ID, 17.5 mm OD, 1300 mm Length; 1300 mmImg
Alts
Ref.
16Qty
5Availability
Part #
827-8040Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;Img
Alts
Ref.
17Qty
5Availability
Part #
895-11008Description
WASHER 9mm ID x 16mm OD x 1.6mm Thk;Img
Alts
Ref.
22Qty
5Availability
Part #
827-8040Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;Img
Alts
Ref.
23Qty
5Availability
Part #
895-11008Description
WASHER 9mm ID x 16mm OD x 1.6mm Thk;Img
Alts
Ref.
31Qty
8Availability
Part #
827-8040Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 10.9;Img
Alts
Ref.
32Qty
8Availability
Part #
895-11008Description
WASHER 9mm ID x 16mm OD x 1.6mm Thk;Img
Alts
Ref.
60Qty
4Availability
Part #
150817A1Description
WASHER 21mm ID x 40mm OD x 4.5mm Thk; W20Img
Alts
Ref.
66Qty
4Availability
Part #
150817A1Description
WASHER 21mm ID x 40mm OD x 4.5mm Thk; W20Img
Alts
Ref.
86Qty
3Availability
Part #
152718A1Description
BOLT Spcl, Hex Wshr, M12 x 25mm, Cl 10.9;Img
Alts
