8-032 - REEL CARRIER LIFT CYLINDER ASSEMBLY - 101645A1
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    101645A1
    HYDRAULIC CYLINDER; ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, reel carrier lift, see Figure 9-135 for mounting, Includes: Ref. 1 - 22
  • 1
    2
    102910A1
    PIN; - upset clevis
  • 2
    2
    1978738C1

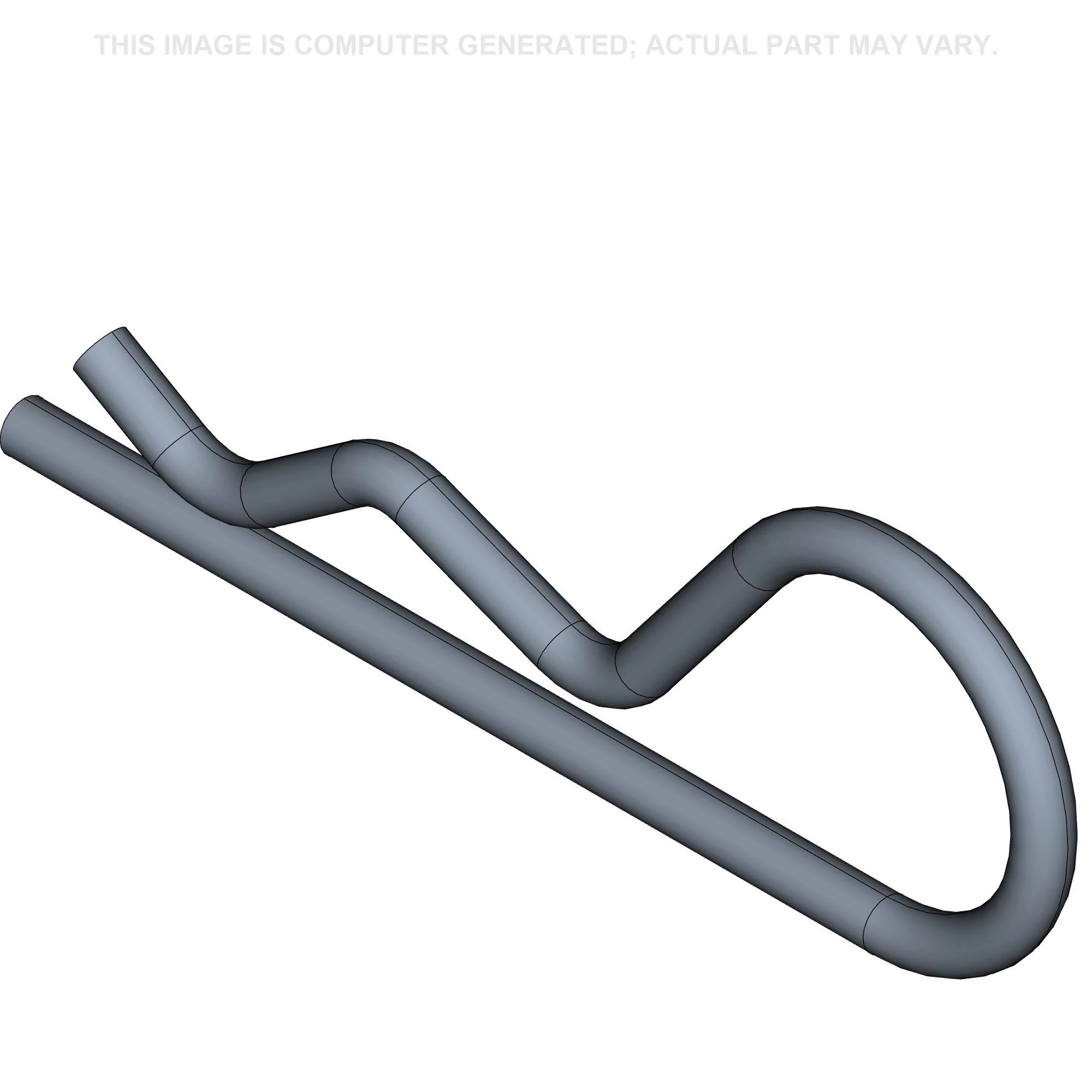

    HAIR PIN COTTER; 3/16''
  • 3
    1
    102908A1
    END; - piston rod
  • 4
    1
    102907A1
    ROD; - piston
  • 5
    1
    NSS
    NOT SOLD SEPARAT; WIPER - piston rod
  • 6
    1
    NSS
    NOT SOLD SEPARAT; SEAL - U-cup, piston rod
  • 7
    1
    NSS
    NOT SOLD SEPARAT; RING - locking
  • 8
    1
    102909A1
    BEARING ASSY; GLAND - cylinder
  • 9
    1
    NSS
    NOT SOLD SEPARAT; RING - backup, gland O-ring
  • 10
    1
    NSS
    NOT SOLD SEPARAT; O-RING - gland
  • 11
    1
    NSS
    NOT SOLD SEPARAT; SEAL - piston, outer
  • 12
    1
    NSS
    NOT SOLD SEPARAT; O-RING - piston rod
  • 13
    1
    NSS
    NOT SOLD SEPARAT; O-RING - piston
  • 14
    1
    102905A1
    PISTON; - cylinder
  • 15
    1
    102906A1
    TUBE; - cylinder
  • 16
    1
    NSS
    NOT SOLD SEPARAT; O-RING - cylinder tube
  • 17
    1
    NSS
    NOT SOLD SEPARAT; O-RING - backup, cylinder tube O-ring
  • 18
    1
    NSS
    NOT SOLD SEPARAT; RING - locking
  • 19
    1
    102904A1
    HEAD; - cylinder
  • 20
    1
    NSS
    NOT SOLD SEPARAT; RING - wear, piston
  • 21
    2
    NSS
    NOT SOLD SEPARAT; O-RING - tube to gland and head
  • 22
    2
    NSS
    NOT SOLD SEPARAT; COVER - slot, locking ring
  • 1
    H673838
    SEAL; KIT - cylinder seal repair
