08-05 - MULTIPLE CONTROL VALVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

Qty

1

Availability

Part #

253545A3

Description

VALVE; Consists Of 1 - 40


Alts

Select

Ref.

1

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Body, Includes 2


Alts

Select

Ref.

Qty

1

Availability

Part #

142637A3

Description

KIT; Flow Control, Consists Of 2 - 8


Alts

Select

Ref.

2

Qty

1

Availability

Part #

142650A1

Description

SLEEVE;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

142648A1

Description

SPRING;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

237-6012

Description

O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

142639A1

Description

SLEEVE; 1-1/16 in


Alts

Select

Ref.

6

Qty

1

Availability

Part #

142649A1

Description

COMPRESSION SPRING;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

100-2168

Description

SNAP RING 0.688'', Int, #68;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

142638A3

Description

SPOOL; Includes 9


Alts

Select

Ref.

9

Qty

1

Availability

Part #

800-2113

Description

SNAP RING M13, Int; 13 mm


Alts

Select

Ref.

10

Qty

1

Availability

Part #

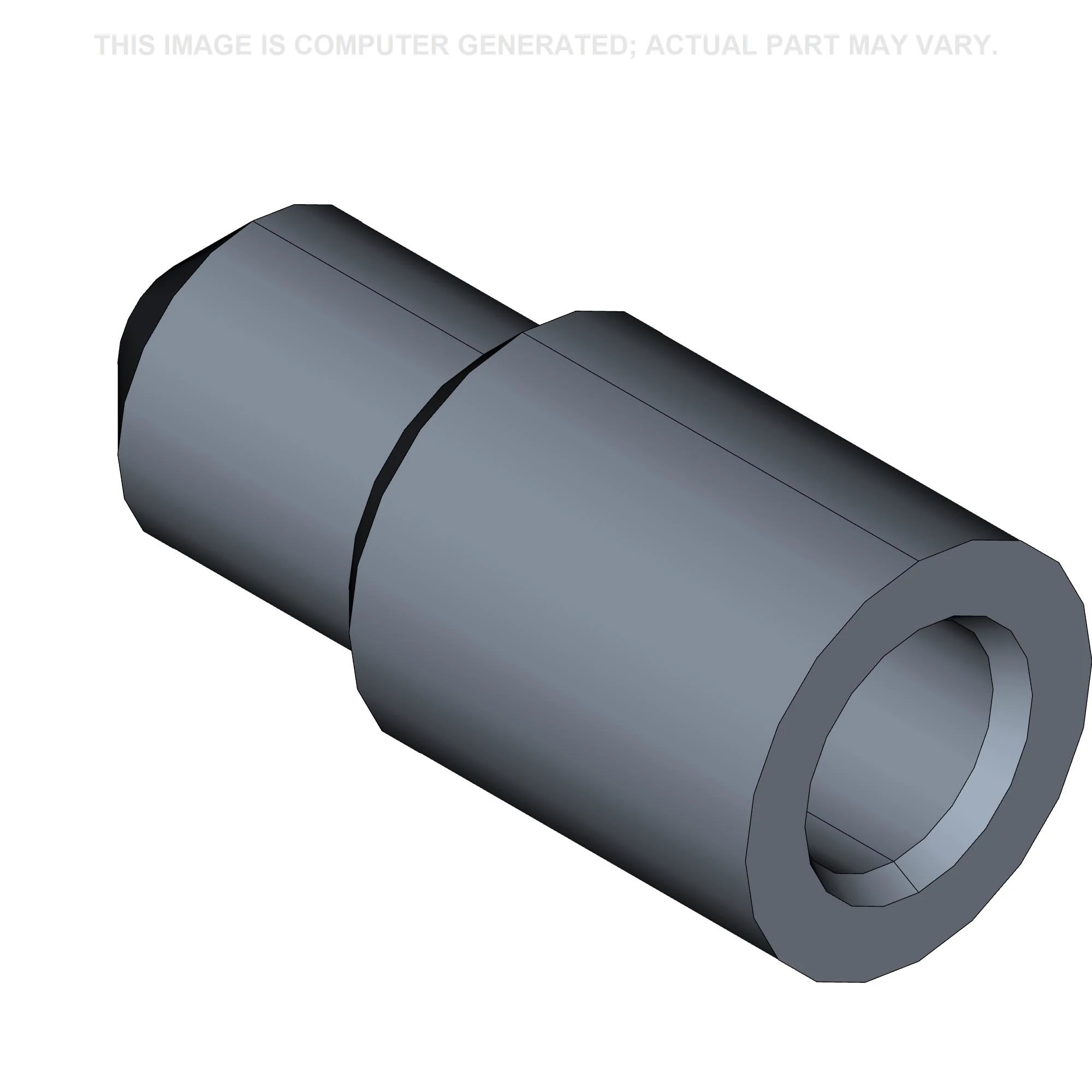

399882R1

Description

POPPET;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

399881R2

Description

PIN;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

549850R1

Description

SPRING;


Alts

Select

Ref.

13

Qty

X

Availability

Part #

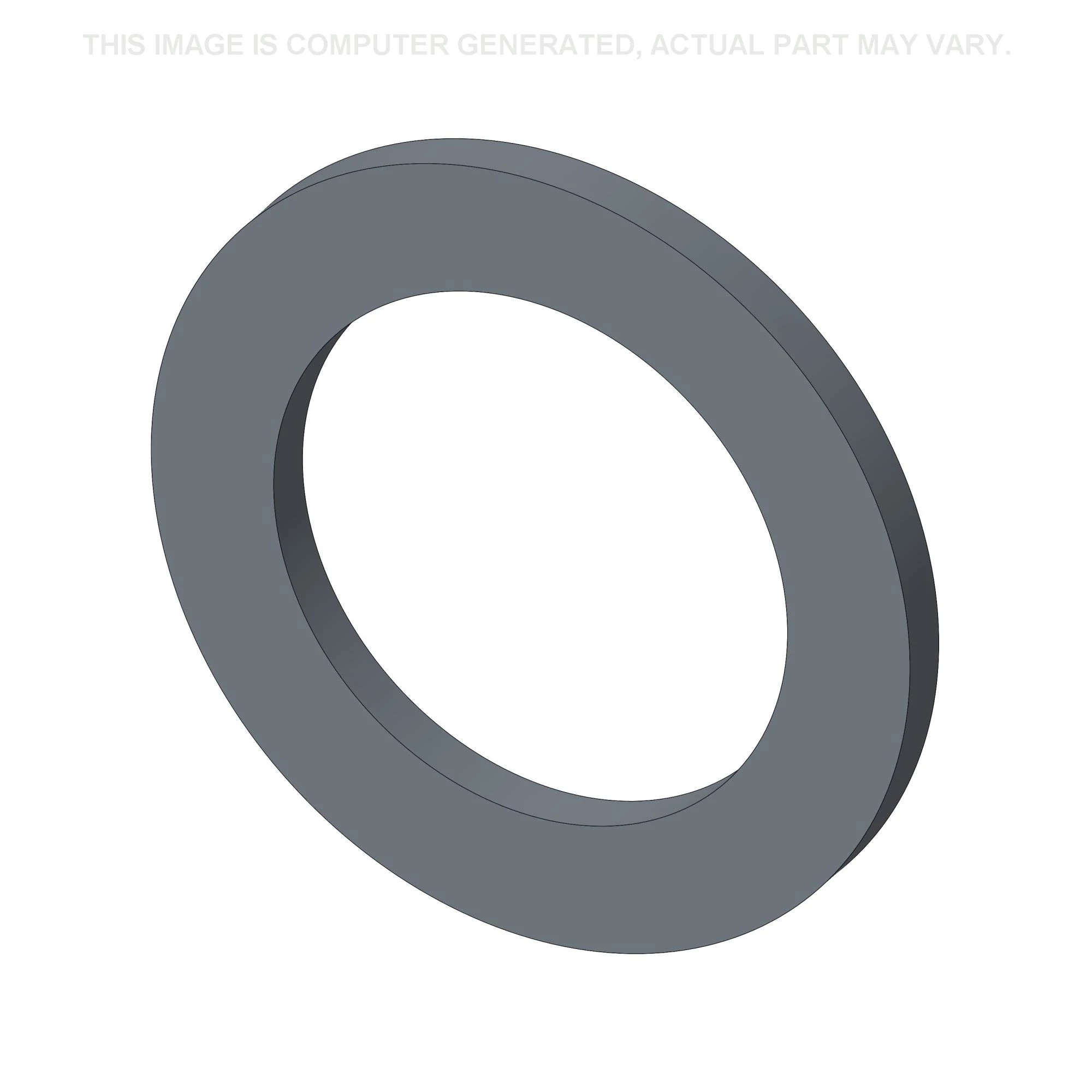

363454R1

Description

WASHER 8.33mm ID x 12.3mm OD x 0.81mm Thk;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

573983R1

Description

PLUG;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

530775R94

Description

VALVE; Consists Of 22 - 31


Alts

Select

Ref.

17

Qty

1

Availability

Part #

238-6119

Description

O-RING 23.5mm ID x 2.62mm Thk, HNBR;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

378985R2

Description

BACK-UP RING;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

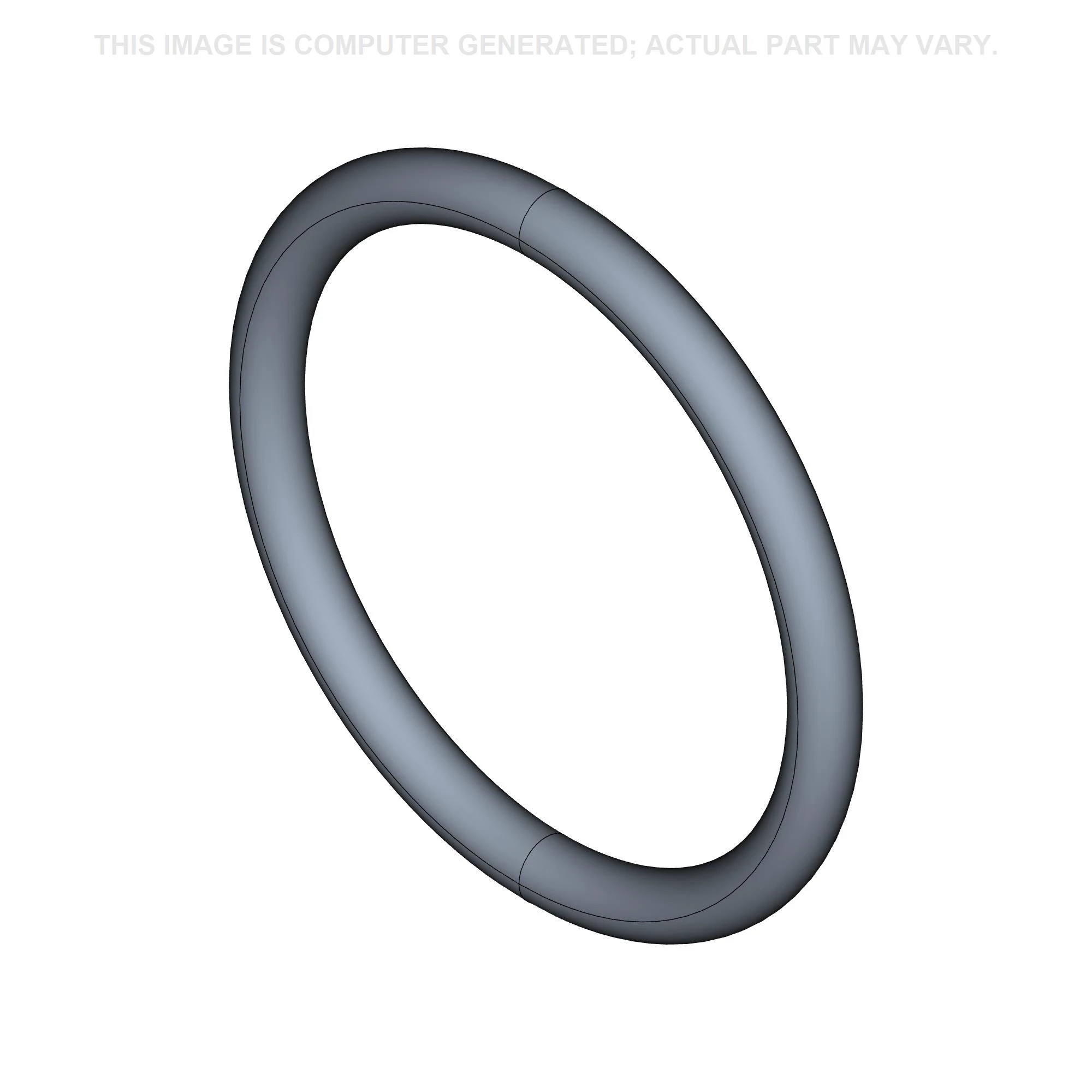

238-5118

Description

O-RING 21.9mm ID x 2.62mm Thk, NBR;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

399858R92

Description

VALVE; 2500 psi


Alts

Select

Ref.

21

Qty

1

Availability

Part #

381760R1

Description

SPRING;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

399878R2

Description

SPRING;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

495-61020

Description

WASHER 0.203'' ID x 0.75'' OD x 0.067'' Thk; 13/64 x 3/4 x 1/16


Alts

Select

Ref.

24

Qty

1

Availability

Part #

530778R1

Description

RETAINER;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

405456R1

Description

PIN;


Alts

Select

Ref.

26

Qty

1

Availability

Part #

530777R3

Description

STEM;


Alts

Select

Ref.

27

Qty

X

Availability

Part #

100-3321

Description

SNAP RING #X21, .185'' Dia, E-Type;


Alts

Select

Ref.

28

Qty

1

Availability

Part #

405454R2

Description

PIN;


Alts

Select

Ref.

29

Qty

1

Availability

Part #

405452R2

Description

VALVE;


Alts

Select

Ref.

30

Qty

1

Availability

Part #

405453R1

Description

RETAINER;


Alts

Select

Ref.

31

Qty

1

Availability

Part #

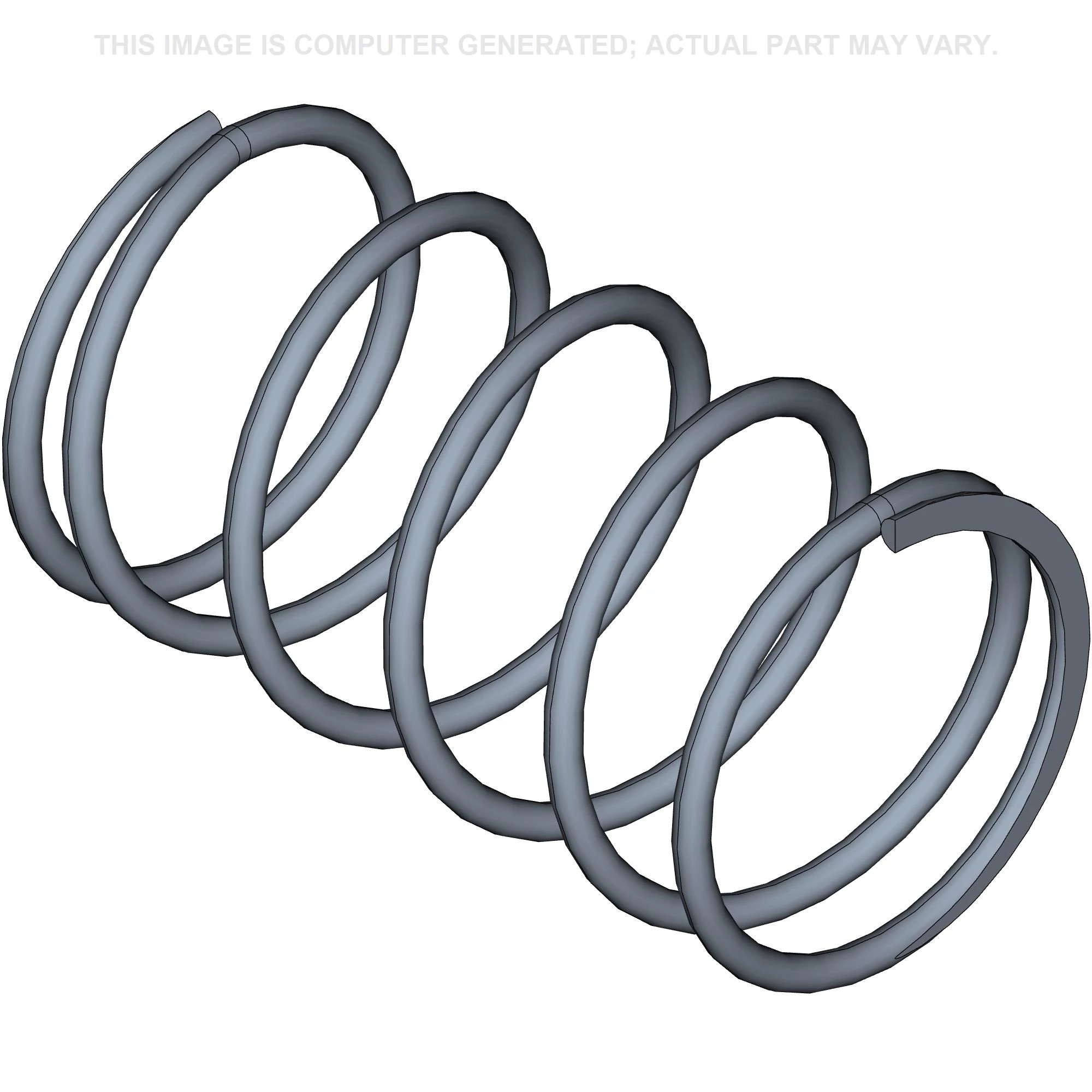

530776R1

Description

SPRING;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

527482R1

Description

VALVE By-Pass;


Alts

Select

Ref.

33

Qty

1

Availability

Part #

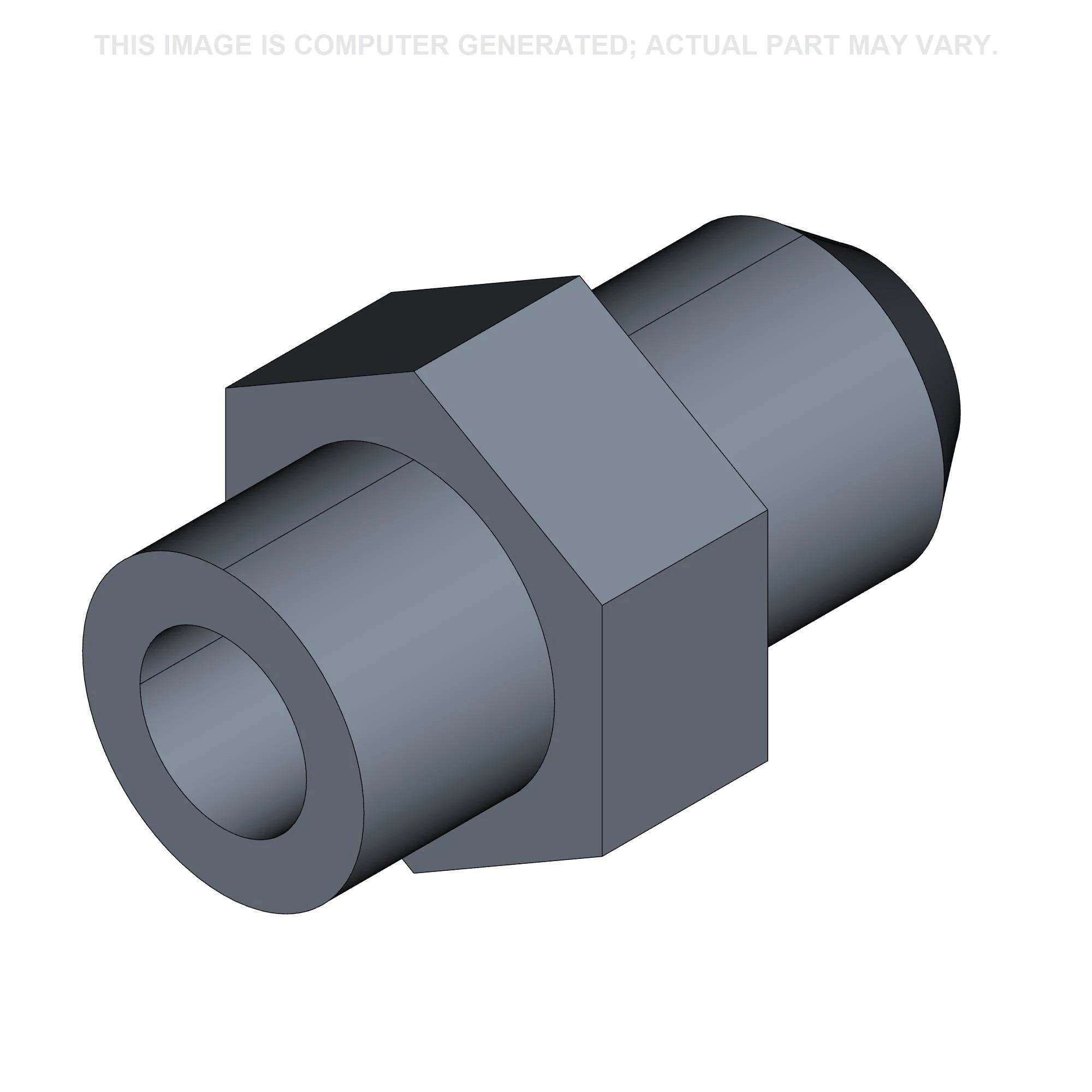

218-5059

Description

HYD CONNECTOR 3/4''-16, 37 Degree x 3/4''-16, O-Ring; Incl. 34


Alts

Select

Ref.

34

Qty

2

Availability

Part #

237-6008

Description

O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro;


Alts

Select

Ref.

35

Qty

1

Availability

Part #

529492R2

Description

PLUG;


Alts

Select

Ref.

36

Qty

1

Availability

Part #

1502544C1

Description

SPRING;


Alts

Select

Ref.

37

Qty

1

Availability

Part #

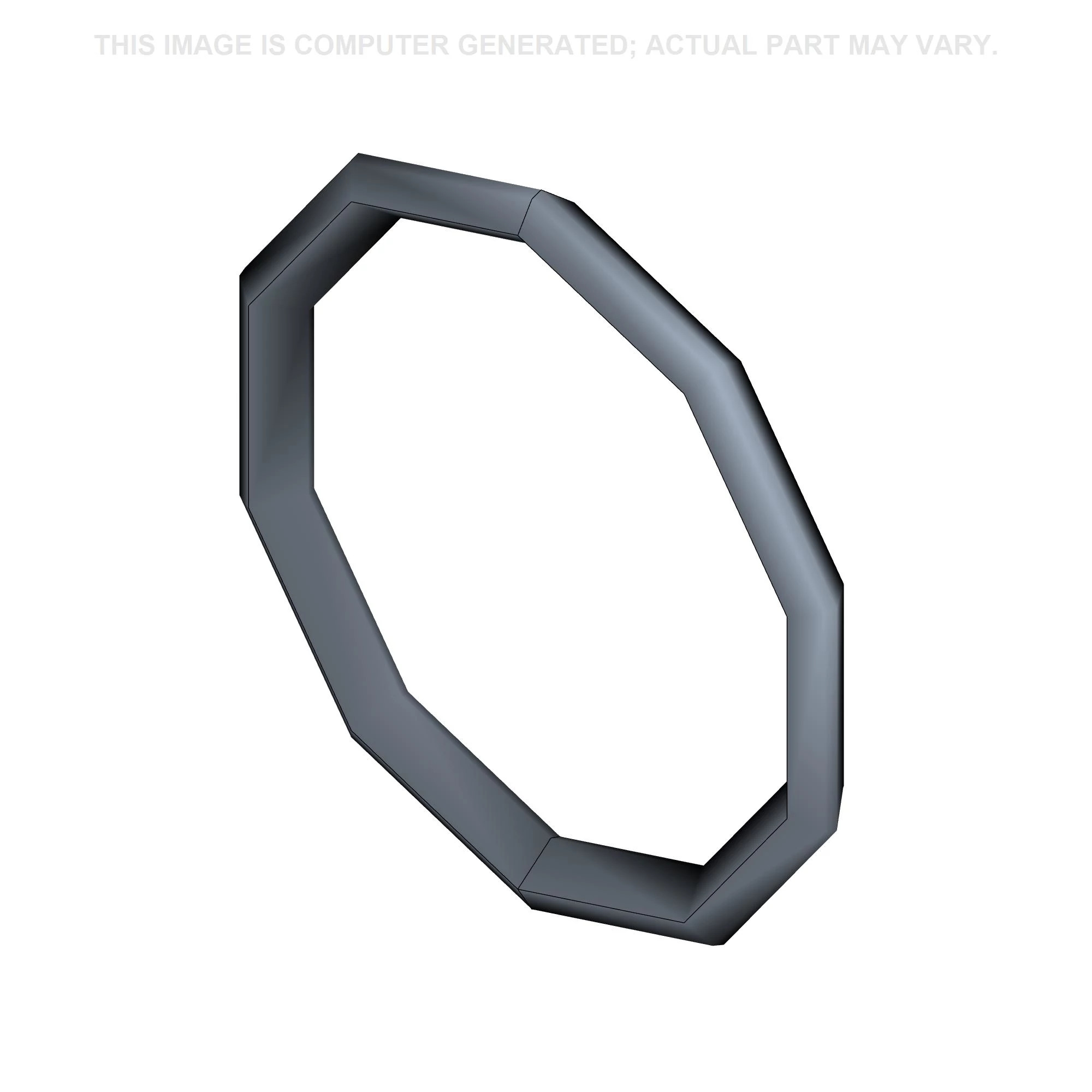

237-6014

Description

O-RING 0.116'' Thk x 1.048'' ID, -914, Cl 6, 90 Duro;


Alts

Select

Ref.

38

Qty

1

Availability

Part #

530781R2

Description

GUIDE;


Alts

Select

Ref.

39

Qty

1

Availability

Part #

238-5113

Description

O-RING 14mm ID x 2.62mm Thk, NBR;


Alts

Select

Ref.

40

Qty

1

Availability

Part #

530780R1

Description

BOOT;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

237-6006

Description

O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;


Alts
