PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11PEDAL;
-
1CARRIAGE BOLT Short Sq Nk, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, Short NK, 5/16''-18 x 3/4'', G5, Full Thd
-
2SERRATED BOLT Hex Flg, 3/8'' - 16 x 1'';
-
2WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; SAE, 3/8''
-
2WASHER 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8''
-
1SPACER;
-
1SERRATED NUT 5/16'' - 18 Gr 5 ZND;
-
2SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-
22DRIVE BUSHING; Spacer
-
31HANDLE; Weld Assy.
-
42BRACKET;
-
2CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 3/8''-16 x 3/4''
-
2SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-

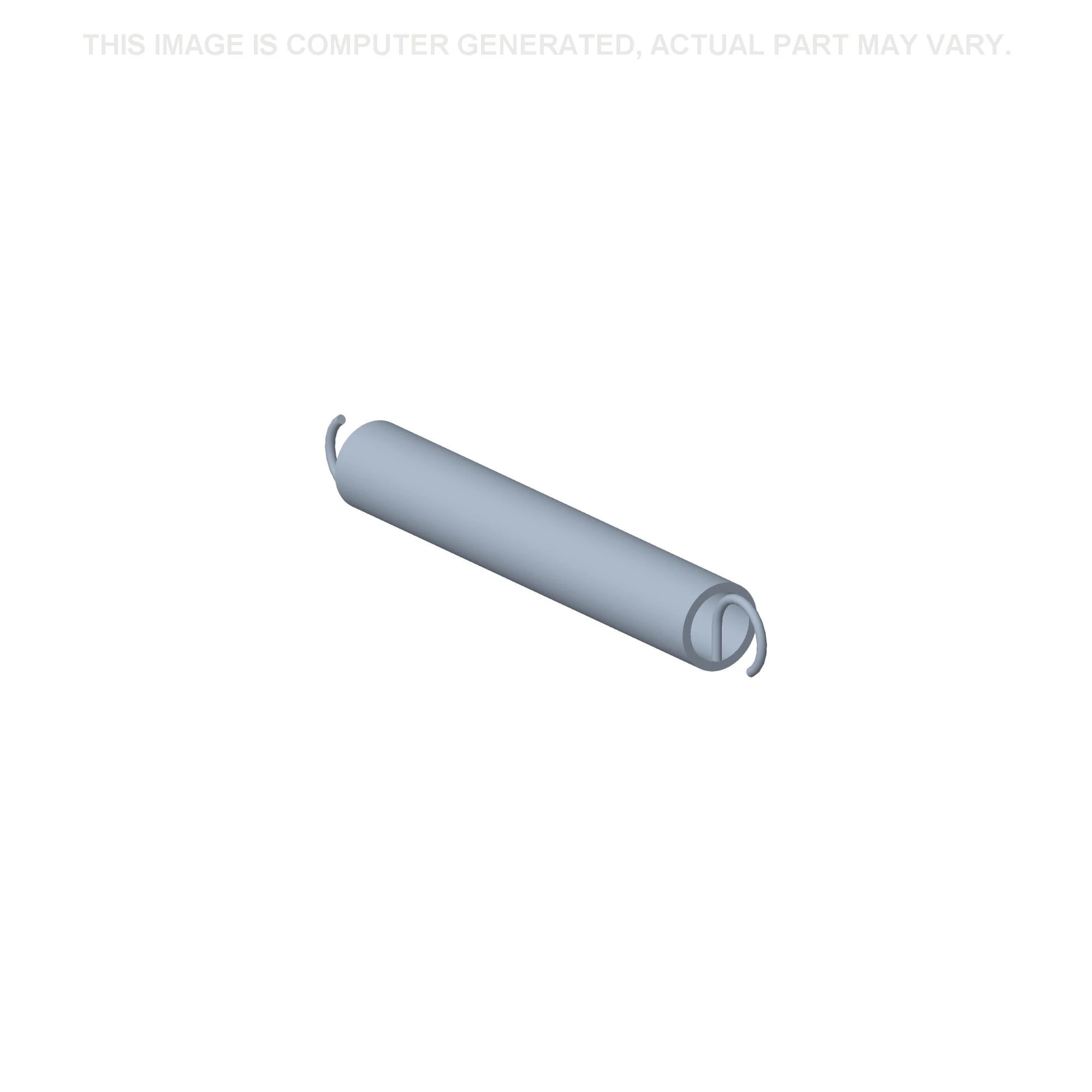

51SPRING; Extension
-
1COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''
-
61CLEVIS PIN 9.53mm OD x 47.63mm L; Pin, Clevis, 3/8'' x 1-7/8''
-
1COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''
-
71UNIVERSAL JOINT; Joint
-
1BOLT Hex, 3/8'' - 16 x 1-3/4'', Gr 5;
-
1SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-
81ROD;
-
91RIVET; Drilled
-
1COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''
-
101HUB; Assy.
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
111SCREW; Weld Assy.
-
121PIN; Clevis
-
1COTTER PIN 0.125'' OD x 1.75'' L;
-
131ROD; Weld Assy.
-
142WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
-
151TUBE; Weld Assy.
-
161SPRING; Compression
-
173NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
182BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
-
194NUT 5/16'' - 18, Gr 5; G5, 5/16''-18
-
201SUPPORT; Weld Assy., L.H.
-
201SUPPORT; Weld Assy., R.H.
-
212SERRATED BOLT Hex Flg, 3/8'' - 16 x 1'';
-
222SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-
234WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HT
-
244BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''
-
252/4ROLL PIN 12.7mm OD x 44.45mm L; Pin, Clevis, 1/2'' x 1-3/4''
-
264COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''
-
272RIVET; Drilled, 3/8'' x 1-3/4'';Check Dimensions Before Ordering
-
284COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''
-
294CONNECTING LINK; Link, w/One 1/2'' Hole & One 3/8'' Hole
-
294LINK; w/Two 1/2'' Holes;Check Dimensions Before Ordering
-
302SPRING;
-
312BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
322WASHER 9.9mm ID x 39.1mm OD x 4.8mm Thk;
-

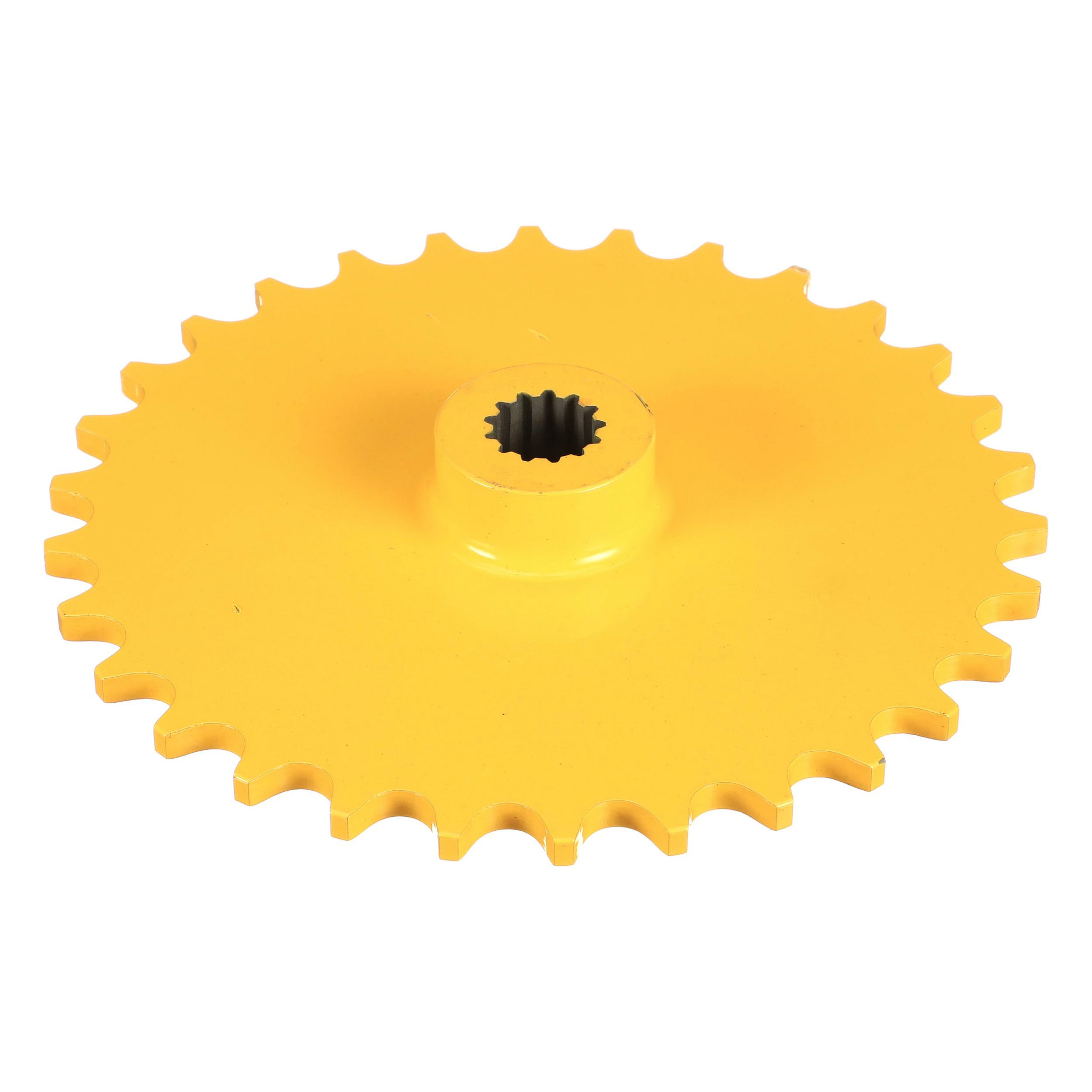

332SPROCKET; 30T
-
1LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
Select All
Ref.
Qty
1Availability
Part #
280497Description
CARRIAGE BOLT Short Sq Nk, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, Short NK, 5/16''-18 x 3/4'', G5, Full ThdImg
Alts
Ref.
Qty
2Availability
Part #
9706726Description
SERRATED BOLT Hex Flg, 3/8'' - 16 x 1'';Img
Alts
Ref.
Qty
2Availability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; SAE, 3/8''Img
Alts
Ref.
Qty
2Availability
Part #
87365Description
WASHER 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8''Img
Alts
Ref.
Qty
2Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
Qty
2Availability
Part #
280430Description
CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
Qty
1Availability
Part #
87398Description
COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''Img
Alts
Ref.
6Qty
1Availability
Part #
517372Description
CLEVIS PIN 9.53mm OD x 47.63mm L; Pin, Clevis, 3/8'' x 1-7/8''Img
Alts
Ref.
Qty
1Availability
Part #
80756Description
COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
Qty
1Availability
Part #
80756Description
COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
14Qty
2Availability
Part #
80702Description
WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;Img
Alts
Ref.
18Qty
2Availability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;Img
Alts
Ref.
21Qty
2Availability
Part #
9706726Description
SERRATED BOLT Hex Flg, 3/8'' - 16 x 1'';Img
Alts
Ref.
22Qty
2Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
23Qty
4Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HTImg
Alts
Ref.
24Qty
4Availability
Part #
87872Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''Img
Alts
Ref.
25Qty
2/4Availability
Part #
26298Description

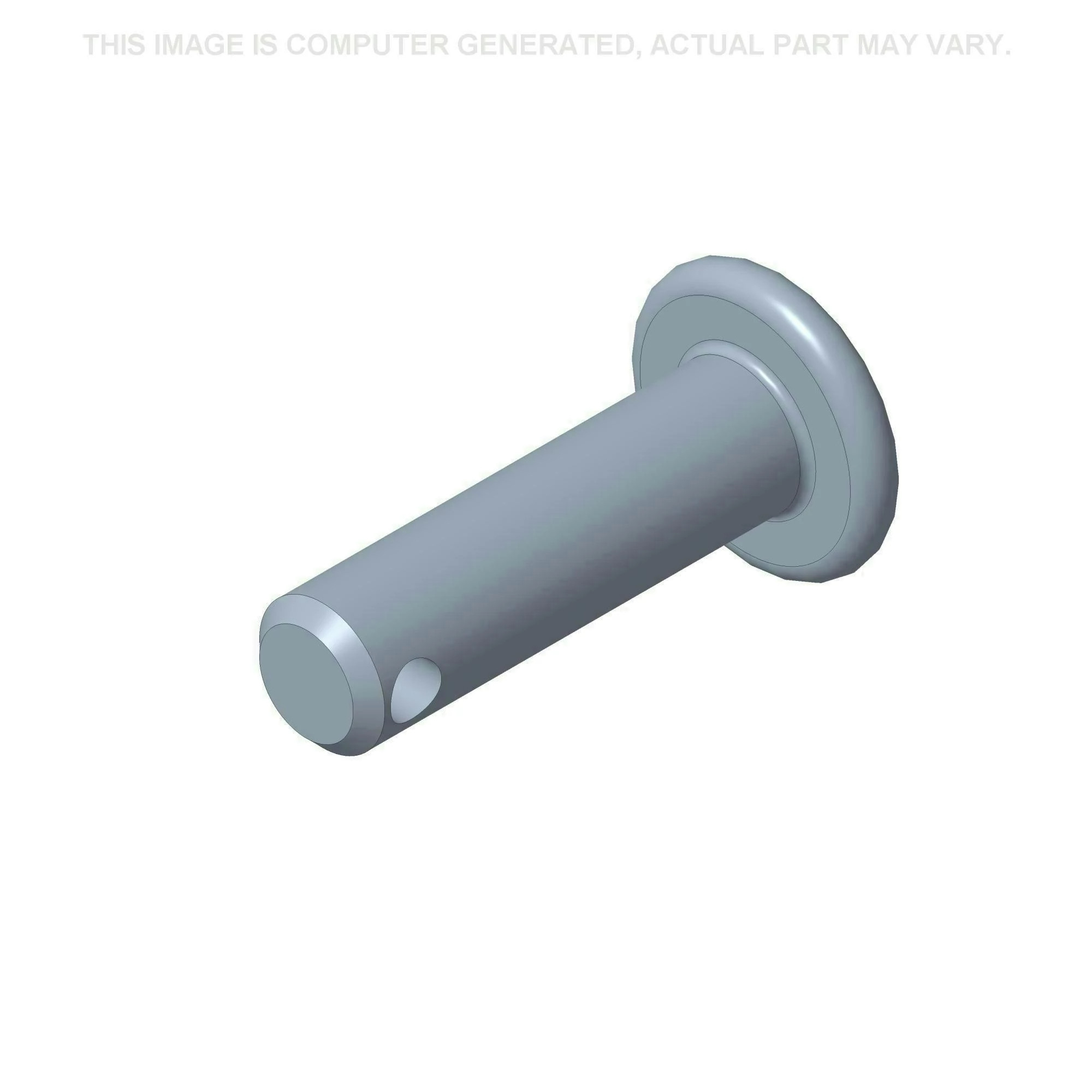

ROLL PIN 12.7mm OD x 44.45mm L; Pin, Clevis, 1/2'' x 1-3/4''Img
Alts
Ref.
26Qty
4Availability
Part #
87398Description
COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''Img
Alts
Ref.
27Qty
2Availability
Part #
25847Description
RIVET; Drilled, 3/8'' x 1-3/4'';Check Dimensions Before OrderingImg
Alts
Ref.
28Qty
4Availability
Part #
80756Description
COTTER PIN 1/8'' x 3/4''; PIN, SPLIT (COTTER), 1/8'' x 3/4''Img
Alts
Ref.
29Qty
4Availability
Part #
854742Description
CONNECTING LINK; Link, w/One 1/2'' Hole & One 3/8'' HoleImg
Alts
Ref.
29Qty
4Availability
Part #
9801117Description
LINK; w/Two 1/2'' Holes;Check Dimensions Before OrderingImg
Alts
Ref.
32Qty
2Availability
Part #
264198Description
WASHER 9.9mm ID x 39.1mm OD x 4.8mm Thk;Img
Alts
Ref.
Qty
1Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
