TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
173BALL BEARING 35mm ID x 72mm OD x 17mm W; Inner, 17' RIG.,17' FLEX., Part of 822337
-
1107LINK CHAIN; 17' RIG.,17' FLEX., Part of 755996
-
23OFFSET LINK; 17' RIG.,17' FLEX.
-
22OFFSET LINK; 17' RIG.,17' FLEX., Part of 822337;UNTIL CHASSIS NO.
-
22SET OF PARTS; 17' RIG.,17' FLEX., Part of 84991246;FROM CHASSIS NO.
-
31CONNECTING LINK; 17' RIG.,17' FLEX., Part of 755996
-
41CONNECTING LINK; 17' RIG.,17' FLEX., Part of 822337;UNTIL CHASSIS NO.
-
41CONNECTING LINK; 17' RIG.,17' FLEX., Part of 84991246;FROM CHASSIS NO.
-
51SUPPORT; 17' RIG.,17' FLEX.
-
68FLANGE 2.8346in ID, 0.4062in Holes, 3937in Holes Diam; Optional 036403
-
7ARCARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; 17' RIG.,17' FLEX.: Q = 9, 23' RIG.: Q = 3
-
84RIVET Pop, 4mm OD x 10.2mm L; 23' RIG.
-
96BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
-
10ARNUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.: Q = 6, 23' RIG.: Q = 9
-
112NUT Hex, M12 x 1.75, Cl 8, ZND; 17' RIG.,17' FLEX.
-
122BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; 17' RIG.,17' FLEX.
-
132WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 17' Rig.,17' Flex.
-
142CARRIAGE BOLT M12 x 1.75 x 35mm, Cl 8.8; 17' RIG.,17' FLEX.
-
191NUT Hex, M12 x 1.75, Cl 8, ZND; 17' RIG.,17' FLEX., Detail G-064
-
201LOCK WASHER M6; 17' RIG.,17' FLEX.
-
211BOLT Hex, M12 x 1.75 x 70mm, Cl 8.8; 17' RIG.,17' FLEX.
-
223BALL BEARING 35mm ID x 72mm OD x 19mm W;
-
232GEAR;
-
246WASHER 17.5mm ID x 56mm OD x 5mm Thk, CST, ZND;
-
254WASHER 17mm ID x 34mm OD x 3mm Thk;
-
262BOLT Hex, M12 x 71mm;
-
274BUSHING 15mm ID x 25mm OD x 7mm L;
-
281SPH ROLLER BEARING Ball, 15mm ID x 35mm OD x 11mm W; 23' RIG.
-
405CARRIAGE BOLT M12 x 1.75 x 30mm, Cl 8.8;
-
415WASHER 13mm ID x 28.5mm OD x 2.7mm Thk;
-
426BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
-
435NUT Hex, M12 x 1.75, Cl 8, ZND;
-
441SUPPORT; 17' RIG.,17' FLEX.
-
441SUPPORT; 23' RIG.
-
451SHAFT;
-
462KEY;
-
481GEAR;
-
49ARNUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.: Q = 5, 23' RIG.: Q = 6
-
50ARSET SCREW M10 x 25mm, Cl 12.9; 17' RIG.,17' FLEX.: Q = 2, 23' RIG.: Q = 3
-
512WASHER;
-
522LOCK NUT Hex, M12 x 1.75, Cl 8, ZND;
-
531CHAIN 60, 76 Links x 19.05mm = 1447.8mm; Replaces 822337,84991246
-
541GEAR;
-
642CABLE TIE 165mm OAL x 9mm Thk;
-
651WIRE HARNESS; 17' RIG.,17' FLEX.
-
651CABLE; 23' RIG.
-
663SCREW Cross Pan Hd, M4 x 35; 17' RIG.,17' FLEX.
-
673WASHER M4; 17' RIG.,17' FLEX.
-
683BELLEVILLE WASHER M4 Bolt Size x 10mm OD x 0.9mm Thk; 17' RIG.,17' FLEX.
-
693NUT Hex, M4 x 0.7, Cl 8, ZND; 17' Rig.,17' Flex.
-
701MULTIPOLE CONNECTOR 7 Pin; 17' RIG.,17' FLEX.
-
711CAP; 17' RIG.,17' FLEX.
-
721INSULATOR; 17' RIG.,17' FLEX.
-
731BOLT Hex, M12 x 1.75 x 70mm, Cl 8.8;
-
751NUT Hex, M12 x 1.75, Cl 8, ZND;
-
762SPIDER; (77), 17' RIG.,17' FLEX.
-
772LUBE NIPPLE Angled Con. Head, 45?, M8 x 1 x 21mm L; 17' RIG.,17' FLEX.
-
781SHAFT; (79), 17' RIG.,17' FLEX., Use 9577064+9577062
-
791ROLL PIN; ASSY, 17' RIG.,17' FLEX.
-
801GUARD; ASSY, 17' RIG.,17' FLEX.
-
901NUT Hex, M12 x 1.75, Cl 8, ZND;
-
911BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
-
921WASHER 13mm ID x 28.5mm OD x 2.7mm Thk;
-
931IDLER 75mm OD; Replaces Use 9577064+9577062
-
941CARRIAGE BOLT Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd;
-
952HALF-PULLEY;
-
961DISC;
-
97ARLUBE NIPPLE Straight Con. Head, M6 x 1.0 x 16mm L; 17' RIG.,17' FLEX.: Q = 3, 23' RIG.: Q = 2
-
981CHAIN; (1-3), 17' RIG.,17' FLEX., Optional 468895
-
991KEY;
-
1002FLANGED BEARING; Optional 1/166198
-
1011GEAR;
-
1021BALL BEARING 31.75mm ID x 62mm OD x 18mm W;
-
1031SHAFT;
-
1044NUT Hex, M8 x 1.25, Cl 8, ZND;
-
1051SET SCREW Sq Hd, M8 x 20mm, Cl 12.9;
-
106ARCARRIAGE BOLT M10 x 1.5 x 30mm, Cl 8.8; 17' RIG.,17' FLEX.: Q = 3, 23' RIG.: Q = 6
-
1083BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
-
1098BOLT Hex, M16 x 2 x 80mm, Cl 8.8;
-
1108BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;
-
1118THIN NUT Thin, M16 x 2, Cl 04;
-

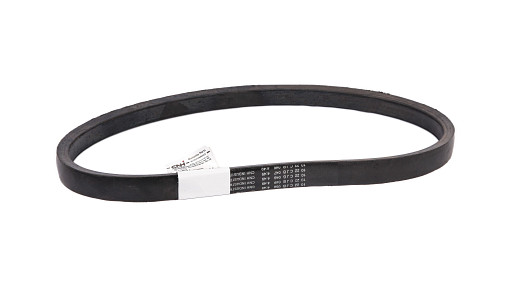

1121V-BELT V-Belt, 1.25in W x 51in L;
-
1131SPRING;
-
1141SHAFT; 17' RIG.,17' FLEX., Replaces 758771
-
1141SHAFT; 23' RIG.
-
1151HALF-PULLEY;
-
1301WASHER 32.542mm ID x 71.436mm OD x 3.43mm Thk;
-
1312NUT M30 x 1.5, Cl 8;
-
1321SPRING;
-
1331BEARING ASSY 25.4mm ID x 52mm OD x 15mm W;
-
1342FLANGE Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm;
-
1353CARRIAGE BOLT M8 x 1.25 x 25mm, Cl 8.8;
-
1373BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
-
1381BALL BEARING 31.7mm ID x 72mm OD x 19mm W;
-
139ARWASHER;
-
1403NUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.
-
1413BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; 17' RIG.,17' FLEX.
-
1433CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; 17' RIG.,17' FLEX.
Select All
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Select
Ref.
1Qty
73Availability
Part #
ST205ADescription
BALL BEARING 35mm ID x 72mm OD x 17mm W; Inner, 17' RIG.,17' FLEX., Part of 822337Img
Alts
Select
Ref.
1Qty
107Availability
Part #
25805Description

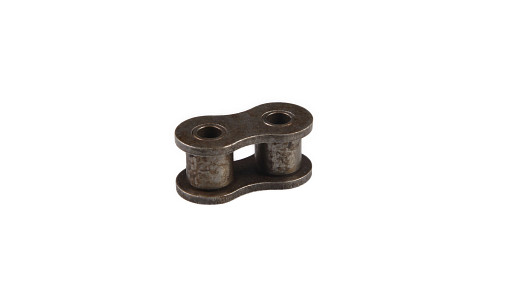

LINK CHAIN; 17' RIG.,17' FLEX., Part of 755996Img
Alts
Select
Ref.
2Qty
2Availability
Part #
25817Description
OFFSET LINK; 17' RIG.,17' FLEX., Part of 822337;UNTIL CHASSIS NO.Img
Alts
Select
Ref.
2Qty
2Availability
Part #
84991335Description
SET OF PARTS; 17' RIG.,17' FLEX., Part of 84991246;FROM CHASSIS NO.Img
Alts
Select
Ref.
3Qty
1Availability
Part #
25194Description
CONNECTING LINK; 17' RIG.,17' FLEX., Part of 755996Img
Alts
Select
Ref.
4Qty
1Availability
Part #
165590Description

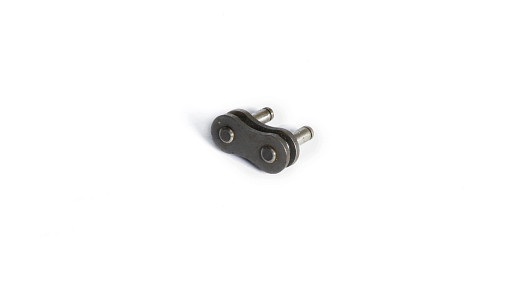

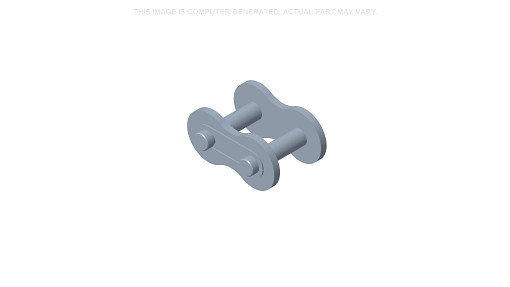

CONNECTING LINK; 17' RIG.,17' FLEX., Part of 822337;UNTIL CHASSIS NO.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
84991339Description
CONNECTING LINK; 17' RIG.,17' FLEX., Part of 84991246;FROM CHASSIS NO.Img
Alts
Select
Ref.
6Qty
8Availability
Part #
578189Description
FLANGE 2.8346in ID, 0.4062in Holes, 3937in Holes Diam; Optional 036403Img
Alts
Select
Ref.
7Qty
ARAvailability
Part #
338949Description
CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; 17' RIG.,17' FLEX.: Q = 9, 23' RIG.: Q = 3Img
Alts
Select
Ref.
8Qty
4Availability
Part #

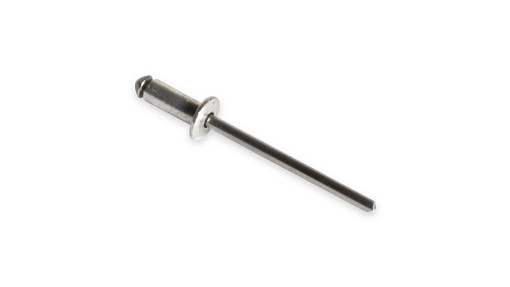

467516Description
RIVET Pop, 4mm OD x 10.2mm L; 23' RIG.Img
Alts
Select
Ref.
9Qty
6Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;Img
Alts
Select
Ref.
10Qty
ARAvailability
Part #
100016Description
NUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.: Q = 6, 23' RIG.: Q = 9Img
Alts
Select
Ref.
11Qty
2Availability
Part #
9706685Description
NUT Hex, M12 x 1.75, Cl 8, ZND; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
12Qty
2Availability
Part #
140046Description
BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
13Qty
2Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 17' Rig.,17' Flex.Img
Alts
Select
Ref.
14Qty
2Availability
Part #
328430Description
CARRIAGE BOLT M12 x 1.75 x 35mm, Cl 8.8; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
19Qty
1Availability
Part #
9706685Description
NUT Hex, M12 x 1.75, Cl 8, ZND; 17' RIG.,17' FLEX., Detail G-064Img
Alts
Select
Ref.
20Qty
1Availability
Part #
140026Description
LOCK WASHER M6; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
9706717Description
BOLT Hex, M12 x 1.75 x 70mm, Cl 8.8; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
22Qty
3Availability
Part #
322360Description

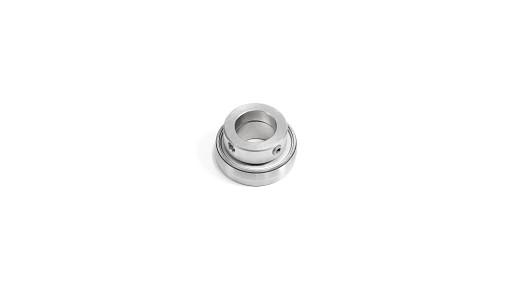

BALL BEARING 35mm ID x 72mm OD x 19mm W;Img
Alts
Select
Ref.
24Qty
6Availability
Part #
337522Description
WASHER 17.5mm ID x 56mm OD x 5mm Thk, CST, ZND;Img
Alts
Select
Ref.
25Qty
4Availability
Part #
378246Description
WASHER 17mm ID x 34mm OD x 3mm Thk;Img
Alts
Select
Ref.
27Qty
4Availability
Part #
822335Description
BUSHING 15mm ID x 25mm OD x 7mm L;Img
Alts
Select
Ref.
28Qty
1Availability
Part #
308803Description
SPH ROLLER BEARING Ball, 15mm ID x 35mm OD x 11mm W; 23' RIG.Img
Alts
Select
Ref.
40Qty
5Availability
Part #
120044Description

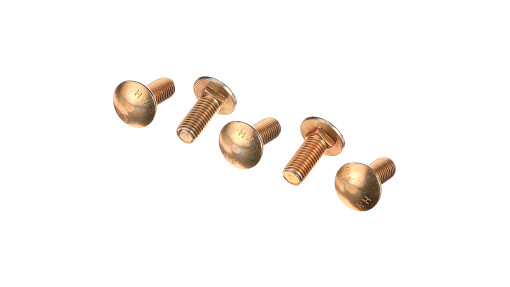

CARRIAGE BOLT M12 x 1.75 x 30mm, Cl 8.8;Img
Alts
Select
Ref.
41Qty
5Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk;Img
Alts
Select
Ref.
42Qty
6Availability
Part #
140046Description
BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;Img
Alts
Select
Ref.
43Qty
5Availability
Part #
9706685Description
NUT Hex, M12 x 1.75, Cl 8, ZND;Img
Alts
Select
Ref.
49Qty
ARAvailability
Part #
100016Description
NUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.: Q = 5, 23' RIG.: Q = 6Img
Alts
Select
Ref.
50Qty
ARAvailability
Part #

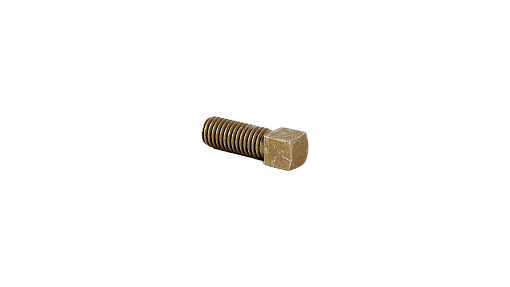

393599Description
SET SCREW M10 x 25mm, Cl 12.9; 17' RIG.,17' FLEX.: Q = 2, 23' RIG.: Q = 3Img
Alts
Select
Ref.
52Qty
2Availability
Part #
100038Description
LOCK NUT Hex, M12 x 1.75, Cl 8, ZND;Img
Alts
Select
Ref.
53Qty
1Availability
Part #
84993782Description

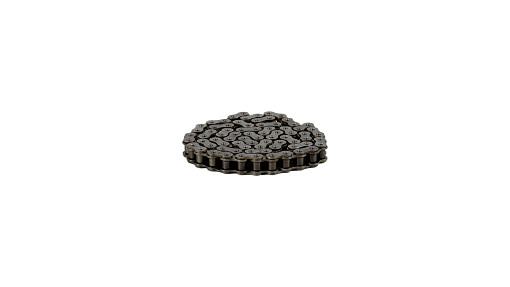

CHAIN 60, 76 Links x 19.05mm = 1447.8mm; Replaces 822337,84991246Img
Alts
Select
Ref.
65Qty
1Availability
Part #
824762Description
WIRE HARNESS; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
66Qty
3Availability
Part #
301572Description
SCREW Cross Pan Hd, M4 x 35; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
68Qty
3Availability
Part #
322355Description
BELLEVILLE WASHER M4 Bolt Size x 10mm OD x 0.9mm Thk; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
69Qty
3Availability
Part #
100012Description

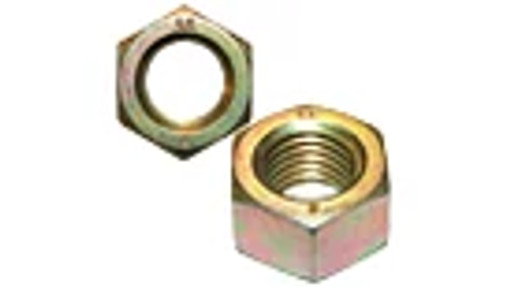

NUT Hex, M4 x 0.7, Cl 8, ZND; 17' Rig.,17' Flex.Img
Alts
Select
Ref.
70Qty
1Availability
Part #
398224Description
MULTIPOLE CONNECTOR 7 Pin; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
73Qty
1Availability
Part #
9706717Description
BOLT Hex, M12 x 1.75 x 70mm, Cl 8.8;Img
Alts
Select
Ref.
75Qty
1Availability
Part #
9706685Description
NUT Hex, M12 x 1.75, Cl 8, ZND;Img
Alts
Select
Ref.
76Qty
2Availability
Part #
9577064Description
SPIDER; (77), 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
77Qty
2Availability
Part #
150024Description

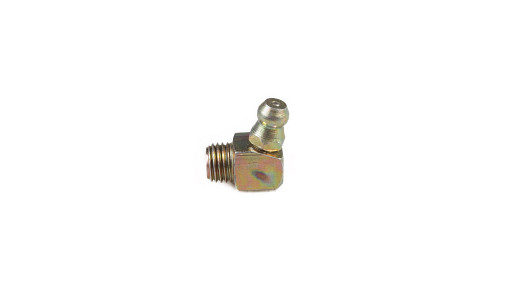

LUBE NIPPLE Angled Con. Head, 45?, M8 x 1 x 21mm L; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
78Qty
1Availability
Part #
9577060Description
SHAFT; (79), 17' RIG.,17' FLEX., Use 9577064+9577062Img
Alts
Select
Ref.
79Qty
1Availability
Part #
9577062Description

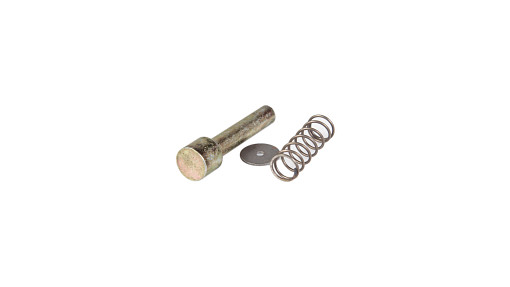

ROLL PIN; ASSY, 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
80Qty
1Availability
Part #
9577063Description
GUARD; ASSY, 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
90Qty
1Availability
Part #
9706685Description
NUT Hex, M12 x 1.75, Cl 8, ZND;Img
Alts
Select
Ref.
91Qty
1Availability
Part #
140046Description
BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;Img
Alts
Select
Ref.
92Qty
1Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk;Img
Alts
Select
Ref.
93Qty
1Availability
Part #
334970Description

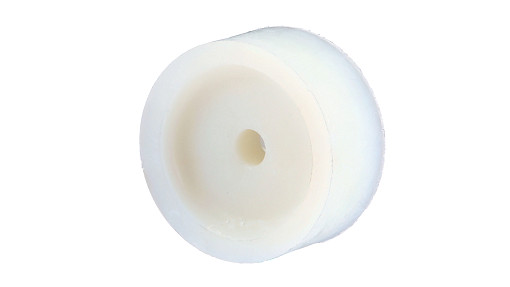

IDLER 75mm OD; Replaces Use 9577064+9577062Img
Alts
Select
Ref.
94Qty
1Availability
Part #
334682Description
CARRIAGE BOLT Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
97Qty
ARAvailability
Part #
321204Description
LUBE NIPPLE Straight Con. Head, M6 x 1.0 x 16mm L; 17' RIG.,17' FLEX.: Q = 3, 23' RIG.: Q = 2Img
Alts
Select
Ref.
98Qty
1Availability
Part #
755996Description
CHAIN; (1-3), 17' RIG.,17' FLEX., Optional 468895Img
Alts
Select
Ref.
100Qty
2Availability
Part #
86548970Description
FLANGED BEARING; Optional 1/166198Img
Alts
Select
Ref.
102Qty
1Availability
Part #
757324Description

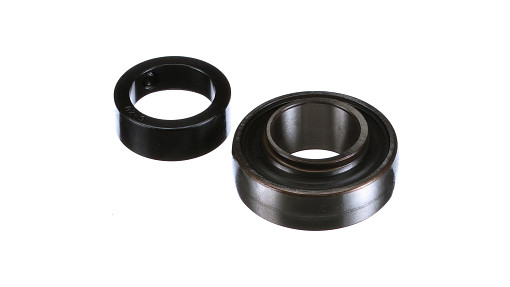

BALL BEARING 31.75mm ID x 62mm OD x 18mm W;Img
Alts
Select
Ref.
104Qty
4Availability
Part #
9706690Description
NUT Hex, M8 x 1.25, Cl 8, ZND;Img
Alts
Select
Ref.
105Qty
1Availability
Part #
393597Description
SET SCREW Sq Hd, M8 x 20mm, Cl 12.9;Img
Alts
Select
Ref.
106Qty
ARAvailability
Part #
86512446Description

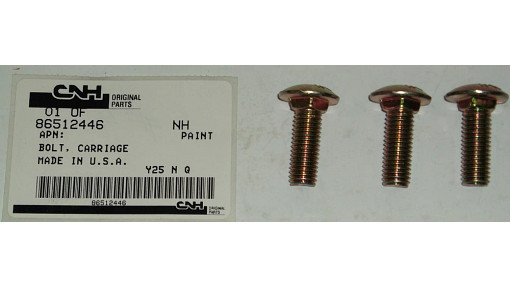

CARRIAGE BOLT M10 x 1.5 x 30mm, Cl 8.8; 17' RIG.,17' FLEX.: Q = 3, 23' RIG.: Q = 6Img
Alts
Select
Ref.
108Qty
3Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;Img
Alts
Select
Ref.
109Qty
8Availability
Part #
120093Description
BOLT Hex, M16 x 2 x 80mm, Cl 8.8;Img
Alts
Select
Ref.
110Qty
8Availability
Part #
140048Description
BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;Img
Alts
Select
Ref.
111Qty
8Availability
Part #
100095Description
THIN NUT Thin, M16 x 2, Cl 04;Img
Alts
Select
Ref.
112Qty
1Availability
Part #
603720Description
V-BELT V-Belt, 1.25in W x 51in L;Img
Alts
Select
Ref.
114Qty
1Availability
Part #
9576047Description
SHAFT; 17' RIG.,17' FLEX., Replaces 758771Img
Alts
Select
Ref.
130Qty
1Availability
Part #
187413Description

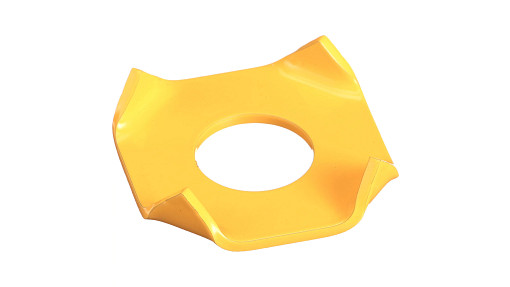

WASHER 32.542mm ID x 71.436mm OD x 3.43mm Thk;Img
Alts
Select
Ref.
133Qty
1Availability
Part #
80757325Description

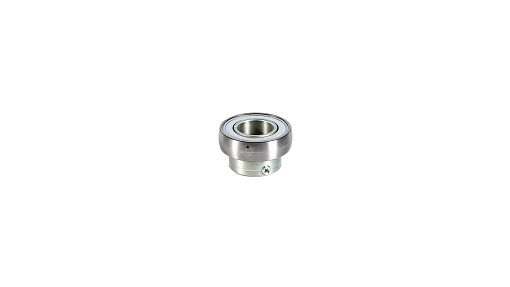

BEARING ASSY 25.4mm ID x 52mm OD x 15mm W;Img
Alts
Select
Ref.
134Qty
2Availability
Part #
86603075Description
FLANGE Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm;Img
Alts
Select
Ref.
135Qty
3Availability
Part #
308761Description

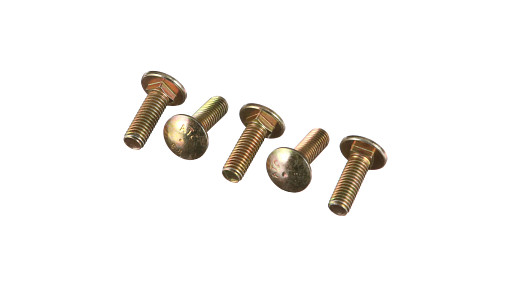

CARRIAGE BOLT M8 x 1.25 x 25mm, Cl 8.8;Img
Alts
Select
Ref.
137Qty
3Availability
Part #
322358Description
BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;Img
Alts
Select
Ref.
138Qty
1Availability
Part #
9576041Description

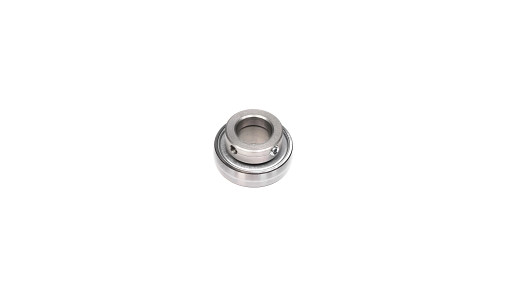

BALL BEARING 31.7mm ID x 72mm OD x 19mm W;Img
Alts
Select
Ref.
140Qty
3Availability
Part #
100016Description
NUT Hex, M10 x 1.5, Cl 8, ZND; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
141Qty
3Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; 17' RIG.,17' FLEX.Img
Alts
Select
Ref.
143Qty
3Availability
Part #
338949Description
CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; 17' RIG.,17' FLEX.Img
Alts
