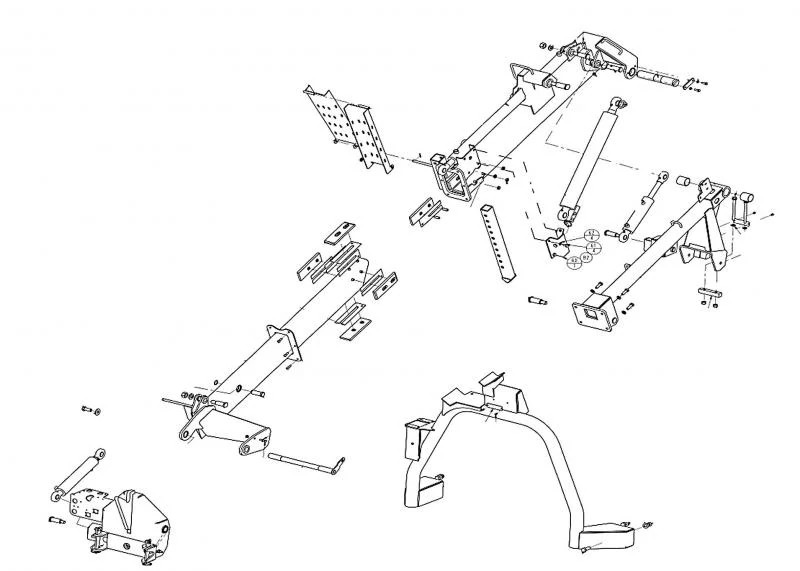

714707075 - DIA KIT, HARVESTER - NEW HOLLAND AGRICULTURE

This Kit includes the following parts:

• Part Number
  14305921
  Description
  HEX SOC SCREW.
  Quantity
  10
• Part Number
  14306424
  Description
  Hex Socket Screw - Cl 8.8 - Full Thread - M8 x 1.25 x 25.
  Quantity
  10
• Part Number
  14569387
  Description
  CABLE TIE.
  Quantity
  15
• Part Number
  16043624
  Description
  BOLT.
  Quantity
  10
• Part Number
  16044321
  Description
  BOLT.
  Quantity
  10
• Part Number
  16605824
  Description
  SCREW.
  Quantity
  10
• Part Number
  16887624
  Description
  WASHER.
  Quantity
  10
• Part Number
  17089575
  Description
  SEALING WASHER.
  Quantity
  10
• Part Number
  17090274
  Description
  LOCK WASHER.
  Quantity
  10
• Part Number
  190003888452
  Description
  LOCK NUT.
  Quantity
  5
• Part Number
  10444721
  Description
  BOLT.
  Quantity
  4
• Part Number
  10519604
  Description
  RONDELLE.
  Quantity
  10
• Part Number
  10717511
  Description
  ECROU FIN.
  Quantity
  10
• Part Number
  10733601
  Description
  Goupille fendue - M3,2 x 22.
  Quantity
  5
• Part Number
  10902124
  Description
  VIS.
  Quantity
  10
• Part Number
  11115234
  Description
  VIS.
  Quantity
  2
• Part Number
  11194274
  Description
  RONDELLE BELLEVILLE.
  Quantity
  10
• Part Number
  11194371
  Description
  RONDELLE BELLEVILLE.
  Quantity
  5
• Part Number
  120090
  Description
  VIS.
  Quantity
  10
• Part Number
  120104
  Description
  Boulon à tête hexagonale - Filetage complet – M8 x 20 mm L.
  Quantity
  50
• Part Number
  12574221
  Description
  CONTRE-ECROU.
  Quantity
  10
• Part Number
  12577411
  Description
  ECROU.
  Quantity
  10
• Part Number
  12577521
  Description
  ECROU.
  Quantity
  10
• Part Number
  129274
  Description
  Raccord en T - 9/16 po-18 JIC x 9/16 po-18 JIC x 9/16 po-18 JIC #129274.
  Quantity
  2
• Part Number
  300807
  Description
  VIS.
  Quantity
  1
• Part Number
  920002535
  Description
  BOUCHON.
  Quantity
  2
• Part Number
  920015078
  Description
  ACCOUPLEMENT RAPIDE.
  Quantity
  1
• Part Number
  920016927
  Description
  ACCOUPLEMENT RAPIDE FEM..
  Quantity
  2
• Part Number
  920018400
  Description
  BOUCHON.
  Quantity
  6
• Part Number
  920018401
  Description
  BOUCHON.
  Quantity
  6
• Part Number
  920018402
  Description
  ACCOUPLEMENT RAPIDE.
  Quantity
  6
• Part Number
  920018403
  Description
  ACCOUPLEMENT RAPIDE.
  Quantity
  6
• Part Number
  920018588
  Description
  RACCORD HYDRAULIQUE.
  Quantity
  20
• Part Number
  920018639
  Description
  COUDE.
  Quantity
  2
• Part Number
  920018673
  Description
  RACCORD HYDRAULIQUE.
  Quantity
  5
• Part Number
  920018702
  Description
  SEAL.
  Quantity
  5
• Part Number
  920019043
  Description
  FLUID COUPLING.
  Quantity
  1
• Part Number
  920019068
  Description
  DUST CAP.
  Quantity
  1
• Part Number
  920019069
  Description
  FLUID COUPLING.
  Quantity
  1
• Part Number
  920019607
  Description
  BUSHING.
  Quantity
  2
• Part Number
  920019613
  Description
  BUSHING.
  Quantity
  2
• Part Number
  920019700
  Description
  ELEC. TERMINAL PIN.
  Quantity
  4
• Part Number
  920019782
  Description
  HYDRAULIC VALVE.
  Quantity
  1
• Part Number
  920019859
  Description
  ADAPTER.
  Quantity
  4
• Part Number
  920019921
  Description
  SOLENOID VALVE.
  Quantity
  1
• Part Number
  920096751
  Description
  COTTER PIN.
  Quantity
  3
• Part Number
  944007851
  Description
  HYD CONNECTOR.
  Quantity
  2
• Part Number
  944016446
  Description
  HOSE.
  Quantity
  1
• Part Number
  944017328
  Description
  HYD CONNECTOR.
  Quantity
  3
• Part Number
  944019697
  Description
  HOSE.
  Quantity
  1
• Part Number
  944019789
  Description
  POWER SOCKET.
  Quantity
  1
• Part Number
  944029436
  Description
  PLATE.
  Quantity
  2
• Part Number
  944030405
  Description
  HYDRAULIC CYLINDER.
  Quantity
  1
• Part Number
  944031437
  Description
  PIN.
  Quantity
  2
• Part Number
  86508624
  Description
  Hex Bolt - Cl 10.9 - M16 x 45.
  Quantity
  10
• Part Number
  86509867
  Description
  SERRATED BOLT.
  Quantity
  2
• Part Number
  86512959
  Description
  45 ELBOW.
  Quantity
  1
• Part Number
  86513014
  Description
  TEE.
  Quantity
  1
• Part Number
  86513087
  Description
  FITTING.
  Quantity
  2
• Part Number
  86528579
  Description
  Lock Nut.
  Quantity
  10
• Part Number
  86557412
  Description
  Hydraulic Tube Plug.
  Quantity
  1
• Part Number
  9847024
  Description
  Metric Hex Nut.
  Quantity
  5
• Part Number
  86595832
  Description
  CARRIAGE BOLT.
  Quantity
  2
• Part Number
  86625075
  Description
  LOCK NUT.
  Quantity
  5
• Part Number
  355532830
  Description
  WASHER.
  Quantity
  5
• Part Number
  626-12035
  Description
  Hex Bolt - Cl 10.9 - Full Thread - M12 x 1.75 x 35.
  Quantity
  5
• Part Number
  86629586
  Description
  90 ELBOW.
  Quantity
  6
• Part Number
  370002
  Description
  External Snap Ring - 0.922" ID x 0.0472" Thk.
  Quantity
  10
• Part Number
  87573374
  Description
  Hex Bolt - Cl 8.8 - M16 x 55.
  Quantity
  4
• Part Number
  700050802
  Description
  BELLEVILLE WASHER.
  Quantity
  3
• Part Number
  700053097
  Description
  ELBOW.
  Quantity
  1
• Part Number
  700053122
  Description
  BELLEVILLE WASHER.
  Quantity
  10
• Part Number
  700077446
  Description
  LUBE NIPPLE.
  Quantity
  10
• Part Number
  700701833
  Description
  SEAL.
  Quantity
  10
• Part Number
  700705822
  Description
  WASHER.
  Quantity
  2
• Part Number
  700705871
  Description
  WASHER.
  Quantity
  10
• Part Number
  392530
  Description
  Metric Hex Nut - M16 10 ZND.
  Quantity
  10
• Part Number
  700764217
  Description
  RIVET.
  Quantity
  5
• Part Number
  707704950
  Description
  THIN NUT.
  Quantity
  20
• Part Number
  87622416
  Description
  SHIM.
  Quantity
  13
• Part Number
  84058832
  Description
  CLIP.
  Quantity
  2
• Part Number
  43138
  Description
  Hex Bolt - Full Thread - M10 x 1.75 x 20 mm L.
  Quantity
  10
• Part Number
  87364
  Description
  Washer.
  Quantity
  10
• Part Number
  85806343
  Description
  SLIDING PAD.
  Quantity
  10
• Part Number
  87391536
  Description
  CHECK VALVE.
  Quantity
  1
• Part Number
  86500689
  Description
  Hex Nut - M10 x 1.5.
  Quantity
  5
• Part Number
  89824840
  Description
  WASHER.
  Quantity
  10
• Part Number
  89837647
  Description
  ELBOW.
  Quantity
  4
• Part Number
  920019705
  Description
  RIVET.
  Quantity
  4
• Part Number
  13790531
  Description
  SET SCREW.
  Quantity
  20
• Part Number
  6042504700
  Description
  INSTRUCTION.
  Quantity
  1
• Part Number
  700077552
  Description
  LUBE NIPPLE.
  Quantity
  1
• Part Number
  87622415
  Description
  SHIM.
  Quantity
  19
• Part Number
  87517365
  Description
  ECU.
  Quantity
  1
• Part Number
  87529056
  Description
  Control Unit Wire Harness.
  Quantity
  1
• Part Number
  920002534
  Description
  DUST CAP.
  Quantity
  2
• Part Number
  920018587
  Description
  HYD CONNECTOR.
  Quantity
  1
• Part Number
  920018589
  Description
  HYD CONNECTOR.
  Quantity
  3
• Part Number
  920018617
  Description
  SCREW.
  Quantity
  1
• Part Number
  920018857
  Description
  HYD CONNECTOR.
  Quantity
  2
• Part Number
  920019065
  Description
  PLUG.
  Quantity
  1
• Part Number
  920019302
  Description
  HYD CONNECTOR.
  Quantity
  2
• Part Number
  944008560
  Description
  HOSE.
  Quantity
  1
• Part Number
  944008567
  Description
  HYDRAULIC HOSE.
  Quantity
  2
• Part Number
  944010270
  Description
  HOSE.
  Quantity
  1
• Part Number
  944010273
  Description
  HOSE.
  Quantity
  1
• Part Number
  944010277
  Description
  Hydraulic Hose - 500 mm L.
  Quantity
  1
• Part Number
  944012566
  Description
  SUPPORT.
  Quantity
  1
• Part Number
  944012563
  Description
  SUPPORT.
  Quantity
  1
• Part Number
  944013329
  Description
  FLEXIBLE.
  Quantity
  1
• Part Number
  944018446
  Description
  GICLEUR D'HUILE.
  Quantity
  1
• Part Number
  944019065
  Description
  FLEXIBLE HYDRAULIQUE.
  Quantity
  1
• Part Number
  944020212
  Description
  ADAPTATEUR.
  Quantity
  1
• Part Number
  944027660
  Description
  Flexible du système d'alimentation – 3 500 mm de long.
  Quantity
  2
• Part Number
  944028196
  Description
  BRAS.
  Quantity
  1
• Part Number
  944028265
  Description
  BRAS.
  Quantity
  1
• Part Number
  944028274
  Description
  END PLATE.
  Quantity
  1
• Part Number
  944028326
  Description
  HYDRAULIC CYLINDER.
  Quantity
  1
• Part Number
  944028331
  Description
  SHAFT.
  Quantity
  2
• Part Number
  944028335
  Description
  PLATE.
  Quantity
  1
• Part Number
  944028334
  Description
  PIN.
  Quantity
  1
• Part Number
  944028439
  Description
  ROD.
  Quantity
  2
• Part Number
  944028419
  Description
  SHIELD.
  Quantity
  1
• Part Number
  944028433
  Description
  HOOK.
  Quantity
  1
• Part Number
  944028868
  Description
  PIN.
  Quantity
  1
• Part Number
  944029077
  Description
  HOSE.
  Quantity
  1
• Part Number
  944029086
  Description
  HYDRAULIC HOSE.
  Quantity
  1
• Part Number
  944029228
  Description
  GUIDE.
  Quantity
  1
• Part Number
  944029863
  Description
  PLATE.
  Quantity
  1
• Part Number
  944030382
  Description
  HYDRAULIC CYLINDER.
  Quantity
  1
• Part Number
  944030600
  Description
  HOSE.
  Quantity
  1
• Part Number
  944030616
  Description
  PIN.
  Quantity
  1
• Part Number
  944030627
  Description
  U-FRAME.
  Quantity
  1
• Part Number
  944030628
  Description
  U-FRAME.
  Quantity
  1
• Part Number
  944030656
  Description
  PLATE.
  Quantity
  2
• Part Number
  944031450
  Description
  PIN.
  Quantity
  2
• Part Number
  944031698
  Description
  PLATE.
  Quantity
  1
• Part Number
  944031826
  Description
  BAR.
  Quantity
  1
• Part Number
  944031839
  Description
  PIN.
  Quantity
  1
• Part Number
  944032106
  Description
  BLOC.
  Quantity
  1
• Part Number
  944032113
  Description
  BROCHE.
  Quantity
  1
• Part Number
  944033465
  Description
  ARRET D'ESSIEU.
  Quantity
  1
• Part Number
  944033458
  Description
  BLOC DE COMMANDES.
  Quantity
  1
• Part Number
  944033508
  Description
  VERIN HYDRAULIQUE.
  Quantity
  1
• Part Number
  944033558
  Description
  FAISCEAU ELECTRIQUE.
  Quantity
  1
• Part Number
  944033856
  Description
  FLEXIBLE.
  Quantity
  1
• Part Number
  944034357
  Description
  HOSE.
  Quantity
  2
• Part Number
  944034358
  Description
  HOSE.
  Quantity
  2

This Kit includes the following parts:
