146 - REAR FRAME AND DRIVING MECHANISMS, FORWARD AND REVERSE DRIVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    80711
    LUBE NIPPLE 65 Degree, 1/8'' NPT x 7/8'' lg; FITTING, 1/8-27 x 65deg. lubrication (optional with 271284)
  • 2
    1
    271284
    YOKE; 1/8-27 x 67-1/2deg. lubrication (optional with 109460)
  • 5
    1
    53717DA
    BUTTON; BALL, selector handle
  • 1
    S3631/2
    PIN; 3/8 x 1-1/4'' headed
  • 7
    1
    213-316
    ADJUSTABLE CLEVIS 3/8'' - 24; CLEVIS, 3/8'' rod end
  • 9
    2
    350667R1
    O-RING 0.103'' Thk x 0.674'' ID, -115, Cl 5, 75 Duro; selector lever shaft (11/16 x 7/8 x 3/32'')
  • 10
    1
    318720R91
    FORK TEDDER; FORK ASSEMBLY, selector (also order block, 318721R1 unless tractor is so equipped)
  • 11
    1
    370496R1
    SHAFT; transmission drive
  • 13
    1
    ST345A
    BALL BEARING 60mm ID x 110mm OD x 22mm W; transmission drive shaft
  • 14
    1
    357194R1
    RING; transmission drive shaft bearing snap
  • 16
    1
    370486R91
    NEEDLE BEARING; transmission drive shaft needle
  • 20
    1
    370493R1
    BEARING, NEEDLE; ROLLER, planet gear bearing needle (207) International 340 series; (SN Break) Between 501 and 9611
  • 20
    1
    364634R91
    PIN; PACKAGE, planet gear bearing needle roller (consists of 138 rollers) International 340 series, 9612 up
  • 21
    3
    359888R1
    SPACER; planet gear roller bearing International 340 series, 9612 up
  • 22
    3
    370491R1
    GEAR; planet, long
  • 25
    1
    357035R1
    RING; reverse drive sun gear bearing snap
  • 29
    1
    370497R2
    PINION; GEAR, reverse sun gear
  • 30
    1
    370500R2
    COUPLING; transmission drive spline
  • 31
    1
    370752R1
    RETAINER; transmission drive shaft
  • 32
    1
    371755R2
    BOLT (SPREADER) Hex, 3/8'' - 24 x 1''; BOLT, transmission drive shaft retainer
  • 33
    4
    59473DA
    LOCK; spline shifter coupling collar bolt
  • 34
    1
    370506R2
    HUB; COUPLING, spline shifter
  • 36
    2
    17010R1
    BALL 5/16'' Dia; Forward & reverse poppet 5/16'' Dia
  • 37
    1
    370505R2
    VALVE SPRING; SPRING, forward and reverse poppet
  • 39
    1
    370856R1
    RING, SNAP; RING, clutch shaft bearing cage snap
  • 40
    1
    370473R1
    CAGE; clutch shaft bearing
  • 41
    1
    451590R91
    BALL BEARING 30mm ID x 55mm OD x 13mm W; BALL BEARING, clutch shaft
  • 42
    1
    370504R1
    RING; clutch shaft snap
  • 43
    1
    370510R91

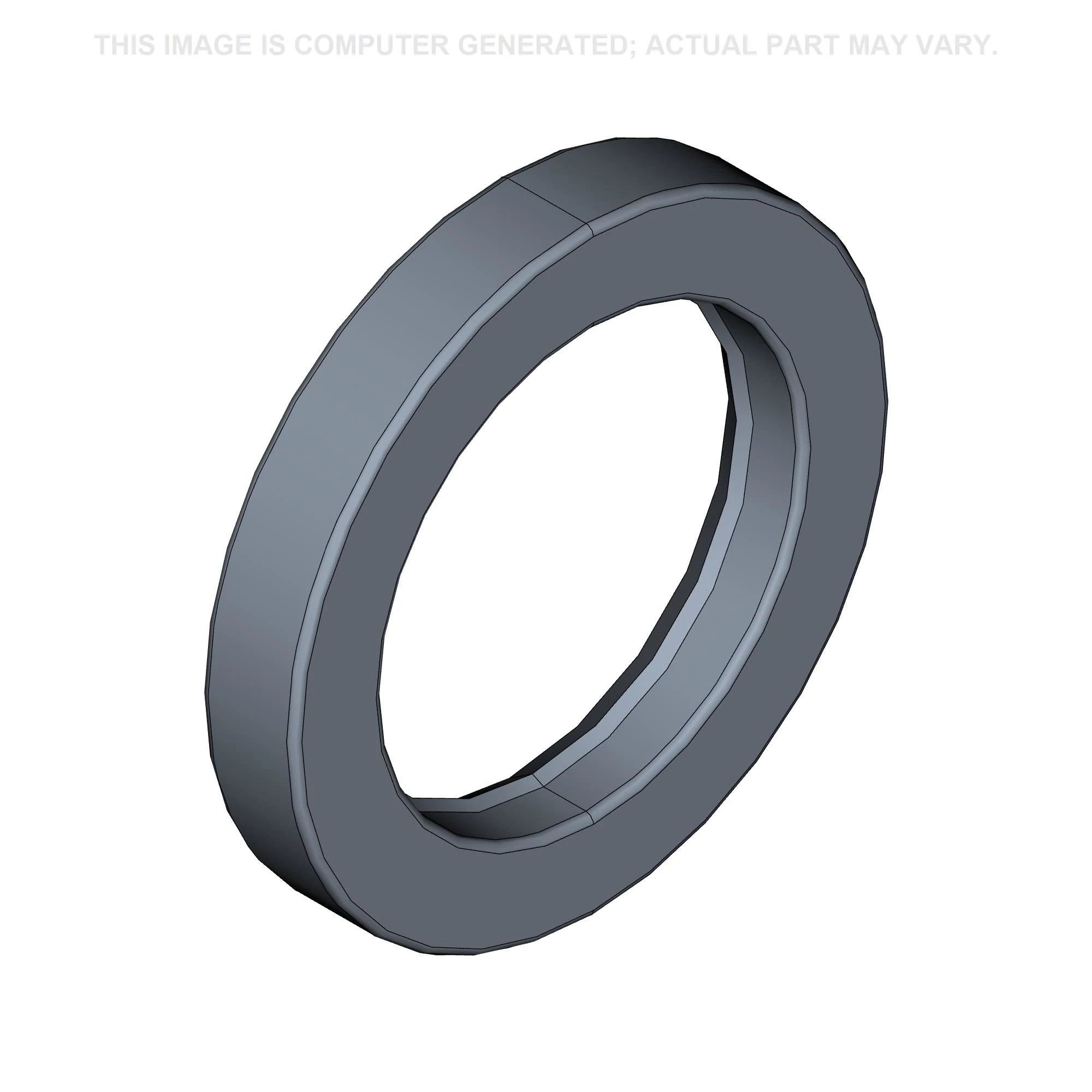

    OIL SEAL; clutch shaft carrier
  • 44
    1
    370509R11
    CARRIER; ASSEMBLY, clutch shaft oil seal
  • 45
    1
    17006R1
    BALL; 3/16'' dia. chr. stl.
  • 46
    1
    370511R1
    RING; clutch shaft oil seal carrier snap
  • 47
    1
    370513R91
    SEAL; OIL SEAL, independent power take-off drive shaft
  • 49
    1
    983851R91
    NEEDLE BEARING; independent power take-off drive shaft needle
  • 50
    1
    252556R1
    O-RING 0.139'' Thk x 5.234'' ID, -252, Cl 5, 75 Duro; independent power take-off drive shaft bearing cage (5-1/4 x 5-1/2 x 1/8'')
  • 52
    1
    370518R1

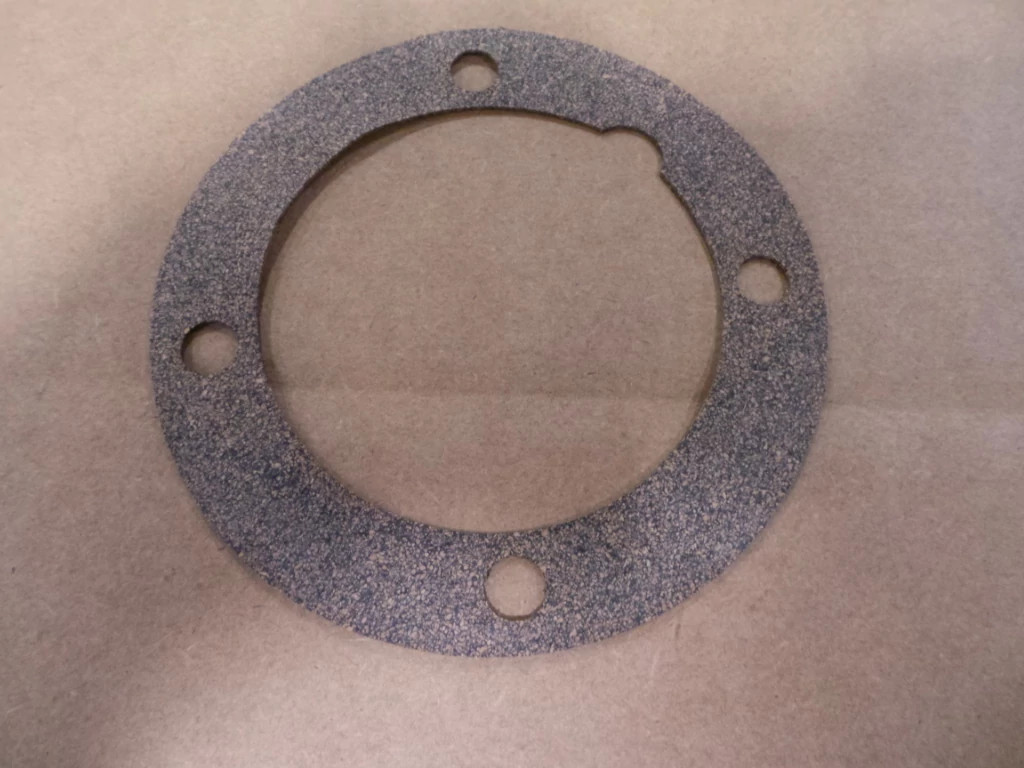

    GASKET; independent power take-off drive shaft bearing retainer
  • 53
    1
    ST631
    BALL BEARING 45 mm ID x 75 mm OD x 16 mm; independent power take-off drive shaft
  • 54
    1
    359894R1
    SNAP RING; RING, independent power take-off drive shaft bearing snap
  • 55
    1
    370517R91
    OIL SEAL; independent power take-off drive shaft bearing retainer
  • 56
    1
    370516R11
    HUB; RETAINER ASSEMBLY, independent power take-off drive shaft bearing
  • 57
    69
    370493R1
    BEARING, NEEDLE; ROLLER, planet gear bearing needle International 340 series, 9612 up
  • 58
    2
    318721R1
    BLOCK; selector fork
