TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11CRANKCASE; WITH ITEM 4 - 15, 36 - 38, - D-155
-
11CRANKCASE; WITH ITEM 4 - 15, 36 - 38, - D-179
-
22DOWEL 1/2'' x 1 1/2''; DOWEL
-
31PLATE; WITH DOWEL PIN - D-155
-
31PLATE; WITH DOWEL PIN - D-179
-
4BOLT Hex, 1/2'' - 13 x 1-1/8'', Gr 5; 1/2 X 30 MM
-
12BOLT Hex, 1/2'' - 13 x 1 3/8'', Gr 8; 1/2 X 35 MM
-
3BOLT Hex, 1/2'' - 13 x 1 1/2'', Gr 8; 1/2 X 38 MM
-
1BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 8; 1/2 X 44 MM
-
1BOLT Hex, 1/2'' - 13 x 2'', Gr 8; 1/2 X 51 MM
-
22LOCK WASHER 1/2'';
-
1NUT 1/2''-13, G5;
-
1STUD; 1/2 X 70 MM
-
1WASHER; 13.5 X 32 X 2.7 MM
-
42PIN 25.4mm OD x 31.75mm L; Pin
-
52BUSHING; DOWEL
-
61PLUG Exp, 2 3/4''; EXPANSION
-
71COVER; CLOSING
-
82PLUG M25, Conical; COVER, CLOSING
-
91STUD;
-
104DOWEL; PIN
-
11ARBOLT Hex Flg, 9/16'' - 12 x 120.70mm, 12.9; Bearing cap
-
121CRANKSHAFT BEARING 57.56mm ID x 63.1mm OD x 30mm W; CAMSHAFT, FRONT
-
133BEARING LINER; CAMSHAFT
-
143PLUG; 1/4
-
152PIPE PLUG Slotted, Headless, 1/8'' NPT;
-
161STUD;
-
172SEALING STRIP; SEAL
-

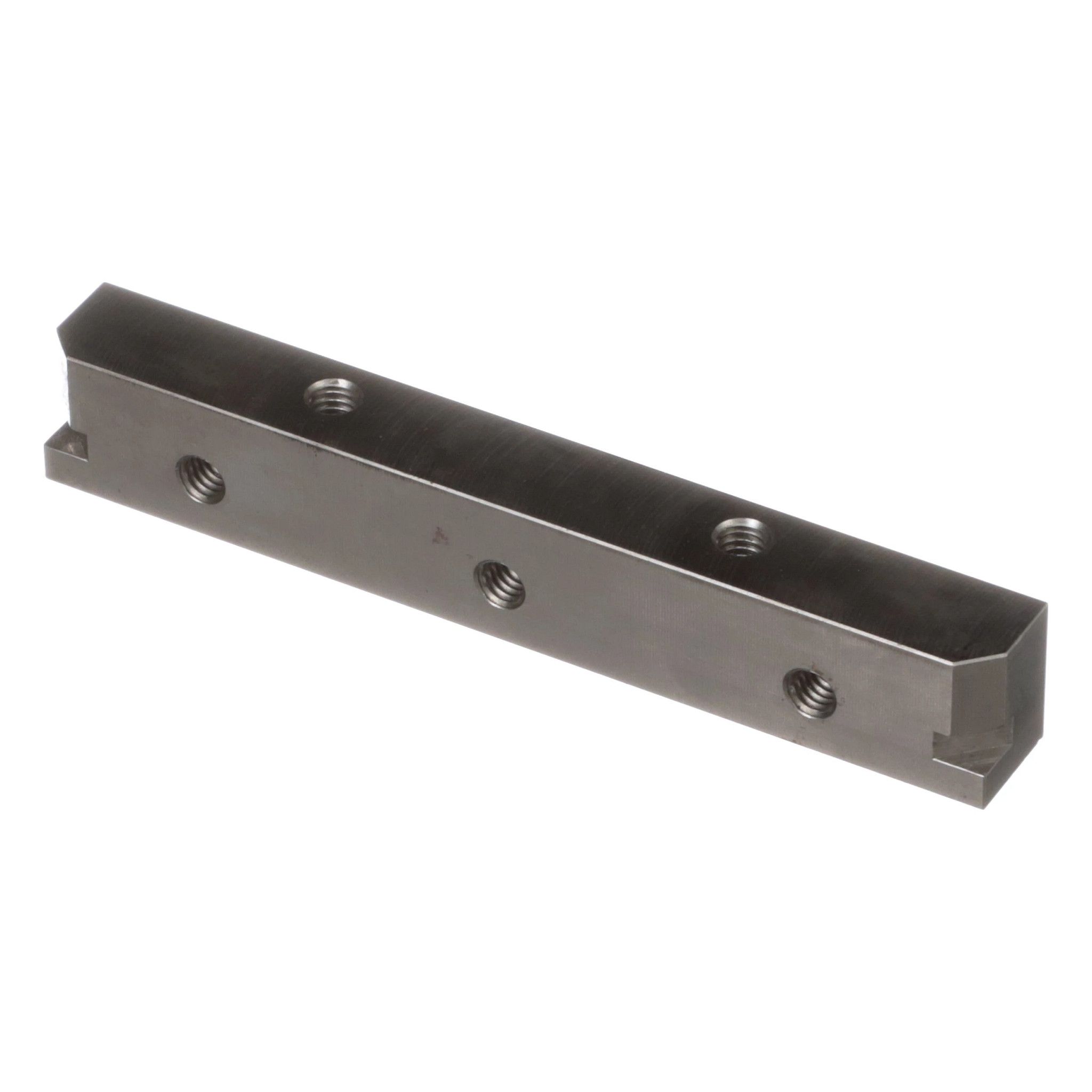

181SUPPORT; BAR, SEALING
-
191GASKET;
-
201RETAINER; OIL SEAL
-
8BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
9BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')
-
1NUT 5/16'' - 18, Gr 5;
-
211SEAL;
-
221CARRIER; IDLER GEAR
-
231PINION; GEAR, ILDER (68 TEETH)
-
242NEEDLE BEARING 35mm ID x 42mm OD x 17.8mm W;
-
252DISC; WASHER, THRUST
-
261BOLT; IDLER GEAR, LH THREAD
-
271SPACER 35.5mm ID x 41mm OD x 4mm L;
-
281PLUG; 3/8
-
291NOT SOLD SEPARAT; CAP, BEARING, ORDER CRANKCASE
-
30ARBEARING ASSY; PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAP
-
311CRANKSHAFT BEARING; PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAP
-
32ARSHIM; 0.05 MM
-
32ARSHIM; 0.10 MM
-
32ARSHIM 112.06mm ID x 118.6mm OD x 0.25mm Thk; 0.25 MM
-
32ARSHIM; 0.50 MM
-
32ARSHIM; 0.80 MM
-
331PLATE; WITH BUSHING - D-179
-
4BOLT Hex, 1/2'' - 13 x 1 1/2'', Gr 5;
-
4LOCK WASHER 1/2'';
-
342BUSHING;
-
ARGASKET KIT; PACKAGE, CRANKCASE GASKETS, NOT ILLUSTRATED
Select All
Ref.
1Qty
1Availability
Part #
3055000R36Description
CRANKCASE; WITH ITEM 4 - 15, 36 - 38, - D-155Img
Alts
Ref.
1Qty
1Availability
Part #
3055001R36Description
CRANKCASE; WITH ITEM 4 - 15, 36 - 38, - D-179Img
Alts
Ref.
Qty
4Availability
Part #
413-818Description
BOLT Hex, 1/2'' - 13 x 1-1/8'', Gr 5; 1/2 X 30 MMImg
Alts
Ref.
Qty
12Availability
Part #
28293R1Description
BOLT Hex, 1/2'' - 13 x 1 3/8'', Gr 8; 1/2 X 35 MMImg
Alts
Ref.
Qty
3Availability
Part #
27125R1Description
BOLT Hex, 1/2'' - 13 x 1 1/2'', Gr 8; 1/2 X 38 MMImg
Alts
Ref.
Qty
1Availability
Part #
28294R1Description
BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 8; 1/2 X 44 MMImg
Alts
Ref.
Qty
1Availability
Part #
28228R1Description
BOLT Hex, 1/2'' - 13 x 2'', Gr 8; 1/2 X 51 MMImg
Alts
Ref.
11Qty
ARAvailability
Part #
3138580R1Description
BOLT Hex Flg, 9/16'' - 12 x 120.70mm, 12.9; Bearing capImg
Alts
Ref.
12Qty
1Availability
Part #
3055008R2Description
CRANKSHAFT BEARING 57.56mm ID x 63.1mm OD x 30mm W; CAMSHAFT, FRONTImg
Alts
Ref.
15Qty
2Availability
Part #
103883Description
PIPE PLUG Slotted, Headless, 1/8'' NPT;Img
Alts
Ref.
Qty
9Availability
Part #
3218395R1Description
BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')Img
Alts
Ref.
24Qty
2Availability
Part #
3058816R91Description
NEEDLE BEARING 35mm ID x 42mm OD x 17.8mm W;Img
Alts
Ref.
29Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; CAP, BEARING, ORDER CRANKCASEImg
Alts
Ref.
30Qty
ARAvailability
Part #
3144438R91Description
BEARING ASSY; PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAPImg
Alts
Ref.
31Qty
1Availability
Part #
3144436R91Description
CRANKSHAFT BEARING; PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAPImg
Alts
Ref.
32Qty
ARAvailability
Part #
3218540R1Description
SHIM 112.06mm ID x 118.6mm OD x 0.25mm Thk; 0.25 MMImg
Alts
Ref.
Qty
ARAvailability
Part #
3136802R98Description
GASKET KIT; PACKAGE, CRANKCASE GASKETS, NOT ILLUSTRATEDImg
Alts
