55.100.DO[01] - CAB FUSES, RELAYS, FLASHER UNIT, AND DIODES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

8

Availability

Part #

84153830

Description

FUSE 5A, Mini, Beige;


Alts

Select

Ref.

1

Qty

27

Availability

Part #

84127702

Description

FUSE 10A, Mini, Red;


Alts

Select

Ref.

1

Qty

12

Availability

Part #

84127703

Description

FUSE .;


Alts

Select

Ref.

1

Qty

17

Availability

Part #

84127704

Description

FUSE 20A, Mini, Yellow;


Alts

Select

Ref.

1

Qty

1

Availability

Part #

84127708

Description

FUSE 30A, Mini, Green;


Alts

Select

Ref.

2

Qty

9

Availability

Part #

87689644

Description

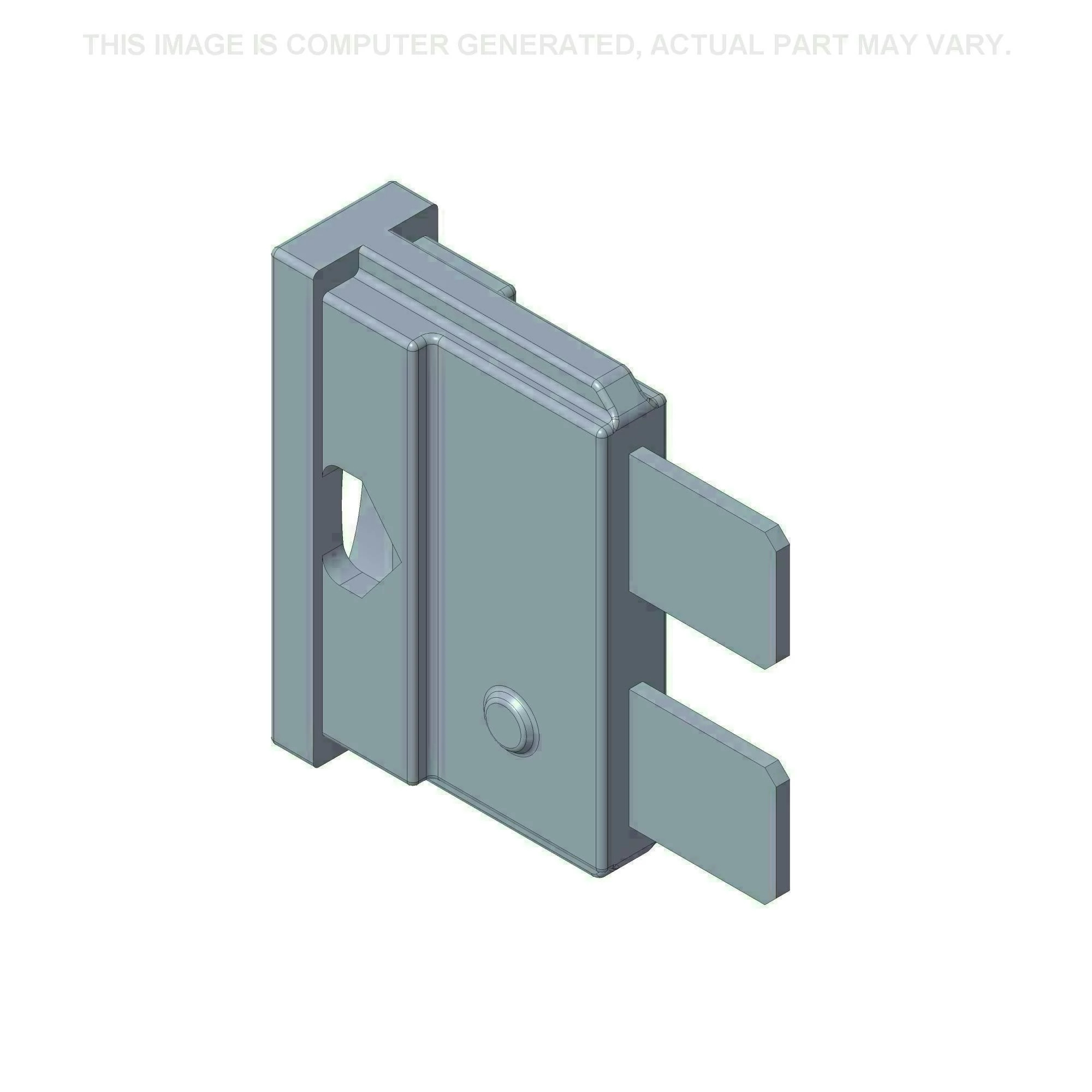

FUSE 30A, Blade/Uni;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

82012388

Description

FUSE 30A, Maxival, Green;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84253577

Description

FUSE 60A, Maxi, Blue;


Alts

Select

Ref.

5

Qty

3

Availability

Part #

84147087

Description

FUSE HOLDER; Frame


Alts

Select

Ref.

6

Qty

4

Availability

Part #

84526304

Description

MODULE 30W; Micro Relay


Alts

Select

Ref.

7

Qty

2

Availability

Part #

87733597

Description

FUSE BOX; Maxi / Uni


Alts

Select

Ref.

8

Qty

3

Availability

Part #

87733581

Description

FUSE BOX; Mini


Alts

Select

Ref.

9

Qty

1

Availability

Part #

87733595

Description

FUSE HOLDER RECP HSG FUSES (24); Mini / Maxi


Alts

Select

Ref.

10

Qty

1

Availability

Part #

87733587

Description

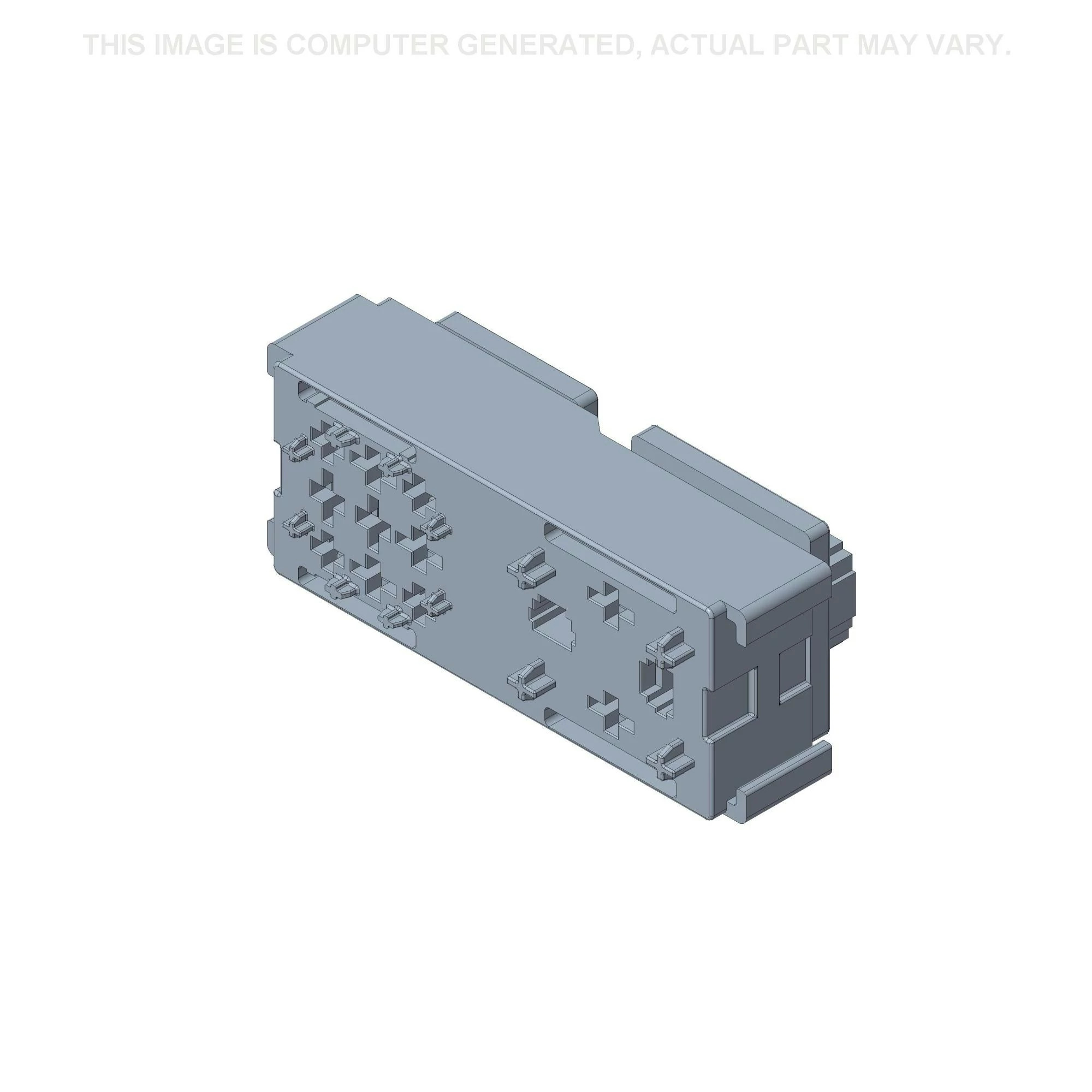

ELEC CONNECTOR; Mini / Maxi Relay


Alts

Select

Ref.

11

Qty

12

Availability

Part #

832-10405

Description

LOCK NUT M5 x .8, Cl 8;


Alts

Select

Ref.

12

Qty

12

Availability

Part #

86588450

Description

WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;


Alts

Select

Ref.

13

Qty

14

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; STUD, M5 Blind Rivet Type, Hex Body, Service With M5 Machine Screw


Alts

Select

Ref.

13

Qty

AR

Availability

Part #

86508566

Description

BOLT Hex, M5 x 0.8 x 30mm, Cl 8.8; Service Only


Alts

Select

Ref.

14

Qty

1

Availability

Part #

47399173

Description

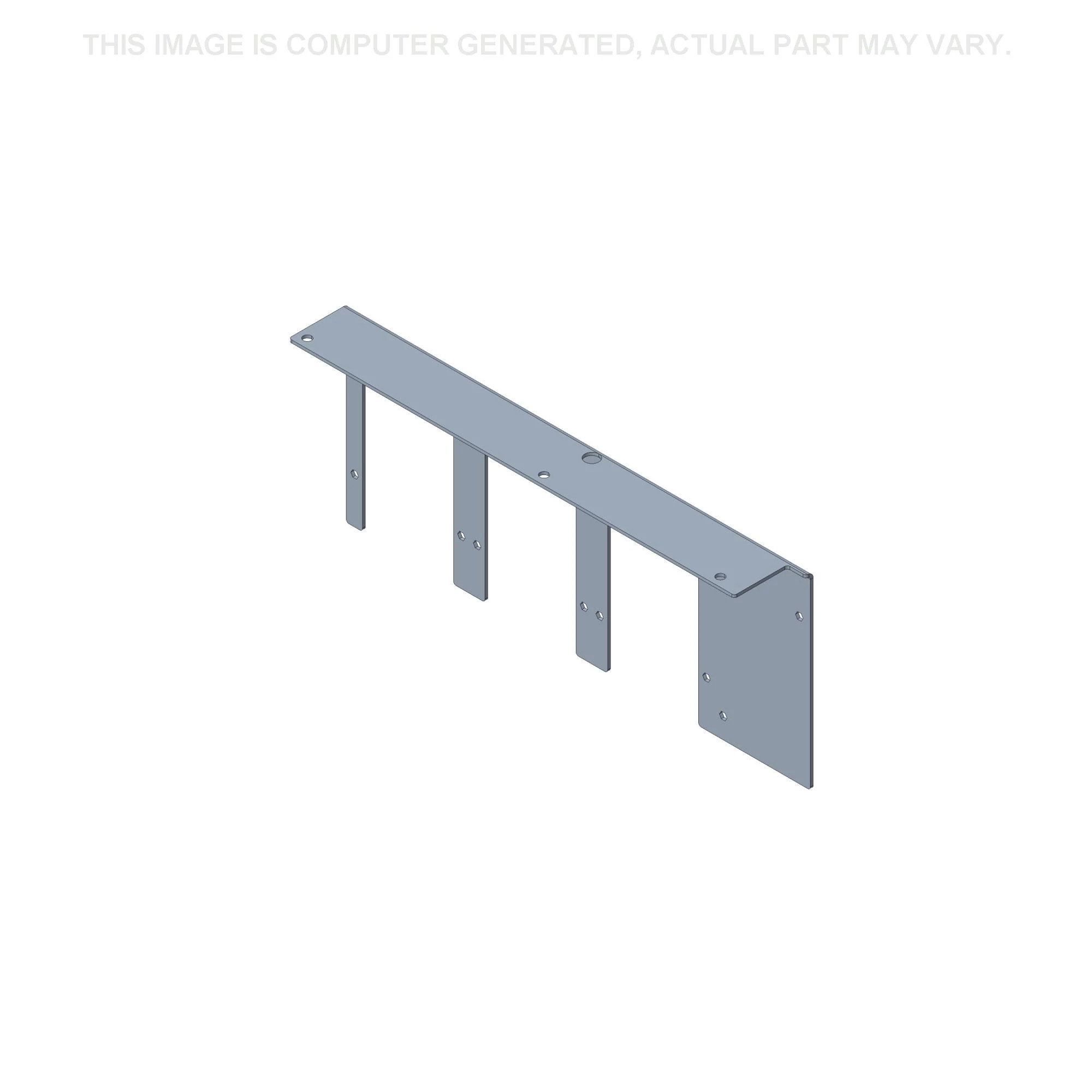

BRACKET; Cab Relay / Fuse Mount


Alts

Select

Ref.

15

Qty

3

Availability

Part #

781-24820

Description

SELF-TAP SCREW Hex Flg, M8 x 1.25 x 20mm;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

87453728

Description

WIRE HARNESS; Diode Pack, Egress 1 (207F)


Alts

Select

Ref.

17

Qty

1

Availability

Part #

87453730

Description

WIRE HARNESS; Diode Pack, Egress 2 (379M)


Alts

Select

Ref.

18

Qty

1

Availability

Part #

84594731

Description

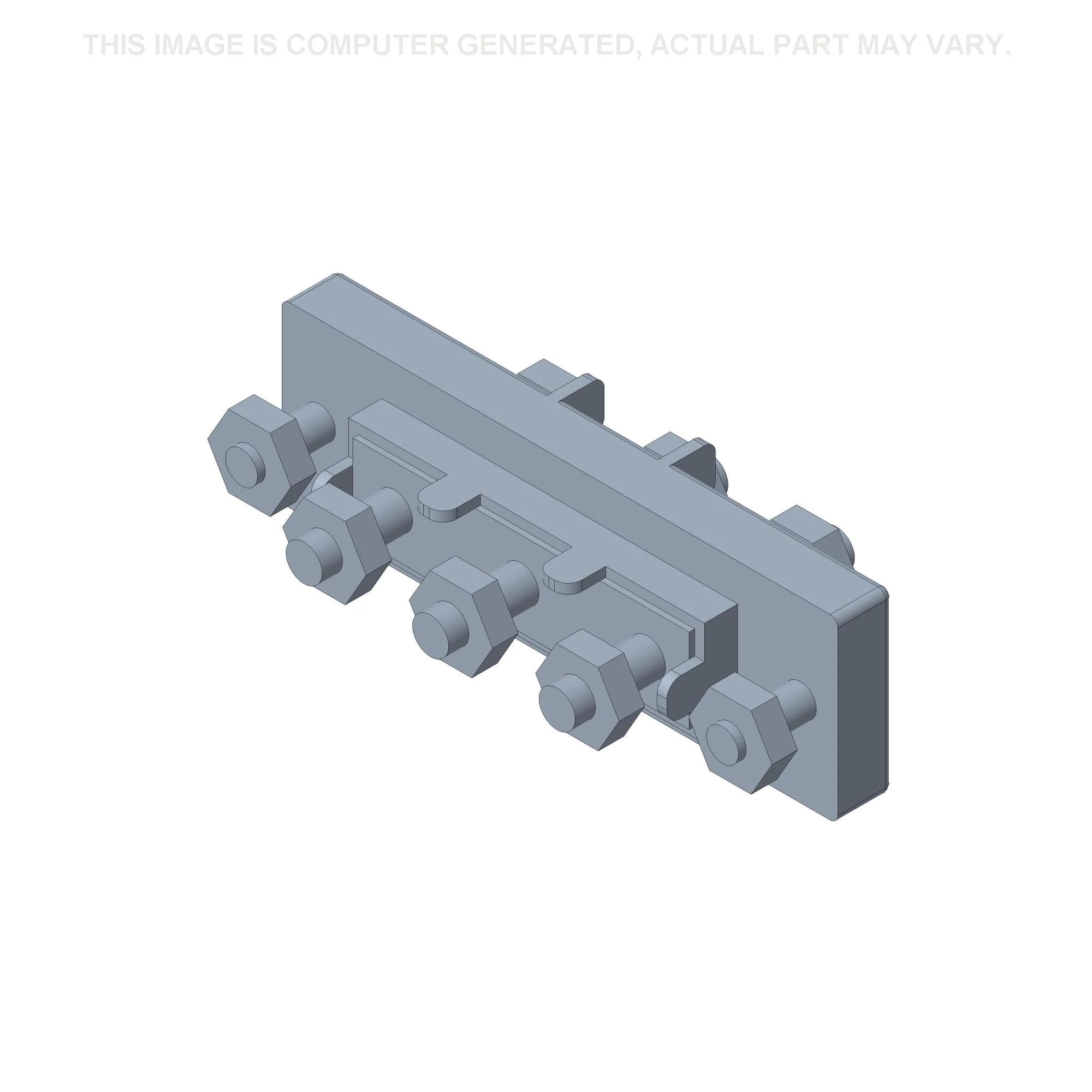

JUNCTION BLOCK; 3-Stud Feed Thru


Alts

Select

Ref.

19

Qty

1

Availability

Part #

190158A1

Description

BLOCK; Feed Thru


Alts

Select

Ref.

20

Qty

1

Availability

Part #

84268097

Description

WIRE HARNESS; Cab Flasher, NA/ROW


Alts

Select

Ref.

21

Qty

1

Availability

Part #

84414345

Description

FLASHER UNIT; NA


Alts

Select

Ref.

22

Qty

2

Availability

Part #

490-11010

Description

SCREW Cross Pan Hd, #10-32 x 5/8'';


Alts

Select

Ref.

23

Qty

2

Availability

Part #

193-1000

Description

NUT Keps, w/LW,#10-32;


Alts

Select

Ref.

24

Qty

3

Availability

Part #

84199546

Description

TOOL; Fuse Extractor


Alts

Select

Ref.

25

Qty

22

Availability

Part #

84543528

Description

RELAY 12V, 20A, Micro;


Alts

Select

Ref.

26

Qty

1

Availability

Part #

84539290

Description

RELAY 12V, 50A; Cab Power


Alts

Select

Ref.

27

Qty

1

Availability

Part #

84543666

Description

RELAY 12V, 40A, Mini; Implement Low Power, ISO Bus


Alts

Select

Ref.

28

Qty

1

Availability

Part #

84539290

Description

RELAY 12V, 50A; Implement High Power, ISO Bus


Alts
