L553 - SKID STEER LOADER ... NO_D - NO DESCRIPTION 095 - KUBOTA V1902-B DIES...
095 - KUBOTA V1902-B DIESEL ENGINE, WATER PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    503180
    WATER PUMP; (15521-7303-0), Includes: Ref. 1 thru 7
  • 1

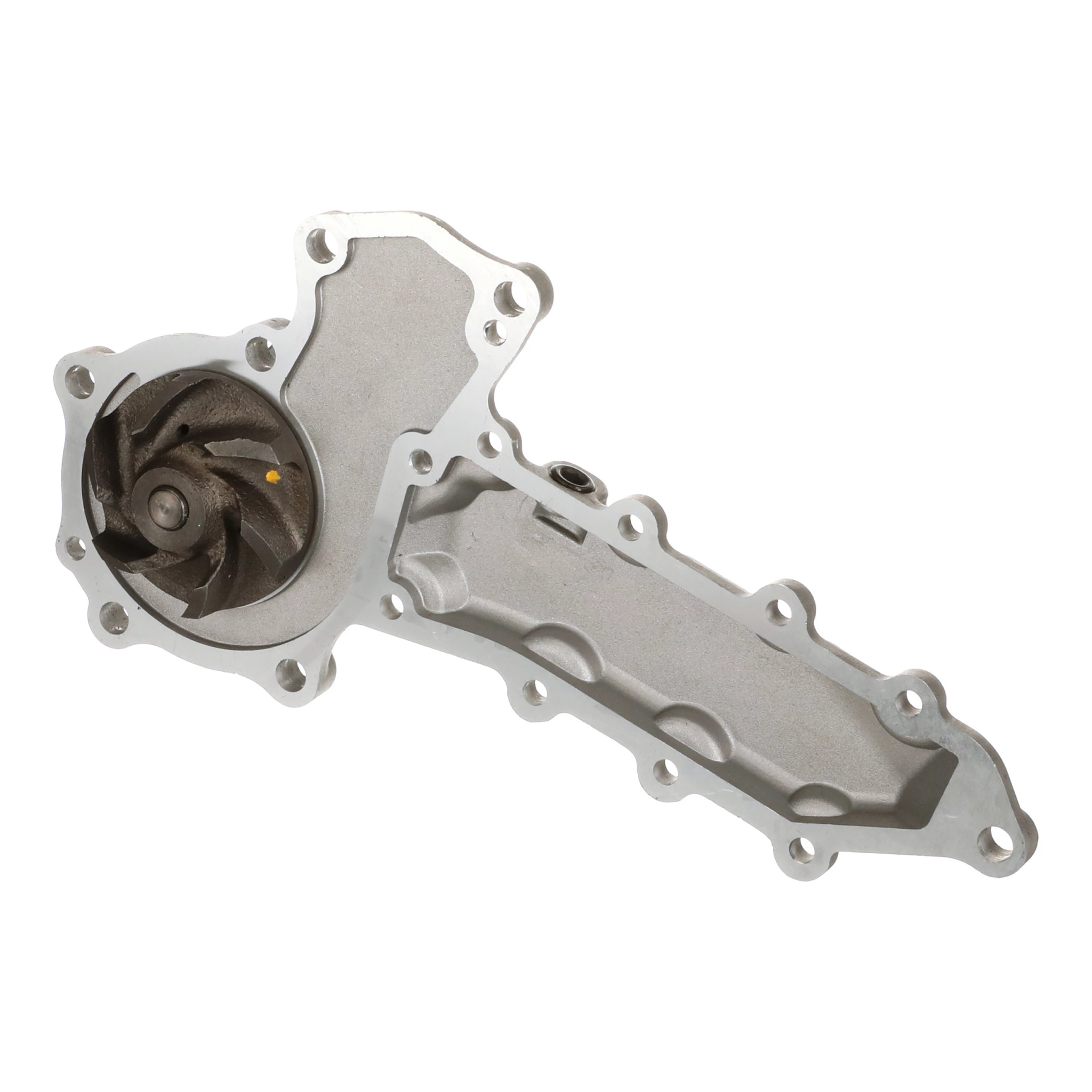

    503180R
    REMAN-WATER PUMP REMAN-WATER PUMP; L553 (7/87-11/93) ,L555 (7/81-11/93)
  • -
    503180C
    CORE-WATER PUMP CORE-WATER PUMP; Return Number
  • 1
    1
    NSS
    NOT SOLD SEPARAT; Housing;Not Serviced Separate
  • 2
    1
    503181
    BEARING ASSY; Bearing (15521-7355-0)
  • 3
    1
    503182
    IMPELLER; Water Pump (15321-7351-0)
  • 4
    1
    503183
    SEAL KIT; Set, Seal (1521-7305-0)
  • 5
    1
    503184
    FLANGE; Water Pump Shaft (15521-7352-0)
  • 6
    1
    503185
    LOCK PIN; Pin, Snap (15521-9481-0)
  • 7
    1
    503186
    SLINGER; (15121-7362-0)
  • 8
    1
    503376
    PULLEY; Fan (15471-7425-0)
  • 9
    1
    503188
    GASKET; Water Pump (15521-7343-0)
  • 10
    2
    503236
    BOLT; (01123-50828)
  • 11
    8
    503287
    BOLT; (01023-50618)
  • 12
    2
    503377
    STUD; (15521-9151-0)
  • 13
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 14
    2
    89706690
    NUT M8 x 1.25, Cl 8;
  • 15
    1
    503390
    FAN; (17371-7411-0)
  • 16
    1
    503170
    COLLAR; Fan (15521-7415-0)
  • 17
    4
    503290
    BOLT; (01053-50635)
  • 18
    2
    503171
    WASHER; Fan (15321-7423-0)
  • 19
    1
    503381
    FLANGE; Water (19202-7291-0)
  • 20
    1
    503174
    GASKET; Water Flange (15521-7292-0)
  • 21
    2
    K0112350822
    BOLT; (01123-50822)
  • 22
    1
    503382
    STUD; (01513-50822)
  • 23
    1
    503428
    BOLT; (01123-50865)
  • 24
    1
    503175
    RIGID TUBE; Pipe, Fitting, Water Return, #1 (15321-7334-0)
  • 25
    1
    503176
    RIGID TUBE; Pipe, Water Return, #2 (15521-7334-0)
  • 26
    2
    503291
    CLAMP; (15109-7336-0)
  • 27
    1
    503177
    COVER; Thermostat (15321-7326-0)
  • 28
    1
    503178
    GASKET; Thermostat Cover (15321-7327-0)
  • 29
    2
    412479
    BOLT Hex, M8 x 1.25 x 35mm, Full Thd, Cl 8.8, ZND;
  • 30
    1

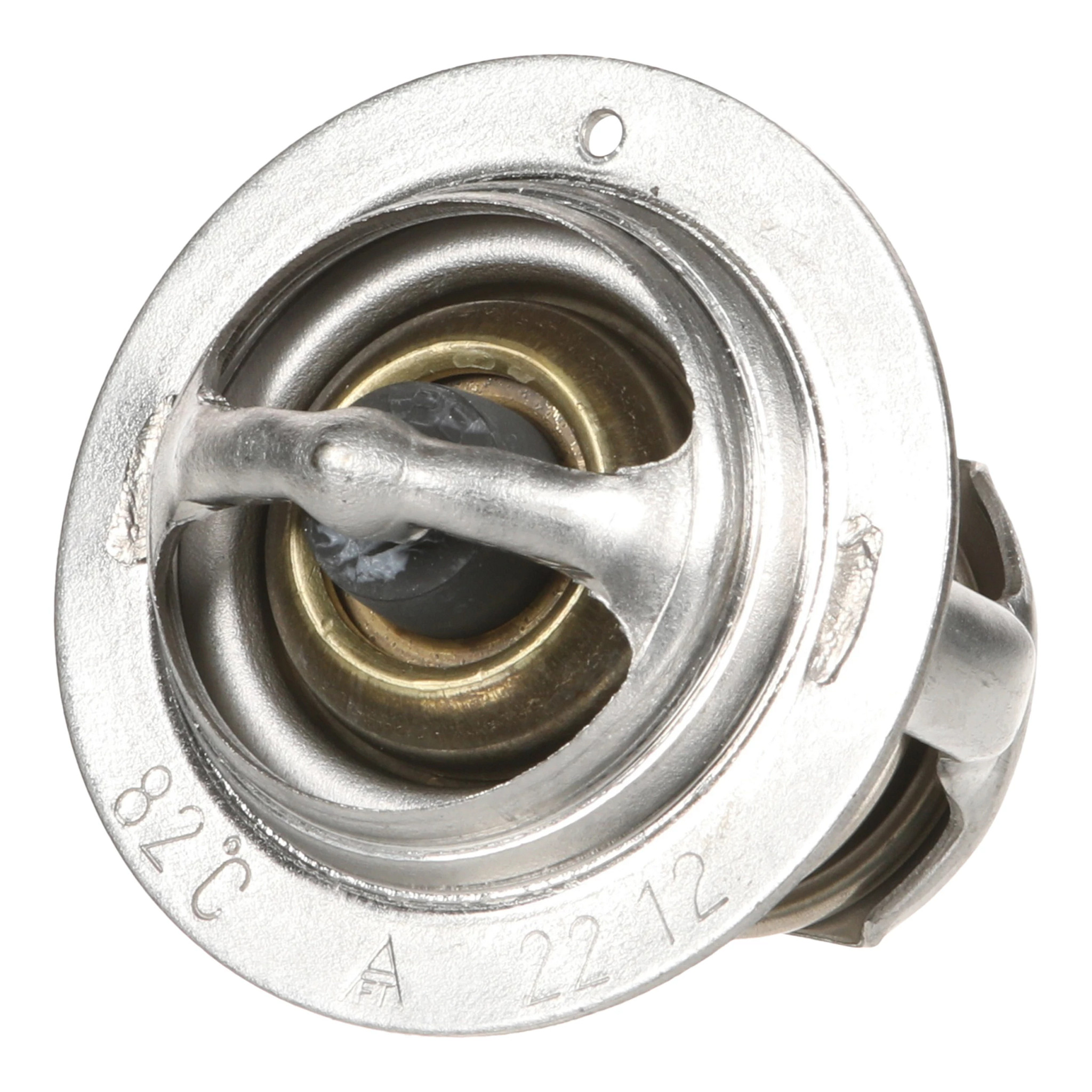

    503179
    THERMOSTAT; (15321-7301-0); (SN Break) Up to 93706
  • 30
    1
    9807450
    THERMOSTAT; (19434-73011), Opens at 160?F, 71?C; (SN Break) From 93707
  • 31
    2
    87362
    WASHER 5/16'' SAE; SAE, 5/16''
  • 32
    1
    503446
    PLUG;
