06D01 - CAMSHAFT, ROCKER ARM, VALVES & RELATED PARTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    8
    E4HN6500AA
    TAPPET; Valve
  • 2
    8
    81813399
    TIGE; Pushrod
  • 3
    4
    87802659
    BRAS DE CULBUTEUR; Arm, Intake
  • 3
    4
    81804316
    BRAS DE CULBUTEUR; Arm, Exhaust
  • 3
    4
    C7NN6529A
    ARM; Exhaust, Turbo
  • 4
    8
    87801302

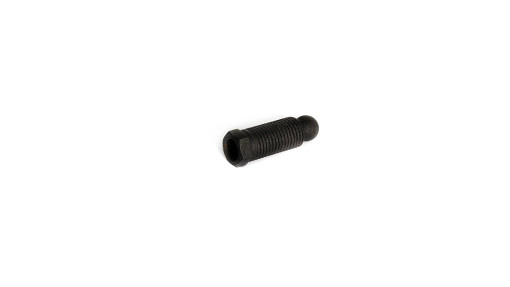

    ADJUSTMENT SCREW; Valve Rocker Arm Adjusting
  • 5
    1
    E6NN6563AA
    SHAFT; Rocker Arm
  • 6
    2
    376099S
    PLUG; Cup, .755'', Rocker Arm Shaft Ends
  • 7
    5
    D5NN6531A
    SUPPORT; Rocker Arm
  • 8
    5
    87802207

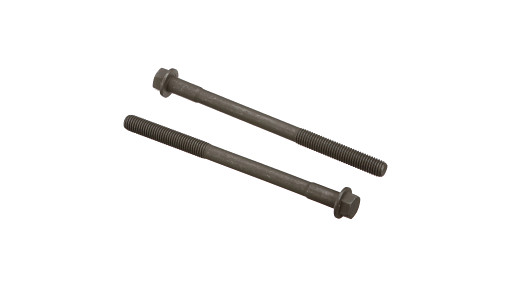

    BOLT Cyl Hd, 9/16'' - 12 x 8''; Screw, Cap, Flg Hd, G8, 9/16''-12 x 8''
  • 9
    4
    C5NE6587A
    SPRING;
  • 10
    4
    C7NN6590A
    SPACER; Exhaust Valve
  • 11
    4
    87802143
    STD EXHAUST VALVE; Exhaust Valve, Standard
  • 11
    AR
    87800341
    VALVE, EXHAUST, OVER; Valve, Exhaust, .003'' (.076mm) O/S
  • 11
    AR
    87800342
    VALVE, EXHAUST, OVER; Valve, Exhaust, .015'' (.381mm) O/S
  • 11
    AR
    87800343
    VALVE, EXHAUST, OVER; Valve, Exhaust, .030'' (.762mm) O/S
  • 12
    4
    87800386
    STD INLET VALVE; Intake Valve, Standard
  • 12
    AR
    87800387
    OVERSIZE INLET VALVE; Intake Valve, .003'' (.076mm) O/S
  • 12
    AR
    87800388
    OVERSIZE INLET VALVE; Intake Valve, .015'' (.381mm) O/S
  • 12
    AR
    87800389
    OVERSIZE INLET VALVE; Intake Valve, .030'' (.762mm) O/S
  • 13
    8
    D6NN6513A
    SPRING; (Prod Date) Up to 30-Sep-1991
  • 13
    8
    E9NN6513BA
    SPRING; Valve; (Prod Date) From 01-Oct-1991
  • 14
    4
    D0NN6514A
    RETAINER; Intake; (Prod Date) Up to 30-Sep-1991
  • 14
    4
    E5HN6514AA
    RETAINER; Intake; (Prod Date) From 01-Oct-1991
  • 15
    4
    C5NE6A516A
    RETAINER; Exhaust; (Prod Date) Up to 30-Sep-1991
  • 15
    4
    C6AE6514A1
    RETAINER; Valve; (Prod Date) From 01-Oct-1991
  • 16
    16
    F2NN6518AA
    KEY; Retainer
  • 17
    4
    86602420

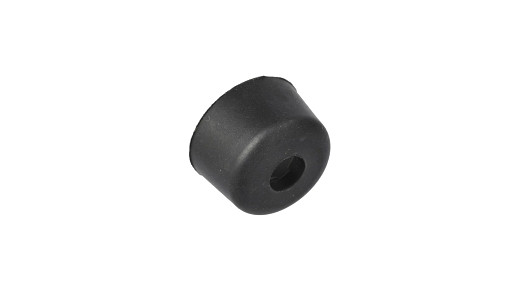

    SEAL PROTECTION; Seal, Valve Intake; (Prod Date) Up to 30-Sep-1991
  • 18
    4
    C5NE6571B

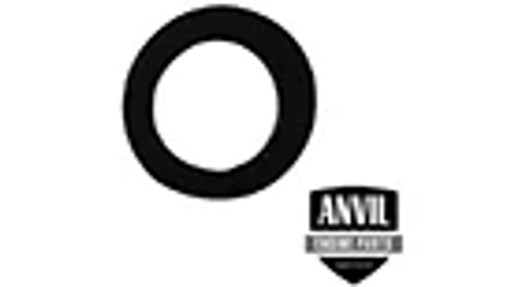

    SEAL; Valve Exhaust; (Prod Date) Up to 30-Sep-1991
  • 18
    8
    87840154

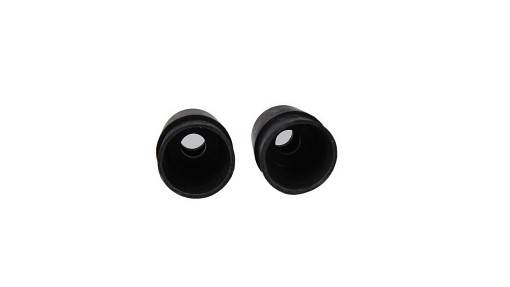

    SEAL; Valve Stem; (Prod Date) From 01-Oct-1991
  • 19
    1
    87800421
    COVER ASSY;
  • 20
    1
    E5NN6584BD
    GASKET;
  • 21
    10
    83925616

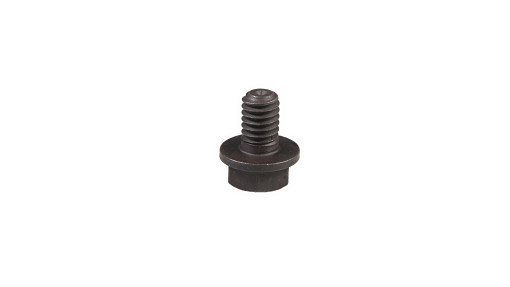

    FLANGE BOLT Hex, 5/16'' - 18 x 1/2''; Cap, Flg Hd, G5, 5/16''-18 x 1/2''
  • 22
    1
    87800353
    CAMSHAFT;
  • 23
    1
    E3NN6A253AB
    GEAR;
  • 24
    1
    F2NN6A255AA
    ADAPTATEUR; Camshaft Gear; (Prod Date) Up to 31-Oct-1994
  • 24
    1
    87840404
    ADAPTATEUR; Adaptor, Camshaft Gear; (Prod Date) From 01-Nov-1994
  • 25
    1
    82852337

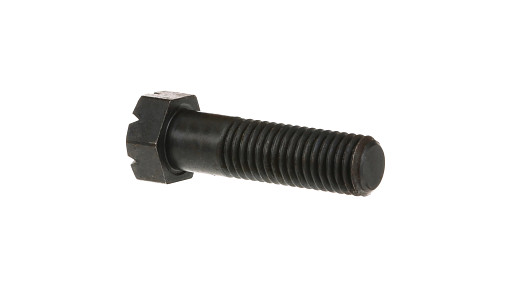

    BOLT Hex, 5/8'' - 11 x 2 1/4'', Gr 8; Cap, HH, G8, Self-Locking, 5/8''-11 x 2-1/4''
  • 26
    1
    E3NN6N251AB
    GEAR;
  • 27
    1
    87802905

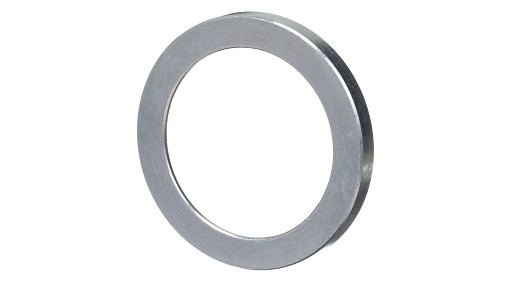

    SPACER 32mm ID x 40mm OD x 4.70mm L;
  • 28
    1
    83957730
    PLATE;
  • 29
    2
    86500692
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8, Full Thd; Screw, Cap, G8, HH, 3/8''-16 x 3/4''
  • 30
    1
    80810

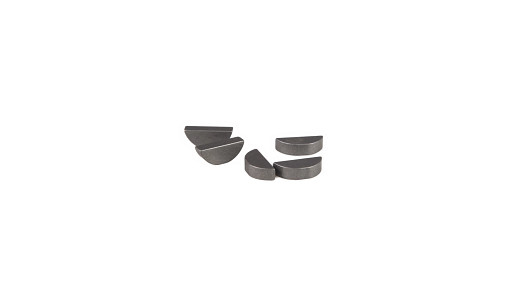

    WOODRUFF KEY #9, 3/16'' x 3/4''; Key, Woodruff, # 9, 3/16'' x 3/4''
  • 31
    3
    81804024
    WASHER;
  • 32
    AR
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
  • 33
    AR
    83909101

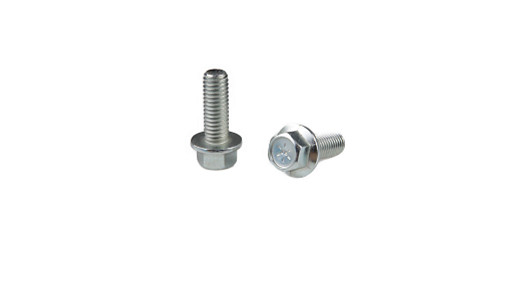

    FLANGE BOLT Hex, 7/16'' - 14 x 1 1/4''; Bolt, Cap, Flg Hd., G5, 7/16''-14 x 1-1/4''
  • 34
    5
    87800499
    CAMSHAFT BEARING; Bearing, Camshaft, Front, 60.88mm (2.397'') ID
  • 35
    1
    87802906

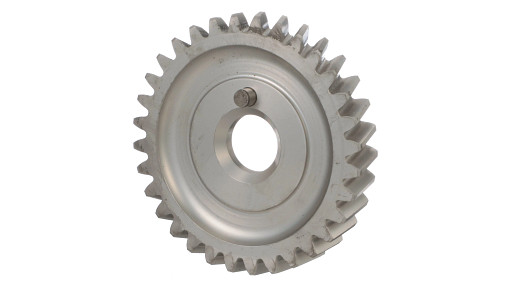

    GEAR; Assy., Hydraulic Pump Drive
  • 36
    1
    382015S
    DOWEL; Pin, 5/16''-5/8''
  • 37
    1
    81816594
    COVER; Hydraulic Pump
  • 38
    1
    E4NN6758BA
    TUBE 25.4 mm OD x 651.3 mm L; Crankcase Vent; (Prod Date) Up to 31-Oct-1980
  • 2
    82012722

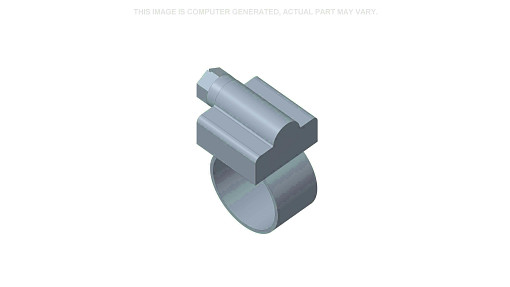

    HOSE CLAMP 19mm - 28mm, Worm Gear; Clamp, 1''-1.38''; (Prod Date) Up to 31-Oct-1980
  • 1
    81804486
    HOSE 26.90 mm ID x 60.45 mm, SAE 30R2 Type 1; 26.90 mm ID x 60.45 mm, SAE 30R2 Type 1; (Prod Date) Up to 31-Oct-1980
  • 38
    1
    E7NN6758BA
    PIPE 1'' OD x 31.71'' L; Tube, Crankcase Vent, A/C; (Prod Date) Up to 31-May-1990
  • 38
    1
    E9NN6758CA
    VENTILATION PIPE 1'' OD x 24.59, 3.22'' L; Tube, Crankcase Vent, Standard; (Prod Date) From 01-Jun-1990
  • 38
    1
    87801109
    TUBE; Crankcase Vent, Front Valve Cover Oil Fill
  • 39
    1
    87800918
    BREATHER; Filter, Crankcae Vent Tube
  • 40
    1
    83958239
    GROMMET; 1'' x .44''
