09B01 - AIR CLEANERS & RELATED PARTS, GASOLINE (PETROL) - EXCEPT 5000
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D2NN9600G
    AIR CLEANER; Assy., W/Dual Element, Includes: Body & Ref. 1A thru 1G;No Longer Serviced NHNA.; (Prod Date) From 01-Jan-1965
  • 1A
    1
    E6NN9B618AB
    AIR FILTER; Element, Filter, Outer, Single, Replaces C7NN-9A641-C; (Prod Date) From 01-Jan-1965
  • 1B
    1
    C5NE9661A
    COVER; Assy., Air Cleaner; (Prod Date) From 01-Jan-1965
  • 1C
    1
    270228
    DUST VALVE; Collector, Air Cleaner Dust; (Prod Date) From 01-Jan-1965
  • 1D
    1
    82012722
    HOSE CLAMP 19mm - 28mm, Worm Gear; Clamp, Hose, M19-28; (Prod Date) From 01-Jan-1965
  • 1E
    1
    E6NN9R500DA
    AIR FILTER; Element Assy., Filter, Inner, W/Dual Element; (Prod Date) From 01-Jan-1973
  • 1F
    1
    355901S36
    NUT; Inner Element Retaining, W/Dual Element; (Prod Date) From 01-Jan-1973
  • 1G
    1
    D3NN9N634C
    WASHER; Air Cleaner Element;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 1
    D2NN9N642A
    ADAPTER; Inner Element, Use to Convert to Dual Element, Service Only;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Dec-1972
  • 2
    4
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1965
  • 3
    4
    44722S8
    WASHER 5/16'', .354'' x .688'' x .08'' Thk; NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1965
  • 4
    4
    9627874
    BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-18 x 5/8''; (Prod Date) From 01-Jan-1965
  • 5
    2
    311107
    INTAKE AIR HOSE 49.99 mm ID, 51.18 mm ID x 60.00 mm, SAE 10R4 or SAE J200; Air Cleaner Pipe, U.S., 3500, 3550, 4500 49.99 mm ID, 51.18 mm ID x 60.00 mm, SAE 10R4 or SAE J200; (Prod Date) From 01-Jan-1965
  • 5
    3
    311107
    INTAKE AIR HOSE 49.99 mm ID, 51.18 mm ID x 60.00 mm, SAE 10R4 or SAE J200; Air Cleaner Pipe, Except 3500, 3550, 4500 49.99 mm ID, 51.18 mm ID x 60.00 mm, SAE 10R4 or SAE J200; (Prod Date) From 01-Jan-1965
  • 5A
    1
    C5NN9B614A
    INTAKE AIR HOSE 49.99 mm ID, 51.18 mm ID x 120.65 mm, SAE 10R4\ SAE J200f; Hose, Air Cleaner Inlet, U.S., 3500, 3550;No Longer Serviced NHNA.; (Prod Date) From 01-Jan-1965
  • 6
    8
    82012730
    HOSE CLAMP 68mm - 85mm, Worm Gear; Clamp, Hose, M68-85; (Prod Date) From 01-Jan-1965
  • 7
    1
    D0NN9R504B
    TUBE; Air Cleaner Outlet, Replaces C5NN-9B642-N & J, 4200;No Longer Serviced.; (Prod Date) Between 01-Jan-1965 and 31-May-1970
  • 7
    1
    86531376
    AIR INTAKE TUBE 2.00'' OD; Tube, Air Cleaner Outlet, W/Indicator, Except 3400, 4200; (Prod Date) From 01-Jan-1965
  • 7
    1
    D0NN9R504B
    TUBE; Air Cleaner Outlet, W/Indicator, 3400, 4200;No Longer Serviced.; (Prod Date) From 01-Jun-1970
  • 7A
    1
    D0NN9R512A
    CAP; Cap, Tube;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-May-1970
  • 7B
    1
    239475
    INDICATOR; Assy., Restriction; (Prod Date) From 01-Jun-1970
  • 8
    1
    C5NN9B639C
    INTAKE AIR HOSE 50.04 mm ID, 51.56 mm ID x 66.55 mm, SAE 10R4 OR SAE J200f; Hose, Air Cleaner Outlet, Replaces C5NN-9B639-A; (Prod Date) From 01-Jan-1965
  • 9
    1
    D4NN9N676B
    TUBE; Air Cleaner Inlet, Rear, Except 4200, 4500;No Longer Serviced.; (Prod Date) From 01-Jan-1965
  • 9
    1
    C5NN9N676B
    TUBE; Air Cleaner Inlet, Rear, 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 10
    1
    86572063
    TUBE 2.005'' - 2.02'' OD x 8.82'', 5.48'' L; Assy., Air Cleaner Inlet, Front, Except 3500, 3550, 4500;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 10A
    1
    C5NN9770C
    TUBE; Assy., Air Cleaner Inlet, Front, Straight, 3500, 3550;No Longer Serviced.; (Prod Date) From 01-Jan-1965
  • 10B
    1
    C5NN9770D
    TUBE; Assy., Air Cleaner Inlet, Front, 4500;No Longer Serviced NHNA.; (Prod Date) From 01-Jan-1965
  • 11
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1965
  • 12
    2
    9635082
    NUT 5/16'' - 18, Gr 5; G5, 5/16''-18; (Prod Date) From 01-Jan-1965
  • 13
    2
    9627874
    BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-18 x 5/8'', 3500, 3550; (Prod Date) From 01-Jan-1965
  • 13
    3
    9627874
    BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-18 x 5/8'', Except 3500, 3550, 4500; (Prod Date) From 01-Jan-1965
  • 1
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk; (Prod Date) From 01-Jan-1965
  • 1
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1965
  • 1
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16; (Prod Date) From 01-Jan-1965
  • 1
    280503
    CARRIAGE BOLT Short Sq Nk, 3/8'' - 16 x 1'', Gr 5, Full Thd; BOLT, CARRIAGE, , 4500 Short NK, 3/8''-16 x 1'', G5, Full Thd; (Prod Date) From 01-Jan-1965
  • 14
    1
    C5NN9A660B
    AIR PRE-CLEANER ASSY; Pre-Cleaner Assy., Air, for 2'' Pipe; (Prod Date) From 01-Jan-1965
  • 14
    1
    C5NN9A660BGV

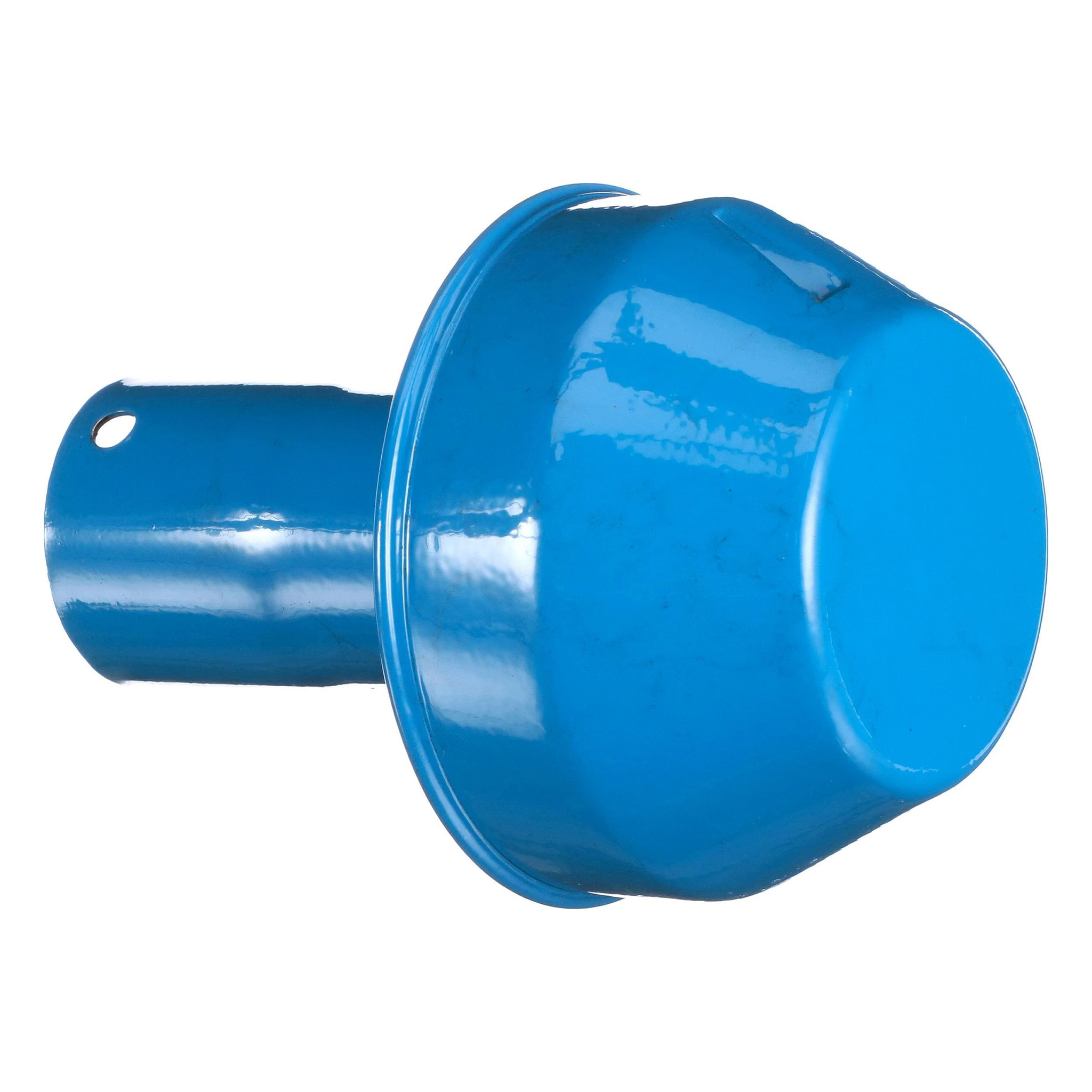

    AIR PRE-CLEANER ASSY; Pre-Cleaner Assy., Air Intake, 2''
  • 14B
    1
    C5NN9B691B
    EXTENSION; Air Cleaner Inlet Tube, Cut to Length, 4500; (Prod Date) From 01-Oct-1965
  • 15
    1
    C5NN9B691B
    EXTENSION; Air Cleaner Inlet Tube, 2''; (Prod Date) From 01-Jan-1965
  • 16
    1
    86555327
    AIR PRE-CLEANER ASSY; Pre-Cleaner Assy., Air, 2'', Includes: Ref. 17 thru 19;NHNA Only.; (Prod Date) From 01-Jan-1965
  • 17
    1
    73222
    BODY; Air Pre-Cleaner; (Prod Date) From 01-Jan-1965
  • 18
    1
    73223
    COVER; Assy., Air Pre-Cleaner Body; (Prod Date) From 01-Jan-1965
  • 19
    1
    86555327
    AIR PRE-CLEANER ASSY; Base Assy., Air Pre-Cleaner;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
