DC180LT - CRAWLER DOZER (... 01 - ENGINE 0.530[01] - MUFFLER
0.530[01] - MUFFLER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    76046731
    BRACKET;
  • 2
    1
    76046738
    MUFFLER;
  • 3
    1
    76046720
    ELBOW; 76046720=76069611+76069644+11112431+14496731+79005244+11107731+11106631; (SN Break) Up to C3932
  • 4
    2
    5109263
    HOSE CLIP;
  • 5
    12
    16043431
    BOLT Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd;

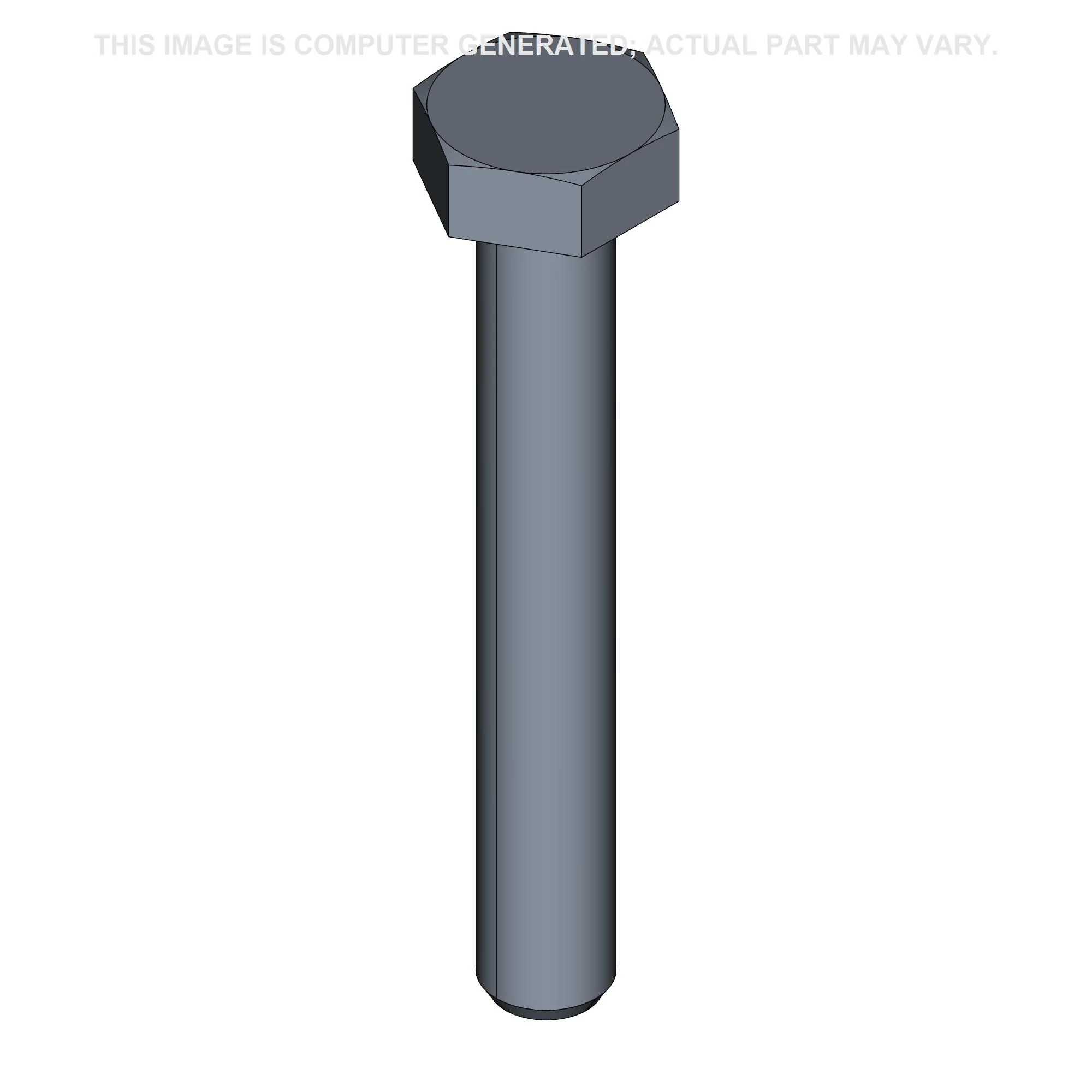

  • 6
    1
    11107631
    BOLT Hex, M10 x 1.5 x 70mm, 26mm Thread L, Cl 10.9, ZND; (SN Break) Up to C3932

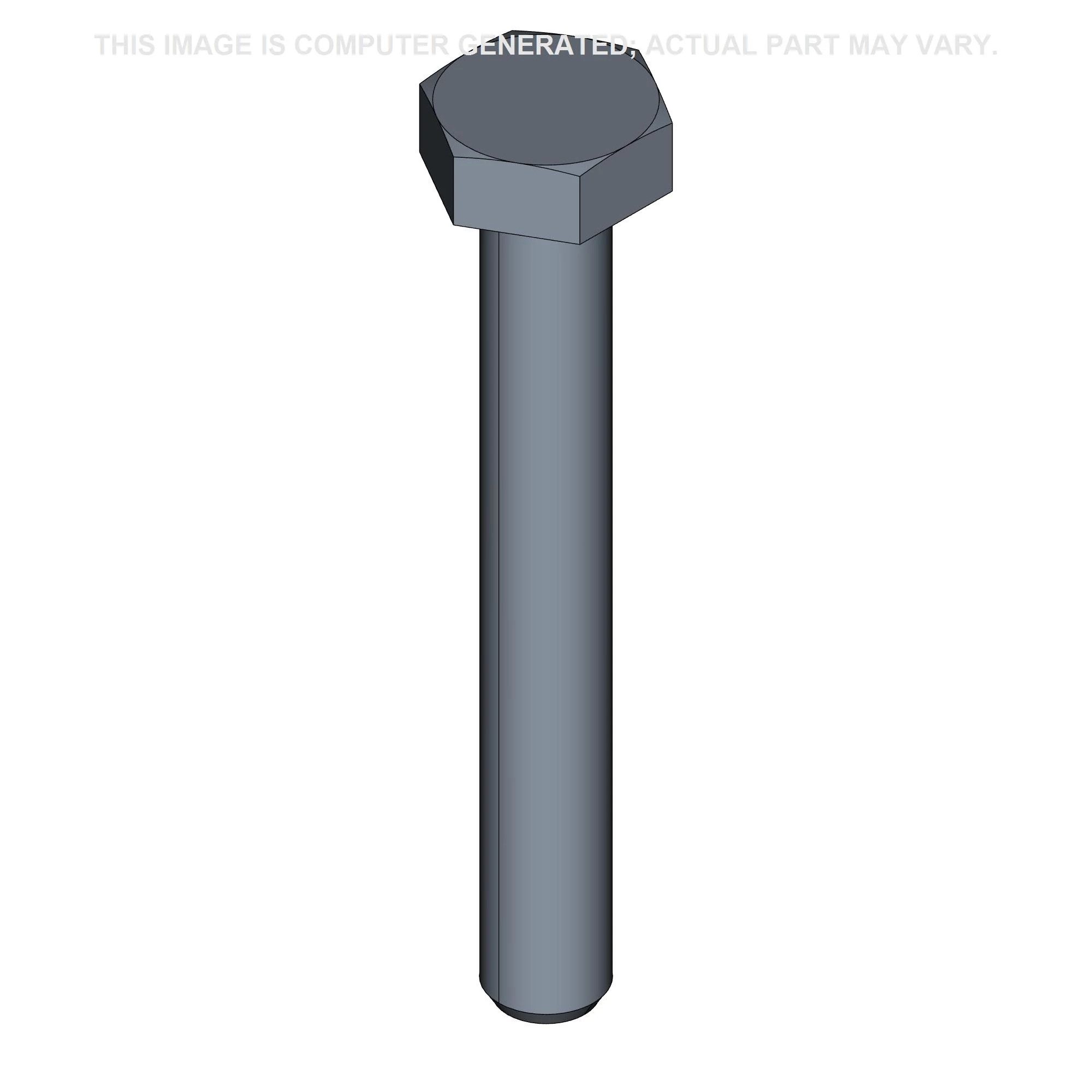

  • 6
    1
    11107731
    BOLT Hex, M10 x 1.5 x 75mm, 26mm Thread L, Cl 10.9, ZND; (SN Break) From D3932
  • 7
    1
    11701721
    NUT Hex, M10 x 1.25, Cl 10, ZND;
  • 8
    2
    11106431
    BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 10.9, ZND; (SN Break) Up to C3932
  • 8
    2
    11106631
    BOLT Hex, M10 x 1.5 x 35mm, Full Thd, Cl 10.9, ZND; (SN Break) From D3932
  • 9
    4
    12645031
    WASHER 8.45mm ID x 21mm OD x 3mm Thk, HTS, ZND;
  • 10
    4
    11106231
    BOLT Hex, M10 x 1.5 x 25mm, Full Thd, Cl 10.9, ZND;
  • 11
    9
    12626231
    WASHER 10.2mm ID x 25mm OD x 3mm Thk;
  • 12
    1
    76053623
    EXHAUST SYSTEM PIPE;
  • 13
    1
    76053622
    EXTENSION;
  • 14
    1
    79092684
    CLAMP;
  • 15
    1
    79101898
    PLATE;
  • 16
    1
    11106631
    BOLT Hex, M10 x 1.5 x 35mm, Full Thd, Cl 10.9, ZND;
  • 17
    1
    4724729
    SEALING RING; (SN Break) Up to C3932
  • 18
    1
    76046722
    HOSE CLIP; (SN Break) Up to C3932
  • 19
    3
    12626231
    WASHER 10.2mm ID x 25mm OD x 3mm Thk; (SN Break) Up to C3932

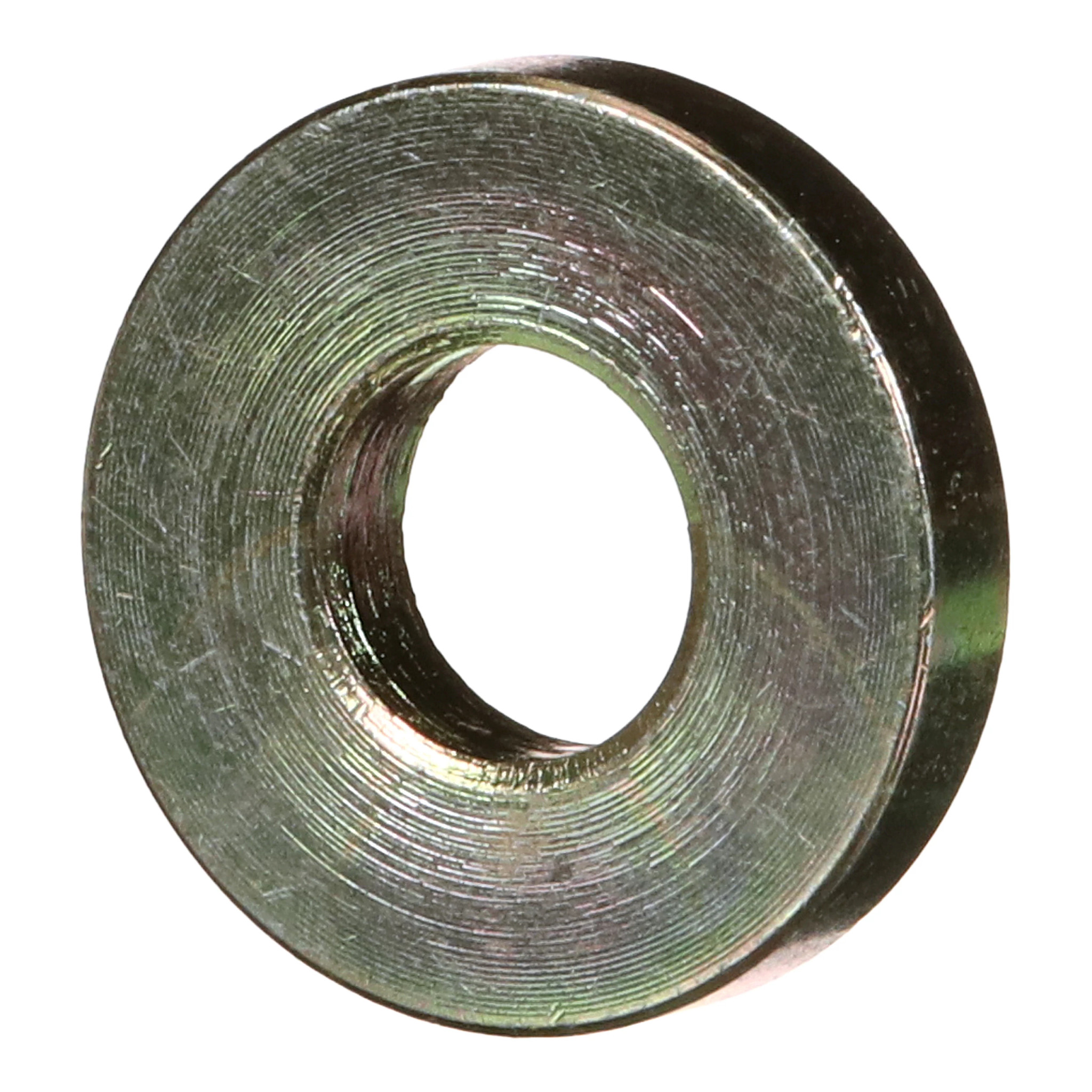

  • 19
    3
    79005244
    WASHER 10.6mm ID x 25mm OD x 5mm Thk, HTS, ZND; (SN Break) Up to D3932
  • 20
    1
    76069644
    BRACKET; (SN Break) Up to D3932
  • 21
    4
    11112431
    BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 10.9, ZND; (SN Break) Up to D3932

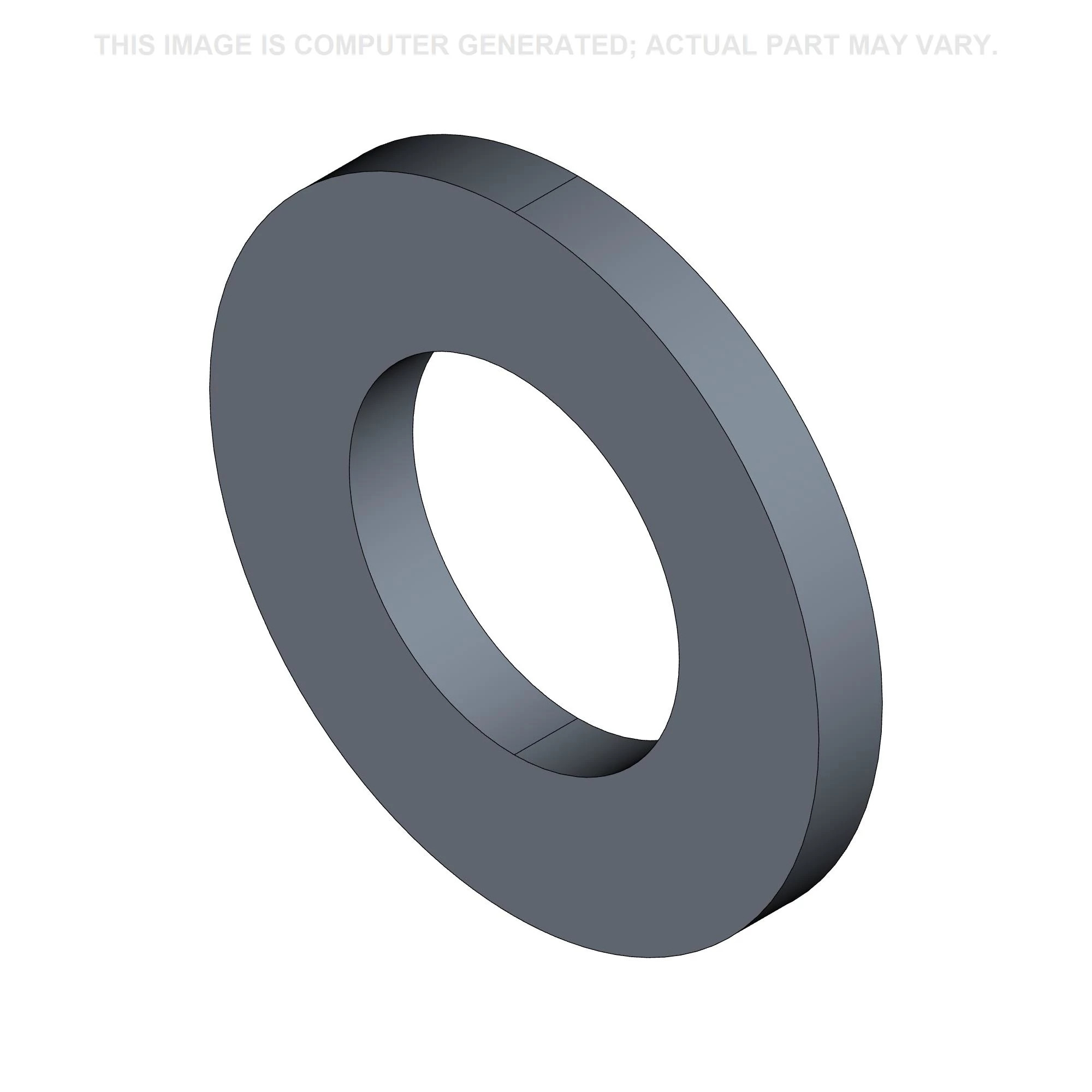

  • 22
    4
    14496731
    WASHER M12 x 24 x 2.5 Thk; (SN Break) Up to D3932
  • 23
    1
    76069611
    ELBOW; (SN Break) Up to D3932
