TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11INSTRUCTION; FRONT FRAME ASSEMBLY - articulated loader, see Figure 378 for bushings and proper frame
-
32BOLT Hex, 5/8'' - 11 x 5-1/2'', Gr 8; - hex head, 5/8'' - 11 NC x 5-1/2'', grade 8
-
42LOCK NUT 5/8''-11, GB; NUT - hex, self-locking, 5/8'' - 11 NC
-
51INSTRUCTION; CYLINDER - left-hand lift, parts list Figure 324
-
61INSTRUCTION; CYLINDER - right-hand lift, parts list Figure 324
-
72LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
-
82PIN; - mounting, lift cylinder to lift frame
-
92BOLT Hex, 5/8'' - 11 x 5'', Gr 8; - hex head, 5/8'' - 11 NC x 5''
-
102LOCK NUT 5/8''-11, GB; NUT - hex, self-locking, 5/8'' - 11 NC
-
112LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
-
122RING; - pin retaining, lift frame
-
13UARSHIM; WASHER - .312'' (7.925 mm) thick
-
13AUARSHIM; THRUST WASHER - lift cylinder, .078'' (1.98 mm) thick
-
14UARSHIM; WASHER - .375'' (9.525 mm) thick
-

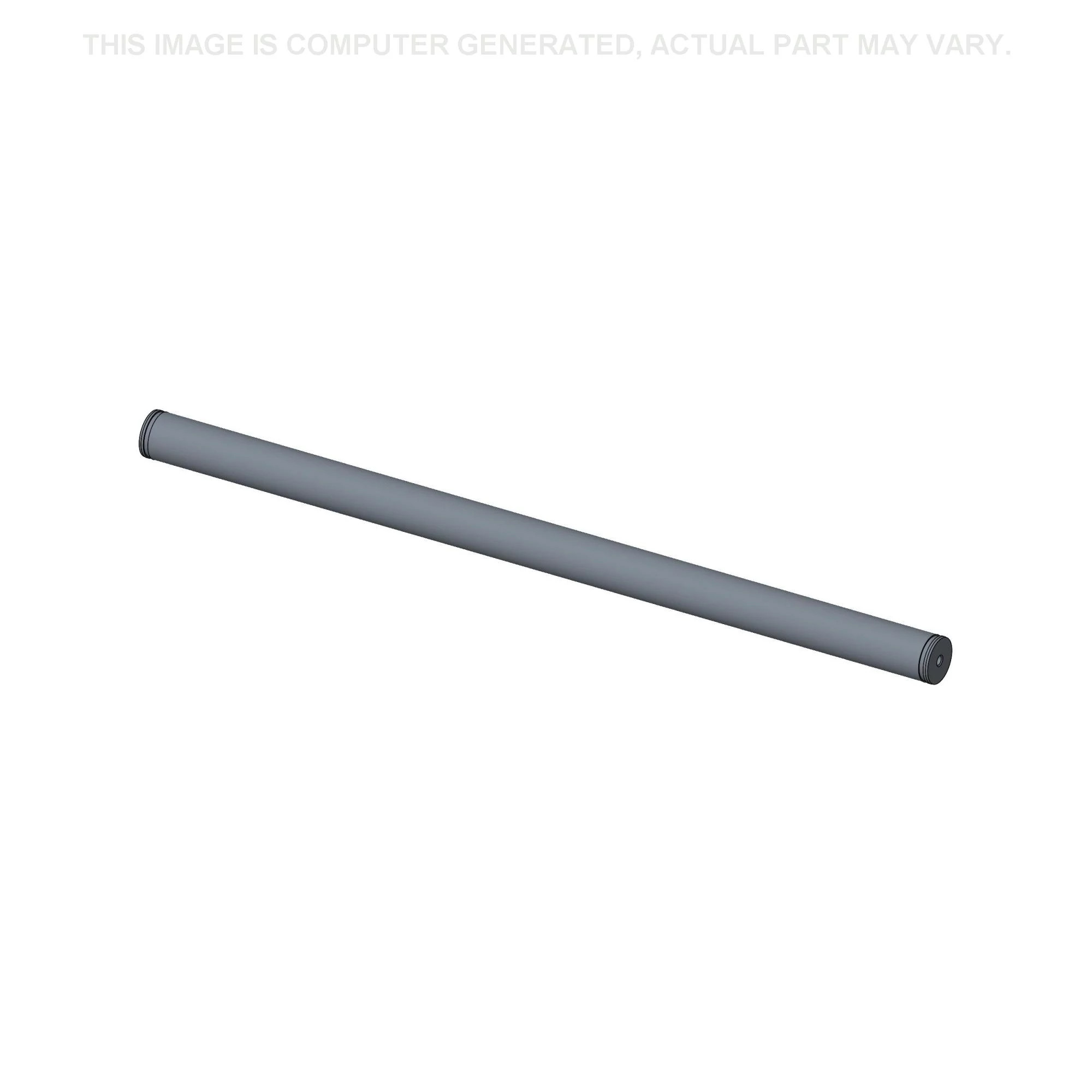

151SHAFT; - lift frame pivot
-
162RING; - pin retaining, tilt cylinder, closed end
-
17UARWASHER; - .312'' (7.925 mm) thick
-
17AUARWASHER; THRUST WASHER - tilt cylinder, .078'' (1.98 mm) thick
-

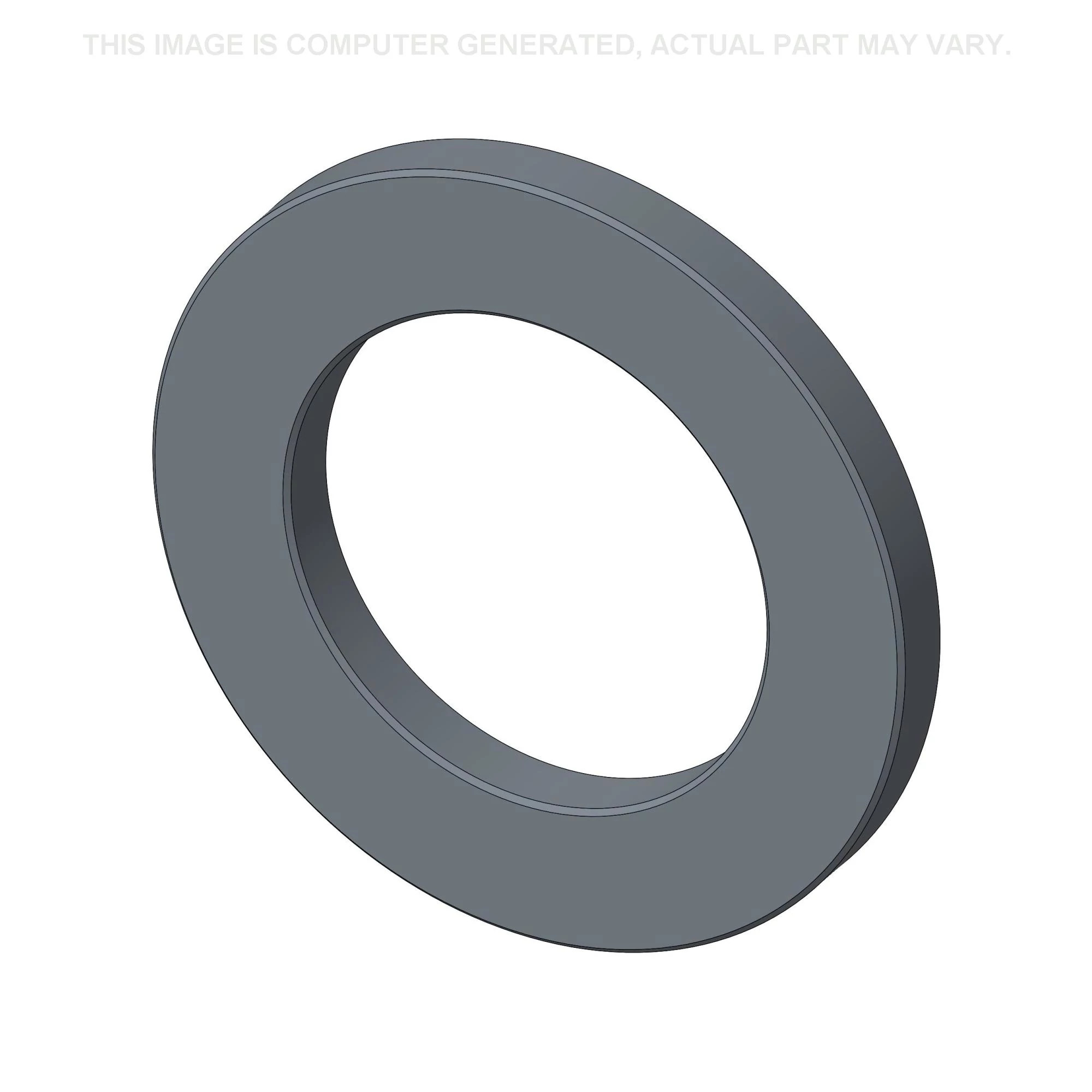

18UARWASHER; - .375'' (9.525 mm) thick
-
191SHAFT; - tilt cylinder pivot
-
1ARM ASSY.; FRAME ASSEMBLY - loader lift, Includes: Ref. 20 - 24
-
201NOT SOLD SEPARAT; FRAME - loader lift
-
212BUSHING 76.45mm ID x 88.14mm OD x 88.9mm L; - lift; (SN Break) Between frame and chassis
-
224BUSHING 51.02mm ID x 63.5mm OD x 25.4mm L; - lift; (SN Break) Between frame and bellcrank
-
232BUSHING 63.75mm ID x 75.48mm OD x 89mm L; - lift frame to lift cylinder
-
244BUSHING 51.02mm ID x 63.5mm OD x 50.8mm L; - lift; (SN Break) Between frame and bucket
-
251INSTRUCTION; CYLINDER - left-hand tilt, see Figures 326 and 328
-
261INSTRUCTION; CYLINDER - right-hand tilt, see Figures 326 and 328
-
27UARWASHER; - special, tilt; (SN Break) Between cylinder and bellcrank
-
281ARTICULATION; BELLCRANK - right-hand, used with block (ref 37), order L100608 bellcrank, R17756 pins, and related parts
-
291ARTICULATION; BELLCRANK - left-hand, used with block (ref 37), order use L100608 bellcrank, R17756 pins, and related parts
-
306LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
-
314PIN 50.8mm OD x 202.44mm L; - bellcrank to lift frame and tilt cylinder
-
322PIN 50.8mm OD x 214.12mm L; - bellcrank to bucket link
-
334BOLT Hex, 1/2'' - 13 x 5'', Gr 8; - hex head, 1/2'' - 13 NC x 5'', grade 8
-
346LOCK NUT 1/2''-13, GB; NUT - hex, self-locking, 1/2'' - 13 NC
-
354HEX SOC SCREW 1/2''-13 x 1 1/2''; - hex socket head, 1/2'' - 13 NC x 1-1/2'', if used
-
364LOCK WASHER 1/2''; if used 1/2''
-
372BLOCK; - spacer, at bellcrank and lift frame, if used
-
38UARSHIM; - block, if used
-
392LINK; - bucket, Includes: Ref. 40
-
404BUSHING 51.02mm ID x 63.5mm OD x 25.4mm L; - link
-
414LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
-
424PIN 50.8mm OD x 274.32mm L; - loader arm and; (SN Break) Between link and bucket
-
434BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 8; - hex head, 5/8'' - 11 NC x 4-1/2''
-
444LOCK NUT 5/8''-11, GC; NUT - hex, self-locking, 5/8'' - 11 NC
-
451INSTRUCTION; BUCKET - loader, parts list figures 354 thru 358
-
462DIPPER; BELLCRANK - loader, used without ref 37 block
-
486ROD 12.7mm OD x 109.54mm L; PIN - bellcrank
-
492BOLT Hex, 1/2'' - 13 x 2-1/4'', Gr 5; - hex head, 1/2'' - 13 NC x 2-1/4''
-
506NUT 1/2''-13, G5; - hex, 1/2'' - 13 NC
-
512LOCK WASHER 1/2'';
-
522TUBE SPACER 13.53mm ID x 19.05mm OD x 18.28mm L; SPACER - rod, link end
-
534BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5; - hex head, 1/2'' - 13 NC x 1-3/4''
-
544PIN; - tilt cylinder and lift cylinder, rod end
-
562TUBE; BRACKET - lift frame, if used, see service bulletin 49-81
Select All
Ref.
1Qty
1Availability
Part #
REFDescription
INSTRUCTION; FRONT FRAME ASSEMBLY - articulated loader, see Figure 378 for bushings and proper frameImg
Alts
Ref.
3Qty
2Availability
Part #
26-1088Description
BOLT Hex, 5/8'' - 11 x 5-1/2'', Gr 8; - hex head, 5/8'' - 11 NC x 5-1/2'', grade 8Img
Alts
Ref.
4Qty
2Availability
Part #
131-656Description
LOCK NUT 5/8''-11, GB; NUT - hex, self-locking, 5/8'' - 11 NCImg
Alts
Ref.
5Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - left-hand lift, parts list Figure 324Img
Alts
Ref.
6Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - right-hand lift, parts list Figure 324Img
Alts
Ref.
7Qty
2Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPTImg
Alts
Ref.
8Qty
2Availability
Part #
L15725Description
PIN; - mounting, lift cylinder to lift frameImg
Alts
Ref.
9Qty
2Availability
Part #
26-1080Description
BOLT Hex, 5/8'' - 11 x 5'', Gr 8; - hex head, 5/8'' - 11 NC x 5''Img
Alts
Ref.
10Qty
2Availability
Part #
131-656Description
LOCK NUT 5/8''-11, GB; NUT - hex, self-locking, 5/8'' - 11 NCImg
Alts
Ref.
11Qty
2Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPTImg
Alts
Ref.
13Qty
UARAvailability
Part #
L47559Description
SHIM; WASHER - .312'' (7.925 mm) thickImg
Alts
Ref.
13AQty
UARAvailability
Part #
L103854Description
SHIM; THRUST WASHER - lift cylinder, .078'' (1.98 mm) thickImg
Alts
Ref.
14Qty
UARAvailability
Part #
L47699Description
SHIM; WASHER - .375'' (9.525 mm) thickImg
Alts
Ref.
16Qty
2Availability
Part #
L16015Description

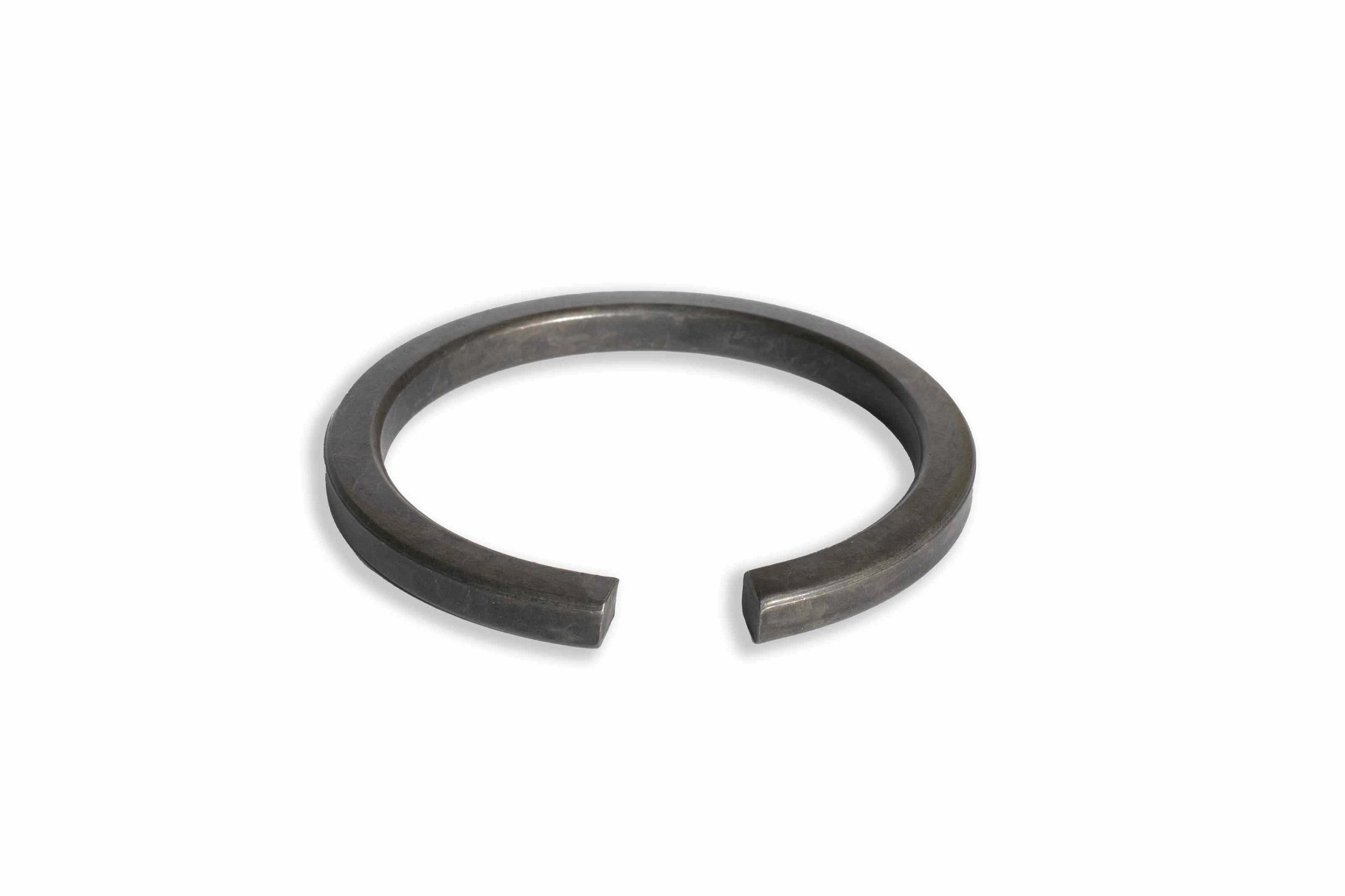

RING; - pin retaining, tilt cylinder, closed endImg
Alts
Ref.
17AQty
UARAvailability
Part #
L103855Description
WASHER; THRUST WASHER - tilt cylinder, .078'' (1.98 mm) thickImg
Alts
Ref.
Qty
1Availability
Part #
L108185Description
ARM ASSY.; FRAME ASSEMBLY - loader lift, Includes: Ref. 20 - 24Img
Alts
Ref.
21Qty
2Availability
Part #
L47560Description
BUSHING 76.45mm ID x 88.14mm OD x 88.9mm L; - lift; (SN Break) Between frame and chassisImg
Alts
Ref.
22Qty
4Availability
Part #
D33024Description

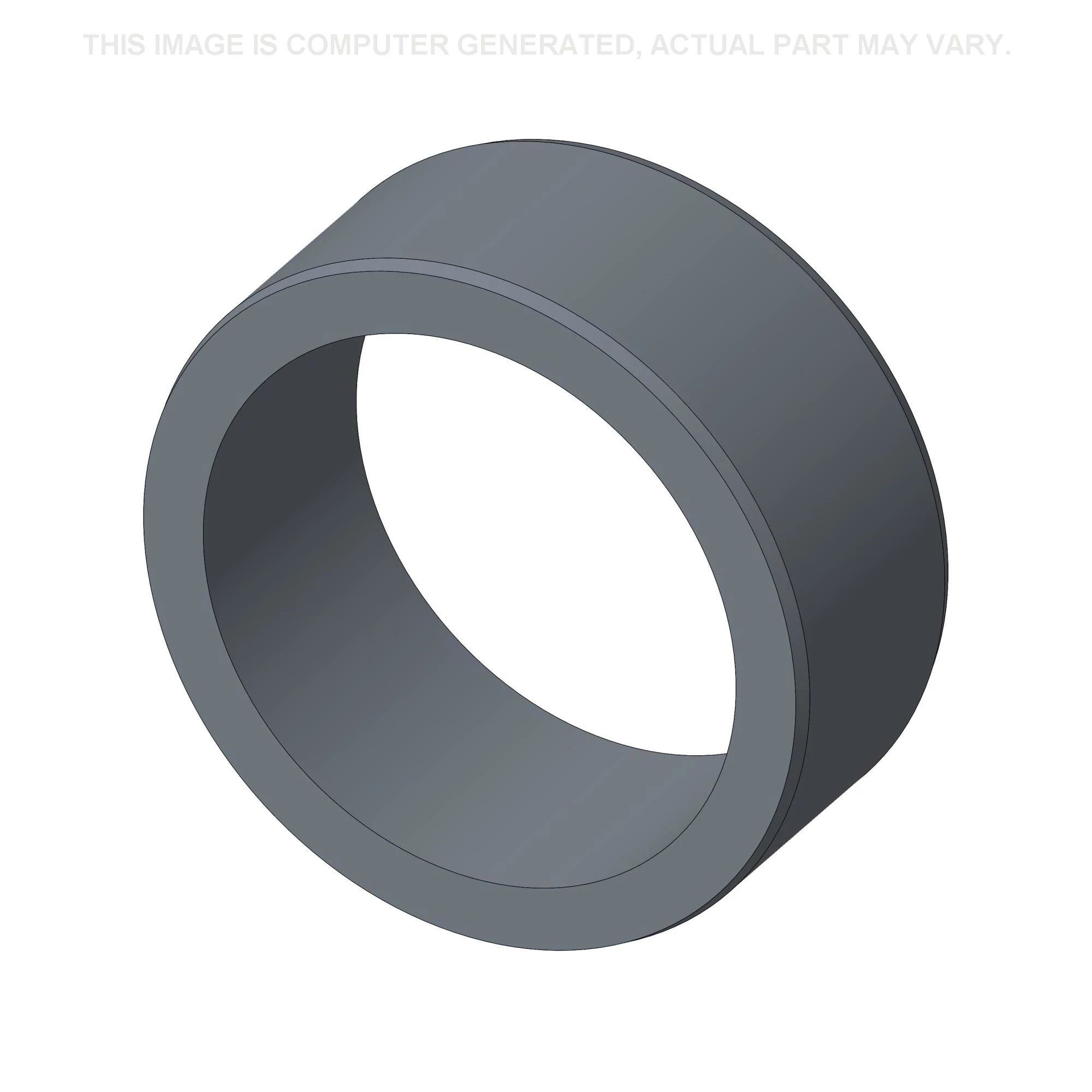

BUSHING 51.02mm ID x 63.5mm OD x 25.4mm L; - lift; (SN Break) Between frame and bellcrankImg
Alts
Ref.
23Qty
2Availability
Part #
L15802Description
BUSHING 63.75mm ID x 75.48mm OD x 89mm L; - lift frame to lift cylinderImg
Alts
Ref.
24Qty
4Availability
Part #
D33023Description

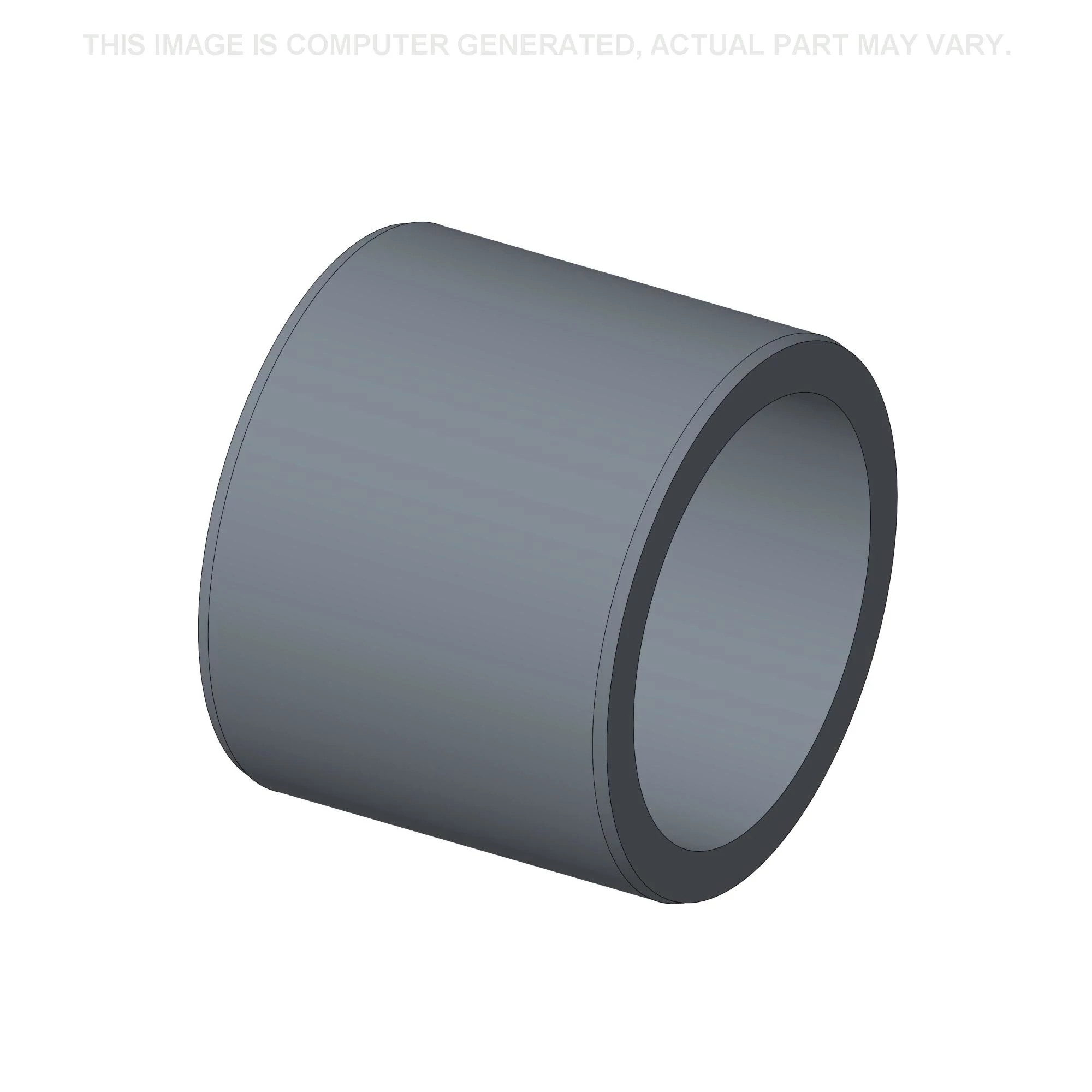

BUSHING 51.02mm ID x 63.5mm OD x 50.8mm L; - lift; (SN Break) Between frame and bucketImg
Alts
Ref.
25Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - left-hand tilt, see Figures 326 and 328Img
Alts
Ref.
26Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - right-hand tilt, see Figures 326 and 328Img
Alts
Ref.
27Qty
UARAvailability
Part #
L45013Description
WASHER; - special, tilt; (SN Break) Between cylinder and bellcrankImg
Alts
Ref.
28Qty
1Availability
Part #
L53725Description
ARTICULATION; BELLCRANK - right-hand, used with block (ref 37), order L100608 bellcrank, R17756 pins, and related partsImg
Alts
Ref.
29Qty
1Availability
Part #
L53726Description
ARTICULATION; BELLCRANK - left-hand, used with block (ref 37), order use L100608 bellcrank, R17756 pins, and related partsImg
Alts
Ref.
30Qty
6Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPTImg
Alts
Ref.
31Qty
4Availability
Part #
L40421Description
PIN 50.8mm OD x 202.44mm L; - bellcrank to lift frame and tilt cylinderImg
Alts
Ref.
32Qty
2Availability
Part #
L100624Description
PIN 50.8mm OD x 214.12mm L; - bellcrank to bucket linkImg
Alts
Ref.
33Qty
4Availability
Part #
26-880Description
BOLT Hex, 1/2'' - 13 x 5'', Gr 8; - hex head, 1/2'' - 13 NC x 5'', grade 8Img
Alts
Ref.
34Qty
6Availability
Part #
131-654Description
LOCK NUT 1/2''-13, GB; NUT - hex, self-locking, 1/2'' - 13 NCImg
Alts
Ref.
35Qty
4Availability
Part #
61-824Description
HEX SOC SCREW 1/2''-13 x 1 1/2''; - hex socket head, 1/2'' - 13 NC x 1-1/2'', if usedImg
Alts
Ref.
37Qty
2Availability
Part #
L41558Description
BLOCK; - spacer, at bellcrank and lift frame, if usedImg
Alts
Ref.
40Qty
4Availability
Part #
D33024Description
BUSHING 51.02mm ID x 63.5mm OD x 25.4mm L; - linkImg
Alts
Ref.
41Qty
4Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPTImg
Alts
Ref.
42Qty
4Availability
Part #
L15800Description
PIN 50.8mm OD x 274.32mm L; - loader arm and; (SN Break) Between link and bucketImg
Alts
Ref.
43Qty
4Availability
Part #
26-1072Description
BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 8; - hex head, 5/8'' - 11 NC x 4-1/2''Img
Alts
Ref.
44Qty
4Availability
Part #
131-64Description
LOCK NUT 5/8''-11, GC; NUT - hex, self-locking, 5/8'' - 11 NCImg
Alts
Ref.
45Qty
1Availability
Part #
REFDescription
INSTRUCTION; BUCKET - loader, parts list figures 354 thru 358Img
Alts
Ref.
46Qty
2Availability
Part #
L100608Description
DIPPER; BELLCRANK - loader, used without ref 37 blockImg
Alts
Ref.
48Qty
6Availability
Part #
R17756Description
ROD 12.7mm OD x 109.54mm L; PIN - bellcrankImg
Alts
Ref.
49Qty
2Availability
Part #
13-836Description

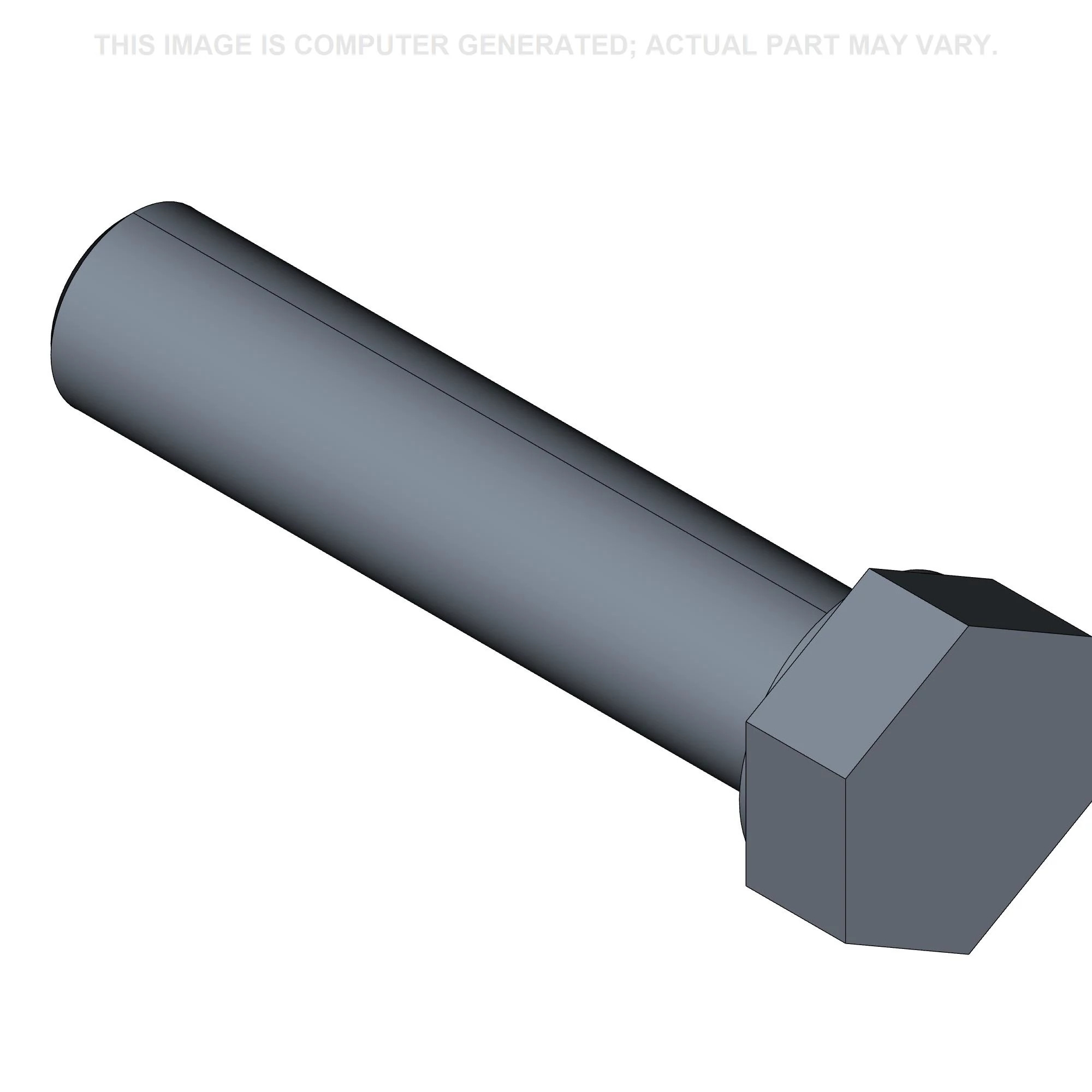

BOLT Hex, 1/2'' - 13 x 2-1/4'', Gr 5; - hex head, 1/2'' - 13 NC x 2-1/4''Img
Alts
Ref.
50Qty
6Availability
Part #
25-108Description
NUT 1/2''-13, G5; - hex, 1/2'' - 13 NCImg
Alts
Ref.
52Qty
2Availability
Part #
L58752Description

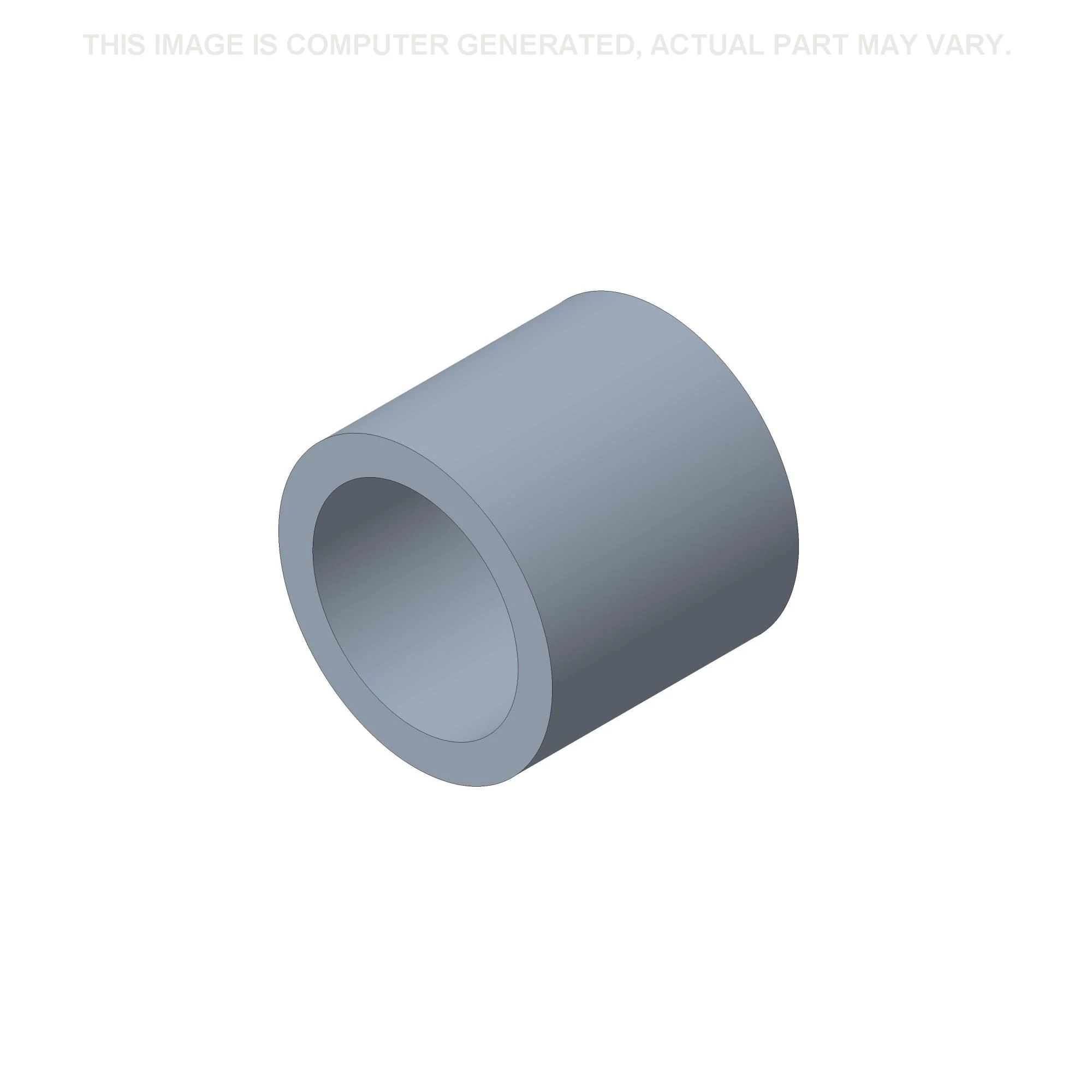

TUBE SPACER 13.53mm ID x 19.05mm OD x 18.28mm L; SPACER - rod, link endImg
Alts
Ref.
53Qty
4Availability
Part #
13-828Description
BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5; - hex head, 1/2'' - 13 NC x 1-3/4''Img
Alts
Ref.
54Qty
4Availability
Part #
L100623Description
PIN; - tilt cylinder and lift cylinder, rod endImg
Alts
Ref.
56Qty
2Availability
Part #
L48317Description
TUBE; BRACKET - lift frame, if used, see service bulletin 49-81Img
Alts
