03A08 - FRONT AXLE, STEERING & RELATED PARTS, POWER (75/9-78) - 335, 532
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    E0NN3N503GA
    GEAR; Assy., See Steering Gear Section; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 2
    1
    C5NN3307H
    DRAG LINK; End Assy., Rear RH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 3
    1
    C5NN3308F
    DRAG LINK; End Assy., Rear LH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 4
    2
    C5NN3A300C
    DRAG LINK; End Assy., Front; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 5
    4
    C0NN3A301A
    COVER; Dust; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 6
    2
    C0NN3349B
    TUBE; Drag Link Connecting; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 7
    4
    C0NN3287A
    CLAMP; Drag Link Tube; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 8
    4
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 9
    4
    280431
    NUT 1/2''-13, G5; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 10
    4
    87975
    BOLT Hex, 1/2'' - 13 x 2 1/4'', Gr 5; HH, G5, 1/2''-13 x 2-1/4''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 11
    2
    380135S43
    LOCK NUT 1/2''-20, GA; NUT, LOCK, 1/2''-20, GA; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 12
    2
    380038S36
    NUT 5/8''-18; NUT, LOCK, 5/8''-18; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 13
    1
    C9NN3A713A
    TUBE; Return Tube Assy., 532; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 13
    1
    D3NN3A713A
    RIGID TUBE; Return Tube Assy., 335; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 14
    1
    C9NN3A562A
    TUBE; Pump Pressure Tube Assy., 532; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 14
    1
    D3NN3A562E
    RIGID TUBE; Pump Pressure Tube Assy., 335; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 15
    1
    C5NN3N554C
    RIGID TUBE; Cylinder Tube Assy., Rear Outer RH, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 16
    1
    C5NN3N556B
    TUBE ASSY.; Cylinder Tube Assy., Rear Outer LH, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 16A
    2
    86546145
    TUBE; Flexible Cylinder Tube Assy., Rear Outer Lower, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 17
    1
    C5NN3N553B
    PIPE; Cylinder Tube Assy., Front Inner RH, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978

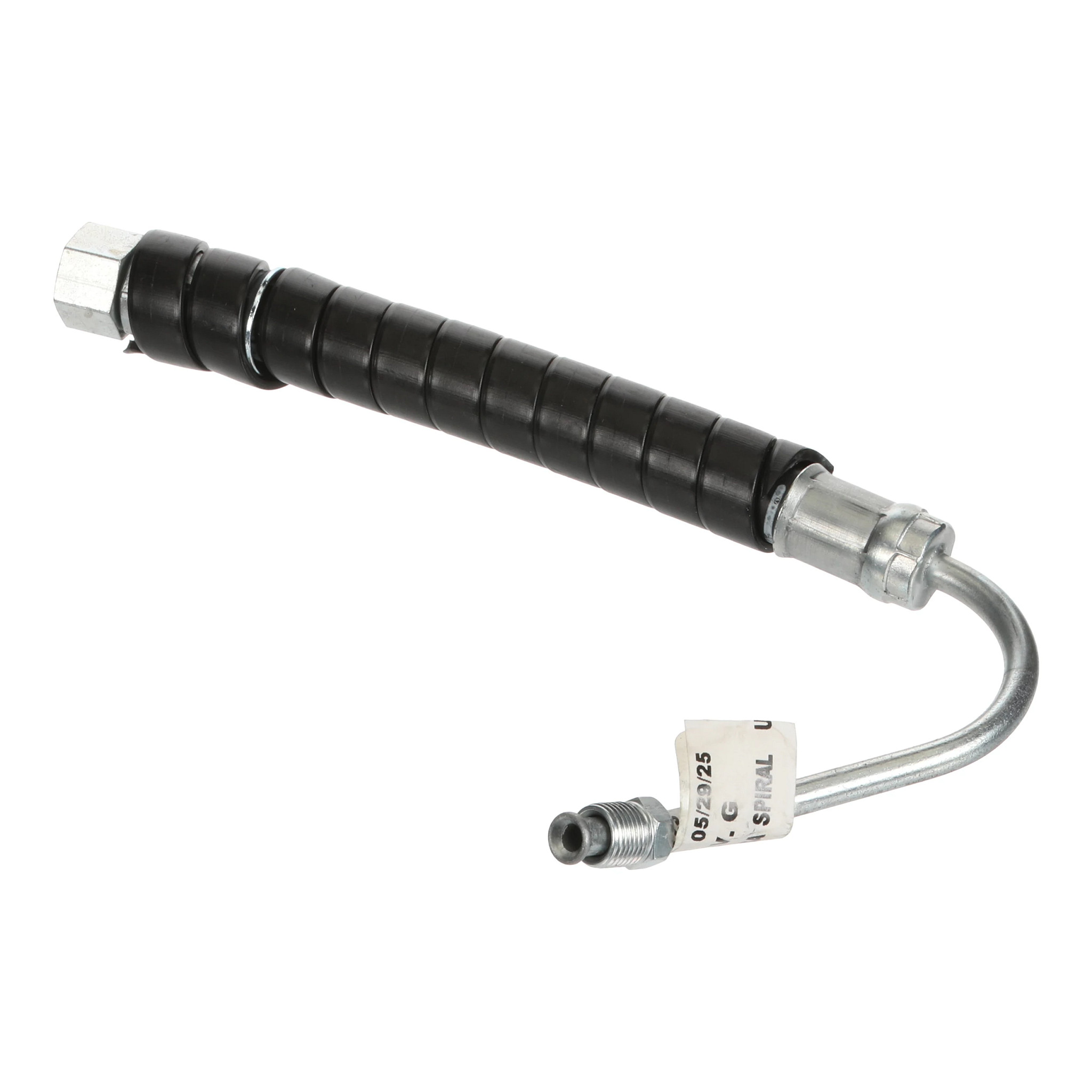

  • 17A
    1
    86546147
    HYD TUBE; Flexible Cylinder Tube Assy., Front Inner Lower RH, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 18
    1
    C5NN3N555B
    RIGID TUBE; Cylinder Tube Assy., Front Inner LH, Service Only; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 18A
    1
    86546146
    TUBE 0.25'' ID; Flexible Cylinder Tube Assy., Front Inner Lower LH, Service Only;When using Service Only Tube Assembies 15, 16, 17, & 18 to replace Production Tube Assemblies also furnish correct Flexible Lower Tube Assembly 16A, 17A & 18A.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 19
    2
    81803252
    CLAMP; Cylinder Pipe Clamp Assy. (Replaces C5NN3n750A); (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 20
    4
    C5NN3N550A
    LINER; Sleeve, Tube Clamp; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978

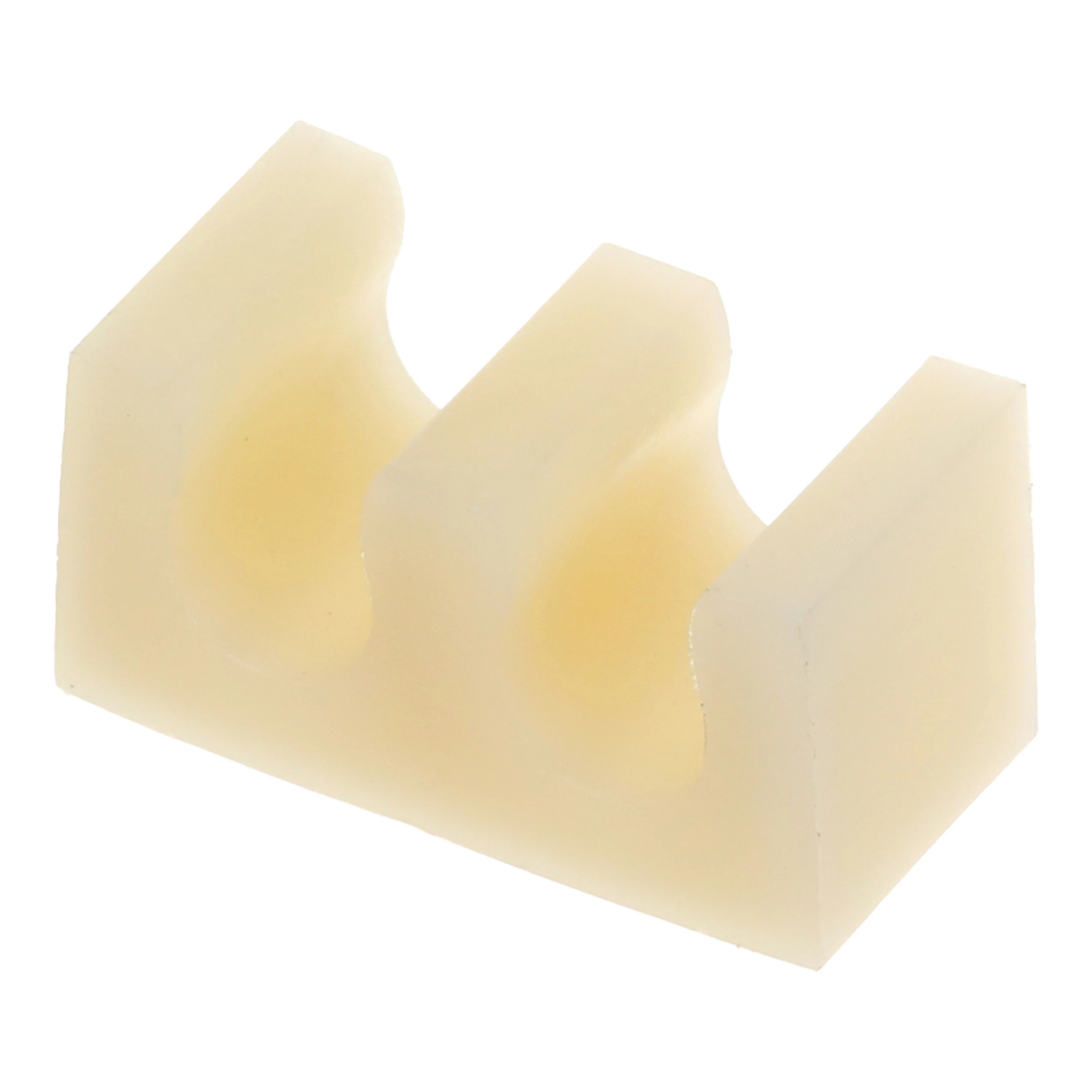

  • 21
    2
    81817290
    CLAMP; Power Steering Pressure & Return Tubes, Front; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 22
    1
    C7NN3E506B
    CLAMP; Power Steering Pressure & Return Tube, Rear; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 25
    1
    C5NN3C578B
    ACTUATOR; Steering Cylinder Assy., LH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 26
    1
    C5NN3A739G
    ACTUATOR; Steering Cylinder Assy., RH, Refer to Cylinder Section for Components; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 27
    2
    CAPN3300A
    KIT; Cylinder End, Refer to Cylinder Section for Components; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 28
    2
    8M3332
    SEAL; Cover, Cylinder Front Dust; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 29
    2
    380135S43
    LOCK NUT 1/2''-20, GA; NUT, LOCK, 1/2''-20, GA; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 30
    2
    310065F
    COVER; Cylinder Rear Dust; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 31
    2
    33848S8
    NUT; Hex, 9/16''-18; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 32
    2
    E6NN3K514DA
    SMALL PUMP; Pump & Reservoir Assy., Refer to Pump Section; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 37
    1
    82847511
    ROD; Assy., Radius, RH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 38
    1
    C5NN3A292B
    ROD; Radius Rod Assy., LH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 39
    AR
    9602205
    NUT 7/8''-14, G5; G5, 7/8''-14; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 40
    2
    372135S36
    BOLT; HH, 7/8''-14 x 5-7/8''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 41
    2
    E0NN3N442BA
    SPACER; Radius Rod Ball; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 41A
    4
    313024
    SHIM .106'' Thk; Rod Ball, Cap, 1/8'' (3.175mm) Thick, 335 W/Manual Reverse Transmission; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 41A
    4
    313024
    SHIM .106'' Thk; Rod Ball, Cap, 1/8'' (3.175mm), 532; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 42
    2
    E0NN3N406BA
    CAP; Cap, Radius Rod Ball; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 43
    6
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 44
    6
    380133S36
    NUT; Hex, 7/16''-20; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 45
    2
    380313S36
    STUD; Screw, 7/16''-14-20 x 1-3/4'', 335 L/Manual Reverse Transmission; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 45
    2
    381840S36
    STUD; Screw, 7/16''-14-20 x 2'', 335 W/Manual Reverse Transmission; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 45
    2
    381840S36
    STUD; Screw, 7/16''-14-20 x 2'', 532; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 46
    4
    380314S36
    STUD; Screw, 7/16''-14-20 x 3-3/8'', 335 L/Manual Reverse Transmission; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 46
    4
    381841S36
    STUD; Screw, 7/16''-14-20 x 3-5/8'', Spacer & Cap to Transmission Case, 335 W/Manual Transmission; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 46
    4
    381841S36
    STUD; Screw, 7/16''-14-20 x 3-5/8'', Spacer & Cap to Transmission Case, 532; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 47
    1
    C5NN3A041D
    FRONT AXLE; Axle Assy., Front, Includes: Axle, Ref. 48 & 49; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 48
    2
    87041922
    BUSHING 38.25mm ID x 41.389mm OD x 37.85mm L; Spindle, Upper; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 49
    2
    81812242
    BUSHING 49.3mm ID x 52.51mm OD x 44.45mm L; Spindle, Lower; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 50
    1
    C5NN3105F
    SPINDLE; Assy., RH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 51
    1
    C5NN3106E
    SPINDLE; Assy., LH; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 52
    2
    80710
    LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Spindle Tube 1/8''-27 x .66 lg; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 53
    2
    C0NN3A367A
    SPACER; Spindle Thrust; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 54
    2
    C0NN3A299A
    BEARING ASSY 51.156 mm ID x 74.8665 mm OD x 16.129 mm; Spindle Thrust Bearing Assy., 2.0'' I.D. x 2.94'' O. D.; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 55
    2
    C0NN3A208A
    SEAL; Steering Arm; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 56
    2
    C0NN3130D
    ARM; Steering Spindle; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 57
    2
    280262
    WOODRUFF KEY #A, 1/4'' x 7/8'', HT; Key, Woodruff # A, Hardened, 1/4'' x 7/8''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 58
    2
    304863S36
    SCREW; Cap, HH, G5, 7/16''-20 x 2-1/4''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 59
    1
    D5NN3A042B
    SUPPORT; Front Axle; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 60
    4
    280954
    NUT 3/4'' - 10, Gr 5; G5, 3/4''-10; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 61
    4
    86507002
    BOLT Hex, 3/4''- 10 x 5 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 5-1/2''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 62
    2
    384590S36
    STUD; Screw, 3/4''-10-16 x 4-7/8''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 63
    AR
    81802831
    SHIM 19.33mm ID x 41.15mm OD x 0.4mm Thk; .015/.015'', Support to Engine; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 63
    AR
    81802832
    SHIM 13.33mm ID x 41.15mm OD x 0.48mm Thk; .017/.018'', Support to Engine; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 63
    AR
    C5NN3N150C
    SHIM; .020/.022; (SN Break) Between Support and Engine; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 63
    AR
    C5NN3N150D
    SHIM 19.84mm ID x 41.15mm OD x 0.64mm Thk; .023/.025; (SN Break) Between Support and Engine; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 63
    AR
    81802835
    SHIM 19.33mm ID x 41.15mm OD x 0.71mm Thk; .026/.028'', Support to Engine; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 64
    AR
    C5NN3403A
    SPACER; Support, Length= 2.235''/2.240'' (56.768/56.875mm), Red; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 64
    AR
    C5NN3403B
    SPACER; Support, Length is 2.245''/2.250'' Green; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 64
    AR
    C5NN3403C
    SPACER; Support, 2.255''/2.260'' (57.28/57.40mm), Length ,Grey; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 65
    1
    C5NN3127B
    PIN 44.63mm OD x 125.95mm L; Axle; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978

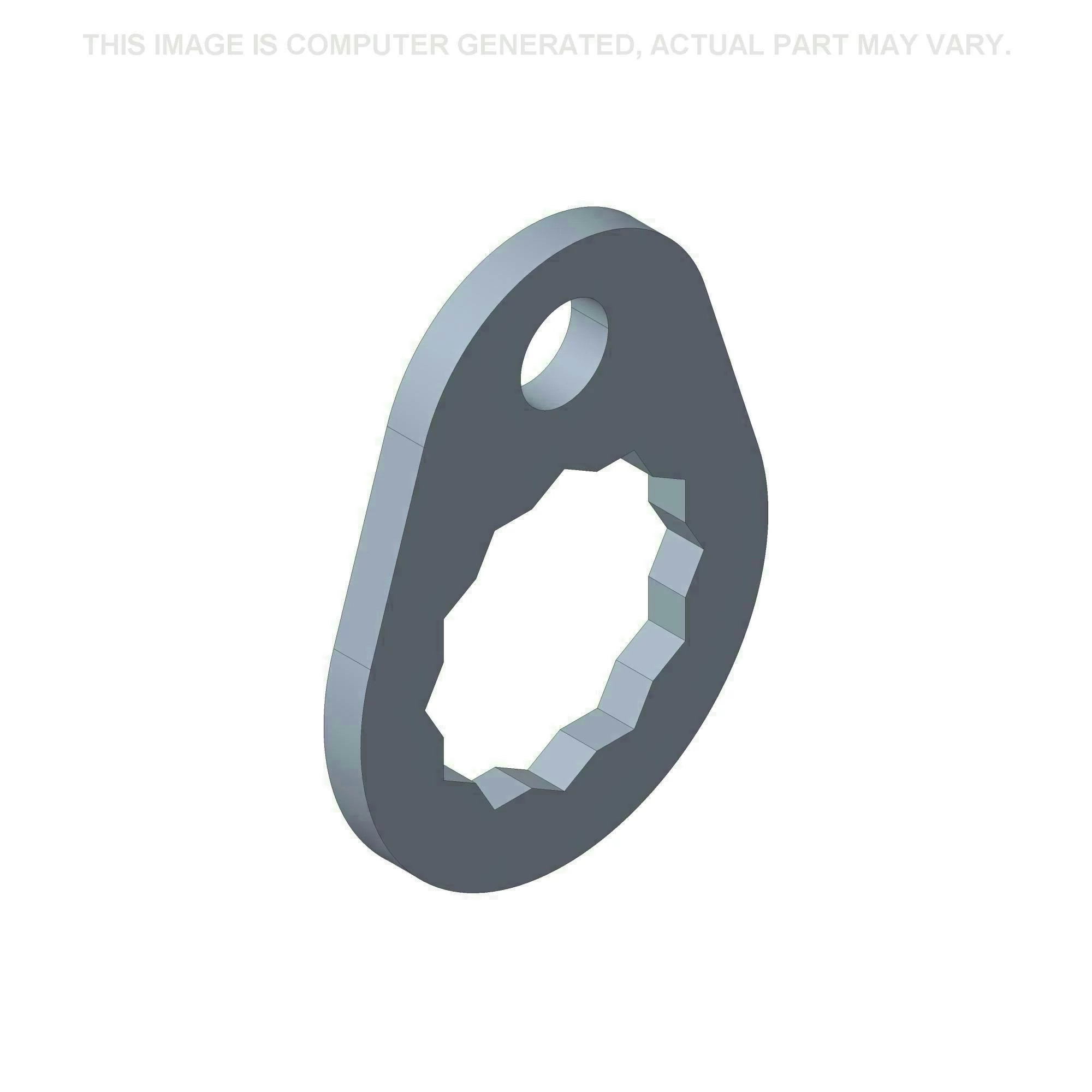

  • 66
    1
    C5NN3128B
    FLANGE; Axle Pin Locking; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 67
    AR
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
  • 68
    1
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; (Prod Date) Between 01-Jan-1975 and 30-Sep-1978
