003 - DECK COMPONENTS - 60'' & 72'' - SIDE DISCHARGE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    AUB162293
    SHIELD; Deflector Shield, 60'' - (14'' opening)
  • 1
    1
    AUB164089
    SHIELD; Discharge, 60'' - 716418026 - (20'' opening)
  • 1
    1
    AUB162375
    SHIELD; Deflector Shield, 72''
  • 1
    1
    AUB164094
    SHIELD; Discharge, 72'' - 716419016;Includes Necessary Decals, See Fig. 26
  • 2
    1
    AUB160052
    SPRING; Torsion
  • 3
    1
    AUB160058
    PIN; Deflector Hinge
  • 4
    1
    AUB162294
    SHELL; Deck Shell, 60''
  • 4
    1
    AUB164060
    SHELL; Deck Shell, 60'' - 716418026;Includes Necessary Decals, See Fig. 26
  • 4
    1
    AUB162793
    SHELL; Deck Shell, 72''
  • 4
    1
    AUB164072
    SHELL; Deck Shell, 72'' - 716419016;Includes Necessary Decals, See Fig. 26
  • 5
    2
    AUB121712
    WHEEL BEARING KIT; Wheel & Tire Assy., Includes: Ref. 6
  • 6
    1
    AUB121865
    BEARING ASSY; Wheel Bearing Includes: Ref. 6A-6D
  • 6A
    1
    NSS
    NOT SOLD SEPARAT; Bearing
  • 6B
    2
    NSS
    NOT SOLD SEPARAT; Thrust Washer
  • 6C
    1
    NSS
    NOT SOLD SEPARAT; Spanner
  • 6D
    2
    NSS
    NOT SOLD SEPARAT; Seal-Retainer
  • 7
    2
    AUB314167
    RING; Washer, Special, 1.0 ID x 1-1/2'' OD
  • 8
    2
    AUB161860
    SPACER; Bushing, Gauge Wheel Spindle
  • 9
    2
    AUB162767
    SHAFT; Gauge Wheel Spindle
  • 10
    2
    AUB161864
    YOKE; Front Gauge Wheel
  • 11
    2
    AUB162288
    STOP; Front, 72'';Use with 72'' only, when the tractor is eqiupped with large Ag. Tires.;Used BSN A9BD001
  • 12
    1
    AUB162296
    SHIELD; Belt Shield, L.H., 60''
  • 12
    1
    AUB164095
    SHIELD; Belt, L.H., 60'' - 716418026
  • 12
    1
    AUB162297
    SHIELD; Belt Shield, L.H., 72''
  • 12
    1
    AUB164026
    SHIELD; Belt, L.H., 72'' - 716419016
  • 12
    1
    AUB164328
    SHIELD; Belt Shield, R.H., 60''
  • 12
    1
    AUB164076
    SHIELD; Belt, R.H., 60'' - 716418026
  • 12
    1
    AUB164329
    SHIELD; Belt, R.H., 60'' - 716418036
  • 12
    1
    AUB162119
    SHIELD; Belt Shield, R.H., 72''
  • 12
    1
    AUB164024
    SHIELD; Belt, R.H., 72'' - 716419016
  • 12
    1
    AUB164330
    SHIELD; Belt, R.H., 72'' - 716419036
  • 13
    3
    AUB160118
    PLUG;
  • 14
    1
    AUB162131
    GEAR SET; Gearbox Assy.
  • 14
    1
    84279411R
    REMAN-GEARBOX GEARBOX; 716418001, 716418016, 716418026, - 914A-Series 60'' Side Discharge Mid-Mount Mowers, 716419001 & 716419016 - 914A-Series 72 Side Discharge Mid-Mount Mower, 914A Series Mid Mount Mower, 9863248 - 914A Series 60 '' Mid Mounted Mower, 9864024 - 914A Series 72''
  • 14
    1
    84279411C
    CORE-GEARBOX GEARBOX; Return Number
  • 15
    1
    AUB160552
    BRACKET; Gearbox Mount, 72''
  • 16
    1
    AUB162148
    STOP; Rear Extension, 72'';Use with 72'' only, when the tractor is eqiupped with large Ag. Tires.
  • 17
    1
    AUB162147
    BRACKET 11.375''L x 3.375''W; Gearbox Mount, L.H., 60''
  • 17
    1
    AUB164055
    BRACKET 14.375''L x 3.375''W; Gearbox Mount, L.H., 60'' - 716418026
  • 18
    1
    AUB162149
    BAR; Gearbox Mount, L.H., 60'';ASN A9AK050 - BSN A9AK051 AUB162146 had been used
  • 19
    1
    AUB162113
    BRACKET; Gearbox Mount, R.H., 60''
  • 20
    1
    AUB140430
    HUB; Collet Hub W/Fasteners
  • 21
    1
    AUB147454
    PULLEY; B, 6.9'' OD, 60''
  • 21
    1
    AUB161813
    PULLEY; B, 5.9'' OD, 72''
  • 22
    2

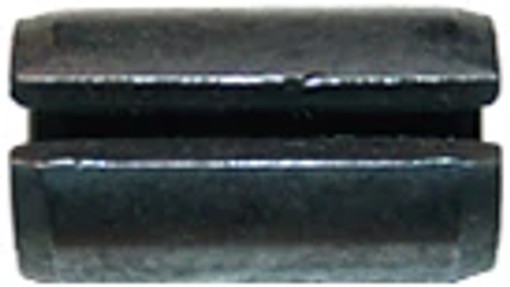

    280634
    PIN 3.97mm OD x 25.4mm L, Coiled;
  • 23
    2
    88871
    LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13
  • 24
    2
    197297
    SNAP RING #98, Ext; Ring, Snap, #98, Ext
  • 25
    2
    87414
    LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
  • 26
    2
    86551409
    PIN; Clevis, 3/8'' x 2-1/8''
  • 27
    2
    AUB967057
    RING; Wire
  • 28
    2
    35982
    BOLT Spcl, 1/2'' x 3 3/4'', Drilled; Screw, Cap, HH, Drilled, G5, 1/2''-13 x 3-3/4''
  • 29
    15
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 29
    7
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8'';Used BSN A9BD001
  • 30
    4
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4'';Used BSN A9BD001
  • 31
    6
    256873
    SERRATED BOLT Hex Serr, 5/16'' - 18 x 1/2'', 5SPL, Full Thd;
  • 31
    8
    271288
    SERRATED BOLT Hex Serr, 5/16'' - 18 x 5/8'', 5SPL, Full Thd; Screw, Cap, Flg Hd, USR, 5/16''-18 x 5/8'', 716419016
  • 32
    4
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 33
    9
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 33
    5
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5; 716418026 Hex, 3/8''-16 x 1'', G5, Full Thd
  • 34
    2
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
  • 34
    4
    PL
    PROCURE LOCALLY; Bolt, 3/8''-16 x 1-1/4'' - 716419016
  • 35
    1
    25121
    SNAP RING #100, Ext; Ring, Snap, #100, Ext
  • 36
    1
    87477
    KEY; 1/4'' Sq x 1''
  • 37
    1
    AUB161355
    V-BELT; Belt, 9863248 - 60'', Effective Length 159.8''
  • 37
    1

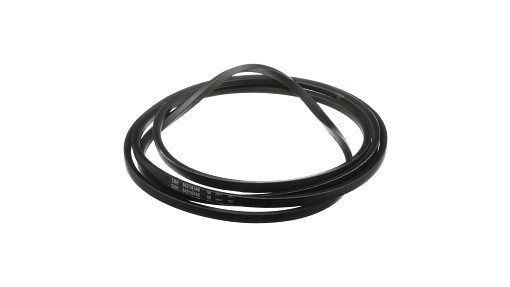

    84214748
    BELT V-Belt, 0.6563in W x 175.62in L; 9864024 - 72'', Effective Length 175.62'';161711
  • 38
    1
    AUB162909
    KIT; Baffle - 60'' - Weld on parts to replace lighter gage baffles
  • 38
    1
    AUB162908
    KIT; Baffle - 72'' - Weld on parts to replace lighter gage Baffles
