03E02 - POWER STEERING CYLINDER & END ASSEMBLY - TW5, TW15, TW25, TW35
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    E6NN3A540AA
    VERIN DE DIRECTION; Cylinder Assy., 2000 P.S.I., Includes: Ref. 2 thru 6
  • 2
    1
    NSS
    PAS VENDU SÉPARÉMENT; Tube Assy.
  • 3
    1
    NSS
    PAS VENDU SÉPARÉMENT; Tube Assy., Includes: Ref. 4
  • 4
    1
    NSS
    PAS VENDU SÉPARÉMENT; Bushing
  • 5
    1
    D5NN3N797B
    PISTON; Assy., 23-5/8''
  • 6
    1
    21T4022
    BREATHER;
  • 7
    1
    NSS
    NOT SOLD SEPARAT; Seal, Rod
  • 8
    2
    NSS
    NOT SOLD SEPARAT; Ring, Back-Up
  • 9
    2
    NSS
    NOT SOLD SEPARAT; Seal
  • 10
    1
    NSS
    NOT SOLD SEPARAT; O-Ring
  • 11
    1
    NSS
    NOT SOLD SEPARAT; Ring
  • 12
    1
    NSS
    NOT SOLD SEPARAT; Ring
  • 13
    1
    D8NN3B539AB

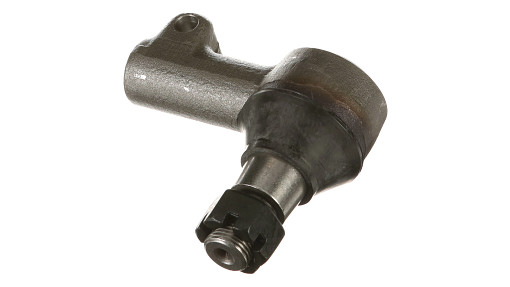

    TRACK ROD END ASSY 7/8'' - 18 x 3-2/3''; End Assy., Slotted Nut on 03B02
  • 14
    1
    86509499
    JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16
  • 15
    1
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 16
    1
    9706689
    VIS Hex, 3/8'' - 16 x 1-3/4'', Gr 5;
  • 17
    1
    C0NN3287A
    CLAMP;
  • 18
    1
    D8NN3A302AA
    ARTICULATION; End Assy., Slotted Nut on 03B02
  • 19
    1
    280963

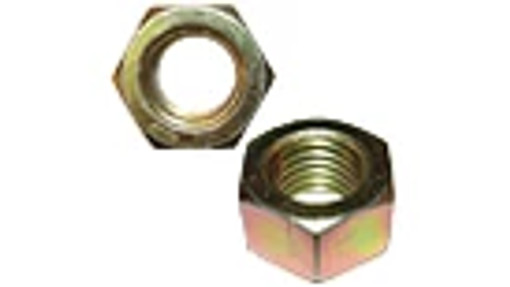

    NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20
  • 20
    1
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
  • 21
    1
    304893S8
    SCREW; Cap, HH, G5, 1/2''-20 x 2-1/2''
  • 22
    1
    DGPN3301A

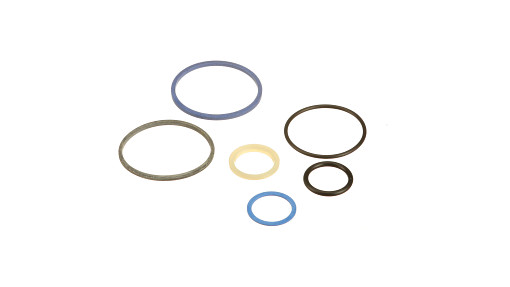

    KIT; Seal, Includes: Ref. 7 thru 12
Select All

Select

Ref.

1

Qty

1

Availability

Part #

E6NN3A540AA

Description

VERIN DE DIRECTION; Cylinder Assy., 2000 P.S.I., Includes: Ref. 2 thru 6


Alts

Select

Ref.

2

Qty

1

Availability

Part #

NSS

Description

PAS VENDU SÉPARÉMENT; Tube Assy.


Alts

Select

Ref.

3

Qty

1

Availability

Part #

NSS

Description

PAS VENDU SÉPARÉMENT; Tube Assy., Includes: Ref. 4


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

PAS VENDU SÉPARÉMENT; Bushing


Alts

Select

Ref.

5

Qty

1

Availability

Part #

D5NN3N797B

Description

PISTON; Assy., 23-5/8''


Alts

Select

Ref.

6

Qty

1

Availability

Part #

21T4022

Description

BREATHER;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Seal, Rod


Alts

Select

Ref.

8

Qty

2

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring, Back-Up


Alts

Select

Ref.

9

Qty

2

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Seal


Alts

Select

Ref.

10

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; O-Ring


Alts

Select

Ref.

11

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring


Alts

Select

Ref.

12

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring


Alts

Select

Ref.

13

Qty

1

Availability

Part #

D8NN3B539AB

Description

TRACK ROD END ASSY 7/8'' - 18 x 3-2/3''; End Assy., Slotted Nut on 03B02


Alts

Select

Ref.

14

Qty

1

Availability

Part #

86509499

Description

JAM NUT 3/8''-16, G2; Nut, Jam, G2, 3/8''-16


Alts

Select

Ref.

15

Qty

1

Availability

Part #

80680

Description

LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''


Alts

Select

Ref.

16

Qty

1

Availability

Part #

9706689

Description

VIS Hex, 3/8'' - 16 x 1-3/4'', Gr 5;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

C0NN3287A

Description

CLAMP;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

D8NN3A302AA

Description

ARTICULATION; End Assy., Slotted Nut on 03B02


Alts

Select

Ref.

19

Qty

1

Availability

Part #

280963

Description

NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20


Alts

Select

Ref.

20

Qty

1

Availability

Part #

80679

Description

LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''


Alts

Select

Ref.

21

Qty

1

Availability

Part #

304893S8

Description

SCREW; Cap, HH, G5, 1/2''-20 x 2-1/2''


Alts

Select

Ref.

22

Qty

1

Availability

Part #

DGPN3301A

Description

KIT; Seal, Includes: Ref. 7 thru 12


Alts
