TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11BUSHING; Hydraulic Pump Intake Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
11BUSHING; Hydraulic Pump Intake Valve, .010'' O/S, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
21SPARE PART; Spring, Hydraulic Pump Intake Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
3ARPROCURE LOCALLY; Pin, 3/32'' x 1-1/4'' Cotter
-
41PROCURE LOCALLY; Plug, Button, Return Spring in Intake Bushing, 3/8''; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
51CONTROL VALVE; Valve, Hydraulic Pump Intake, .5917/.5918, White, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
51SPARE PART; Valve, Hydraulic Pump Intake, .5918/.5920, Blue, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
51SPARE PART; Valve, Hydraulic Pump Intake, .5920/.5921, Yellow, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
5A2SPARE PART; Pin, Hydraulic Pump Base Dowel;Not illustrated; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
61PLUG; Hydraulic Pump Drain; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
71GASKET; Hydraulic Pump Drain; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
81NOT SERVICED; Hydraulic Pump Assy., Order Components, 2N,9N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
81NOT SERVICED; Hydraulic Pump Assy., Order Components, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
81SUPPORT; Hydraulic Pump Base Assy., Optional W/B, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
81NO LONGER SERVICED; Hydraulic Pump Base Assy., Optional W/A, 8N;8N605B; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
81BASE PLATE; Hydraulic Pump Base Assy., 2N, 9N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
99WASHER 7/16'' x 7/8'' x 1/8'' Thk; Used W/Aluminum Base 7/16'' x 7/8'' x 1/8'' Thk; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
109BOLT; Hex, 7/16''-14 x 1.38'', Base to Center Housing; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
102BOLT; 7/16''-14 x 1.38'', Clamps to Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
111PROCURE LOCALLY; Bolt, HH, 1/2''-20 x .50'', Used as Hydraulic Pump Base Drain Plug; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
122CLAMP; Hydraulic Pump Valve Chamber Top; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
131GASKET; Hydraulic Pump Base to Center Housing; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
142GASKET; Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
151GASKET; Hydraulic Pump Base Drain Plug; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
162PISTON; Hydraulic Pump; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
172CAM; Block, Hydraulic Pump, Alternate W/9N617B or 9N617C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
172NO LONGER SERVICED; Cam Block, Hydraulic Pump, Alternate W/9N617A or 9N617C;9N617B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
172NO LONGER SERVICED; Cam Block, Hydraulic Pump, Alternate W/ 9n617A or 9n617B;9N617C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
181CAM; Hydraulic Pump; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
191SPARE PART; Chamber Assy., Hydraulic Pump Valve, RH; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
201SPARE PART; Chamber Assy., Hydraulic Pump Valve, LH; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
218PROCURE LOCALLY; Bolt, HH, 7/16''-20 x 1.56'', Valve Chamber to Aluminum Base; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
218SPARE PART; Bolt, HH, 7/16''-20 x 1.25'', Valve Chamber to Cast Iron Base; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
224PLUG 1/4'' - 18 x 0.48''; Pipe, HS, 1/4''-18, NPTF, Used as Plug in Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
231BUSHING; Hydraulic Pump Exhaust Valve, 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
231BUSHING; Hydraulic Pump Exhaust Valve, .010'' O/S, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
231BUSHING; Hydraulic Pump Exhaust Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
244GUIDE; Hydraulic Pump Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
254VALVE GUIDE; Socket, Hydraulic Pump Valve Guide; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
264CONTROL VALVE; Valve, Hydraulic Pump Outlet; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
274CONTROL VALVE; Valve, Hydraulic Pump Inlet; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
281SPARE PART; Spring, Hydraulic Pump Exhaust Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
291VALVE PRESSURE RELIE; Valve, Hydraulic Pump Check; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
304SPARE PART; Plug, Hydraulic Pump Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
311VALVE PRESSURE RELIE; Valve Assy., Hydraulic Pump Safety; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
321CONTROL VALVE; Valve Assy., Hydraulic Pump Control, 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
321SPARE PART; Valve Assy., Hydraulic Pump Control, .5917/.5918, White, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
321SPARE PART; Valve Assy., Hydraulic Pump Control, .5918/.5920, Blue, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
321SPARE PART; Valve Assy., Hydraulic Pump Control, .5920/.5921, Yellow,8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
321SPARE PART; Valve Assy., Hydraulic Pump Control, .5923/.5924, Green, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
321SPARE PART; Valve Assy., Hydraulic Pump Control, .5925/.5926, Orange,8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
33ARPROCURE LOCALLY; Pin, Cotter, 1/16'' x 1/2''
-
341CLEVIS PIN; Pin, Clevis, 1/8'' x .83'', Exhaust Valve Stem to Control Lever; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
351PROCURE LOCALLY; Pin, Hydraulic Pump Exhaust Valve Return, 9N Used W/8N640-A2, -B, -C, -D, -E; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
361SPARE PART; Lever, Hydraulic Pump Intake & Exhaust Valve Control, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
372PROCURE LOCALLY; Pin, Cotter, 3/32'' x .62'', 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
381NO LONGER SERVICED; Pin, Dowel, 3/8'' x 1.70'', 8N Used as Pivot Pin in Pump Base Valve Control;357233S; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
391SPRING; Hydraulic Pump Check Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
404SPRING; Hydraulic Pump Outlet Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
414SPRING; Hydraulic Pump Inlet Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
421BUSHING; PTO Shaft, Hydraulic Pump Chamber, Optional W/B & C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
421NO LONGER SERVICED; Bushing, PTO Shaft, Hydraulic Pump Chamber, Optional W/A & C;9N649B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
421NO LONGER SERVICED; Bushing, PTO Shaft, Hydraulic Pump Chamber, Optional W/A & B;9N649C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
Select All
Select
Ref.
1Qty
1Availability
Part #
8N695CDescription
BUSHING; Hydraulic Pump Intake Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
1Qty
1Availability
Part #
8N695BRPDescription
BUSHING; Hydraulic Pump Intake Valve, .010'' O/S, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
2Qty
1Availability
Part #
8N697Description
SPARE PART; Spring, Hydraulic Pump Intake Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
3Qty
ARAvailability
Part #
PLDescription
PROCURE LOCALLY; Pin, 3/32'' x 1-1/4'' CotterImg
Alts
Select
Ref.
4Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Plug, Button, Return Spring in Intake Bushing, 3/8''; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
5Qty
1Availability
Part #
8N698EDescription
CONTROL VALVE; Valve, Hydraulic Pump Intake, .5917/.5918, White, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
5Qty
1Availability
Part #
8N698FDescription
SPARE PART; Valve, Hydraulic Pump Intake, .5918/.5920, Blue, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
5Qty
1Availability
Part #
8N698GDescription
SPARE PART; Valve, Hydraulic Pump Intake, .5920/.5921, Yellow, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
5AQty
2Availability
Part #
B6387ADescription
SPARE PART; Pin, Hydraulic Pump Base Dowel;Not illustrated; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
6Qty
1Availability
Part #
9N7010Description
PLUG; Hydraulic Pump Drain; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
7Qty
1Availability
Part #
8N7011Description
GASKET; Hydraulic Pump Drain; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
8Qty
1Availability
Part #
NSDescription
NOT SERVICED; Hydraulic Pump Assy., Order Components, 2N,9N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
8Qty
1Availability
Part #
NSDescription
NOT SERVICED; Hydraulic Pump Assy., Order Components, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
8Qty
1Availability
Part #
8N605ADescription
SUPPORT; Hydraulic Pump Base Assy., Optional W/B, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
8Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Hydraulic Pump Base Assy., Optional W/A, 8N;8N605B; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
8Qty
1Availability
Part #
9N605ADescription
BASE PLATE; Hydraulic Pump Base Assy., 2N, 9N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
9Qty
9Availability
Part #
351428S8Description
WASHER 7/16'' x 7/8'' x 1/8'' Thk; Used W/Aluminum Base 7/16'' x 7/8'' x 1/8'' Thk; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
10Qty
9Availability
Part #
359264S8Description
BOLT; Hex, 7/16''-14 x 1.38'', Base to Center Housing; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
10Qty
2Availability
Part #
359264S8Description
BOLT; 7/16''-14 x 1.38'', Clamps to Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
11Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, 1/2''-20 x .50'', Used as Hydraulic Pump Base Drain Plug; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
12Qty
2Availability
Part #
9N609Description
CLAMP; Hydraulic Pump Valve Chamber Top; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
13Qty
1Availability
Part #
9N611Description

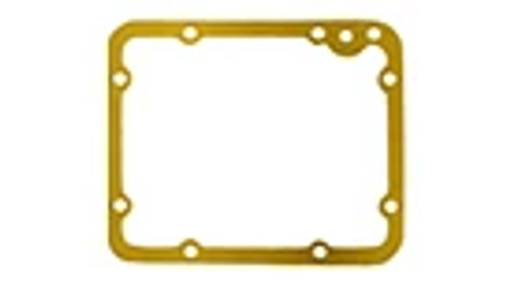

GASKET; Hydraulic Pump Base to Center Housing; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
14Qty
2Availability
Part #
9N613Description

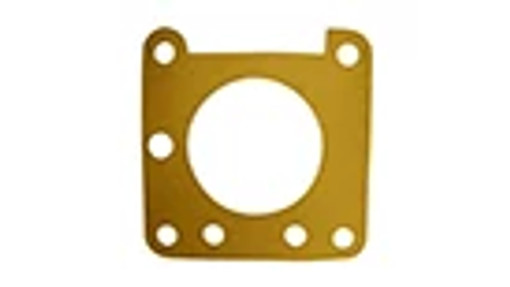

GASKET; Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
15Qty
1Availability
Part #
C20Z6734ADescription
GASKET; Hydraulic Pump Base Drain Plug; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
16Qty
2Availability
Part #
9N615Description
PISTON; Hydraulic Pump; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
17Qty
2Availability
Part #
9N617ADescription

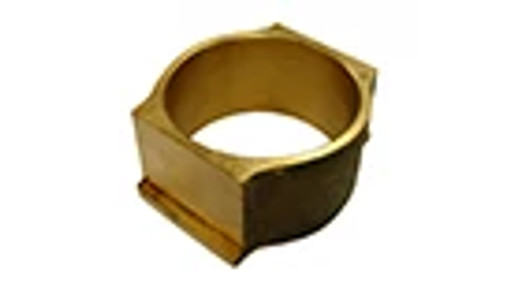

CAM; Block, Hydraulic Pump, Alternate W/9N617B or 9N617C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
17Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Cam Block, Hydraulic Pump, Alternate W/9N617A or 9N617C;9N617B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
17Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Cam Block, Hydraulic Pump, Alternate W/ 9n617A or 9n617B;9N617C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
18Qty
1Availability
Part #
9N618ADescription
CAM; Hydraulic Pump; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
19Qty
1Availability
Part #
9N621Description
SPARE PART; Chamber Assy., Hydraulic Pump Valve, RH; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
20Qty
1Availability
Part #
9N622Description
SPARE PART; Chamber Assy., Hydraulic Pump Valve, LH; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
21Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, 7/16''-20 x 1.56'', Valve Chamber to Aluminum Base; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
21Qty
8Availability
Part #
351085S8Description
SPARE PART; Bolt, HH, 7/16''-20 x 1.25'', Valve Chamber to Cast Iron Base; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
22Qty
4Availability
Part #
9617020Description
PLUG 1/4'' - 18 x 0.48''; Pipe, HS, 1/4''-18, NPTF, Used as Plug in Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
23Qty
1Availability
Part #
9N625CDescription
BUSHING; Hydraulic Pump Exhaust Valve, 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
23Qty
1Availability
Part #
8N625ARPDescription
BUSHING; Hydraulic Pump Exhaust Valve, .010'' O/S, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
23Qty
1Availability
Part #
8N625BDescription
BUSHING; Hydraulic Pump Exhaust Valve, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
24Qty
4Availability
Part #
9N626Description
GUIDE; Hydraulic Pump Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
25Qty
4Availability
Part #
9N627Description
VALVE GUIDE; Socket, Hydraulic Pump Valve Guide; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
26Qty
4Availability
Part #
9N628Description
CONTROL VALVE; Valve, Hydraulic Pump Outlet; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
27Qty
4Availability
Part #
9N629Description
CONTROL VALVE; Valve, Hydraulic Pump Inlet; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
28Qty
1Availability
Part #
9N632Description
SPARE PART; Spring, Hydraulic Pump Exhaust Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
29Qty
1Availability
Part #
9N635Description
VALVE PRESSURE RELIE; Valve, Hydraulic Pump Check; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
30Qty
4Availability
Part #
9N636Description
SPARE PART; Plug, Hydraulic Pump Valve Chamber; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
31Qty
1Availability
Part #
8N638Description
VALVE PRESSURE RELIE; Valve Assy., Hydraulic Pump Safety; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
9N640Description
CONTROL VALVE; Valve Assy., Hydraulic Pump Control, 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
32Qty
1Availability
Part #
8N640A2Description
SPARE PART; Valve Assy., Hydraulic Pump Control, .5917/.5918, White, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
8N640BDescription
SPARE PART; Valve Assy., Hydraulic Pump Control, .5918/.5920, Blue, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
8N640CDescription
SPARE PART; Valve Assy., Hydraulic Pump Control, .5920/.5921, Yellow,8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
8N640DDescription
SPARE PART; Valve Assy., Hydraulic Pump Control, .5923/.5924, Green, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
8N640EDescription
SPARE PART; Valve Assy., Hydraulic Pump Control, .5925/.5926, Orange,8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
33Qty
ARAvailability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 1/16'' x 1/2''Img
Alts
Select
Ref.
34Qty
1Availability
Part #
352269S8Description
CLEVIS PIN; Pin, Clevis, 1/8'' x .83'', Exhaust Valve Stem to Control Lever; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
35Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Pin, Hydraulic Pump Exhaust Valve Return, 9N Used W/8N640-A2, -B, -C, -D, -E; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
36Qty
1Availability
Part #
8N643Description
SPARE PART; Lever, Hydraulic Pump Intake & Exhaust Valve Control, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
37Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 3/32'' x .62'', 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
38Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Pin, Dowel, 3/8'' x 1.70'', 8N Used as Pivot Pin in Pump Base Valve Control;357233S; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
39Qty
1Availability
Part #
9N645Description
SPRING; Hydraulic Pump Check Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
40Qty
4Availability
Part #
9N646Description
SPRING; Hydraulic Pump Outlet Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
41Qty
4Availability
Part #
C7NN647ADescription
SPRING; Hydraulic Pump Inlet Valve; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
42Qty
1Availability
Part #
9N649ADescription
BUSHING; PTO Shaft, Hydraulic Pump Chamber, Optional W/B & C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
42Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Bushing, PTO Shaft, Hydraulic Pump Chamber, Optional W/A & C;9N649B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
42Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Bushing, PTO Shaft, Hydraulic Pump Chamber, Optional W/A & B;9N649C; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
