TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HOUSING; Clutch, Repl. C5NNN708B;When replacing C5NNN708B W/C5NNN708C(81817334) on Tractors built prior to production date code 8F26 also use 6 each 1P77573A & C5NNP743B Plates instead of (7) C5NNN744B(81816970) & (6) C5NNN743A(81801896) Plates.; (Prod Date) From 01-Jan-1965
-
21PISTON; Clutch; (Prod Date) From 01-Jan-1965
-
31O-RING 50.5mm ID x 2.62mm Thk, NBR; -136, 90 Duro, 1.987'' ID x .103'' Thk; (Prod Date) From 01-Jan-1965
-
41SEALING RING 118.52mm ID x 134.25mm OD x 3.17mm Thk; Seal, Clutch Piston Outer, Repl. 1P77513A; (Prod Date) From 01-Jan-1965
-
51SPRING; Clutch Piston, (C); (Prod Date) From 01-Jan-1965
-
61WASHER; Clutch Piston Spring Retaining; (Prod Date) From 01-Jan-1965
-
71SNAP RING; Clutch Piston Spring Retaining Washer; (Prod Date) From 01-Jan-1965
-
87CLUTCH; Disc Assy., Clutch; (Prod Date) Between 01-Jan-1965 and 31-Mar-1968
-
86CLUTCH PLATE 98.81mm ID x 139.12mm OD x 1.8mm Thk; Clutch External Spline, (C); (Prod Date) From 01-Apr-1968
-
96PLATE; Clutch; (Prod Date) Between 01-Jan-1965 and 31-Mar-1968
-
96CLUTCH PLATE 95.2mm ID x 133.35mm OD x 2.08mm Thk; Assy., Clutch Internal Spline; (Prod Date) From 01-Apr-1968
-
101PLATE; Clutch Pressure; (Prod Date) From 01-Jan-1965
-
111RING; Snap Ring, Clutch Pressure Plate, (C); (Prod Date) From 01-Jan-1965
-
122OIL SEAL Split, 55.24mm ID x 60.33mm OD x 3.15mm Thk; Oil, Clutch Housing 2.375'' OD; (Prod Date) From 01-Jan-1965
-
131DISC; Washer, Clutch Thrust; (Prod Date) From 01-Jan-1965
-
141SHAFT; & Bushing Assy., Indep. PTO Clutch Includes: Shaft Plus: 15; (Prod Date) From 01-Jan-1965
-
151BUSHING; Bush/Bushing; (Prod Date) From 01-Jan-1965
-
16ARWASHER 35.31mm ID x 47.5mm OD x 0.79mm Thk; Clutch Input Shaft .030 (.762mm); (Prod Date) From 01-Jan-1965
-
16ARWASHER; Clutch Input Shaft .010 (.254mm); (Prod Date) From 01-Jan-1965
-
171SUPPORT; Clutch Brake Housing;No Longer Serviced.; (Prod Date) Between 01-Jan-1965 and 28-Feb-1969
-
17A1SUPPORT; Assy., Repl. C7NNN704B;When replacing C7NNN704B (81819063) W/D8NNN704AA (81819063) also replace C5NNN787B(87763140) W/D8NNN787BA (83917386).; (Prod Date) From 01-Jan-1965
-
17B1HYD CONNECTOR; Connector, 1/2''-20 x 5/16'' (Tube) (Replaces 87972S); (Prod Date) From 01-Mar-1969
-
181HOUSING; Clutch Brake; (Prod Date) Between 01-Jan-1965 and 28-Feb-1969
-
194LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1965
-
202BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; (Prod Date) From 01-Jan-1965
-
221ARM; Assy., Drive Clutch Brake (Repl. C7NN-N747-C); (Prod Date) From 01-Jan-1965
-
231COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''; (Prod Date) From 01-Jan-1965
-
241PIN; Clevis, 1/4'' x 1-3/8''; (Prod Date) From 01-Jan-1965
-
251PISTON; When replacing C5NN-N787-B(87763140) W/D8NN-N787-BA(81817334) also replace C7NN-N704-B(81819063) W/D8NN-N704-AA(83917385).; (Prod Date) From 01-Jan-1965
-
261O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; .250'' ID x .070'' Thk, Piston (Small); (Prod Date) From 01-Jan-1965
-
271O-RING 0.07'' Thk x 1.489'' ID, -29; 1.489'' ID x .070'' Thk, Piston, Large; (Prod Date) From 01-Jan-1965
-
281SPRING; Drive Clutch Brake (Outer); (Prod Date) From 01-Jan-1965
-
28A1SPRING; Drive Clutch Brake (Inner); (Prod Date) From 01-Jan-1965
-
291WASHER; Drive Clutch Brake; (Prod Date) From 01-Jan-1965
-
301RING; Snap Ring, 1-5/16'' Clutch Brake Spring & Washer; (Prod Date) From 01-Jan-1965
-
311GASKET; Clutch Brake Plate; (Prod Date) From 01-Jan-1965
-
321PLATE; Clutch Brake, Repl. C5NN-N706-A; (Prod Date) From 01-Jan-1965
-
33ARLOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
343BOLT Hex, 7/16''-14 x 1 1/8'', G5; (Prod Date) From 01-Jan-1965
-
351TUBE 8 mm OD, 168.91, 118.11 mm Length; Assy., Clutch Valve to Brake Hsg. Support; (Prod Date) From 01-Jan-1965
-
361HYDRAULIC VALVE; Valve Assy., Independent PTO Clutch Repl. C5NNN797C (Ref. 5B 9-17-1T) Includes: Housing Plus: 37-40; (Prod Date) From 01-Jan-1965
-
371SPRING; Valve Detent; (Prod Date) From 01-Jan-1965
-
1BALL 5/16'' Dia; Detent Spring 5/16'' Dia; (Prod Date) From 01-Jan-1965
-
391PISTON; Clutch Valve; (Prod Date) From 01-Jan-1965
-
40ARSHIM; Piston Spring .30 Dia. x .030; (Prod Date) From 01-Jan-1965
-
411SPRING; Clutch Valve; (Prod Date) From 01-Jan-1965
-
421PLUNGER; Clutch Valve; (Prod Date) From 01-Jan-1965
-
431PIN; Pin, Roll, 1/8'' x 7/8''; (Prod Date) From 01-Jan-1965
-
441O-RING -116, 70 Duro, .737'' ID x .103'' Thk; .750'' ID x .103'' Thk, Valve Assy. to Bushing; (Prod Date) From 01-Jan-1965
-
451BUSHING 23.77mm ID x 31.81mm OD x 19.36mm L; Bush/Bushing, Clutch Valve to Center Housing; (Prod Date) From 01-Jan-1965
-
461BOLT; Valve Body Spigot; (Prod Date) From 01-Jan-1965
-
471LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Jan-1965
-
481DISC; Washer, Valve Body Spigot; (Prod Date) From 01-Jan-1965
-
491LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Jan-1965
-
501BOLT Hex, 7/16''-14 x 7/8'', G5, Full Thd; HH, G5, 7/16''-14 x 7/8''; (Prod Date) From 01-Jan-1965
-
511CONNECTING LINK; Link, Clutch Valve Lever;E6NNN728AA(83956755) has no groove in Shaft for O-Ring, Ref. 52, as did the previous P/N C5NN-N728-C(81815732). This is correct, install O-Ring in same manner. The groove is not neccessary.; (Prod Date) From 01-Jan-1965
-
521O-RING 12.4mm ID x 1.78mm Thk, NBR; .489'' ID x .070'' Thk; (Prod Date) From 01-Jan-1965
-
53ARCOTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''
-
541CLEVIS PIN 1/4'' x 3/4''; PIN, CLEVIS, 1/4'' x 3/4''; (Prod Date) From 01-Jan-1965
-
551BUSHING 12.7mm ID x 25.4mm OD x 26.42mm L; Clutch Valve Lever; (Prod Date) From 01-Jan-1965
-
561LEVER; Clutch Valve, Replaces P/N C5NNN741B, 4100; (Prod Date) From 01-Jan-1965
-
561LEVER; PTO Clutch Valve, 3550-4400-4410-4500;No Longer Serviced.; (Prod Date) From 01-Jan-1965
-
571LOCK WASHER; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1965
-
57A1BOLT Hex, 3/8'' - 24 x 1'', Gr 5; Screw, Cap, HH, G5, 3/8''-24 x 1''; (Prod Date) From 01-Jan-1965
-
581TUBE; Assy., Clutch Valve to Hydraulic Pump; (Prod Date) From 01-Jan-1965
-
591O-RING 9.2mm ID x 1.78mm Thk, HNBR; 90 Duro, .364'' ID x .070'' Thk; (Prod Date) From 01-Jan-1965
-
601TUBE 9.525 mm OD, 127.51, 35.05 mm Length; Assy., Valve Exhaust Lower (Replaces E1NNN770AA); (Prod Date) From 01-Jan-1965
-
611TUBE; Assy., PTO Valve Exhaust Upper (Replaces E1NNN769AA); (Prod Date) From 01-Jan-1965
-
622SEAL; Exhaust Valve, 3/8'' I.D. x 1/2'' O.D. x .26 (9.525 x 12.7 x 6.604mm); (Prod Date) From 01-Jan-1965
-
631BRACKET; Assy., Exhaust Tube; (Prod Date) From 01-Jan-1965
-
63A1BOLT; Screw, Cap, HH, G5, 1/4''-28 x 1'', US; (Prod Date) From 01-Jan-1965
-
63A1BOLT; Screw, Cap, HH, G5, 1/4''-28 x 1''; (Prod Date) From 01-Jan-1965
-
641SHAFT; & Sleeve Assy., PTO Rear, 30.64'', 26T, Replaces P/N C5NN710A; (Prod Date) From 01-Jan-1965
-
651BEARING ASSY 45 mm ID x 65 mm OD x 19 mm; Bearing, Shaft Rear; (Prod Date) From 01-Jan-1965
-
662SNAP RING #177, Ext; Ring, Snap, , Rear Shaft Bearing #177, Ext; (Prod Date) From 01-Jan-1965
-
662RING; Lock, Rear Shaft Bearing;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
-
671SNAP RING; Ring, Snap, Bearing to Center Housing; (Prod Date) From 01-Jan-1965
-
691GASKET; Plate, Optional w/#EAF-980-A; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
69A1O-RING 2.478'' ID; Cover Seal, Optional w/#C5NN-4N129-A;No Longer Serviced NH-E.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
69AARNOT SERVICED; Refer to Service Bulletin Feb. 1967 (6T);Not Serviced; (Prod Date) From 01-Jan-1965
-
702SPARE PART; Tab, Plate Lock, Optional w/#34796-S7, U.S.;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
70A4LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Quad Rib, Optional W/#C5NNN737A 5/8''; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
70B1SPARE PART; Plate, PTO Rear; (Prod Date) Between 01-Jan-1965 and 01-Nov-1966
-
713BOLT; HH, 5/8''-11 x 1-5/8'';No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
711BOLT; HH, 5/8''-11 x 1-5/8'';No Longer Serviced.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
722LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
724LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Dec-1966
-
734BOLT Hex, 7/16'' - 14 x 1 1/2'', Gr 5; (Prod Date) From 01-Dec-1966
-
741COVER; No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966
-
741COVER; (Prod Date) From 01-Dec-1966
-
751OIL SEAL; Oil Seal Assy., PTO; (Prod Date) From 01-Jan-1965
-
761COVER; Cap; (Prod Date) From 01-Jan-1965
-
771SPARE PART; Shroud Assy., Clutch;No Longer Serviced.; (Prod Date) From 01-Jan-1965
-
781STOP; Clutch Valve Lever; (Prod Date) From 01-Jan-1965
-
791WASHER; 7/16'';NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1965
-
801BOLT; HH, 7/16''-14 x 1-1/2'';NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1965
Select All
Ref.
1Qty
1Availability
Part #
82847704Description
HOUSING; Clutch, Repl. C5NNN708B;When replacing C5NNN708B W/C5NNN708C(81817334) on Tractors built prior to production date code 8F26 also use 6 each 1P77573A & C5NNP743B Plates instead of (7) C5NNN744B(81816970) & (6) C5NNN743A(81801896) Plates.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
2Qty
1Availability
Part #
81801963Description

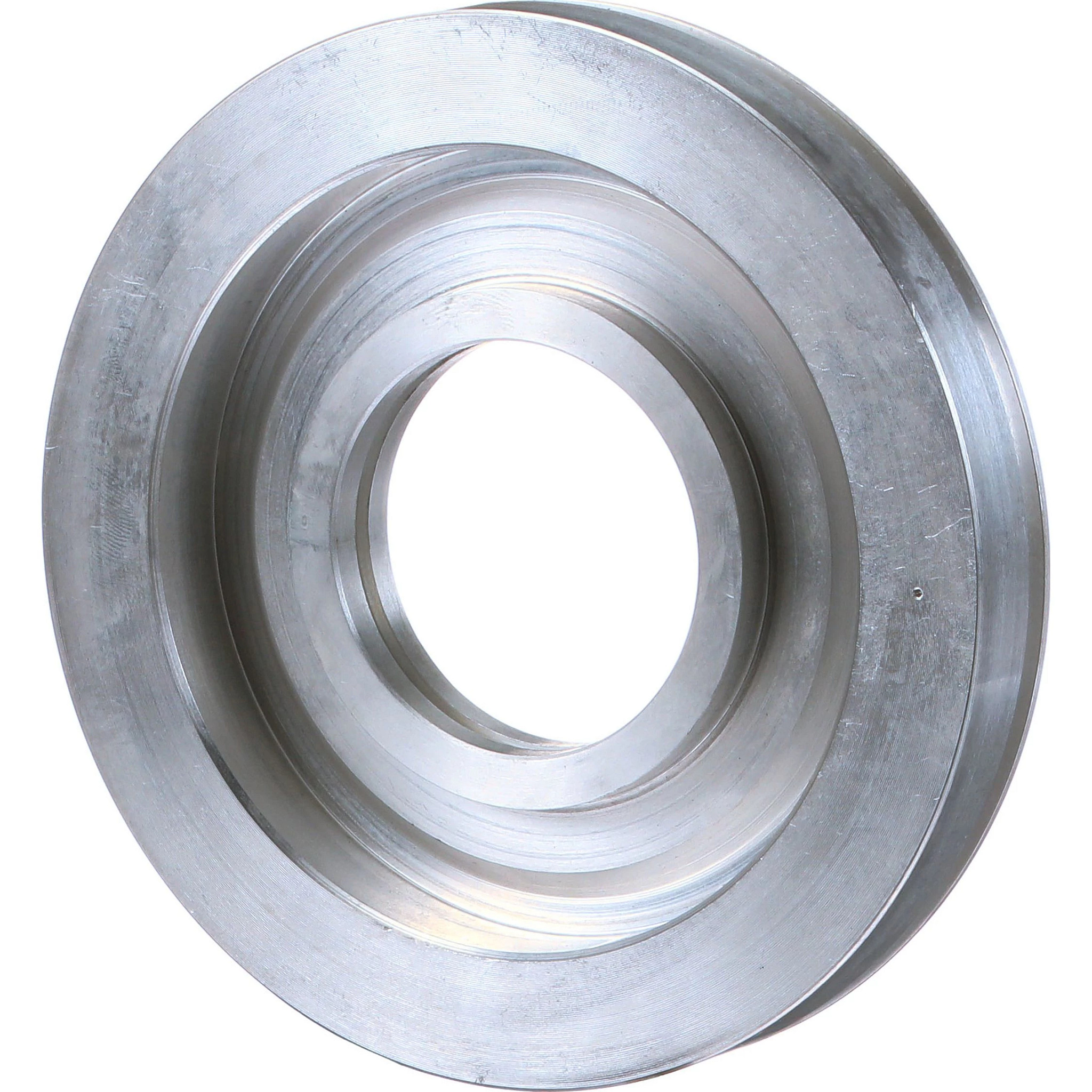

PISTON; Clutch; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
3Qty
1Availability
Part #
9849963Description
O-RING 50.5mm ID x 2.62mm Thk, NBR; -136, 90 Duro, 1.987'' ID x .103'' Thk; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
4Qty
1Availability
Part #
C0NN7C000ADescription
SEALING RING 118.52mm ID x 134.25mm OD x 3.17mm Thk; Seal, Clutch Piston Outer, Repl. 1P77513A; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
5Qty
1Availability
Part #
1P77515BDescription
SPRING; Clutch Piston, (C); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
6Qty
1Availability
Part #
C5NNN757ADescription
WASHER; Clutch Piston Spring Retaining; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
7Qty
1Availability
Part #
C5NNN754ADescription
SNAP RING; Clutch Piston Spring Retaining Washer; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
8Qty
7Availability
Part #
C5NNN744BDescription
CLUTCH; Disc Assy., Clutch; (Prod Date) Between 01-Jan-1965 and 31-Mar-1968Img
Alts
Ref.
8Qty
6Availability
Part #
C8AP7B442ADescription
CLUTCH PLATE 98.81mm ID x 139.12mm OD x 1.8mm Thk; Clutch External Spline, (C); (Prod Date) From 01-Apr-1968Img
Alts
Ref.
9Qty
6Availability
Part #
C5NNN743ADescription
PLATE; Clutch; (Prod Date) Between 01-Jan-1965 and 31-Mar-1968Img
Alts
Ref.
9Qty
6Availability
Part #
C5NNP743BDescription
CLUTCH PLATE 95.2mm ID x 133.35mm OD x 2.08mm Thk; Assy., Clutch Internal Spline; (Prod Date) From 01-Apr-1968Img
Alts
Ref.
10Qty
1Availability
Part #
C4TP7B437ADescription
PLATE; Clutch Pressure; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
11Qty
1Availability
Part #
1P77523ADescription

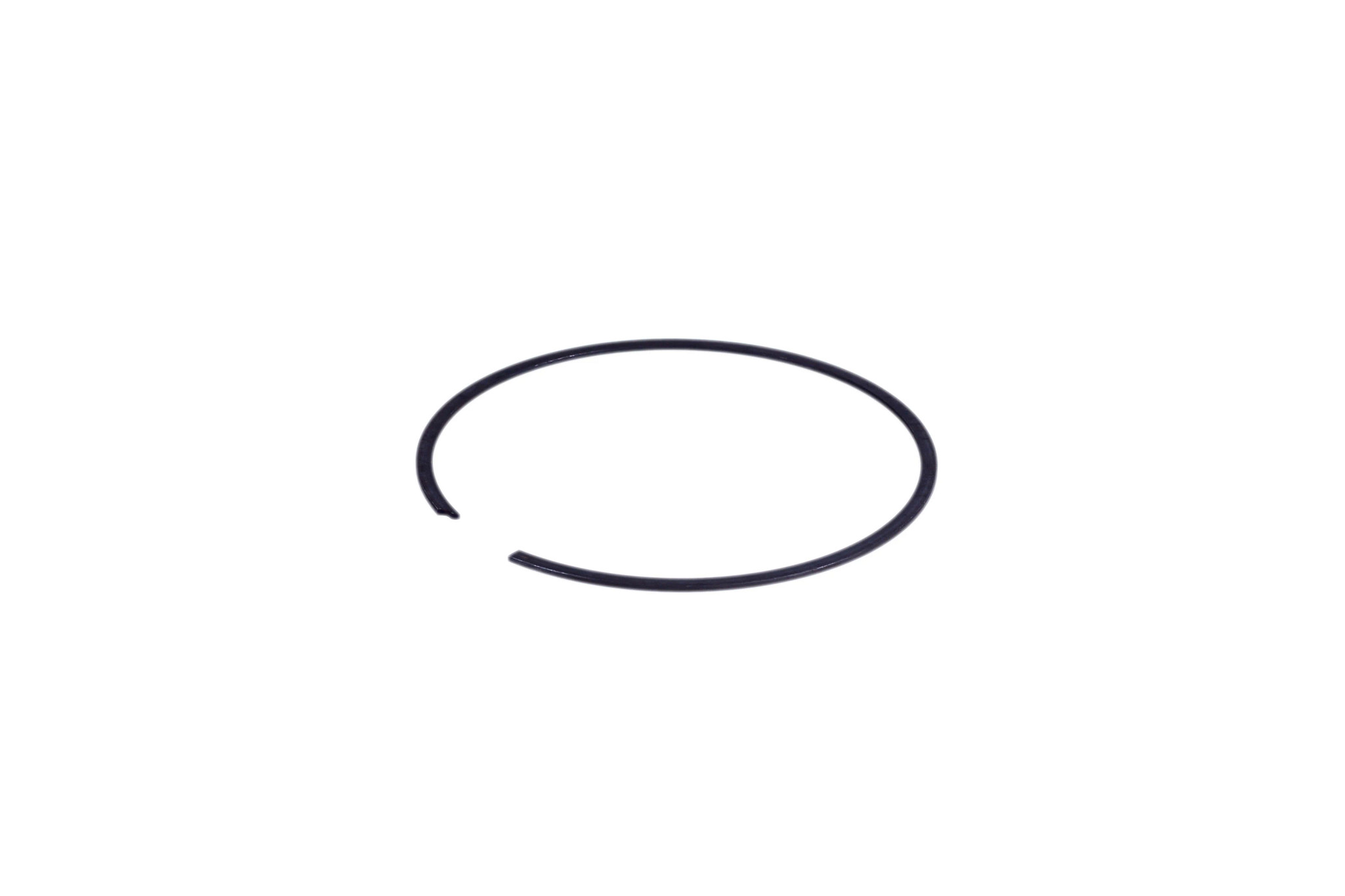

RING; Snap Ring, Clutch Pressure Plate, (C); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
12Qty
2Availability
Part #
81809513Description
OIL SEAL Split, 55.24mm ID x 60.33mm OD x 3.15mm Thk; Oil, Clutch Housing 2.375'' OD; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
13Qty
1Availability
Part #
C5NNN783BDescription
DISC; Washer, Clutch Thrust; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
14Qty
1Availability
Part #
E9NNN739AADescription

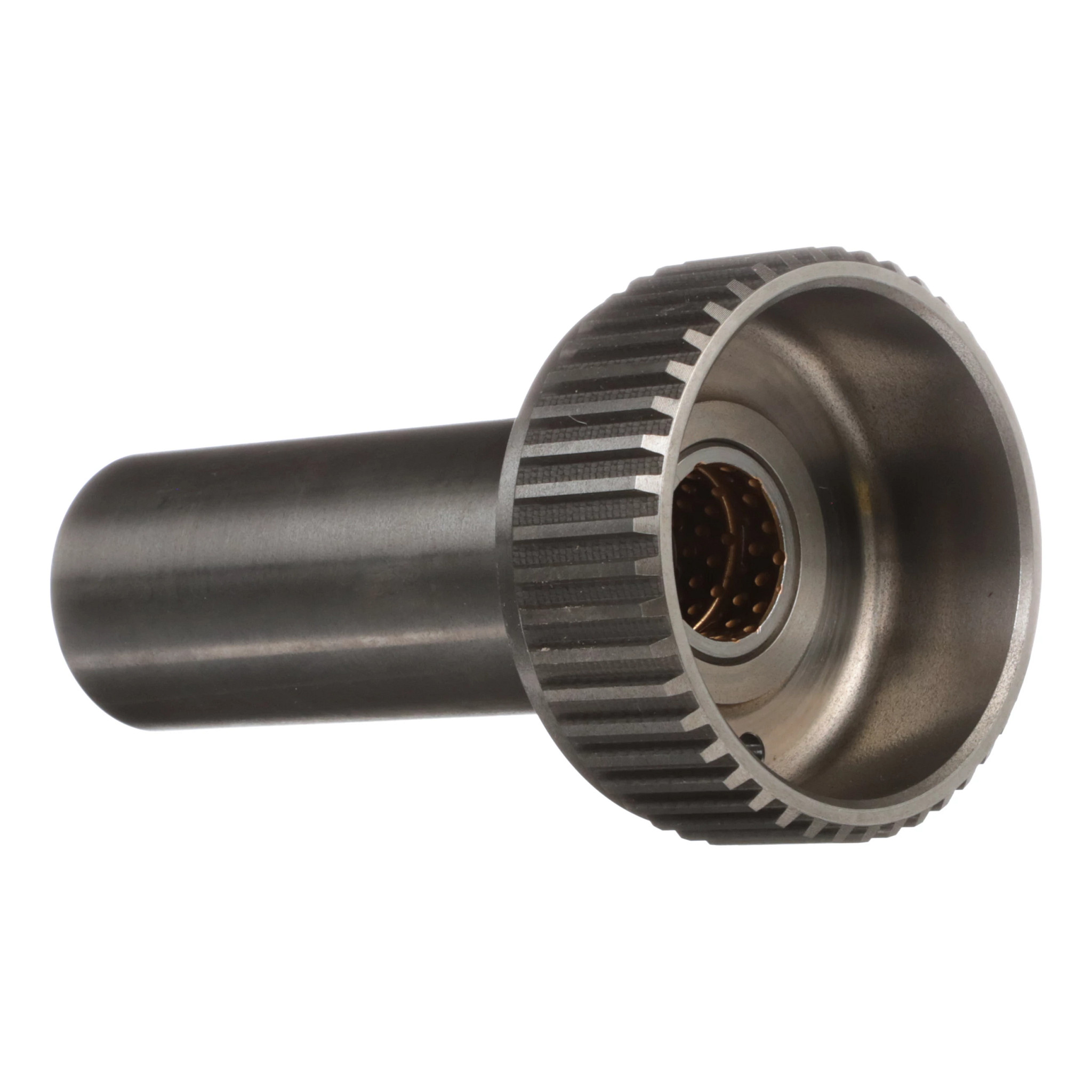

SHAFT; & Bushing Assy., Indep. PTO Clutch Includes: Shaft Plus: 15; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
15Qty
1Availability
Part #
C5NNN709BDescription
BUSHING; Bush/Bushing; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
16Qty
ARAvailability
Part #
81805215Description
WASHER 35.31mm ID x 47.5mm OD x 0.79mm Thk; Clutch Input Shaft .030 (.762mm); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
16Qty
ARAvailability
Part #
C5NN7N509BDescription
WASHER; Clutch Input Shaft .010 (.254mm); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
17Qty
1Availability
Part #
C5NNN704BDescription
SUPPORT; Clutch Brake Housing;No Longer Serviced.; (Prod Date) Between 01-Jan-1965 and 28-Feb-1969Img
Alts
Ref.
17AQty
1Availability
Part #
D8NNN704AADescription
SUPPORT; Assy., Repl. C7NNN704B;When replacing C7NNN704B (81819063) W/D8NNN704AA (81819063) also replace C5NNN787B(87763140) W/D8NNN787BA (83917386).; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
17BQty
1Availability
Part #
83416255Description
HYD CONNECTOR; Connector, 1/2''-20 x 5/16'' (Tube) (Replaces 87972S); (Prod Date) From 01-Mar-1969Img
Alts
Ref.
18Qty
1Availability
Part #
C5NNN701ADescription
HOUSING; Clutch Brake; (Prod Date) Between 01-Jan-1965 and 28-Feb-1969Img
Alts
Ref.
19Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
20Qty
2Availability
Part #
87657Description
BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
22Qty
1Availability
Part #
C9NNN747ADescription
ARM; Assy., Drive Clutch Brake (Repl. C7NN-N747-C); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
23Qty
1Availability
Part #
280236Description
COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
24Qty
1Availability
Part #
73947SDescription
PIN; Clevis, 1/4'' x 1-3/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
25Qty
1Availability
Part #
D8NNN787BADescription
PISTON; When replacing C5NN-N787-B(87763140) W/D8NN-N787-BA(81817334) also replace C7NN-N704-B(81819063) W/D8NN-N704-AA(83917385).; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
26Qty
1Availability
Part #
9849109Description
O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; .250'' ID x .070'' Thk, Piston (Small); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
27Qty
1Availability
Part #
788421Description
O-RING 0.07'' Thk x 1.489'' ID, -29; 1.489'' ID x .070'' Thk, Piston, Large; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
28Qty
1Availability
Part #
C5NNN785DDescription
SPRING; Drive Clutch Brake (Outer); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
28AQty
1Availability
Part #
C5NNB716BDescription
SPRING; Drive Clutch Brake (Inner); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
29Qty
1Availability
Part #
C5NNN784BDescription
WASHER; Drive Clutch Brake; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
30Qty
1Availability
Part #
C5NNN716ADescription
RING; Snap Ring, 1-5/16'' Clutch Brake Spring & Washer; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
31Qty
1Availability
Part #
C5NNN742ADescription
GASKET; Clutch Brake Plate; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
32Qty
1Availability
Part #
C5NNN706BDescription
PLATE; Clutch Brake, Repl. C5NN-N706-A; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
33Qty
ARAvailability
Part #
81547Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''Img
Alts
Ref.
34Qty
3Availability
Part #
304705S36Description
BOLT Hex, 7/16''-14 x 1 1/8'', G5; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
35Qty
1Availability
Part #
81801988Description
TUBE 8 mm OD, 168.91, 118.11 mm Length; Assy., Clutch Valve to Brake Hsg. Support; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
36Qty
1Availability
Part #
D8NNN797AADescription
HYDRAULIC VALVE; Valve Assy., Independent PTO Clutch Repl. C5NNN797C (Ref. 5B 9-17-1T) Includes: Housing Plus: 37-40; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
37Qty
1Availability
Part #
C5NNN781ADescription
SPRING; Valve Detent; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
Qty
1Availability
Part #
72387Description
BALL 5/16'' Dia; Detent Spring 5/16'' Dia; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
39Qty
1Availability
Part #
81801976Description
PISTON; Clutch Valve; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
40Qty
ARAvailability
Part #
81801936Description
SHIM; Piston Spring .30 Dia. x .030; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
41Qty
1Availability
Part #
D8NNN775AADescription
SPRING; Clutch Valve; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
42Qty
1Availability
Part #
C5NNN717BDescription
PLUNGER; Clutch Valve; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
43Qty
1Availability
Part #
V15713Description
PIN; Pin, Roll, 1/8'' x 7/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
44Qty
1Availability
Part #
87037S94Description
O-RING -116, 70 Duro, .737'' ID x .103'' Thk; .750'' ID x .103'' Thk, Valve Assy. to Bushing; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
45Qty
1Availability
Part #
81801879Description
BUSHING 23.77mm ID x 31.81mm OD x 19.36mm L; Bush/Bushing, Clutch Valve to Center Housing; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
46Qty
1Availability
Part #
81801978Description
BOLT; Valve Body Spigot; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
47Qty
1Availability
Part #
81547Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
48Qty
1Availability
Part #
C5NNN793ADescription
DISC; Washer, Valve Body Spigot; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
49Qty
1Availability
Part #
81547Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
50Qty
1Availability
Part #
304668S36Description
BOLT Hex, 7/16''-14 x 7/8'', G5, Full Thd; HH, G5, 7/16''-14 x 7/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
51Qty
1Availability
Part #
E6NNN728AADescription
CONNECTING LINK; Link, Clutch Valve Lever;E6NNN728AA(83956755) has no groove in Shaft for O-Ring, Ref. 52, as did the previous P/N C5NN-N728-C(81815732). This is correct, install O-Ring in same manner. The groove is not neccessary.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
52Qty
1Availability
Part #
130282Description
O-RING 12.4mm ID x 1.78mm Thk, NBR; .489'' ID x .070'' Thk; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
53Qty
ARAvailability
Part #
280236Description
COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''Img
Alts
Ref.
54Qty
1Availability
Part #
9672307Description
CLEVIS PIN 1/4'' x 3/4''; PIN, CLEVIS, 1/4'' x 3/4''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
55Qty
1Availability
Part #
81816077Description
BUSHING 12.7mm ID x 25.4mm OD x 26.42mm L; Clutch Valve Lever; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
56Qty
1Availability
Part #
C5NNN741FDescription
LEVER; Clutch Valve, Replaces P/N C5NNN741B, 4100; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
56Qty
1Availability
Part #
D2NNN741ADescription
LEVER; PTO Clutch Valve, 3550-4400-4410-4500;No Longer Serviced.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
57Qty
1Availability
Part #
34807S36Description
LOCK WASHER; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
57AQty
1Availability
Part #
88374Description
BOLT Hex, 3/8'' - 24 x 1'', Gr 5; Screw, Cap, HH, G5, 3/8''-24 x 1''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
58Qty
1Availability
Part #
C5NNN788ADescription
TUBE; Assy., Clutch Valve to Hydraulic Pump; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
59Qty
1Availability
Part #
9993141Description
O-RING 9.2mm ID x 1.78mm Thk, HNBR; 90 Duro, .364'' ID x .070'' Thk; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
60Qty
1Availability
Part #
83929950Description
TUBE 9.525 mm OD, 127.51, 35.05 mm Length; Assy., Valve Exhaust Lower (Replaces E1NNN770AA); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
61Qty
1Availability
Part #
83929949Description
TUBE; Assy., PTO Valve Exhaust Upper (Replaces E1NNN769AA); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
62Qty
2Availability
Part #
C5NNN790ADescription
SEAL; Exhaust Valve, 3/8'' I.D. x 1/2'' O.D. x .26 (9.525 x 12.7 x 6.604mm); (Prod Date) From 01-Jan-1965Img
Alts
Ref.
63Qty
1Availability
Part #
81811253Description
BRACKET; Assy., Exhaust Tube; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
63AQty
1Availability
Part #
P0401-542Description
BOLT; Screw, Cap, HH, G5, 1/4''-28 x 1'', US; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
63AQty
1Availability
Part #
P0401-542Description
BOLT; Screw, Cap, HH, G5, 1/4''-28 x 1''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
64Qty
1Availability
Part #
D3NN710DDescription
SHAFT; & Sleeve Assy., PTO Rear, 30.64'', 26T, Replaces P/N C5NN710A; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
65Qty
1Availability
Part #
D3NN7A693ADescription
BEARING ASSY 45 mm ID x 65 mm OD x 19 mm; Bearing, Shaft Rear; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
66Qty
2Availability
Part #
168104Description
SNAP RING #177, Ext; Ring, Snap, , Rear Shaft Bearing #177, Ext; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
66Qty
2Availability
Part #
BB7045Description
RING; Lock, Rear Shaft Bearing;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
67Qty
1Availability
Part #
81801870Description
SNAP RING; Ring, Snap, Bearing to Center Housing; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
69Qty
1Availability
Part #
C5NN4N129ADescription
GASKET; Plate, Optional w/#EAF-980-A; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
69AQty
1Availability
Part #
EAF980ADescription
O-RING 2.478'' ID; Cover Seal, Optional w/#C5NN-4N129-A;No Longer Serviced NH-E.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
69AQty
ARAvailability
Part #
NSDescription
NOT SERVICED; Refer to Service Bulletin Feb. 1967 (6T);Not Serviced; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
70Qty
2Availability
Part #
C5NNN737ADescription
SPARE PART; Tab, Plate Lock, Optional w/#34796-S7, U.S.;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
70AQty
4Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Quad Rib, Optional W/#C5NNN737A 5/8''; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
70BQty
1Availability
Part #
C5NNN727ADescription
SPARE PART; Plate, PTO Rear; (Prod Date) Between 01-Jan-1965 and 01-Nov-1966Img
Alts
Ref.
71Qty
3Availability
Part #
377186S43Description
BOLT; HH, 5/8''-11 x 1-5/8'';No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
71Qty
1Availability
Part #
379625S2Description
BOLT; HH, 5/8''-11 x 1-5/8'';No Longer Serviced.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
72Qty
2Availability
Part #
81547Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
72Qty
4Availability
Part #
81547Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''; (Prod Date) From 01-Dec-1966Img
Alts
Ref.
73Qty
4Availability
Part #
9637916Description
BOLT Hex, 7/16'' - 14 x 1 1/2'', Gr 5; (Prod Date) From 01-Dec-1966Img
Alts
Ref.
74Qty
1Availability
Part #
C5NN733BDescription
COVER; No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 30-Nov-1966Img
Alts
Ref.
75Qty
1Availability
Part #
D9NN703BBDescription
OIL SEAL; Oil Seal Assy., PTO; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
76Qty
1Availability
Part #
81801859Description
COVER; Cap; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
77Qty
1Availability
Part #
C5NNP717BDescription
SPARE PART; Shroud Assy., Clutch;No Longer Serviced.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
78Qty
1Availability
Part #
C5NNP744ADescription
STOP; Clutch Valve Lever; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
79Qty
1Availability
Part #
44730S8Description
WASHER; 7/16'';NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
80Qty
1Availability
Part #
379410S2Description
BOLT; HH, 7/16''-14 x 1-1/2'';NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1965Img
Alts
