Ref.
Qty
Part #
Alts
Description
-
11SET OF PARTS; Kit, Drag Link Front End, R.H. Thread, Includes: Ref No. 2 & 3, and (1) NCB3290A End Assy. (N.S.)
-
1NOT SERVICED; End Assy.;NCB3290A
-
21PROCURE LOCALLY; Fitting, Lube, 1/8''
-
31COVER; Dust
-
41CLAMP; Spool Connecting Rod
-
51PROCURE LOCALLY; Washer, Lock, 3/8''
-
61PROCURE LOCALLY; Nut, Hex, 3/8''-24
-
71PROCURE LOCALLY; Bolt, Carriage, 3/8''-24 x 1-3/4''
-
83BOLT; Control Valve Housing
-
3PROCURE LOCALLY; Washer, Lock, 3/8''
-
91SLEEVE; & Flange Assy., Control Valve
-
101PROCURE LOCALLY; Fitting, 90?, 1/4''-28 x 25/32''
-
111SET OF PARTS; Kit, Cylinder Ball Stud Repair, Includes: Ref. 12 thru 14
-
122NOT SERVICED; Seat;LA3320A
-
132SPARE PART; Stud
-
141NOT SERVICED; Shield;AF33713A
-
151RETAINER; Control Valve Ball Stud
-
161SPARE PART; Spring, Steering Control Valve
-
171BUMPER; Control Valve Bail Stud Seat;No Longer Serviced
-
181BOLT; Control Spool
-
191PROCURE LOCALLY; Nut, Lock, 5/16''-24
-
201SPARE PART; Stop, Control Valve Spool;No Longer Serviced
-
211WASHER; Control Valve Rear Seat Retaining
-
221SPACER; Control Valve Stop
-
231RETAINER; Control Valve Front Seal;No Longer Serviced
-
241SEAL KIT; Contol Valve Seat Seal Repair, Includes:(1) TAAK33320A & (1) TAAK3320B DOES NOT INCLUDE 231130
-
1NOT SERVICED; Seal, Front;TAAK33320A
-
1NOT SERVICED; Seal, Rear;TAAK33320B
-
252O-RING .375'' ID x .070'' Thk;
-
261O-RING 0.103'' Thk x 0.362'' ID, -110, Cl 5, 75 Duro; .362'' ID x .103'' Thk
-
271PROCURE LOCALLY; Pin, Straight, 1/8'' x 1-1/4''
-
282SEAT; Tube, 3/8'';No Longer Serviced
-
291RETAINER; Control Valve Rear Seal;No Longer Serviced
-
301SPARE PART; Valve Assy., Return Port Relief;No Longer Serviced
-
311CYLINDER; Assy.
-
321NOT SERVICED; Clamp Assy. Hose Cylinder;4049616
-
331SEAL KIT; Kit, Cylinder Repair, Includes: Ref. 34 thru 38
-
341NOT SERVICED; Seal, Inner;NCB33656A
-
351NOT SERVICED; Bushing;AF33738A
-
361NOT SERVICED; Seal, Outer;AF33658A
-
371NOT SERVICED; Washer, Scraper;231122
-
381NOT SERVICED; Ring, Snap;230457
-
391LOCK WASHER; Washer, Piston Rod Insulator, .52 Inner;No Longer Serviced
-
402INSULATOR; Steering Piston Rod
-
411LOCK WASHER; Washer, Piston Rod Insulator, .46 Outer;No Longer Serviced
-
421PROCURE LOCALLY; Nut, Hex, Jam, 7/16''-20
-
431PROCURE LOCALLY; Nut, Square, 5/8''-11
-
441PROCURE LOCALLY; Bolt, 5/8''-11 x 1-1/2''
-
451NOT SERVICED; Support Assy., Cylinder;231099
-
461NOT SERVICED; Plug, Steering Control Valve Body;TWAA33314A
-
1O-RING 0.103'' Thk x 0.362'' ID, -110, Cl 5, 75 Duro; .362'' ID x .103'' Thk
-
1SPARE PART; Stud, Control Valve Ball;No Longer Serviced
-
1PROCURE LOCALLY; Nut, Hex, Slotted, 1/2''-20
-
1PROCURE LOCALLY; Pin, Cotter, 1/8'' 1''
-
1HOUSING; & Spool Assy., Control Valve
-
1CYLINDER; & Valve Assy., Power Steering;No Longer Serviced
Select All
Select
Ref.
1Qty
1Availability
Part #
NCB3270ADescription
SET OF PARTS; Kit, Drag Link Front End, R.H. Thread, Includes: Ref No. 2 & 3, and (1) NCB3290A End Assy. (N.S.)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Fitting, Lube, 1/8''Img
Alts
Select
Ref.
5Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 3/8''Img
Alts
Select
Ref.
7Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Carriage, 3/8''-24 x 1-3/4''Img
Alts
Select
Ref.
9Qty
1Availability
Part #
C0NN3B671ADescription
SLEEVE; & Flange Assy., Control ValveImg
Alts
Select
Ref.
10Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Fitting, 90?, 1/4''-28 x 25/32''Img
Alts
Select
Ref.
11Qty
1Availability
Part #
231121Description
SET OF PARTS; Kit, Cylinder Ball Stud Repair, Includes: Ref. 12 thru 14Img
Alts
Select
Ref.
15Qty
1Availability
Part #
231190Description
RETAINER; Control Valve Ball StudImg
Alts
Select
Ref.
16Qty
1Availability
Part #
AC33711ADescription
SPARE PART; Spring, Steering Control ValveImg
Alts
Select
Ref.
17Qty
1Availability
Part #
AB33327ADescription
BUMPER; Control Valve Bail Stud Seat;No Longer ServicedImg
Alts
Select
Ref.
19Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Lock, 5/16''-24Img
Alts
Select
Ref.
20Qty
1Availability
Part #
AC33708ADescription
SPARE PART; Stop, Control Valve Spool;No Longer ServicedImg
Alts
Select
Ref.
21Qty
1Availability
Part #
231139Description
WASHER; Control Valve Rear Seat RetainingImg
Alts
Select
Ref.
23Qty
1Availability
Part #
231127Description
RETAINER; Control Valve Front Seal;No Longer ServicedImg
Alts
Select
Ref.
24Qty
1Availability
Part #
231128Description

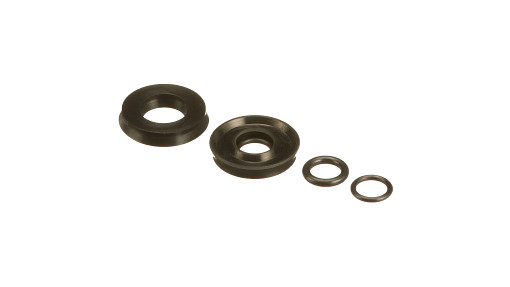

SEAL KIT; Contol Valve Seat Seal Repair, Includes:(1) TAAK33320A & (1) TAAK3320B DOES NOT INCLUDE 231130Img
Alts
Select
Ref.
25Qty
2Availability
Part #
87008S94Description
O-RING .375'' ID x .070'' Thk;Img
Alts
Select
Ref.
26Qty
1Availability
Part #
49861Description

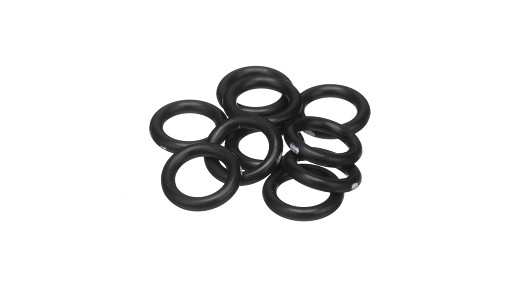

O-RING 0.103'' Thk x 0.362'' ID, -110, Cl 5, 75 Duro; .362'' ID x .103'' ThkImg
