35.104.AA[04] - VAR - 337377, 345602, ENGINE, PUMP, MOUNTED HPL -54LPM FORCE LUB
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

5167989

Description

SEAL 0.8mm Thk; Pump


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5118568

Description

CENTERING RING;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

5118570

Description

HUB;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

13398376

Description

SNAP RING M40, Int;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

5118569

Description

COUPLING; Ring


Alts

Select

Ref.

6

Qty

4

Availability

Part #

10571579

Description

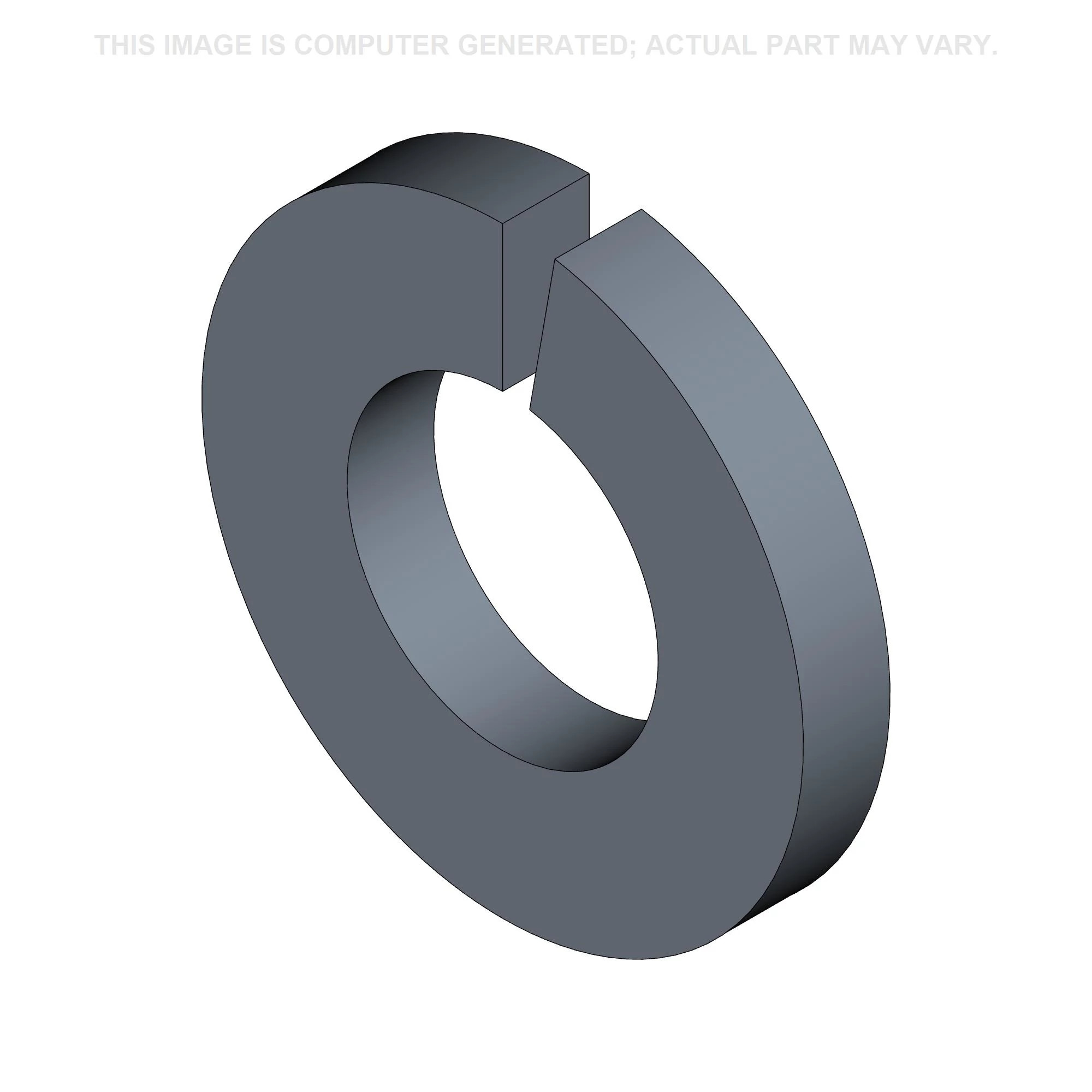

LOCK WASHER M6;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

10902821

Description

SCREW Hex, M6 x 30mm, Cl 8.8;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

91765382

Description

PUMP; Incl 9-12


Alts

Select

Ref.

9

Qty

1

Availability

Part #

91724997

Description

SEAL; Kit


Alts

Select

Ref.

10

Qty

1

Availability

Part #

91735049

Description

WOODRUFF KEY;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

91735050

Description

LOCK WASHER;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

91735051

Description

NUT;


Alts
