Ref.
Qty
Part #
Alts
Description
-
11AXLE; Engine End Axle Assy., Complete, 4.10 Differential; (Prod Date) Between 01-Jan-1987 and 31-Dec-1988
-
11FRONT AXLE; Cab End Axle Assy., Complete, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
11FRONT AXLE; Engine End Axle Assy., Complete, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
1A1CLEVIS; Yoke, 1410; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
21LOCK NUT 7/8''-14, GC; Nut, Lock, G8, 7/8''-14, Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
31WASHER 22.01mm ID x 38.1mm OD x 3.04mm Thk; M23, Pinion Nut; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
41THRUST WASHER 31.88mm ID x 57.2mm OD x 0.68mm Thk; Washer, Thrust; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
51GASKET; Seal, Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
61BEARING ASSY; Kit, Bearing, Outer Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
7ARKIT; Pinion Shim Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
81BEARING ASSY; Bearing, Kit, Pinion, Inner; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
91KIT; Pinion & Gear kit, 4.56 Differential, Blue 276; (Prod Date) Between 01-Jan-1989 and 30-Jun-1990
-
91GEAR; Pinion & Gear, 4.10 Differential, Red 276; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
1COVER; Assy., Includes: Ref. 10 thru 13; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
101NOT SOLD SEPARAT; Cover; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
1110SERRATED BOLT Hex Serr, 3/8'' - 16 x 3/4'', 5SPL, Full Thd; Screw, Cap, Flg Hd, USR, 3/8''-16 x 3/4''; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
121GASKET; Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
131MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETIC, Sq. Soc, 3/4''-14 NPTF; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
142KIT; Bearing, Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
15ARKIT; Differential Bearing Shim Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
164BOLT Hex, 1/2'' - 13 x 2 1/4'', Gr 8; Screw, Cap, HH, G8, 1/2''-13 x 2-1/4'', Differential Bearing Cap; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
1713BOLT Hex, 1/2'' - 20 x 1 1/8'', Gr 8, Full Thd; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
181KIT; Powerlock Unit, See Kits, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
181HOUSING; Power Lock Carrier Assy., 3.73 & 4.10 Differential; (Prod Date) Between 01-Jan-1984 and 31-Dec-1987
-
191SLINGER; Baffle, Pinion Bearing; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
201FRONT AXLE; Axle Cab End Welded Assy.; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
201FRONT AXLE; Axle Engine End Welded Assy.; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
21ARNOT SOLD SEPARAT; Spacer, Differential Bearing; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
22ARNOT SOLD SEPARAT; Shim, Drive Piston Adjusting; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
238NOT SOLD SEPARAT; Bolt, Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
241NOT SOLD SEPARAT; Cap Half, Differential Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
252NOT SOLD SEPARAT; Plate, Dished; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
264NOT SOLD SEPARAT; Disc, Dished; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
274NOT SOLD SEPARAT; Plate, Friction; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
282NOT SOLD SEPARAT; Ring, Differential Gear; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
291NOT SOLD SEPARAT; Gear, Differential, Includes: Ref. 31; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
302NOT SOLD SEPARAT; Shaft, Differential; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
311NOT SOLD SEPARAT; Pinion Differential; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
321NOT SOLD SEPARAT; Flange Half, Differential Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990
-
33ARKIT; Pinion Gear, Includes: Ref. 2 thru 9, 15, 17, 19 & 21; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
34ARDIFFERENTIAL; Kit, Disc & Plate Powerlock, Includes Ref. 25 thru 27; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
35ARKIT; Powerlock Unit, Inner Parts, Includes: Ref. 12, 28 thru 31; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
36ARKIT; Pinion & Bearing Shims, Includes: Ref. 2, 3, 7, 10; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
37ARKIT; Differential Bearing Shims, Includes: Ref. 12, 15, 21; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
38ARKIT; Pinion & Differential Bearing Shims, Includes: Ref. 2, 3, 7, 12, 15, 21, 22; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
-
39ARGASKET; Carrier Cover; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989
Select All
Select
Ref.
1Qty
1Availability
Part #
V120557Description
AXLE; Engine End Axle Assy., Complete, 4.10 Differential; (Prod Date) Between 01-Jan-1987 and 31-Dec-1988Img
Alts
Select
Ref.
1Qty
1Availability
Part #
V105893Description
FRONT AXLE; Cab End Axle Assy., Complete, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
1Qty
1Availability
Part #
V105894Description
FRONT AXLE; Engine End Axle Assy., Complete, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
1AQty
1Availability
Part #
9672972Description
CLEVIS; Yoke, 1410; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
2Qty
1Availability
Part #
281010Description
LOCK NUT 7/8''-14, GC; Nut, Lock, G8, 7/8''-14, Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
3Qty
1Availability
Part #
86505245Description
WASHER 22.01mm ID x 38.1mm OD x 3.04mm Thk; M23, Pinion Nut; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
4Qty
1Availability
Part #

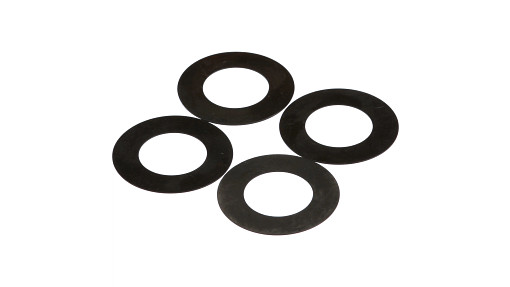

V120645Description
THRUST WASHER 31.88mm ID x 57.2mm OD x 0.68mm Thk; Washer, Thrust; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
5Qty
1Availability
Part #
9703429Description
GASKET; Seal, Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
6Qty
1Availability
Part #

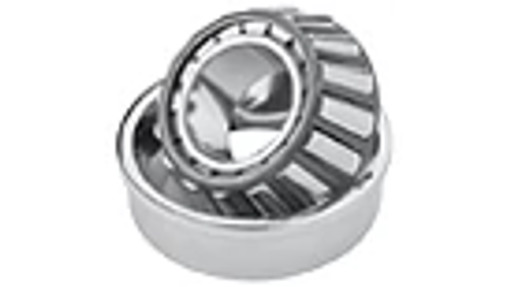

9672501Description
BEARING ASSY; Kit, Bearing, Outer Pinion; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
7Qty
ARAvailability
Part #
9701771Description
KIT; Pinion Shim Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
8Qty
1Availability
Part #

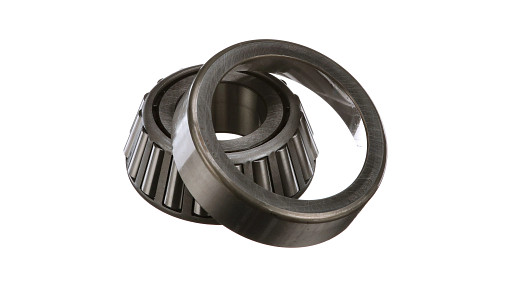

9672500Description
BEARING ASSY; Bearing, Kit, Pinion, Inner; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
9Qty
1Availability
Part #
9702134Description
KIT; Pinion & Gear kit, 4.56 Differential, Blue 276; (Prod Date) Between 01-Jan-1989 and 30-Jun-1990Img
Alts
Select
Ref.
9Qty
1Availability
Part #
V120643Description
GEAR; Pinion & Gear, 4.10 Differential, Red 276; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
Qty
1Availability
Part #
9702132Description
COVER; Assy., Includes: Ref. 10 thru 13; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
10Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Cover; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
11Qty
10Availability
Part #

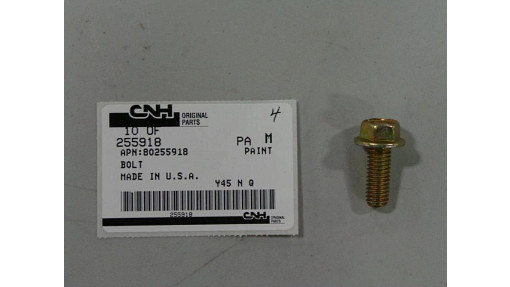

255918Description
SERRATED BOLT Hex Serr, 3/8'' - 16 x 3/4'', 5SPL, Full Thd; Screw, Cap, Flg Hd, USR, 3/8''-16 x 3/4''; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
12Qty
1Availability
Part #
9702140Description
GASKET; Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
13Qty
1Availability
Part #
263136Description
MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETIC, Sq. Soc, 3/4''-14 NPTF; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
14Qty
2Availability
Part #
V48845Description
KIT; Bearing, Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
15Qty
ARAvailability
Part #
9701772Description
KIT; Differential Bearing Shim Kit; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
16Qty
4Availability

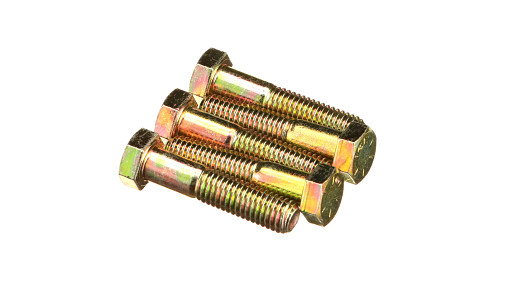

Part #
50032Description
BOLT Hex, 1/2'' - 13 x 2 1/4'', Gr 8; Screw, Cap, HH, G8, 1/2''-13 x 2-1/4'', Differential Bearing Cap; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
17Qty
13Availability
Part #
50034Description
BOLT Hex, 1/2'' - 20 x 1 1/8'', Gr 8, Full Thd; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
18Qty
1Availability
Part #
9702137Description
KIT; Powerlock Unit, See Kits, 4.56 Differential; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
18Qty
1Availability
Part #
9703372Description
HOUSING; Power Lock Carrier Assy., 3.73 & 4.10 Differential; (Prod Date) Between 01-Jan-1984 and 31-Dec-1987Img
Alts
Select
Ref.
19Qty
1Availability
Part #
9672544Description
SLINGER; Baffle, Pinion Bearing; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
20Qty
1Availability
Part #
V108109Description
FRONT AXLE; Axle Cab End Welded Assy.; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
20Qty
1Availability
Part #
V108108Description
FRONT AXLE; Axle Engine End Welded Assy.; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
21Qty
ARAvailability
Part #
NSSDescription
NOT SOLD SEPARAT; Spacer, Differential Bearing; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
22Qty
ARAvailability
Part #
NSSDescription
NOT SOLD SEPARAT; Shim, Drive Piston Adjusting; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
23Qty
8Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Bolt, Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
24Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Cap Half, Differential Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
25Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Plate, Dished; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
26Qty
4Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Disc, Dished; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
27Qty
4Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Plate, Friction; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
28Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Ring, Differential Gear; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
29Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Gear, Differential, Includes: Ref. 31; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
30Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Shaft, Differential; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
31Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pinion Differential; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
32Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Flange Half, Differential Case; (Prod Date) Between 01-Jan-1988 and 30-Jun-1990Img
Alts
Select
Ref.
33Qty
ARAvailability
Part #
9702134Description
KIT; Pinion Gear, Includes: Ref. 2 thru 9, 15, 17, 19 & 21; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
34Qty
ARAvailability
Part #
9702136Description
DIFFERENTIAL; Kit, Disc & Plate Powerlock, Includes Ref. 25 thru 27; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
35Qty
ARAvailability
Part #
9702138Description
KIT; Powerlock Unit, Inner Parts, Includes: Ref. 12, 28 thru 31; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
36Qty
ARAvailability
Part #
9701771Description
KIT; Pinion & Bearing Shims, Includes: Ref. 2, 3, 7, 10; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
37Qty
ARAvailability
Part #
9701772Description
KIT; Differential Bearing Shims, Includes: Ref. 12, 15, 21; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
38Qty
ARAvailability
Part #

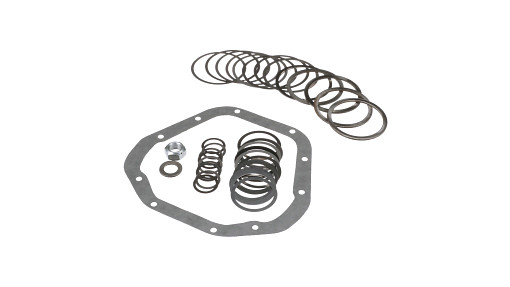

9701773Description
KIT; Pinion & Differential Bearing Shims, Includes: Ref. 2, 3, 7, 12, 15, 21, 22; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
Select
Ref.
39Qty
ARAvailability
Part #
9702140Description
GASKET; Carrier Cover; (Prod Date) Between 01-Jan-1988 and 31-Dec-1989Img
Alts
