TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SUPPORT; Assy., Front Axle, Front
-
24BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2'', Support to Pedestal
-
32THRUST WASHER; Washer, Thrust, 1.90 I.D. x 2.88 O.D. x .118
-
41FRONT AXLE; Axle & Bushing Assy., Front Center, Includes: Ref. 5 & 6
-
52RING; Bushing, Front Axle
-
61PLUG; Front Axle (Replaces C5NN3N400A)
-
71SUPPORT; & Pin Assy., Front Axle
-
82ANCHOR; Front Axle Support, 2-1/4'' x 3-3/4''
-
94BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2'', Support
-
101ARM; Steering Center, Wide Adjustable
-
10A1STOP; Steering Arm, Center, Wide Adjustable
-
111ANCHOR; Center Arm Bolt, 1-1/4'' x 5.90'', Wide Adjustable
-
121ARM; Steering Center, All Purpose;No Longer Serviced - NH-E.
-
131ANCHOR; Center Arm Bolt, 1-1/4 x 6.82''
-
13A1ANCHOR; Center Arm Bolt, .048'' x 2'' x 2'', All Purpose
-
143BOLT Hex, 3/4'' - 10 x 2 1/4'', Gr 5; HH, G5, 3/4''-10 x 2-1/4'', Arm to Pedestal
-
152TRACK ROD END ASSY; End Assy., Spindle Arm Connecting Rod, Wide Adjustable
-
162TRACK ROD END ASSY; End Assy., Spindle Rod Arm, 6.38'' Lg., All Purpose
-
172NUT; Spindle Arm Connecting Rod
-
182SLEEVE; Assy., Spindle Arm Connecting
-
192TIE-ROD; Rod Assy., Spindle Arm Connector
-
202WASHER 1/2'' x 1.062'' x .121/.074'' Thk; No Longer Serviced.
-
212LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
222NUT 1/2''-13, G5;
-
232BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''
-
244SEAL 15.24mm ID x 44.45mm OD x 19.05mm Thk; Steering Spindle Arm Dust
-
254NUT; Hex, 5/8''-18, Rod & End Attaching
-
261FRONT AXLE; Axle Assy., Front RH, Replaces P/N C7NN3006D, Includes: Ref. 28 & 29
-
271FRONT AXLE; Axle Assy., Front LH, Replaces P/N C7NN3007D, Includes: Ref. 28 & 29
-
282BUSHING 41.73mm ID x 50.86mm OD x 47.75mm L; Front Wheel Spindle, Upper
-
292BUSHING 49.3mm ID x 52.51mm OD x 44.45mm L; Front Wheel Spindle, Lower
-
304SPACER; Front Axle
-
324NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
334BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 5; HH, G5, 5/8''-11 x 4-1/2''
-
342LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Spindle 1/8''-27 x .66 lg
-
4LOCK WASHER; Washer, Lock, 5/8''
-
351NOT SERVICED; Spindle Assy., Front Wheel, Keyed End, RH, Replaced by P/N C9NN3105C;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.
-
35A1SPINDLE; Assy., Front Wheel, Serrated End, RH;When used prior to 1/70, also provide (1) C9NN3A208A Seal, (2) 34698S2 Nut, (1) D2NN3130A Arm or (1) C9NN3131A Arm.
-
361SPINDLE; Assy., Front Wheel, L.H., Keyed End;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.;NHNA Only.;No Longer Serviced.
-
36A1SPINDLE; Assy., Front Wheel, Serrated End, LH
-
36A1SPINDLE; Assy., Front Wheel, Serrated End, LH;NH-E Only.
-
372BEARING ASSY 51.156 mm ID x 74.8665 mm OD x 16.129 mm; ., Spindle;NH-E Only.
-
382SPACER; Spindle Thrust
-
392SEAL; Steering Arm, 1.494-1.472 I.D.
-
392SEAL; Seal, Steering Arm, 1.635-1.612
-
39A2SEAL; Spindle Arm, Outer, 2.20 O.D. x 1.50 I.D.
-
40A1ARM; Spindle, RH, All Purpose & LH Wide Adjustable 1.641-1.638 I.D., Not Shown
-
40A1ARM; Spindle, Serrated, RH All Purpose;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.
-
40AARARM; Spindle, Serrated, LH Wide Adjustable
-
411SPINDLE; Arm, Spindle, LH, All Purpose & RH Wide Adjustable, 1.50-1.498 I.D.;No Longer Serviced.
-
411ARM; Spindle, LH, All Purpose & RH Wide Ajustable, 1.641-1.638 I.D.
-
41A1ARM; Steering Spindle, Serrated, LH All Purpose, RH Wide Ajustable;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.;NHNA Only.
-
422WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT; Key, Woodruff, 5/16'' x 1-1/2'', Arm to Spindle
-
42A2NUT; Locking, Spindle Arm, 1-1/8''-12
-
432LOCK WASHER; Washer, Lock, 5/8''
-
442NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
452BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2''
-
1NOT SERVICED; Kit, Front Axle Conversion, Dual Wheel to Wide Ajustable, 8200, Includes the Parts Listed Below
-
1FRONT AXLE; Axle Assy., Front RH
-
1FRONT AXLE; Axle Assy., Front LH
-
1SUPPORT; Assy., Front Axle, Front
-
4SPACER; Front Axle
-
2ANCHOR; Front Axle Support, 2-1/4'' x 3-3/4''
-
1FRONT AXLE; Axle & Bushing Assy., Front Center
-
1SUPPORT; & Pin Assy., Front Axle
-
1SPINDLE; Assy., Front RH Wheel
-
1SPINDLE; Assy., Front LH Wheel
-
1ARM; Steering Spindle, LH;NHNA Only.
-
1ARM; Steering Spindle, RH;NHNA Only.
-
2SEAL; Steering Arm
-
2TIE-ROD; Rod Assy., Spindle Arm Connecting
-
2BEARING ASSY 51.156 mm ID x 74.8665 mm OD x 16.129 mm; ., Spindle
-
2TRACK ROD END ASSY; End Assy., Spindle Arm Connecting Rod
-
2SPACER; Spindle Thrust
-
2SLEEVE; Assy., Spindle Arm Connecting
-
2THRUST WASHER; Washer, Thrust, 1.90 I.D. x 2.88 O.D. x .118
-
1ARM; Steering, Center;No Longer Serviced - NH-E.
-
4SEAL 15.24mm ID x 44.45mm OD x 19.05mm Thk; Steering Spindle Arm Dust
-
1ANCHOR; Steering Center Arm Bolt
-
1ANCHOR; Steering Center Arm Bolt
-
2NUT; Spindle Arm Connecting Rod
-
4NUT; Hex, 5/8''-18
-
2NUT 1/2''-13, G5;
-
6NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
2LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
6LOCK WASHER; Washer, Lock, 5/8''
-
2WASHER 1/2'' x 1.062'' x .121/.074'' Thk; No Longer Serviced.
-
2WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT; Key, Woodruff, 5/16'' x 1-1/2''
-
2LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
-
4SCREW; Cap, HH, G5, 5/8''-11 x 4-1/4''
-
3BOLT Hex, 3/4'' - 10 x 2 1/4'', Gr 5; HH, G5, 3/4''-10 x 2-1/4''
-
2BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''
-
8BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2''
-
2BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2''
Select All
Select
Ref.
1Qty
1Availability
Part #
C7NN3029ADescription
SUPPORT; Assy., Front Axle, FrontImg
Alts
Select
Ref.
2Qty
4Availability
Part #
9706701Description

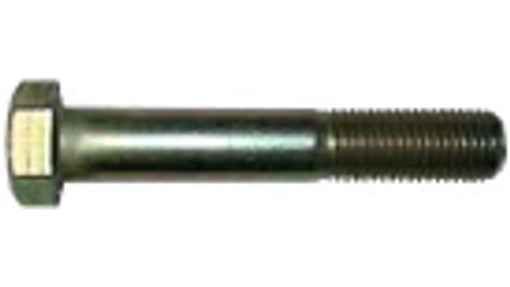

BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2'', Support to PedestalImg
Alts
Select
Ref.
3Qty
2Availability
Part #
C7NN3N450ADescription
THRUST WASHER; Washer, Thrust, 1.90 I.D. x 2.88 O.D. x .118Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C7NN3A041ADescription
FRONT AXLE; Axle & Bushing Assy., Front Center, Includes: Ref. 5 & 6Img
Alts
Select
Ref.
6Qty
1Availability
Part #
81802916Description
PLUG; Front Axle (Replaces C5NN3N400A)Img
Alts
Select
Ref.
7Qty
1Availability
Part #
C7NN3N041ADescription
SUPPORT; & Pin Assy., Front AxleImg
Alts
Select
Ref.
8Qty
2Availability
Part #
C7NN3N039ADescription
ANCHOR; Front Axle Support, 2-1/4'' x 3-3/4''Img
Alts
Select
Ref.
9Qty
4Availability
Part #
9706701Description
BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2'', SupportImg
Alts
Select
Ref.
10Qty
1Availability
Part #
C7NN3B627ADescription
ARM; Steering Center, Wide AdjustableImg
Alts
Select
Ref.
10AQty
1Availability
Part #
D1NN3401ADescription
STOP; Steering Arm, Center, Wide AdjustableImg
Alts
Select
Ref.
11Qty
1Availability
Part #
C7NN3C689ADescription
ANCHOR; Center Arm Bolt, 1-1/4'' x 5.90'', Wide AdjustableImg
Alts
Select
Ref.
12Qty
1Availability
Part #
C7NN3B627CDescription
ARM; Steering Center, All Purpose;No Longer Serviced - NH-E.Img
Alts
Select
Ref.
13Qty
1Availability
Part #
C7NN3C689CDescription
ANCHOR; Center Arm Bolt, 1-1/4 x 6.82''Img
Alts
Select
Ref.
13AQty
1Availability
Part #
C7NN3C689DDescription
ANCHOR; Center Arm Bolt, .048'' x 2'' x 2'', All PurposeImg
Alts
Select
Ref.
14Qty
3Availability
Part #
87403Description
BOLT Hex, 3/4'' - 10 x 2 1/4'', Gr 5; HH, G5, 3/4''-10 x 2-1/4'', Arm to PedestalImg
Alts
Select
Ref.
15Qty
2Availability
Part #
E3NN3307AADescription
TRACK ROD END ASSY; End Assy., Spindle Arm Connecting Rod, Wide AdjustableImg
Alts
Select
Ref.
16Qty
2Availability
Part #
C7NN3289CDescription
TRACK ROD END ASSY; End Assy., Spindle Rod Arm, 6.38'' Lg., All PurposeImg
Alts
Select
Ref.
17Qty
2Availability
Part #
E3NN3C739AADescription
NUT; Spindle Arm Connecting RodImg
Alts
Select
Ref.
18Qty
2Availability
Part #
C5NN3A449EDescription
SLEEVE; Assy., Spindle Arm ConnectingImg
Alts
Select
Ref.
19Qty
2Availability
Part #
C7NN3280DDescription

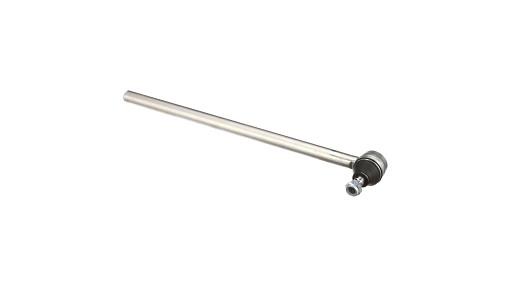

TIE-ROD; Rod Assy., Spindle Arm ConnectorImg
Alts
Select
Ref.
20Qty
2Availability
Part #
44734S8Description
WASHER 1/2'' x 1.062'' x .121/.074'' Thk; No Longer Serviced.Img
Alts
Select
Ref.
21Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
23Qty
2Availability
Part #
87972Description
BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''Img
Alts
Select
Ref.
24Qty
4Availability
Part #
81803194Description
SEAL 15.24mm ID x 44.45mm OD x 19.05mm Thk; Steering Spindle Arm DustImg
Alts
Select
Ref.
25Qty
4Availability
Part #
D2NN3C739BDescription
NUT; Hex, 5/8''-18, Rod & End AttachingImg
Alts
Select
Ref.
26Qty
1Availability
Part #
D0NN3006BDescription
FRONT AXLE; Axle Assy., Front RH, Replaces P/N C7NN3006D, Includes: Ref. 28 & 29Img
Alts
Select
Ref.
27Qty
1Availability
Part #
D0NN3007BDescription
FRONT AXLE; Axle Assy., Front LH, Replaces P/N C7NN3007D, Includes: Ref. 28 & 29Img
Alts
Select
Ref.
28Qty
2Availability
Part #
81802792Description

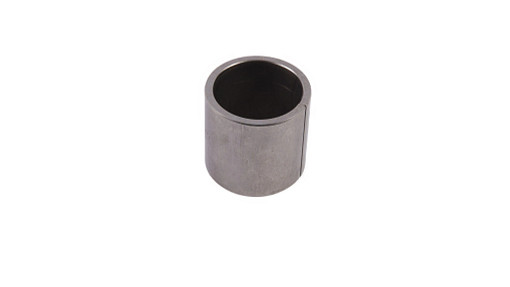

BUSHING 41.73mm ID x 50.86mm OD x 47.75mm L; Front Wheel Spindle, UpperImg
Alts
Select
Ref.
29Qty
2Availability
Part #
81812242Description

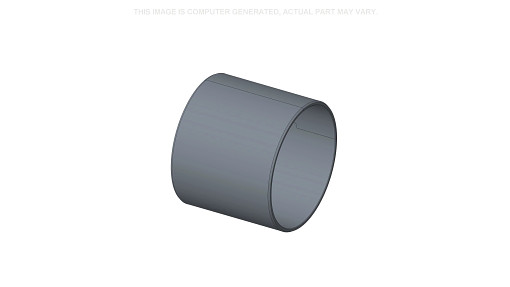

BUSHING 49.3mm ID x 52.51mm OD x 44.45mm L; Front Wheel Spindle, LowerImg
Alts
Select
Ref.
32Qty
4Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Select
Ref.
33Qty
4Availability
Part #
280183Description
BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 5; HH, G5, 5/8''-11 x 4-1/2''Img
Alts
Select
Ref.
34Qty
2Availability
Part #
80710Description
LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Spindle 1/8''-27 x .66 lgImg
Alts
Select
Ref.
Qty
4Availability
Part #
34811S36Description
LOCK WASHER; Washer, Lock, 5/8''Img
Alts
Select
Ref.
35Qty
1Availability
Part #
NSDescription
NOT SERVICED; Spindle Assy., Front Wheel, Keyed End, RH, Replaced by P/N C9NN3105C;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.Img
Alts
Select
Ref.
35AQty
1Availability
Part #
C9NN3105CDescription
SPINDLE; Assy., Front Wheel, Serrated End, RH;When used prior to 1/70, also provide (1) C9NN3A208A Seal, (2) 34698S2 Nut, (1) D2NN3130A Arm or (1) C9NN3131A Arm.Img
Alts
Select
Ref.
36Qty
1Availability
Part #
C7NN3106FDescription
SPINDLE; Assy., Front Wheel, L.H., Keyed End;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
36AQty
1Availability
Part #
C9NN3106BDescription
SPINDLE; Assy., Front Wheel, Serrated End, LHImg
Alts
Select
Ref.
36AQty
1Availability
Part #
C9NN3106BDescription
SPINDLE; Assy., Front Wheel, Serrated End, LH;NH-E Only.Img
Alts
Select
Ref.
37Qty
2Availability
Part #
C0NN3A299ADescription

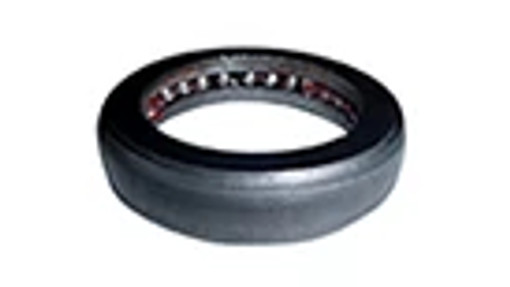

BEARING ASSY 51.156 mm ID x 74.8665 mm OD x 16.129 mm; ., Spindle;NH-E Only.Img
Alts
Select
Ref.
39Qty
2Availability
Part #
C0NN3A208ADescription
SEAL; Steering Arm, 1.494-1.472 I.D.Img
Alts
Select
Ref.
39Qty
2Availability
Part #
C7NN3A208ADescription
SEAL; Seal, Steering Arm, 1.635-1.612Img
Alts
Select
Ref.
39AQty
2Availability
Part #
D9NN3A208AADescription
SEAL; Spindle Arm, Outer, 2.20 O.D. x 1.50 I.D.Img
Alts
Select
Ref.
40AQty
1Availability
Part #
C7NN3130BDescription
ARM; Spindle, RH, All Purpose & LH Wide Adjustable 1.641-1.638 I.D., Not ShownImg
Alts
Select
Ref.
40AQty
1Availability
Part #
D2NN3130ADescription
ARM; Spindle, Serrated, RH All Purpose;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.Img
Alts
Select
Ref.
40AQty
ARAvailability
Part #
D2NN3130ADescription
ARM; Spindle, Serrated, LH Wide AdjustableImg
Alts
Select
Ref.
41Qty
1Availability
Part #
C7NN3131ADescription
SPINDLE; Arm, Spindle, LH, All Purpose & RH Wide Adjustable, 1.50-1.498 I.D.;No Longer Serviced.Img
Alts
Select
Ref.
41Qty
1Availability
Part #
C7NN3131BDescription
ARM; Spindle, LH, All Purpose & RH Wide Ajustable, 1.641-1.638 I.D.Img
Alts
Select
Ref.
41AQty
1Availability
Part #
D2NN3131BDescription
ARM; Steering Spindle, Serrated, LH All Purpose, RH Wide Ajustable;When P/N C7NN3105G or C7NN3106D are replaced, (1) C7NN3A208A Seal & (1) C7NN3130B or C7NN3131B Arm must be used.;NHNA Only.Img
Alts
Select
Ref.
42Qty
2Availability
Part #
74195SDescription
WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT; Key, Woodruff, 5/16'' x 1-1/2'', Arm to SpindleImg
Alts
Select
Ref.
42AQty
2Availability
Part #
34698S2Description
NUT; Locking, Spindle Arm, 1-1/8''-12Img
Alts
Select
Ref.
43Qty
2Availability
Part #
34811S36Description
LOCK WASHER; Washer, Lock, 5/8''Img
Alts
Select
Ref.
44Qty
2Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Select
Ref.
45Qty
2Availability
Part #
280119Description
BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
NSDescription
NOT SERVICED; Kit, Front Axle Conversion, Dual Wheel to Wide Ajustable, 8200, Includes the Parts Listed BelowImg
Alts
Select
Ref.
Qty
1Availability
Part #
D0NN3006BDescription
FRONT AXLE; Axle Assy., Front RHImg
Alts
Select
Ref.
Qty
1Availability
Part #
D0NN3007BDescription
FRONT AXLE; Axle Assy., Front LHImg
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3029ADescription
SUPPORT; Assy., Front Axle, FrontImg
Alts
Select
Ref.
Qty
2Availability
Part #
C7NN3N039ADescription
ANCHOR; Front Axle Support, 2-1/4'' x 3-3/4''Img
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3A041ADescription
FRONT AXLE; Axle & Bushing Assy., Front CenterImg
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3N041ADescription
SUPPORT; & Pin Assy., Front AxleImg
Alts
Select
Ref.
Qty
1Availability
Part #
D2NN3130ADescription
ARM; Steering Spindle, LH;NHNA Only.Img
Alts
Select
Ref.
Qty
1Availability
Part #
D2NN3131BDescription
ARM; Steering Spindle, RH;NHNA Only.Img
Alts
Select
Ref.
Qty
2Availability
Part #
C7NN3280DDescription
TIE-ROD; Rod Assy., Spindle Arm ConnectingImg
Alts
Select
Ref.
Qty
2Availability
Part #
C0NN3A299ADescription
BEARING ASSY 51.156 mm ID x 74.8665 mm OD x 16.129 mm; ., SpindleImg
Alts
Select
Ref.
Qty
2Availability
Part #
E3NN3307AADescription
TRACK ROD END ASSY; End Assy., Spindle Arm Connecting RodImg
Alts
Select
Ref.
Qty
2Availability
Part #
C5NN3A449EDescription
SLEEVE; Assy., Spindle Arm ConnectingImg
Alts
Select
Ref.
Qty
2Availability
Part #
C7NN3N450ADescription
THRUST WASHER; Washer, Thrust, 1.90 I.D. x 2.88 O.D. x .118Img
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3B627ADescription
ARM; Steering, Center;No Longer Serviced - NH-E.Img
Alts
Select
Ref.
Qty
4Availability
Part #
81803194Description
SEAL 15.24mm ID x 44.45mm OD x 19.05mm Thk; Steering Spindle Arm DustImg
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3C689ADescription
ANCHOR; Steering Center Arm BoltImg
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN3C689CDescription
ANCHOR; Steering Center Arm BoltImg
Alts
Select
Ref.
Qty
2Availability
Part #
E3NN3C739AADescription
NUT; Spindle Arm Connecting RodImg
Alts
Select
Ref.
Qty
6Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Select
Ref.
Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
6Availability
Part #
34811S36Description
LOCK WASHER; Washer, Lock, 5/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
44734S8Description
WASHER 1/2'' x 1.062'' x .121/.074'' Thk; No Longer Serviced.Img
Alts
Select
Ref.
Qty
2Availability
Part #
74195SDescription
WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT; Key, Woodruff, 5/16'' x 1-1/2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
80710Description
LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lgImg
Alts
Select
Ref.
Qty
4Availability
Part #
304969S8Description
SCREW; Cap, HH, G5, 5/8''-11 x 4-1/4''Img
Alts
Select
Ref.
Qty
3Availability
Part #
87403Description
BOLT Hex, 3/4'' - 10 x 2 1/4'', Gr 5; HH, G5, 3/4''-10 x 2-1/4''Img
Alts
Select
Ref.
Qty
2Availability
Part #
87972Description
BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''Img
Alts
Select
Ref.
Qty
8Availability
Part #
9706701Description
BOLT Hex, 3/4'' - 10 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-1/2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
280119Description
BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2''Img
Alts
