05.100.03[01] - FILTERS - BOOMER 3040, 45, 50
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84475542
    ENGINE OIL FILTER; ENGINE OIL FILTER
  • 2
    1

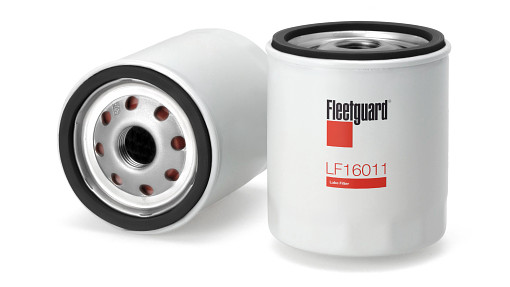

    LF16011
    ENGINE OIL FILTER; ENGINE OIL FILTER
  • 3
    1

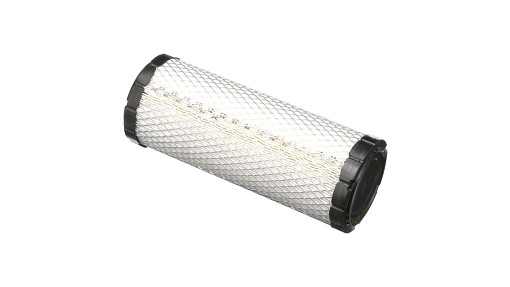

    87682998
    AIR FILTER; ENGINE AIR FILTER, Outer
  • 4
    1
    AF25551
    AIR FILTER PRIMARY MAGNUM RS; ENGINE AIR FILTER, Outer, Ship Direct Part
  • 5
    1
    84539215
    AIR FILTER; ENGINE AIR FILTER, Inner
  • 6
    1

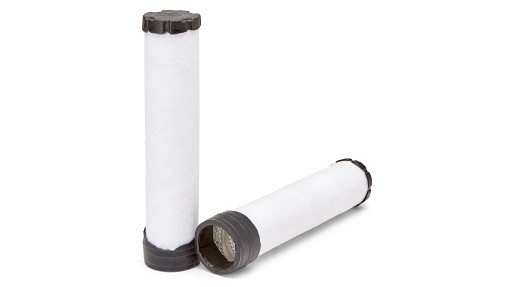

    AF25552
    AIR FILTER SECONDARY MAGNUM RS; ENGINE AIR FILTER, Inner Air, Ship Direct Part
  • 7
    1
    87761808
    AIR FILTER; CAB AIR FILTER, Cab Roof, Ship Direct Part
  • 8
    2
    84582342
    HYDRAULIC OIL FILTER 98.4mm OD x 151.6mm L, M87 x 2.5; HYDRAULIC OIL FILTER, Pressure and Tubing
  • 9
    1

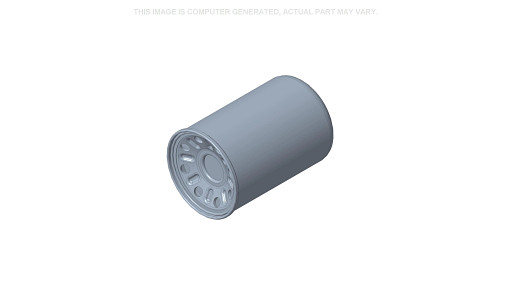

    84476007
    HYDRAULIC OIL FILTER Spin-on, 128mm OD x 199.3mm L, 1 1/2IN - 16 UN; HYDRAULIC OIL FILTER, Pressure Suction System
  • 10
    1
    84477366
    FUEL FILTER; FUEL FILTER
  • 11
    1

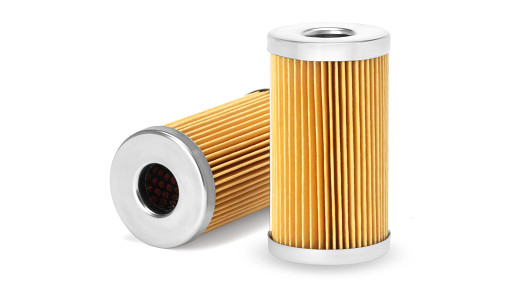

    FF5103
    FUEL FILTER; FUEL FILTER, Fuel, Ship Direct Part
  • 12
    1
    87481356
    FILTER; TRANSMISSION FILTER, Internal Suction
Select All

Select

Ref.

1

Qty

1

Availability

Part #

84475542

Description

ENGINE OIL FILTER; ENGINE OIL FILTER


Alts

Select

Ref.

2

Qty

1

Availability

Part #

LF16011

Description

ENGINE OIL FILTER; ENGINE OIL FILTER


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87682998

Description

AIR FILTER; ENGINE AIR FILTER, Outer


Alts

Select

Ref.

4

Qty

1

Availability

Part #

AF25551

Description

AIR FILTER PRIMARY MAGNUM RS; ENGINE AIR FILTER, Outer, Ship Direct Part


Alts

Select

Ref.

5

Qty

1

Availability

Part #

84539215

Description

AIR FILTER; ENGINE AIR FILTER, Inner


Alts

Select

Ref.

6

Qty

1

Availability

Part #

AF25552

Description

AIR FILTER SECONDARY MAGNUM RS; ENGINE AIR FILTER, Inner Air, Ship Direct Part


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87761808

Description

AIR FILTER; CAB AIR FILTER, Cab Roof, Ship Direct Part


Alts

Select

Ref.

8

Qty

2

Availability

Part #

84582342

Description

HYDRAULIC OIL FILTER 98.4mm OD x 151.6mm L, M87 x 2.5; HYDRAULIC OIL FILTER, Pressure and Tubing


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84476007

Description

HYDRAULIC OIL FILTER Spin-on, 128mm OD x 199.3mm L, 1 1/2IN - 16 UN; HYDRAULIC OIL FILTER, Pressure Suction System


Alts

Select

Ref.

10

Qty

1

Availability

Part #

84477366

Description

FUEL FILTER; FUEL FILTER


Alts

Select

Ref.

11

Qty

1

Availability

Part #

FF5103

Description

FUEL FILTER; FUEL FILTER, Fuel, Ship Direct Part


Alts

Select

Ref.

12

Qty

1

Availability

Part #

87481356

Description

FILTER; TRANSMISSION FILTER, Internal Suction
