07G01 - PTO SHIFT ASSEMBLY - LIVE PTO 540 & LIVE 540/750 PTO - 1910
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    SBA322500540
    PTO SHAFT; Shaft Assy., PTO, Includes: Ref. 2;W/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 1
    1
    SBA322500240
    SHAFT; Assy., PTO, Includes: Ref. 2;L/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 2
    1
    SBA042301825
    BEARING ASSY; Bearing; (Prod Date) From 01-Jan-1983
  • 3
    4
    11068376
    SNAP RING M35, Ext x 1.5 Thk; Ring, Snap, Ext, M35; (Prod Date) From 01-Jan-1983
  • 4
    3
    80037203
    BEARING ASSY; Bearing, Ball; (Prod Date) From 01-Jan-1983
  • 5
    1
    SBA322320670
    GEAR; (Prod Date) From 01-Jan-1983
  • 6
    2
    370002
    CIRCLIP M25, Ext, PHC; Ring, Snap, Ext, M25; (Prod Date) From 01-Jan-1983
  • 7
    1
    279593
    BALL BEARING 25mm ID x 47mm OD x 12mm W; Bearing;L/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 8
    2
    SBA011511025
    CAPTIVE WASHER SCREW Hex, M10 x 25, G5; SCREW, CAPTIVE WASHER, Hex, M10 x 25, G5;L/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 9
    1
    84078050
    SNAP RING M22, Int, PHC; Ring, Snap;L/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 10
    1
    SBA322340850

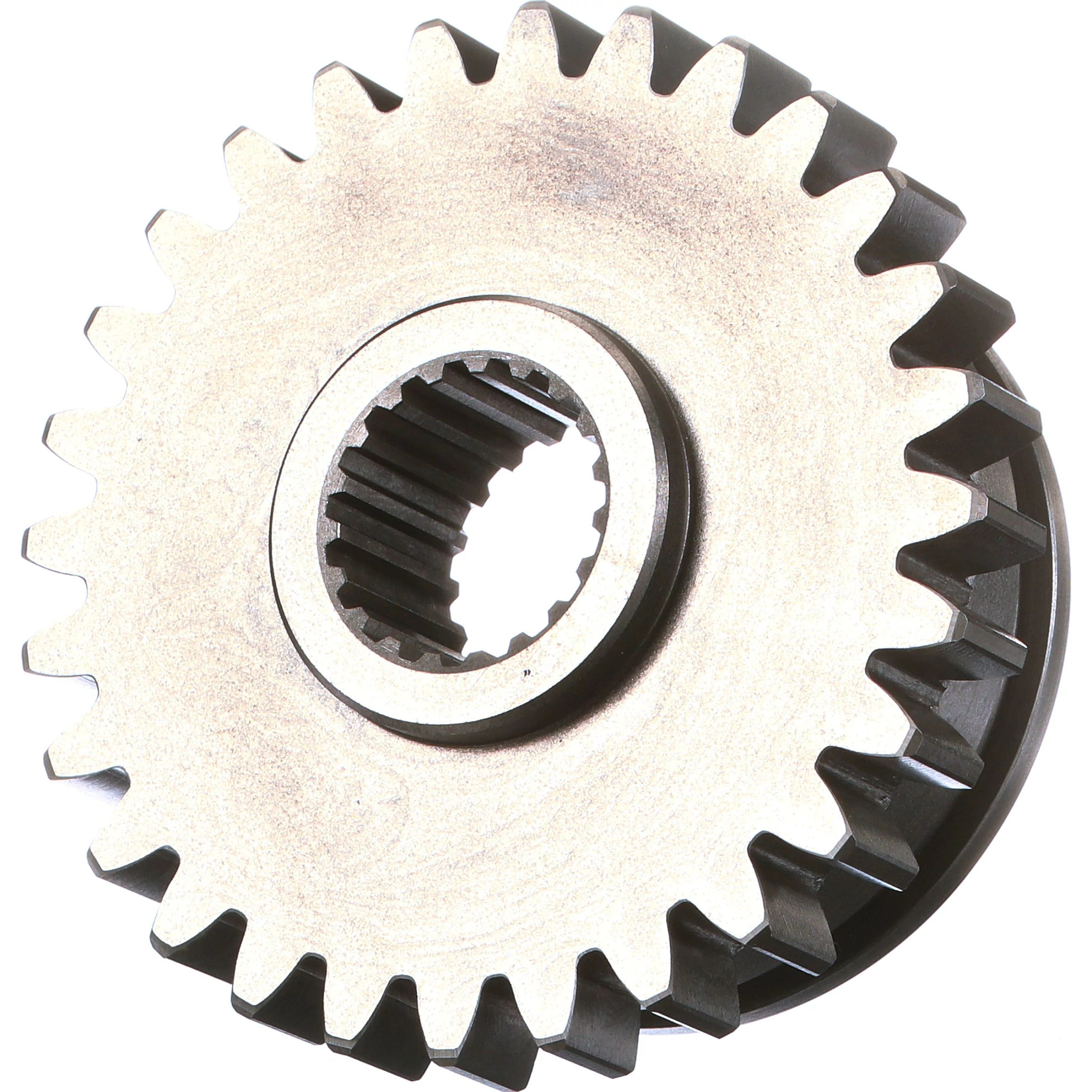

    GEAR; ''A'' Slider, 28T, 19 Splines; (Prod Date) From 01-Jan-1983
  • 10A
    1
    SBA322360680
    GEAR; ''B'' Slider, 28 x 24T;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 11
    1
    SBA322610070
    COUPLING; (Prod Date) From 01-Jan-1983
  • 12
    1
    SBA322260120
    BEARING HOUSING; Holder;L/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 13
    1
    SBA399210930
    SPACER; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 14
    1
    SBA399261010
    THRUST WASHER; Washer, Thrust;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 15
    1
    SBA036300035
    SNAP RING; Ring, Snap;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 16
    1
    SBA322323010
    GEAR; Fixing, 19T, W/Ridge;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 17
    1
    SBA399261160
    WASHER; O.D. 1-3/4'', I.D. 1-3/16'' Thickness;W/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 18
    1
    SBA399261170
    WASHER; W/Synchro Shift; (Prod Date) From 01-Jan-1983
  • 19
    1
    SBA399230570
    COLLAR; (Prod Date) From 01-Jan-1983
  • 19
    1
    SBA399230930
    COLLAR; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 20
    1
    SBA322590340
    PTO SHAFT; Shaft, PTO, Output; (Prod Date) From 01-Jan-1983
  • 20
    1
    SBA322590281
    PTO SHAFT; Shaft, PTO, Output;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 21
    1
    370018
    SNAP RING M72, Int, PHC; RING, SNAP, M72, Int; (Prod Date) From 01-Jan-1983
  • 22
    1
    SBA399260660
    THRUST WASHER; Washer; (Prod Date) From 01-Jan-1983
  • 22
    1
    SBA399210620
    SPACER; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 23
    1
    SBA050209058
    SEAL; Oil; (Prod Date) From 01-Jan-1983
  • 24
    1
    SBA322990381

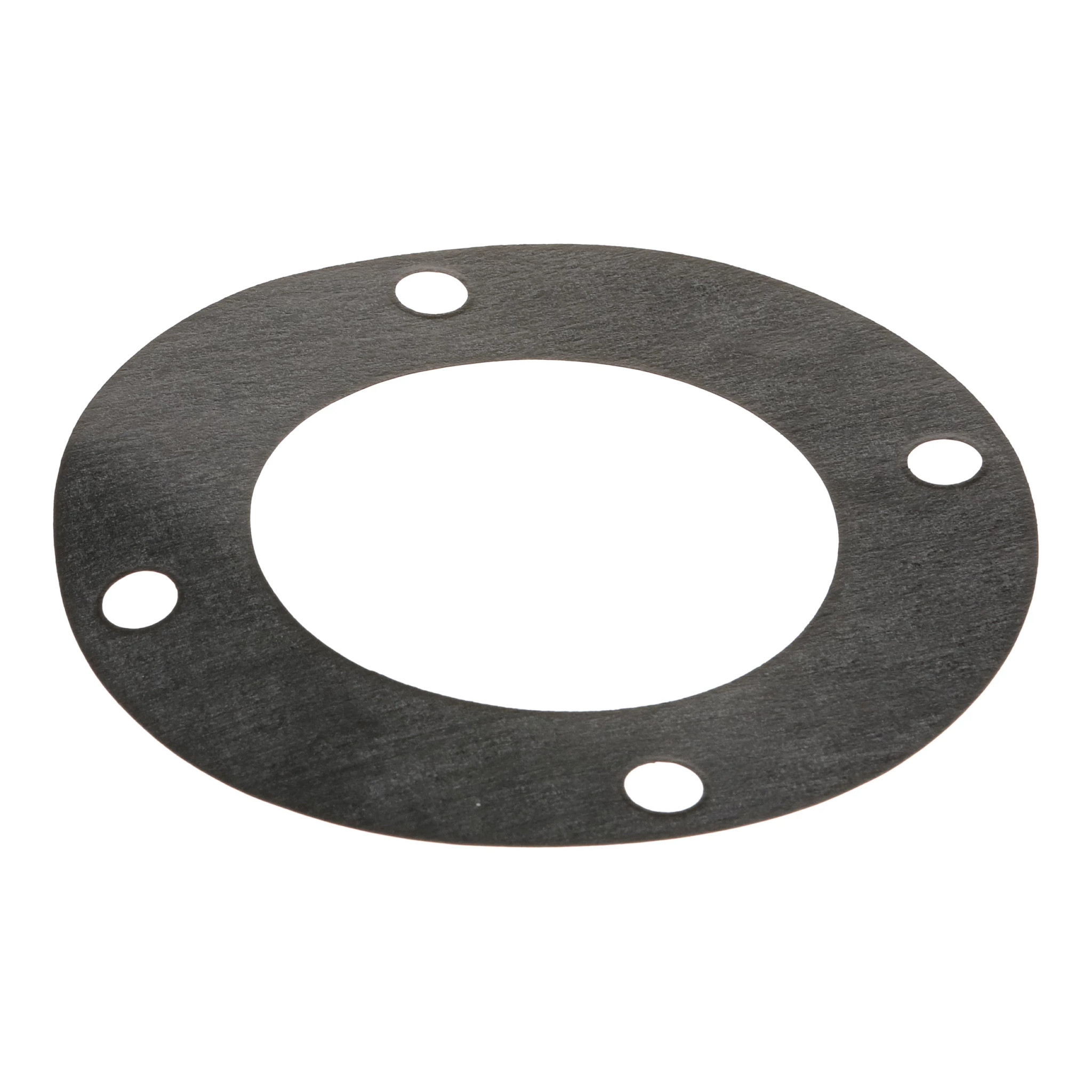

    GASKET; (Prod Date) From 01-Jan-1983
  • 25
    1
    SBA322140251
    SEAL; Cover, Seal; (Prod Date) From 01-Jan-1983
  • 25
    1
    SBA322140550
    COVER; Seal;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 26
    1
    C5NN726A
    COVER; Cap, PTO, Grey; (Prod Date) From 01-Jan-1983
  • 27
    4
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5; (Prod Date) From 01-Jan-1983
  • 28
    1
    SBA322570250
    COUNTERSHAFT; PTO, Upper; (Prod Date) From 01-Jan-1983
  • 28A
    1
    SBA322570110
    COUNTERSHAFT; PTO, Upper;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 29
    1
    SBA399231180
    COLLAR; (Prod Date) From 01-Jan-1983
  • 29
    1
    SBA399230570
    COLLAR; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 30
    1
    46805
    BALL BEARING 30mm ID x 72mm OD x 19mm W; Bearing; (Prod Date) From 01-Jan-1983
  • 31
    1
    370003
    CIRCLIP M30, Ext, PHC; Ring, Snap, Ext, M30; (Prod Date) From 01-Jan-1983
  • 32
    1
    SBA322140270
    COVER; Seal; (Prod Date) From 01-Jan-1983
  • 33
    1
    SBA322321490
    GEAR; ''A'' Fixing, 16T; (Prod Date) From 01-Jan-1983
  • 34
    1
    SBA322320660
    GEAR; ''A'' Fixing, 29T; (Prod Date) From 01-Jan-1983
  • 35
    1
    SBA322280060
    SUPPORT; (Prod Date) From 01-Jan-1983
  • 36
    1
    SBA322220030
    PLATE; (Prod Date) From 01-Jan-1983
  • 37
    2
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) From 01-Jan-1983
  • 38
    1
    SBA324300310
    ROD; Shifter; (Prod Date) From 01-Jan-1983
  • 38
    1
    SBA324300460
    ROD; Shifter;540/750 PTO; (Prod Date) From 01-Jan-1983
  • 39
    1
    SBA324410302
    LEVER; Fork; (Prod Date) From 01-Jan-1983
  • 40
    1
    86624944
    BALL 8.73mm OD, Gr 24; (Prod Date) From 01-Jan-1983
  • 41
    1
    SBA398210280
    SPRING; (Prod Date) From 01-Jan-1983
  • 42
    1
    SBA030300625
    PIN; 6 x 25; (Prod Date) From 01-Jan-1983
  • 43
    1
    SBA398230020
    RETAINING WIRE; Wire; (Prod Date) From 01-Jan-1983
  • 44
    1
    SBA324200190
    ARM; (Prod Date) From 01-Jan-1983
  • 45
    1
    SBA052100140
    O-RING; (Prod Date) From 01-Jan-1983
  • 46
    1
    SBA324180110
    GUIDE; PTO; (Prod Date) Between 01-Jan-1983 and 30-Sep-1983
  • 46A
    1
    SBA324180380
    GUIDE; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 46
    1
    SBA324180111
    GUIDE; PTO; (Prod Date) From 01-Oct-1983
  • 47
    2
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) From 01-Jan-1983
  • 48
    1
    SBA324101070
    LEVER; PTO; (Prod Date) From 01-Jan-1983
  • 48A
    1
    SBA324101241
    LEVER; 540/750 PTO; (Prod Date) From 01-Jan-1983
  • 49
    1
    SBA324610160
    COVER; (Prod Date) From 01-Jan-1983
  • 50
    1
    SBA324990081
    GASKET; (Prod Date) From 01-Jan-1983
  • 51
    3
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5; (Prod Date) From 01-Jan-1983
  • 52
    1
    SBA030300632

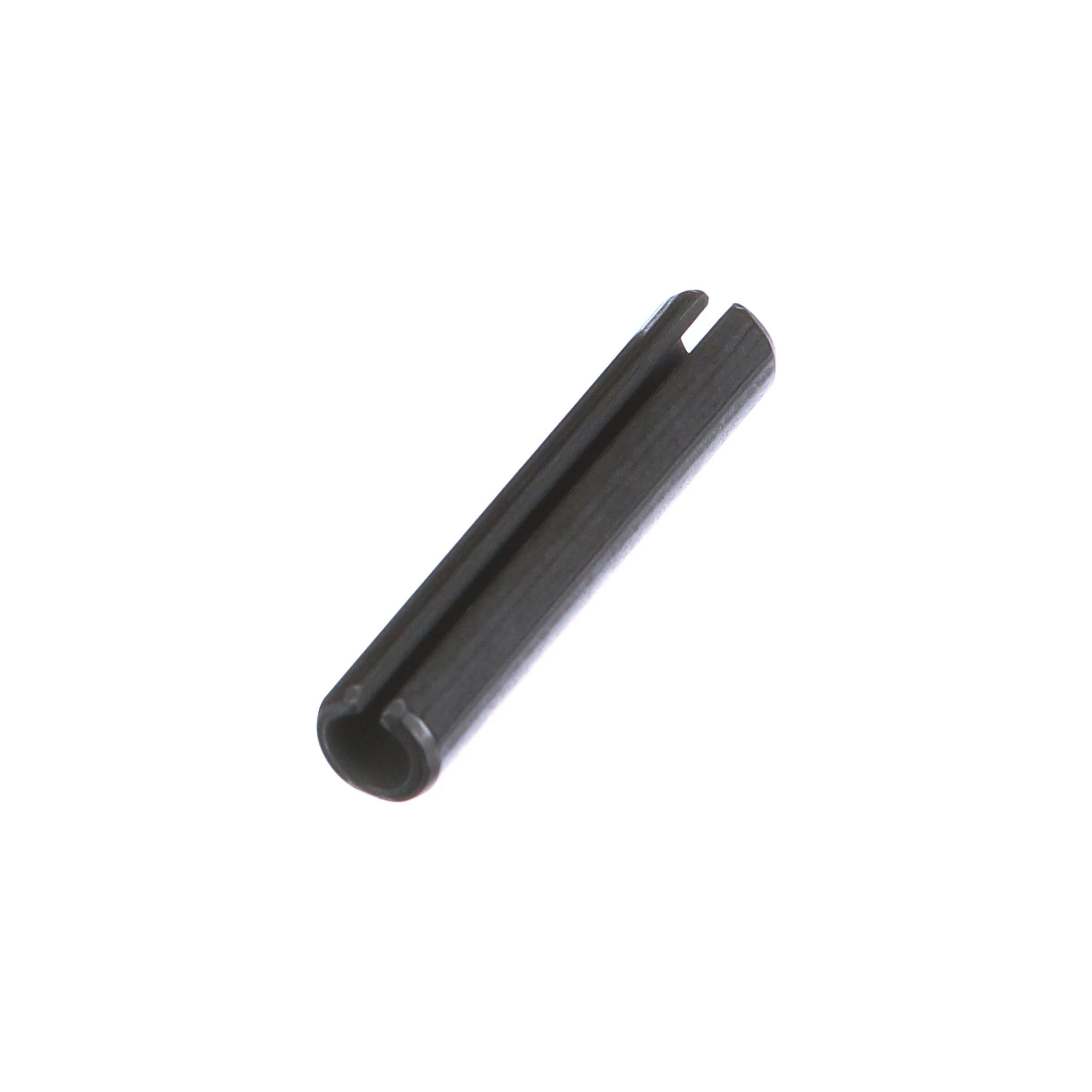

    SLOTTED PIN M6 x 32; PIN, SLOTTED, M6 x 32; (Prod Date) From 01-Jan-1983
  • 53
    2
    SBA498180090
    HANDLE GRIP; Grip; (Prod Date) From 01-Jan-1983
  • 54
    1
    SBA399561220
    PLATE; 2WD; (Prod Date) From 01-Jan-1983
  • 55
    1
    86977789
    BOLT Hex, M6 x 1 x 35mm, Cl 8.8; Hex, M6 x 35, 8.8, 2WD; (Prod Date) From 01-Jan-1983
  • 56
    1
    SBA399231170
    COLLAR; 2WD; (Prod Date) From 01-Jan-1983
  • 57
    -
    86517328
    LOCK WASHER 6.1mm ID x 11.8mm OD x 1.7mm Thk; Washer, Lock, , 2WD M6; (Prod Date) From 01-Jan-1983
  • 58
    1
    SBA022400006
    NUT; U-Nut, 2WD, M6; (Prod Date) From 01-Jan-1983
  • 59
    2
    370002
    CIRCLIP M25, Ext, PHC; Ring, Snap, Ext, M25;W/Synchro Shift; (Prod Date) From 01-Jan-1983
