07M01 - HST CONTROL - 1110, 1210
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    SBA320010441
    SUMP; Case Assy. Includes: Ref. 2 thru 4; (Prod Date) From 01-Jan-1983
  • 2
    2

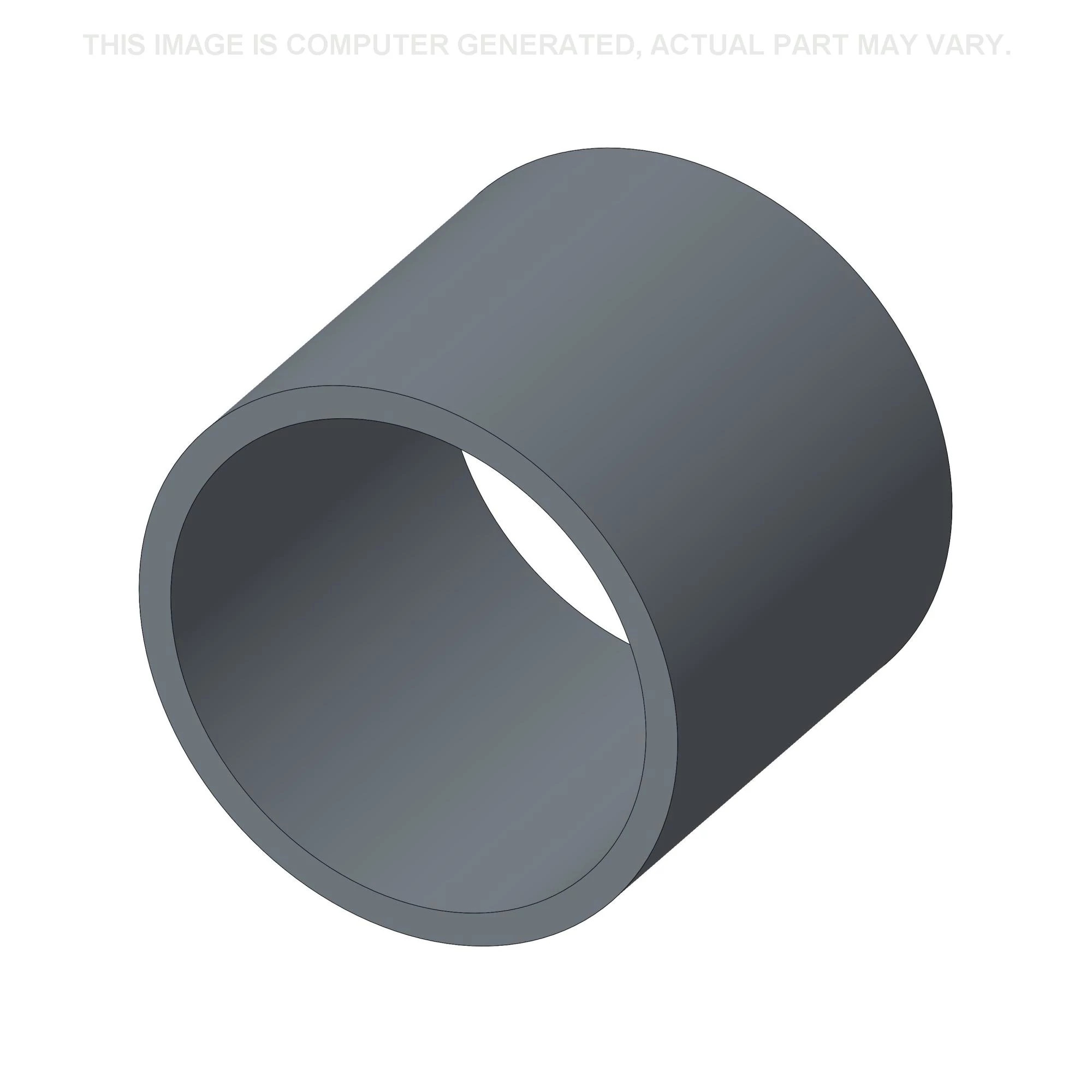

    SBA398511310
    DRIVE BUSHING; Bushing; (Prod Date) From 01-Jan-1983
  • 3
    2
    SBA012111240
    BOLT; Stud, M12 x 48; (Prod Date) From 01-Jan-1983
  • 4
    1
    SBA030500820
    PIN; 8 x 20; (Prod Date) From 01-Jan-1983
  • 5
    1
    SBA340101201
    LEVER; (Prod Date) From 01-Jan-1983
  • 6
    1
    412479
    BOLT Hex, M8 x 1.25 x 35mm, Full Thd, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983
  • 7
    10
    89706690
    NUT M8 x 1.25, Cl 8; (Prod Date) From 01-Jan-1983
  • 8
    5
    87016617
    LOCK WASHER M8; Washer; (Prod Date) From 01-Jan-1983
  • 9
    2
    SBA334800350
    ROD; End Assy.; (Prod Date) From 01-Jan-1983
  • 10
    1
    SBA340130150
    ROD; (Prod Date) From 01-Jan-1983
  • 11
    1
    SBA324350030
    CONNECTING LINK; Link; (Prod Date) From 01-Jan-1983
  • 12
    1
    SBA358210310
    SHAFT; (Prod Date) From 01-Jan-1983
  • 13
    4
    SBA030300628
    PIN; (Prod Date) From 01-Jan-1983
  • 14
    1
    SBA328150020
    DISC; (Prod Date) From 01-Jan-1983
  • 15
    1
    SBA328110101
    LINER, ENGINE CYLIND; Liner; (Prod Date) From 01-Jan-1983
  • 16
    2
    120100
    BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983
  • 17
    4
    PL
    PROCURE LOCALLY; Washer, M6; (Prod Date) From 01-Jan-1983
  • 18
    2
    86517328
    LOCK WASHER 6.1mm ID x 11.8mm OD x 1.7mm Thk; Washer, Lock, M6; (Prod Date) From 01-Jan-1983
  • 19
    2
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND; (Prod Date) From 01-Jan-1983
  • 20
    1
    SBA198216190
    SPRING; (Prod Date) From 01-Jan-1983
  • 22
    2
    SBA399232450
    COLLAR; (Prod Date) From 01-Jan-1983
  • 23
    1
    SBA031310840
    PIN; 08 x 40; (Prod Date) From 01-Jan-1983
  • 24
    2
    SBA031310825
    PIN; 08 x 25; (Prod Date) From 01-Jan-1983
  • 25
    5
    86511315
    WASHER 8.4mm ID x 16mm OD x 1.8mm Thk; (Prod Date) From 01-Jan-1983
  • 26
    3
    SBA030102016
    COTTER PIN; Pin; (Prod Date) From 01-Jan-1983
  • 27
    1

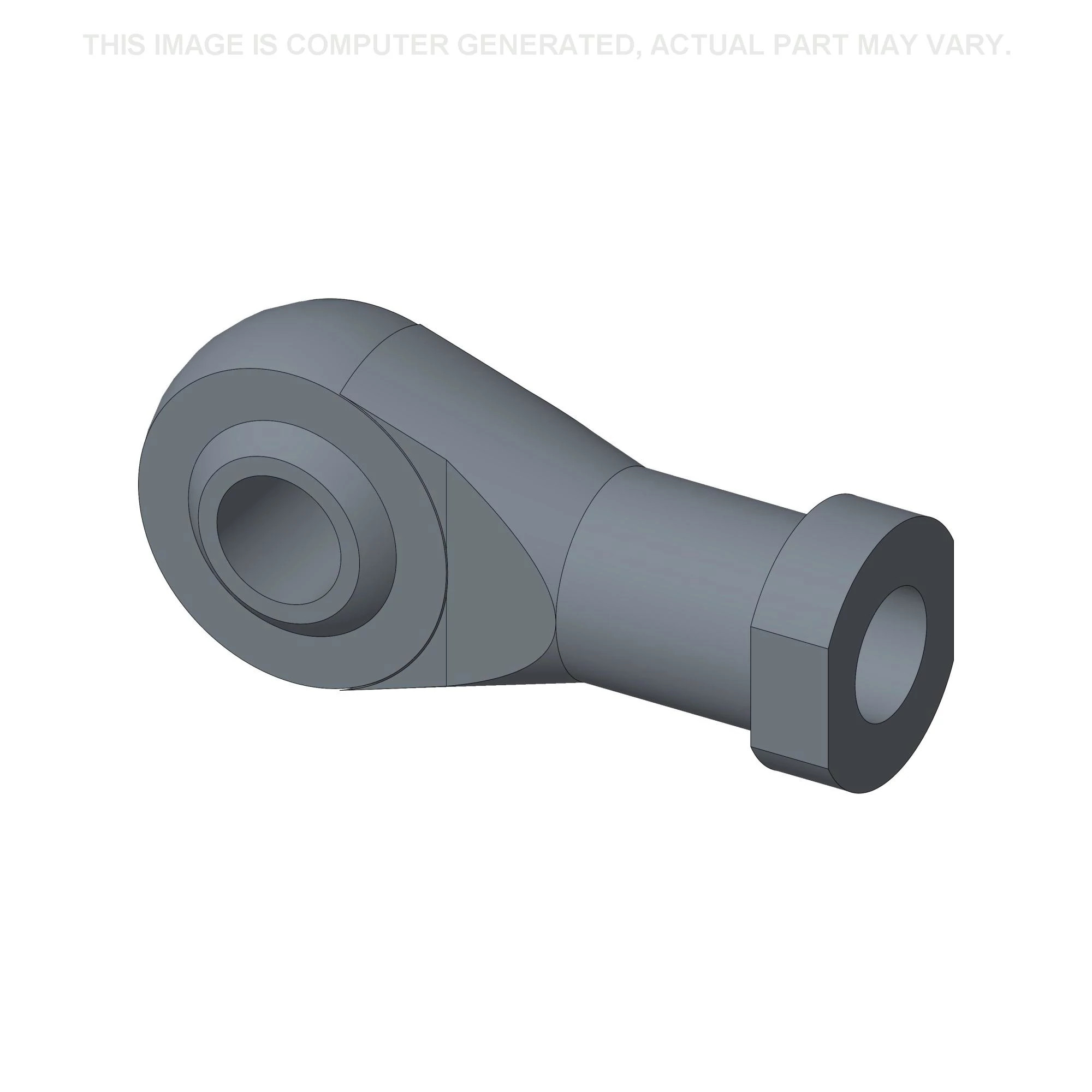

    SBA334800360
    ROD; End, Rod; (Prod Date) From 01-Jan-1983
  • 28
    1
    SBA340130161
    TRACK ROD END ASSY; Rod; (Prod Date) From 01-Jan-1983
  • 29
    2
    SBA026109017
    WASHER; (Prod Date) From 01-Jan-1983
  • 30
    1
    SBA398212280

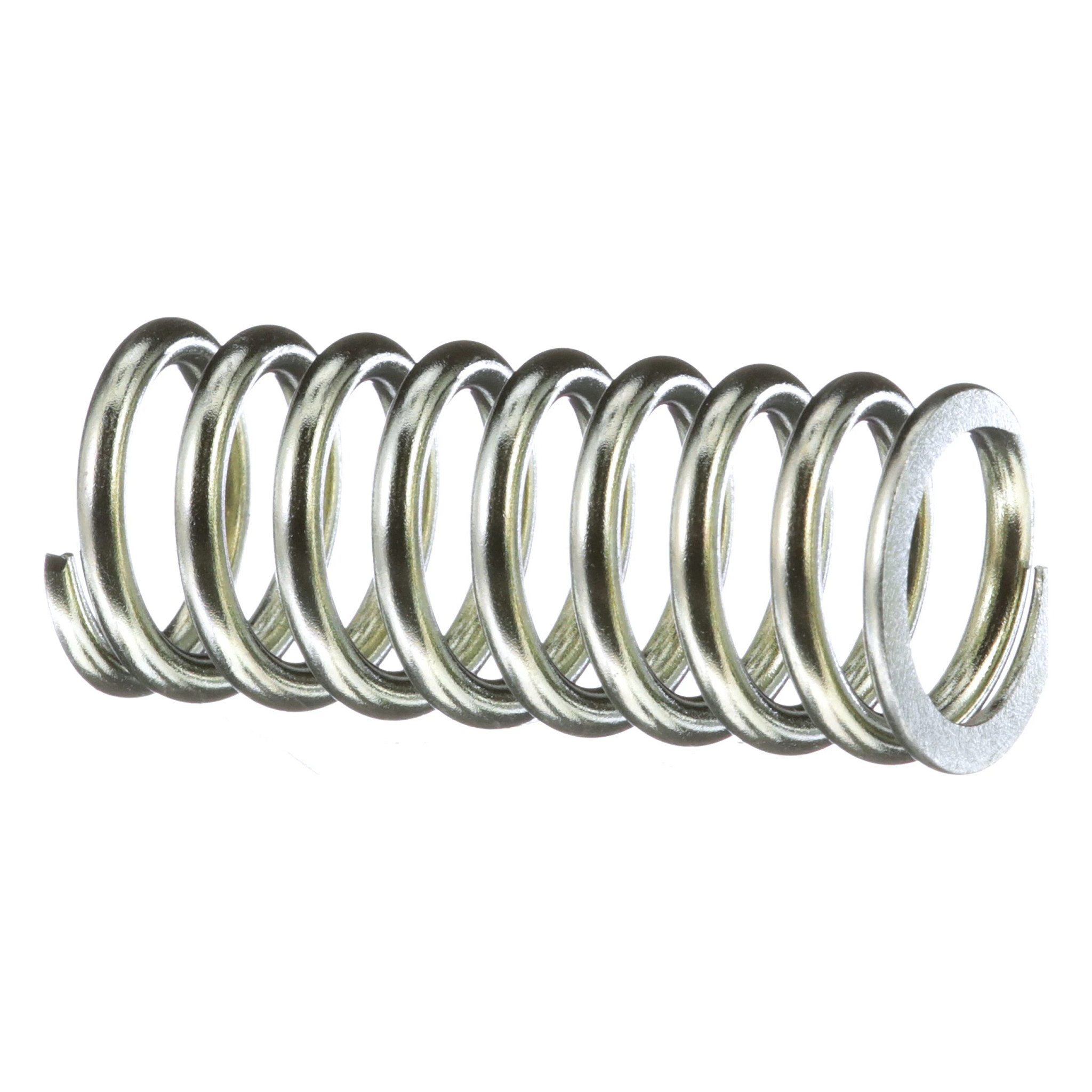

    SPRING; (Prod Date) From 01-Jan-1983
  • 31
    1
    SBA399232440
    SPACER; Collar; (Prod Date) From 01-Jan-1983
  • 32
    1
    SBA358250180
    SUPPORT; (Prod Date) From 01-Jan-1983
  • 33
    1
    SBA358350080
    CLAMP; Holder; (Prod Date) From 01-Jan-1983
  • 34
    2
    120100
    BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983
  • 35
    1
    SBA358250170
    SUPPORT; (Prod Date) From 01-Jan-1983
  • 36
    2
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5; (Prod Date) From 01-Jan-1983
  • 37
    1
    SBA324020020
    LEVER; Assy. Includes: Ref. 37A; (Prod Date) From 01-Jan-1983
  • 37A
    1
    SBA398113230
    SUPPORT; Rubber; (Prod Date) From 01-Jan-1983
  • 38
    2
    SBA399340060
    WASHER; (Prod Date) From 01-Jan-1983
  • 39
    1
    120069
    BOLT Hex, M10 x 1.5 x 50mm, 26mm Thread L, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983
  • 40
    1
    SBA022300010
    NUT; M10; (Prod Date) From 01-Jan-1983
  • 41
    1
    SBA399430540
    BOLT; (Prod Date) From 01-Jan-1983
  • 42
    1
    412123
    LOCK WASHER 13.1mm ID x 21.1mm OD x 2.55mm Thk; WASHER, LOCK, M12 x 21 x 2.6 Thk; (Prod Date) From 01-Jan-1983
  • 43
    1
    378245
    WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; (Prod Date) From 01-Jan-1983
  • 44
    1
    PL
    PROCURE LOCALLY; Pin; (Prod Date) From 01-Jan-1983
  • 45
    1
    SBA328400280
    LEVER; (Prod Date) From 01-Jan-1983
  • 46
    2
    130043

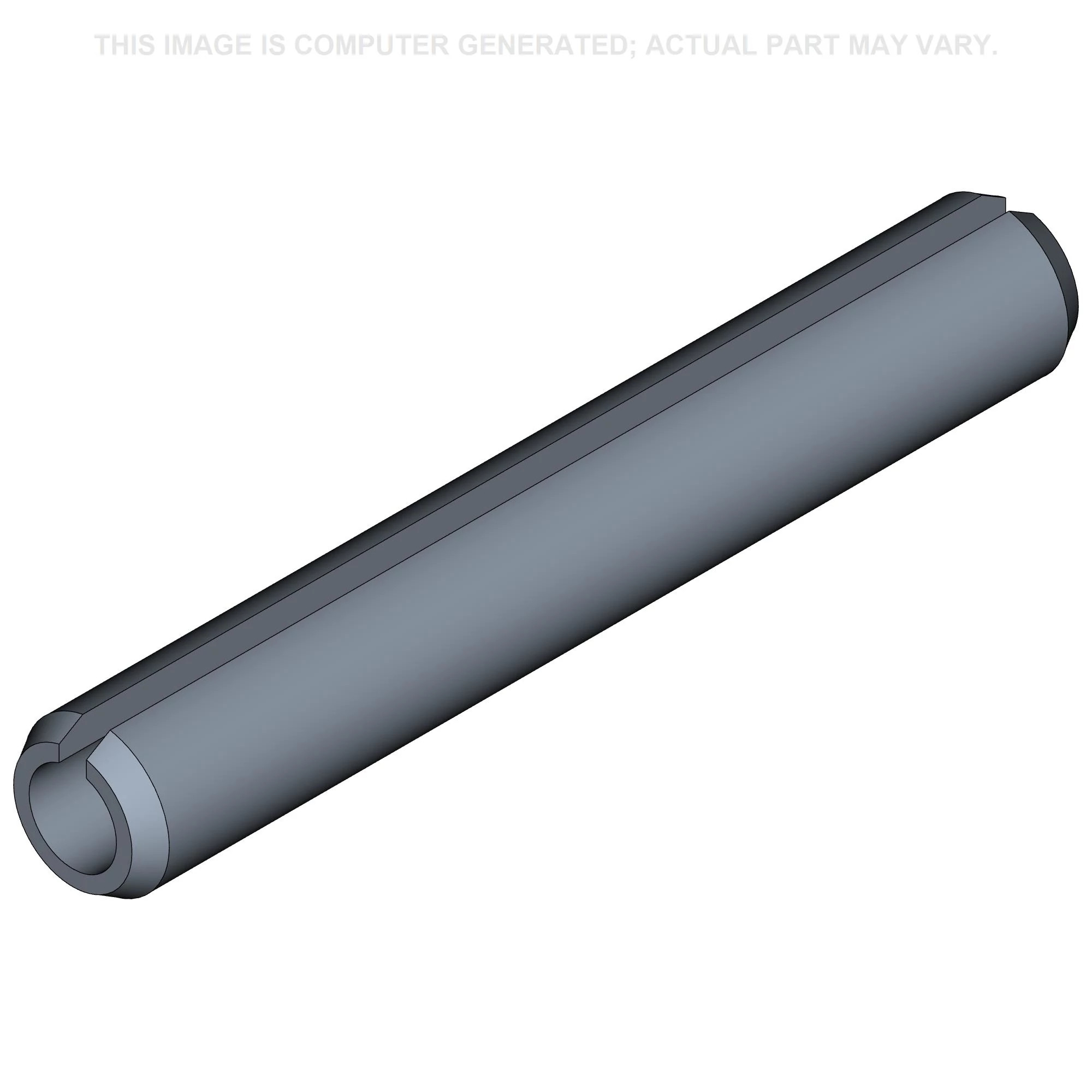

    LOCK PIN M4 x 26, Slotted; PIN, M4 x 26, Slotted; (Prod Date) Between 01-Jan-1983 and 31-Jan-1983
  • 46
    1
    130043
    LOCK PIN M4 x 26, Slotted; PIN, , Lower M4 x 26, Slotted; (Prod Date) From 01-Feb-1983
  • 47
    1
    SBA328100131
    SHOE; (Prod Date) From 01-Jan-1983
  • 48
    1
    SBA031310620
    PIN; (Prod Date) From 01-Jan-1983
  • 49
    1
    PL
    PROCURE LOCALLY; Pin; (Prod Date) From 01-Jan-1983
  • 50
    1
    SBA398210290
    SPRING; (Prod Date) From 01-Jan-1983
  • 51
    1
    SBA322210700
    COVER; (Prod Date) From 01-Jan-1983
  • 52
    6
    SBA011510812
    CAPTIVE WASHER SCREW Hex, M8 x 12, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 12, G5; (Prod Date) From 01-Jan-1983
  • 53
    1
    SBA324600160
    COVER; (Prod Date) From 01-Jan-1983
  • 54
    1
    SBA324600150
    COVER; (Prod Date) From 01-Jan-1983
  • 55
    2
    SBA015109081
    SCREW; Stainless Steel, M6 x 12; (Prod Date) From 01-Jan-1983
  • 56
    1
    SBA398180580
    HANDLE GRIP; Grip; (Prod Date) From 01-Jan-1983
  • 57
    1
    SBA358101081
    PEDAL; (Prod Date) From 01-Jan-1983
  • 58
    1

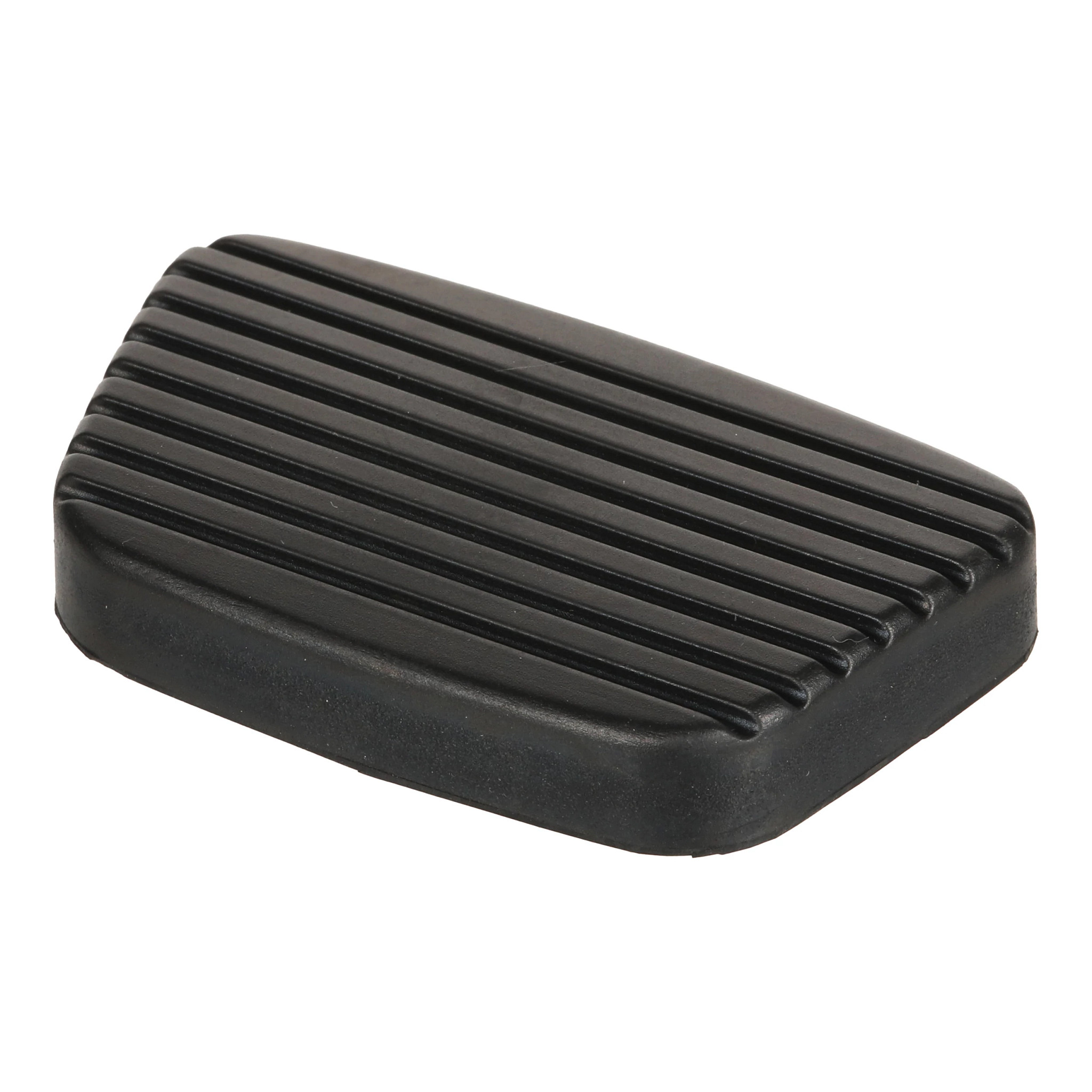

    SBA398113000
    RUBBER PAD; Rubber; (Prod Date) From 01-Jan-1983
  • 59
    1
    SBA398113010
    RUBBER PAD; Rubber; (Prod Date) From 01-Jan-1983
  • 60
    1
    SBA358140460
    PLATE; (Prod Date) From 01-Jan-1983
  • 61
    1
    SBA011300810
    BOLT; M8 x 10; (Prod Date) From 01-Jan-1983
  • 62
    2
    SBA398511310
    DRIVE BUSHING; Bushing; (Prod Date) From 01-Jan-1983
  • 63
    1
    SBA378910020
    DAMPER; Assy. Includes: Ref. 64; (Prod Date) From 01-Jan-1983
  • 64
    1
    SBA334800370
    SILENTBLOC; End; (Prod Date) From 01-Jan-1983
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA320010441

Description

SUMP; Case Assy. Includes: Ref. 2 thru 4; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

2

Qty

2

Availability

Part #

SBA398511310

Description

DRIVE BUSHING; Bushing; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

3

Qty

2

Availability

Part #

SBA012111240

Description

BOLT; Stud, M12 x 48; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

4

Qty

1

Availability

Part #

SBA030500820

Description

PIN; 8 x 20; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

5

Qty

1

Availability

Part #

SBA340101201

Description

LEVER; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

6

Qty

1

Availability

Part #

412479

Description

BOLT Hex, M8 x 1.25 x 35mm, Full Thd, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

7

Qty

10

Availability

Part #

89706690

Description

NUT M8 x 1.25, Cl 8; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

8

Qty

5

Availability

Part #

87016617

Description

LOCK WASHER M8; Washer; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

9

Qty

2

Availability

Part #

SBA334800350

Description

ROD; End Assy.; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

10

Qty

1

Availability

Part #

SBA340130150

Description

ROD; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

11

Qty

1

Availability

Part #

SBA324350030

Description

CONNECTING LINK; Link; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

12

Qty

1

Availability

Part #

SBA358210310

Description

SHAFT; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

13

Qty

4

Availability

Part #

SBA030300628

Description

PIN; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

14

Qty

1

Availability

Part #

SBA328150020

Description

DISC; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

15

Qty

1

Availability

Part #

SBA328110101

Description

LINER, ENGINE CYLIND; Liner; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

16

Qty

2

Availability

Part #

120100

Description

BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

17

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, M6; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

18

Qty

2

Availability

Part #

86517328

Description

LOCK WASHER 6.1mm ID x 11.8mm OD x 1.7mm Thk; Washer, Lock, M6; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

19

Qty

2

Availability

Part #

15896221

Description

NUT Hex, M6 x 1, Cl 10, ZND; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

20

Qty

1

Availability

Part #

SBA198216190

Description

SPRING; (Prod Date) From 01-Jan-1983


Alts

Select

Ref.

22

Qty

2

Availability

Part #

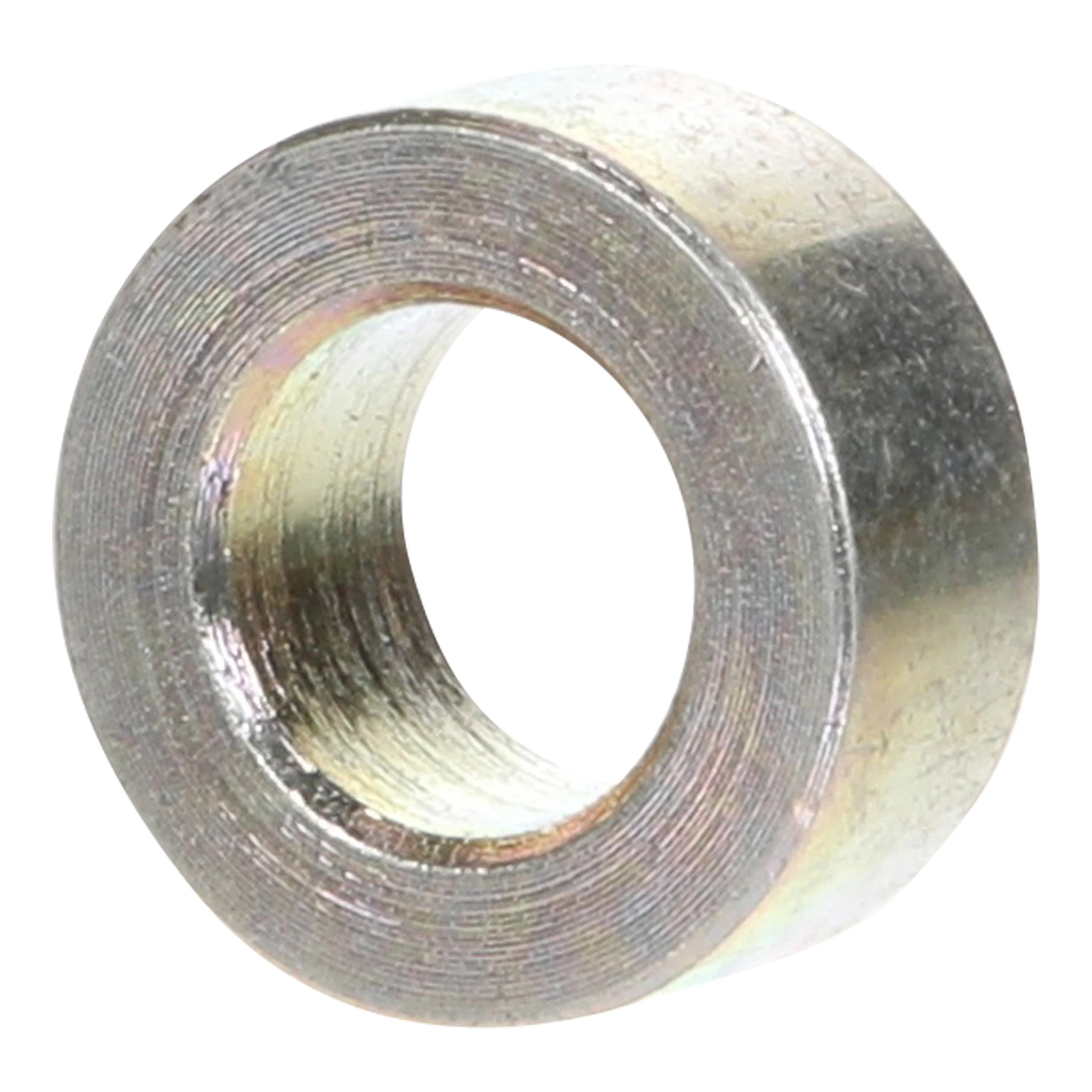

SBA399232450
