PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TANK; Assy., 1310,1510 Includes: Ref. 2 & 3;NHNA Only; (Prod Date) From 01-Jan-1983
-
11TANK; Assy., 1710 Does Not Include Ref. 2 & 3; (Prod Date) From 01-Jul-1985
-
11TANK; Assy., 1710 Includes: Ref. 2 & 3; (Prod Date) Between 01-Jan-1983 and 30-Jun-1985
-
21CAP; (Prod Date) From 01-Jan-1983
-
31FUEL TUBE; Tube; (Prod Date) Between 01-Jan-1983 and 30-Jun-1985
-
42HOSE CLAMP; Clamp, 1310,1510;NHNA Only; (Prod Date) From 01-Feb-1986
-
61BAND; 1310,1510;NHNA Only; (Prod Date) From 01-Jan-1983
-
61TANK; Band, 1710; (Prod Date) From 01-Jan-1983
-
74SUPPORT; Rubber; (Prod Date) From 01-Jan-1983
-
84NUT M8 x 1.25, Cl 8; (Prod Date) From 01-Jan-1983
-
102LOCK WASHER M8; Washer, Spring; (Prod Date) From 01-Jan-1983
-
111SUPPORT; 1310,1510;NHNA Only; (Prod Date) From 01-Jan-1983
-
111SUPPORT; 1710; (Prod Date) From 01-Jan-1983
-
111SUPPORT; 1710 Offset;NHNA Only; (Prod Date) From 01-Jan-1985
-
124PLUG; Rubber; (Prod Date) From 01-Jan-1983
-
132CAPTIVE WASHER SCREW Hex, M10 x 25, G5; SCREW, CAPTIVE WASHER, , 1310,1510 Hex, M10 x 25, G5;NHNA Only; (Prod Date) From 01-Jan-1983
-
132BOLT; Screw, HH, W/Washer, CL 8.8, M10 x 1.5 x 20, 1710; (Prod Date) From 01-Jan-1983
-
134BOLT M10 x 35; 1710 Offset M10 x 35;NHNA Only; (Prod Date) From 01-Jan-1985
-
142BOLT; Screw, HH, W/Washer, CL 8.8, M10 x 1.5 x 20; (Prod Date) From 01-Jan-1983
-
151CLAMP; (Prod Date) From 01-Jan-1983
-
161DRAINCOCK/TAP SUPPLY; Cock Includes: Ref. 16A; (Prod Date) From 01-Jan-1983
-
16A1SEALING WASHER; Washer, Seal; (Prod Date) From 01-Jan-1983
-
171NO LONGER SERVICED; Order SBA360020030 (KIT); (Prod Date) From 01-Jan-1983
-
171FUEL FILTER; Includes: Ref. 19 thru 22; (Prod Date) From 01-Jan-1983
-
17A1KIT; Filter Includes: Ref. 17, 19, 20, 21, 22, 25, 25A & 25B;To let the air bubble escape, use only the bleed screw at the injection pump as new fuel filter does not have the bleed screw.; (Prod Date) From 01-Jan-1983
-
181NUT; Used with Fuel Filter Element SBA360720020;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
191CUP; Cap;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
191CAP; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
201ELEMENT; 13.2mm, I.D. of Hole;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
201ELEMENT; Does not Required Ref. 18 SBA360740010 Nut;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
211O-RING 3.5mm Thk x 39.7mm ID, 70 Duro; Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
211O-RING; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
221O-RING 9.8mm ID; Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
221O-RING; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
22A1SCREW; Plug;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
22B1SEALING WASHER; Packing;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
231BRACKET; 1310;NHNA Only; (Prod Date) From 01-Jan-1983
-
231BRACKET; 1510;NHNA Only; (Prod Date) From 01-Jan-1983
-
231BRACKET; 1710; (Prod Date) From 01-Jan-1983
-
242CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) From 01-Jan-1983
-
251BOLT Hex, M8 x 1.25 x 65mm, Cl 8.8; BOLT, Hex, M8 x 65, 8.8;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
251BOLT; M8 x 20;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
25A1COVER; Cap;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
25B1HOSE CLAMP; Clamp, Hose;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983
-
261LOCK WASHER M8; Washer, Spring;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983
-
282HOSE; Pipe, Cut to Length, 7''; (Prod Date) From 01-Jan-1983
-
281HOSE; Pipe, 9-1/2'', 1710 Offset; (Prod Date) From 01-Jan-1983
-
294CLAMP; (Prod Date) From 01-Jan-1983
-
301FLOAT; Assy., 1710 Includes: Ref. 31 thru 33; (Prod Date) From 01-Jul-1985
-
311GASKET; 1710; (Prod Date) From 01-Jul-1985
-
321SCREW; 1710; (Prod Date) From 01-Jul-1985
-
331RUBBER WEATHERSTRIP; Rubber, 1710 Offset; (Prod Date) From 01-Jan-1985
Select All
Ref.
1Qty
1Availability
Part #
SBA360010280Description
TANK; Assy., 1310,1510 Includes: Ref. 2 & 3;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
1Qty
1Availability
Part #
SBA360100551Description
TANK; Assy., 1710 Does Not Include Ref. 2 & 3; (Prod Date) From 01-Jul-1985Img
Alts
Ref.
1Qty
1Availability
Part #
SBA360010290Description
TANK; Assy., 1710 Includes: Ref. 2 & 3; (Prod Date) Between 01-Jan-1983 and 30-Jun-1985Img
Alts
Ref.
2Qty
1Availability
Part #
SBA360300080Description
CAP; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
3Qty
1Availability
Part #
SBA068109530Description
FUEL TUBE; Tube; (Prod Date) Between 01-Jan-1983 and 30-Jun-1985Img
Alts
Ref.
4Qty
2Availability
Part #
SBA067200078Description
HOSE CLAMP; Clamp, 1310,1510;NHNA Only; (Prod Date) From 01-Feb-1986Img
Alts
Ref.
6Qty
1Availability
Part #
SBA360200200Description
BAND; 1310,1510;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
6Qty
1Availability
Part #
SBA360200170Description
TANK; Band, 1710; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
7Qty
4Availability
Part #
SBA398112420Description
SUPPORT; Rubber; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
8Qty
4Availability
Part #
89706690Description
NUT M8 x 1.25, Cl 8; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
10Qty
2Availability
Part #
87016617Description
LOCK WASHER M8; Washer, Spring; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
11Qty
1Availability
Part #
SBA360500600Description
SUPPORT; 1310,1510;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
11Qty
1Availability
Part #
SBA360500590Description
SUPPORT; 1710; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
11Qty
1Availability
Part #
SBA360500800Description
SUPPORT; 1710 Offset;NHNA Only; (Prod Date) From 01-Jan-1985Img
Alts
Ref.
12Qty
4Availability
Part #
SBA398110501Description

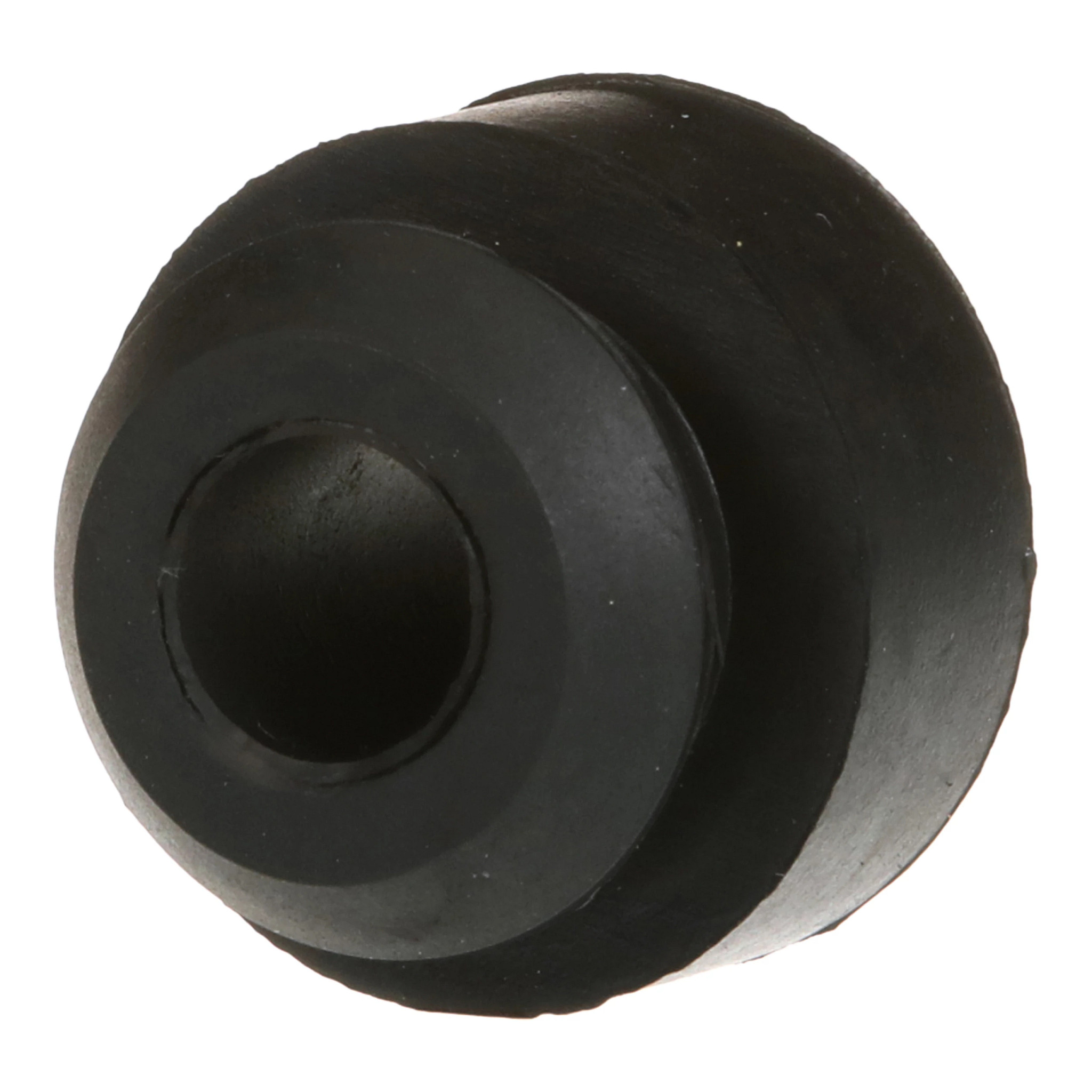

PLUG; Rubber; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
13Qty
2Availability
Part #
SBA011511025Description
CAPTIVE WASHER SCREW Hex, M10 x 25, G5; SCREW, CAPTIVE WASHER, , 1310,1510 Hex, M10 x 25, G5;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
13Qty
2Availability
Part #
N602569S36Description
BOLT; Screw, HH, W/Washer, CL 8.8, M10 x 1.5 x 20, 1710; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
13Qty
4Availability
Part #
SBA011511035Description
BOLT M10 x 35; 1710 Offset M10 x 35;NHNA Only; (Prod Date) From 01-Jan-1985Img
Alts
Ref.
14Qty
2Availability
Part #
N602569S36Description
BOLT; Screw, HH, W/Washer, CL 8.8, M10 x 1.5 x 20; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
15Qty
1Availability
Part #
SBA399110340Description
CLAMP; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
16Qty
1Availability
Part #
SBA398730030Description
DRAINCOCK/TAP SUPPLY; Cock Includes: Ref. 16A; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
16AQty
1Availability
Part #
SBA398740010Description
SEALING WASHER; Washer, Seal; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
17Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Order SBA360020030 (KIT); (Prod Date) From 01-Jan-1983Img
Alts
Ref.
17Qty
1Availability
Part #
SBA360700170Description
FUEL FILTER; Includes: Ref. 19 thru 22; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
17AQty
1Availability
Part #
SBA360020030Description
KIT; Filter Includes: Ref. 17, 19, 20, 21, 22, 25, 25A & 25B;To let the air bubble escape, use only the bleed screw at the injection pump as new fuel filter does not have the bleed screw.; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
18Qty
1Availability
Part #
SBA360740010Description
NUT; Used with Fuel Filter Element SBA360720020;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
19Qty
1Availability
Part #
SBA360710011Description
CUP; Cap;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
19Qty
1Availability
Part #
SBA360710040Description
CAP; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
20Qty
1Availability
Part #
SBA360720130Description
ELEMENT; 13.2mm, I.D. of Hole;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
20Qty
1Availability
Part #
SBA360720100Description

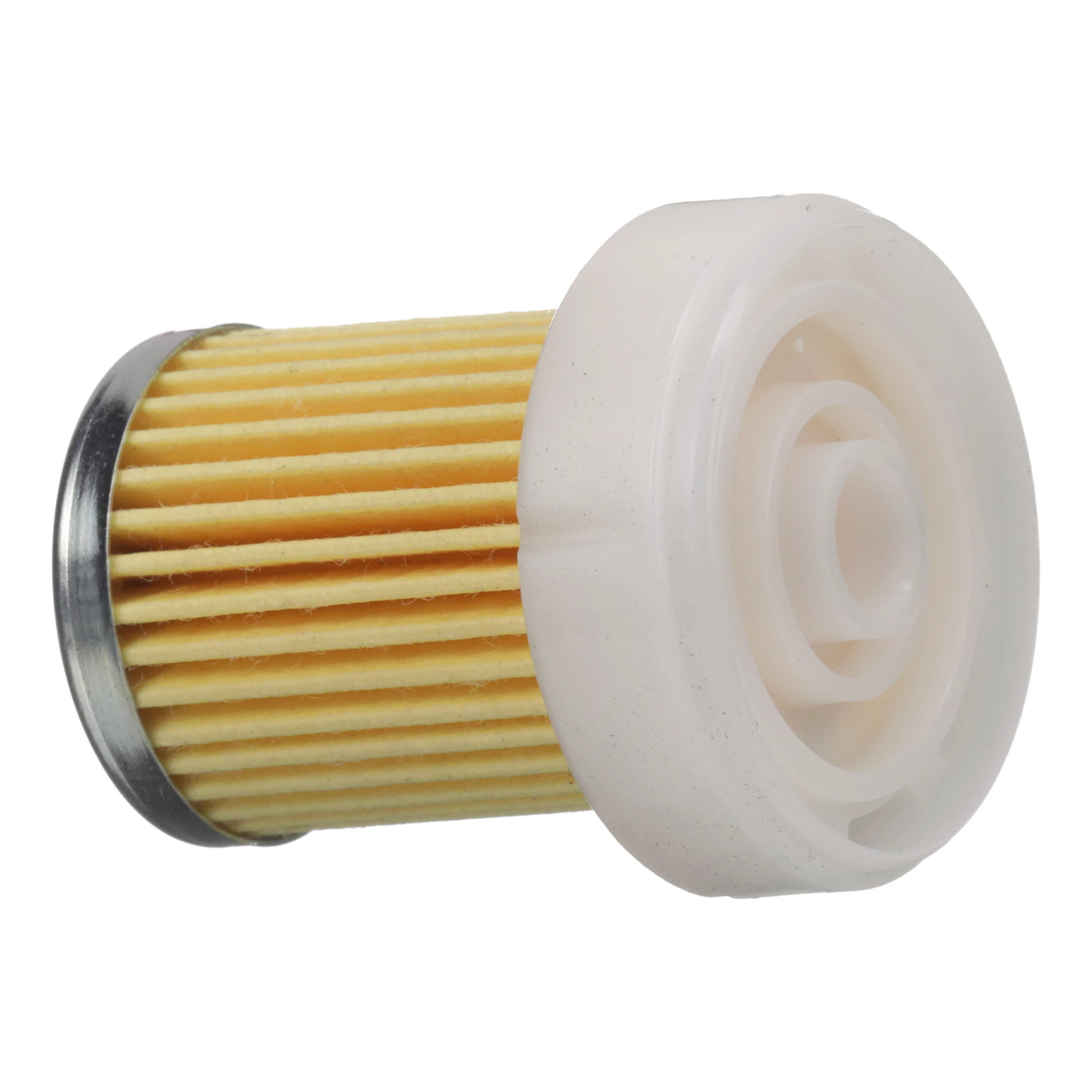

ELEMENT; Does not Required Ref. 18 SBA360740010 Nut;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
21Qty
1Availability
Part #
SBA052100400Description
O-RING 3.5mm Thk x 39.7mm ID, 70 Duro; Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
21Qty
1Availability
Part #
SBA052400460Description
O-RING; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
22Qty
1Availability
Part #
SBA052100100Description
O-RING 9.8mm ID; Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
22Qty
1Availability
Part #
SBA052400070Description
O-RING; Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
22AQty
1Availability
Part #
SBA360740070Description
SCREW; Plug;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
22BQty
1Availability
Part #
SBA360740080Description
SEALING WASHER; Packing;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
23Qty
1Availability
Part #
SBA360550070Description
BRACKET; 1310;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
23Qty
1Availability
Part #
SBA312500270Description
BRACKET; 1510;NHNA Only; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
23Qty
1Availability
Part #
SBA312500280Description
BRACKET; 1710; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
24Qty
2Availability
Part #
SBA011510820Description
CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
25Qty
1Availability
Part #
300510Description
BOLT Hex, M8 x 1.25 x 65mm, Cl 8.8; BOLT, Hex, M8 x 65, 8.8;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
25Qty
1Availability
Part #
SBA011510828Description
BOLT; M8 x 20;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
25AQty
1Availability
Part #
SBA131646010Description
COVER; Cap;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
25BQty
1Availability
Part #
SBA067200086Description
HOSE CLAMP; Clamp, Hose;Used With Fuel Filter SBA360020030; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
26Qty
1Availability
Part #
87016617Description
LOCK WASHER M8; Washer, Spring;Used With Fuel Filter SBA360700031; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
28Qty
2Availability
Part #
SBA360770670Description
HOSE; Pipe, Cut to Length, 7''; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
28Qty
1Availability
Part #
SBA360770710Description
HOSE; Pipe, 9-1/2'', 1710 Offset; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
29Qty
4Availability
Part #
SBA067200130Description
CLAMP; (Prod Date) From 01-Jan-1983Img
Alts
Ref.
30Qty
1Availability
Part #
SBA385280090Description
FLOAT; Assy., 1710 Includes: Ref. 31 thru 33; (Prod Date) From 01-Jul-1985Img
Alts
Ref.
31Qty
1Availability
Part #
SBA385891051Description
GASKET; 1710; (Prod Date) From 01-Jul-1985Img
Alts
Ref.
32Qty
1Availability
Part #
SBA015140512Description
SCREW; 1710; (Prod Date) From 01-Jul-1985Img
Alts
Ref.
33Qty
1Availability
Part #
SBA398111250Description
RUBBER WEATHERSTRIP; Rubber, 1710 Offset; (Prod Date) From 01-Jan-1985Img
Alts
