TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SHORT ENGINE; Block, Short, 1320, Includes: 1A thru 20 & 41 thru 43
-
11REMAN-SHORT ENGINE NON EPA (non regulated) SHORT ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.
-
11CORE-ENGINE CORE-ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.
-
11SHORT ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.
-
11SHORT ENGINE; Block, Short, 1720, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.
-
11SHORT ENGINE; Block, Long, Complete Engine 1720;Used On & ASN UL41672;NH-NA ONLY
-
11REMAN-SHORT ENGINE NON EPA (non regulated) SHORT ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43
-
11CORE-ENGINE CORE-ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43
-
11SHORT ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43
-
1A1CYLINDER BLOCK; Block, Bare, J823, 1320, Includes: Ref. 2 thru 20 & 41 thru 43
-
1A1BLOCK; Block, Bare, J843,1520,1620,1715 Includes: Ref. 2 thru 20 & 41 thru 43
-
1A1CYLINDER BLOCK; Block, Bare, N843, 1720, Includes: Ref. 2 thru 20 & 41 thru 43
-
1A1MONOBLOCCO; Block, Bare, 23-66, Includes: Ref. 2 thru 20, 41 thru 43 & 45
-
1A1MONOBLOCCO; Block, Bare, 28-66, Includes: Ref. 2 thru 20, 41 thru 43 & 45
-
21TAPPO; Cap, 015mm
-
31TAPPO; Cap, 025mm
-
44TAPPO; Cap, 40mm
-
52BOUCHON; Plug, Blank,8.4mm
-
63BOUCHON; Plug, Blank 10.4mm
-
74BOUCHON; Plug, Blank, 6.5 x 7mm
-
81ALBERO; Idler Gear, Includes Shaft SBA140196072
-
91BAGUE; Bushing
-
101BAGUE; Bushing, Standard, 1320,1520,1620,1715,23-66
-
101BUSHING; Bushing, U.S., .010'' or 0.25mm, 1320,1520,1620,1715,23-66
-
101BAGUE D'ENTRAINEMENT; Bushing, U.S., .020'' or 0.50mm, 1320,1520,1620,1715,23-66
-
101BUSHING; Bushing, Standard, 1720,28-66
-
101BUSHING; Bushing, U.S., .010'' or 0.25mm, 1720, 28-66
-
101BAGUE; Bushing, U.S., .020'' or 0.50mm, 1720, 28-66
-
111ROULEMENT A BILLES 17mm ID x 40mm OD x 12mm W; Bearing, Ball, #6203
-
121PLUG; Plug, Expansion
-
131BEARING ASSY; Bearing
-
142DOWEL; DOWEL, Pin
-
152DOWEL M6 x 16; DOWEL, , Pin M6 x 16
-
162BALL STUD M10 x 25 L; BALL PIN DOWEL, , Pin M10 x 25 L
-
172COILED PIN; Pin, Spring
-
182STUD; STUD, Bolt
-
191STUD; STUD
-
201GOUJON; STUD, Bolt
-
211GASKET; Gasket
-
221ENGINE OIL PAN; Oil Pan Assy.
-
2326BOLT; Bolt
-
241DRAIN PLUG M12 x 1.25; PLUG, DRAIN, , 17mm Width M12 x 1.25
-
251RONDELLE 12.4mm ID x 19mm OD x 2mm Thk; WASHER, , Seal M12
-
261SEAL; Seal, Oil, Crankshaft
-
271PLATTE; Plate
-
2810SCHRAUBE M. UNVERLIE Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5
-
291ANLASSER (HAUPTBAUT) STARTER; Starting Motor Assy., Refer to Fig. 11D2 for Details
-
291AUSTAUSCHANLASSER STARTER; Starting Motor Assy., Refer to Fig. 11D2 for Details
-
291STARTER MOTOR; Starting Motor Assy., Refer to Fig. 11D2 for Details
-
291CORE-STARTER STARTER; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To Use
-
291REMAN-STARTER STARTER; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To Use
-
291STARTER MOTOR; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To Use
-
301DRAINCOCK/TAP SUPPLY; Fitting
-
311ADAPTER; Adapter
-
321ENGINE OIL FILTER; Filer, Engine Oil
-
321ENGINE OIL FILTER; Filter, Engine Oil
-
331TUBE; Tube, 1320,1520,1620,1715, 23-66
-
331TUBE; Tube, 1720, 28-66
-
341O-RING 9.8mm ID; O-Ring
-
352SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, , 1320, 1520, 1620, 1720, 23-66, 28-66 Hex, M6 x 12, Cl 8.8
-
351SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, , 1715 Hex, M6 x 12, Cl 8.8
-
361ANZEIGE; Dipstick, 1320,1520,1620,1715,23-66
-
361DIPSTICK; Dipstick, 1720, 28-66
-
376TAPPET; Tappet, 1320,1520,1620,1720,23-66,28-66
-
376TAPPET; Tappet, 1715
-
386ROD; Pushrod Assy., 6.78'' Lg., 1320,1520,1620,1715,23-66
-
386ROD; Pushrod Assy., 7.71'' Lg., 1720, 28-66
-
391DRUCKENTLASTUNGSVENT; Valve Assy., Relief
-
401O-RING 2.4mm Thk x 14.8mm ID; O-Ring
-
411SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8
-
421ABDECKUNG; Plate
-
431GASKET; Gasket
-

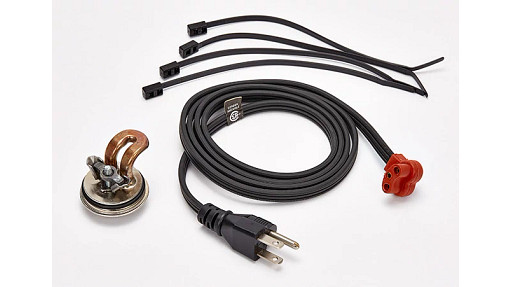

441KIT; Kit, Heater Engine Coolant Includes: Heater Assy., NSS & Cord Assy., 86539137;Not Included in Long Block
-
451PLUG 1/8'' NPT; PLUG, 1/8'' NPT
Select All
Select
Ref.
1Qty
1Availability
Part #
SBA110006390Description
SHORT ENGINE; Block, Short, 1320, Includes: 1A thru 20 & 41 thru 43Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400RDescription
REMAN-SHORT ENGINE NON EPA (non regulated) SHORT ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400CDescription
CORE-ENGINE CORE-ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400Description
SHORT ENGINE; Block, Short, 1520,1620, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006410Description
SHORT ENGINE; Block, Short, 1720, Includes: 1A thru 20 & 41 thru 43;Includes: Cylinder Block Assy., Camshaft, Crankshaft Assy., & Piston & Rod Assy.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA139142Description
SHORT ENGINE; Block, Long, Complete Engine 1720;Used On & ASN UL41672;NH-NA ONLYImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400RDescription
REMAN-SHORT ENGINE NON EPA (non regulated) SHORT ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400CDescription
CORE-ENGINE CORE-ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006400Description
SHORT ENGINE; Block, Short, 1715 Includes: 1A thru 20 & 41 thru 43Img
Alts
Select
Ref.
1AQty
1Availability
Part #
SBA110107112Description
CYLINDER BLOCK; Block, Bare, J823, 1320, Includes: Ref. 2 thru 20 & 41 thru 43Img
Alts
Select
Ref.
1AQty
1Availability
Part #
SBA110107032Description
BLOCK; Block, Bare, J843,1520,1620,1715 Includes: Ref. 2 thru 20 & 41 thru 43Img
Alts
Select
Ref.
1AQty
1Availability
Part #
SBA110107163Description
CYLINDER BLOCK; Block, Bare, N843, 1720, Includes: Ref. 2 thru 20 & 41 thru 43Img
Alts
Select
Ref.
1AQty
1Availability
Part #
SBA110107761Description
MONOBLOCCO; Block, Bare, 23-66, Includes: Ref. 2 thru 20, 41 thru 43 & 45Img
Alts
Select
Ref.
1AQty
1Availability
Part #
SBA110107772Description
MONOBLOCCO; Block, Bare, 28-66, Includes: Ref. 2 thru 20, 41 thru 43 & 45Img
Alts
Select
Ref.
5Qty
2Availability
Part #
SBA198466010Description
BOUCHON; Plug, Blank,8.4mmImg
Alts
Select
Ref.
6Qty
3Availability
Part #
SBA198466020Description
BOUCHON; Plug, Blank 10.4mmImg
Alts
Select
Ref.
7Qty
4Availability
Part #
SBA198466030Description

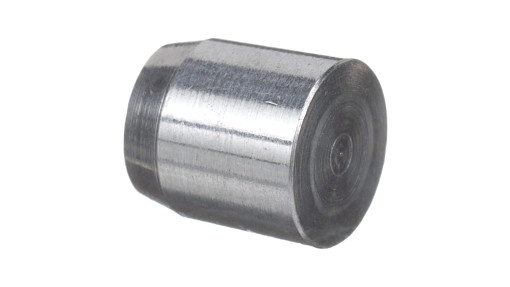

BOUCHON; Plug, Blank, 6.5 x 7mmImg
Alts
Select
Ref.
8Qty
1Availability
Part #
SBA165296131Description
ALBERO; Idler Gear, Includes Shaft SBA140196072Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517190Description
BAGUE; Bushing, Standard, 1320,1520,1620,1715,23-66Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517194Description
BUSHING; Bushing, U.S., .010'' or 0.25mm, 1320,1520,1620,1715,23-66Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517197Description
BAGUE D'ENTRAINEMENT; Bushing, U.S., .020'' or 0.50mm, 1320,1520,1620,1715,23-66Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517220Description
BUSHING; Bushing, Standard, 1720,28-66Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517224Description
BUSHING; Bushing, U.S., .010'' or 0.25mm, 1720, 28-66Img
Alts
Select
Ref.
10Qty
1Availability
Part #
SBA198517227Description
BAGUE; Bushing, U.S., .020'' or 0.50mm, 1720, 28-66Img
Alts
Select
Ref.
11Qty
1Availability
Part #
SBA040106203Description
ROULEMENT A BILLES 17mm ID x 40mm OD x 12mm W; Bearing, Ball, #6203Img
Alts
Select
Ref.
15Qty
2Availability
Part #
SBA030500616Description
DOWEL M6 x 16; DOWEL, , Pin M6 x 16Img
Alts
Select
Ref.
16Qty
2Availability
Part #
SBA030501025Description

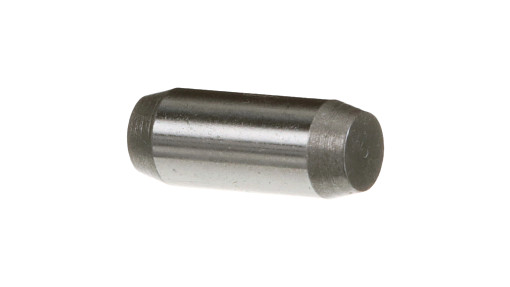

BALL STUD M10 x 25 L; BALL PIN DOWEL, , Pin M10 x 25 LImg
Alts
Select
Ref.
22Qty
1Availability
Part #
SBA110706751Description
ENGINE OIL PAN; Oil Pan Assy.Img
Alts
Select
Ref.
24Qty
1Availability
Part #
SBA010411212Description

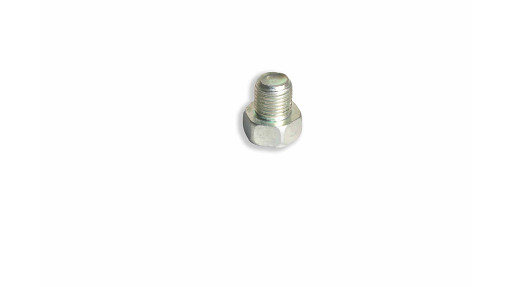

DRAIN PLUG M12 x 1.25; PLUG, DRAIN, , 17mm Width M12 x 1.25Img
Alts
Select
Ref.
25Qty
1Availability
Part #
SBA025100012Description

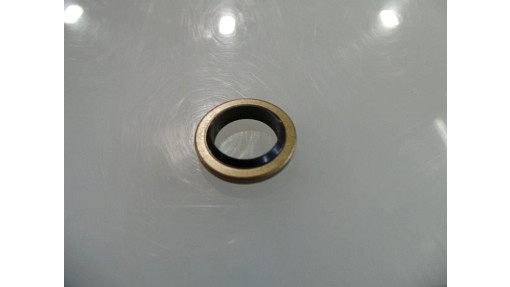

RONDELLE 12.4mm ID x 19mm OD x 2mm Thk; WASHER, , Seal M12Img
Alts
Select
Ref.
26Qty
1Availability
Part #
SBA198636170Description

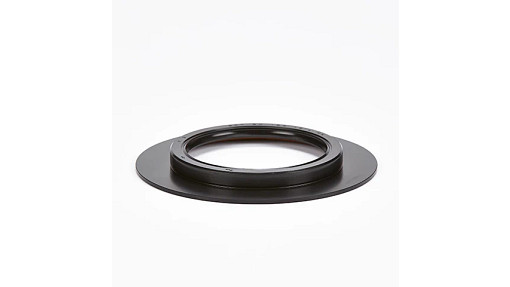

SEAL; Seal, Oil, CrankshaftImg
Alts
Select
Ref.
28Qty
10Availability
Part #
SBA011510820Description
SCHRAUBE M. UNVERLIE Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5Img
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551CDescription
ANLASSER (HAUPTBAUT) STARTER; Starting Motor Assy., Refer to Fig. 11D2 for DetailsImg
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551RDescription

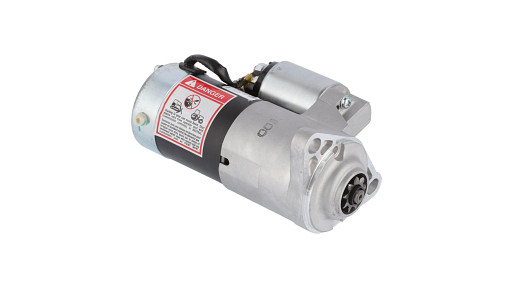

AUSTAUSCHANLASSER STARTER; Starting Motor Assy., Refer to Fig. 11D2 for DetailsImg
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551Description

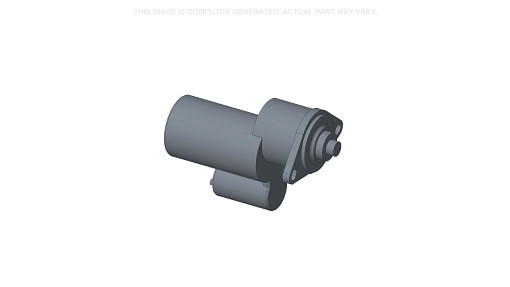

STARTER MOTOR; Starting Motor Assy., Refer to Fig. 11D2 for DetailsImg
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551CDescription
CORE-STARTER STARTER; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To UseImg
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551RDescription
REMAN-STARTER STARTER; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To UseImg
Alts
Select
Ref.
29Qty
1Availability
Part #
SBA185086551Description
STARTER MOTOR; Starting Motor Assy., Refer to Fig 11D03 for Details;Not Included in Long Block;Starter Has 9 Teeth, Original Starter Had 11 Teeth, OK To UseImg
Alts
Select
Ref.
30Qty
1Availability
Part #
SBA198736270Description

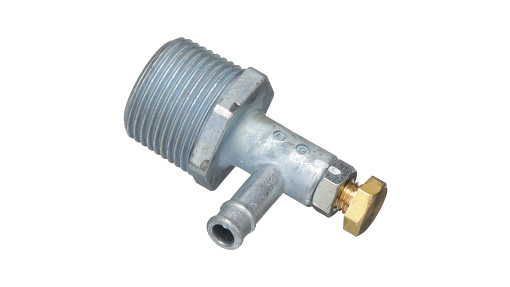

DRAINCOCK/TAP SUPPLY; FittingImg
Alts
Select
Ref.
32Qty
1Availability
Part #
86546618Description
ENGINE OIL FILTER; Filer, Engine OilImg
Alts
Select
Ref.
32Qty
1Availability
Part #
86546618DSDescription

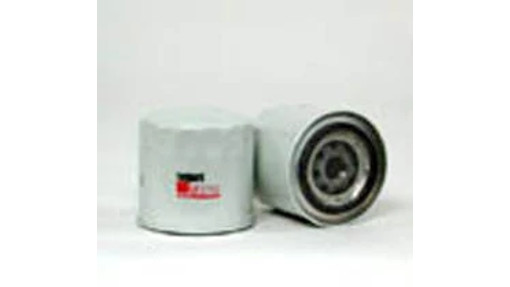

ENGINE OIL FILTER; Filter, Engine OilImg
Alts
Select
Ref.
33Qty
1Availability
Part #
SBA110756140Description

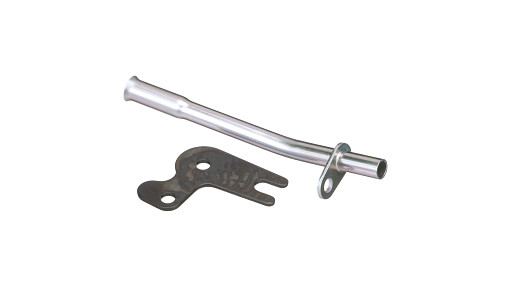

TUBE; Tube, 1320,1520,1620,1715, 23-66Img
Alts
Select
Ref.
35Qty
2Availability
Part #
SBA011310612Description
SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, , 1320, 1520, 1620, 1720, 23-66, 28-66 Hex, M6 x 12, Cl 8.8Img
Alts
Select
Ref.
35Qty
1Availability
Part #
SBA011310612Description
SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, , 1715 Hex, M6 x 12, Cl 8.8Img
Alts
Select
Ref.
36Qty
1Availability
Part #
SBA198416320Description
ANZEIGE; Dipstick, 1320,1520,1620,1715,23-66Img
Alts
Select
Ref.
36Qty
1Availability
Part #
SBA198416270Description
DIPSTICK; Dipstick, 1720, 28-66Img
Alts
Select
Ref.
37Qty
6Availability
Part #
SBA120116100Description

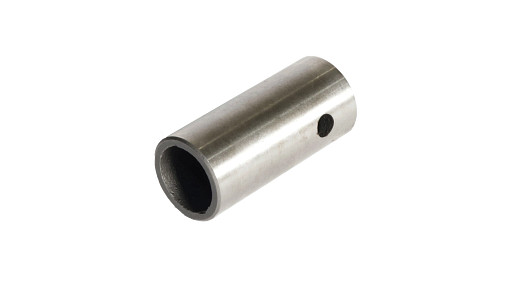

TAPPET; Tappet, 1320,1520,1620,1720,23-66,28-66Img
Alts
Select
Ref.
38Qty
6Availability
Part #
SBA120456222Description
ROD; Pushrod Assy., 6.78'' Lg., 1320,1520,1620,1715,23-66Img
Alts
Select
Ref.
38Qty
6Availability
Part #
SBA120456231Description
ROD; Pushrod Assy., 7.71'' Lg., 1720, 28-66Img
Alts
Select
Ref.
39Qty
1Availability
Part #
SBA140036120Description
DRUCKENTLASTUNGSVENT; Valve Assy., ReliefImg
Alts
Select
Ref.
40Qty
1Availability
Part #
SBA052109078Description
O-RING 2.4mm Thk x 14.8mm ID; O-RingImg
Alts
Select
Ref.
41Qty
1Availability
Part #
SBA011310612Description
SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8Img
Alts
Select
Ref.
44Qty
1Availability
Part #
86590117Description
KIT; Kit, Heater Engine Coolant Includes: Heater Assy., NSS & Cord Assy., 86539137;Not Included in Long BlockImg
Alts
Select
Ref.
45Qty
1Availability
Part #
SBA064409006Description
PLUG 1/8'' NPT; PLUG, 1/8'' NPTImg
Alts
