TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HOUSING; Transmision;Used on & ASN U100501; (Prod Date) From 01-Jan-1973
-
11TRANSMISSION; Case, Transmission, FWD Includes: Ref. 2 thru 4; (Prod Date) From 01-Jan-1979
-
24DOWEL M8 x 25mm OAL; (Prod Date) From 01-Jan-1973
-
34PLUG; Blank, 55mm Dia; (Prod Date) From 01-Jan-1973
-
41CAP; Sealing;No Longer Serviced; (Prod Date) From 01-Jan-1973
-
54STUD; Case, Rear; (Prod Date) From 01-Jan-1973
-
63STUD M10 x 30; Front M10 x 30; (Prod Date) From 01-Jan-1973
-
74BOLT; Stud, Case, Side; (Prod Date) From 01-Jan-1973
-
82STUD; Case, Side; (Prod Date) From 01-Jan-1973
-
91PEDAL; Differential Lock; (Prod Date) From 01-Jan-1973
-
101FORK; Differential Lock;No Longer Serviced; (Prod Date) From 01-Jan-1973
-
111SPRING; Pedal; (Prod Date) From 01-Jan-1973
-
121WASHER; Flat, M22; (Prod Date) From 01-Jan-1973
-
132O-RING; Pedal; (Prod Date) From 01-Jan-1973
-
141PIN 6mm OD x 36mm L, Slotted; Roll, M6 x 36; (Prod Date) From 01-Jan-1973
-
151PIN; Groove; (Prod Date) From 01-Jan-1973
-
161SHAFT; PTO; (Prod Date) From 01-Jan-1973
-
171BALL BEARING 30mm ID x 62mm OD x 16mm W; BEARING, BALL, M30 x 62 x 16; (Prod Date) From 01-Jan-1973
-
181RETAINER; Bearing; (Prod Date) From 01-Jan-1973
-
192GASKET; Retainer; (Prod Date) From 01-Jan-1973
-
201COUPLING; Shaft; (Prod Date) From 01-Jan-1973
-
211RETAINER; Cover, PTO, Outer; (Prod Date) From 01-Jan-1973
-
221SEAL 35mm ID x 55mm OD x 11mm Thk; Oil M35 x 55 x 11 Thk; (Prod Date) From 01-Jan-1973
-
231BEARING ASSY; Bearing, Ball; (Prod Date) From 01-Jan-1973
-
244BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; BOLT, , PTO Cover Hex, M8 x 25, 8.8; (Prod Date) From 01-Jan-1973
-
2514PROCURE LOCALLY; Washer, Lock, Cover & Case, 5/16''; (Prod Date) From 01-Jan-1973
-
261COVER; Cap, PTO; (Prod Date) From 01-Jan-1973
-
271COVER; Transmission Case; (Prod Date) From 01-Jan-1973
-
281GASKET; Cover; (Prod Date) From 01-Jan-1973
-
2910BOLT Hex, M8 x 1.25 x 35mm, Cl 8.8; (Prod Date) From 01-Jan-1973
-
302BUSHING; Transmission Case; (Prod Date) From 01-Jan-1973
-
314PLUG M19; Blank; (Prod Date) From 01-Jan-1973
-
324SCREW M12 x 25mm; Bolt, Hex, M10 x 35; (Prod Date) From 01-Jan-1973
-
332BOLT; Hex, M10 x 45; (Prod Date) From 01-Jan-1973
-
349PROCURE LOCALLY; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1973
-
354NUT Hex, M16 x 1.5, Cl 10, ZND; (Prod Date) From 01-Jan-1973
-
364PROCURE LOCALLY; Washer, Lock, 5/8''; (Prod Date) From 01-Jan-1973
-
375NUT M10 x 1.25; (Prod Date) From 01-Jan-1973
-
382PLUG; Drain; (Prod Date) From 01-Jan-1973
-
392GASKET; Drain Plug; (Prod Date) From 01-Jan-1973
-
401DECAL; Caution; (Prod Date) From 01-Jan-1973
-
412LUBE NIPPLE 45 Degree, 1/8'' NPT x 7/8'' lg; Fitting, Lube; (Prod Date) From 01-Jan-1973
Select All
Ref.
1Qty
1Availability
Part #
SBA322010033Description
HOUSING; Transmision;Used on & ASN U100501; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
1Qty
1Availability
Part #
SBA322110200Description
TRANSMISSION; Case, Transmission, FWD Includes: Ref. 2 thru 4; (Prod Date) From 01-Jan-1979Img
Alts
Ref.
2Qty
4Availability
Part #
837-8025Description
DOWEL M8 x 25mm OAL; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
3Qty
4Availability
Part #
SBA064100055Description
PLUG; Blank, 55mm Dia; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
4Qty
1Availability
Part #
SBA064200018Description
CAP; Sealing;No Longer Serviced; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
5Qty
4Availability
Part #
SBA012109005Description
STUD; Case, Rear; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
6Qty
3Availability
Part #
SBA012111030Description
STUD M10 x 30; Front M10 x 30; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
7Qty
4Availability
Part #
SBA012111025Description
BOLT; Stud, Case, Side; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
8Qty
2Availability
Part #
SBA012111016Description
STUD; Case, Side; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
9Qty
1Availability
Part #
SBA326500010Description
PEDAL; Differential Lock; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
10Qty
1Availability
Part #
SBA326570010Description
FORK; Differential Lock;No Longer Serviced; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
11Qty
1Availability
Part #
SBA398210210Description
SPRING; Pedal; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
12Qty
1Availability
Part #
SBA026100022Description
WASHER; Flat, M22; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
13Qty
2Availability
Part #
SBA052100180Description
O-RING; Pedal; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
14Qty
1Availability
Part #
300868Description
PIN 6mm OD x 36mm L, Slotted; Roll, M6 x 36; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
15Qty
1Availability
Part #
SBA326620010Description
PIN; Groove; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
16Qty
1Availability
Part #
SBA322590020Description
SHAFT; PTO; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
17Qty
1Availability
Part #
210064Description
BALL BEARING 30mm ID x 62mm OD x 16mm W; BEARING, BALL, M30 x 62 x 16; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
18Qty
1Availability
Part #
SBA322260020Description
RETAINER; Bearing; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
19Qty
2Availability
Part #
SBA322990051Description
GASKET; Retainer; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
20Qty
1Availability
Part #
SBA322610010Description
COUPLING; Shaft; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
21Qty
1Availability
Part #
SBA322140090Description
RETAINER; Cover, PTO, Outer; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
22Qty
1Availability
Part #

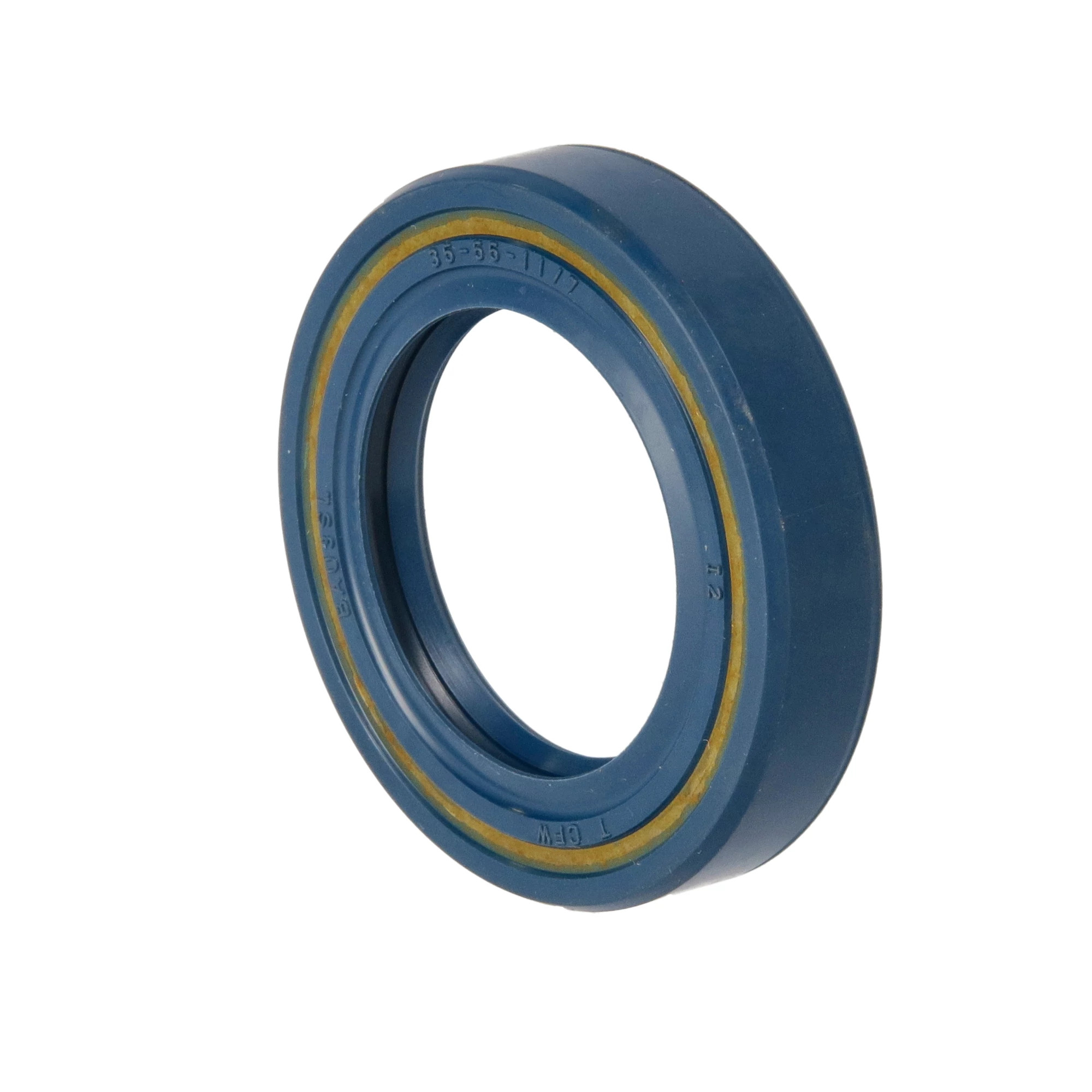

5116701Description
SEAL 35mm ID x 55mm OD x 11mm Thk; Oil M35 x 55 x 11 Thk; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
23Qty
1Availability
Part #
80037203Description
BEARING ASSY; Bearing, Ball; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
24Qty
4Availability
Part #
43127Description
BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; BOLT, , PTO Cover Hex, M8 x 25, 8.8; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
25Qty
14Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, Cover & Case, 5/16''; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
26Qty
1Availability
Part #
C5NN726ADescription
COVER; Cap, PTO; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
27Qty
1Availability
Part #
SBA322210042Description
COVER; Transmission Case; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
28Qty
1Availability
Part #
SBA322990062Description
GASKET; Cover; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
29Qty
10Availability
Part #
412479Description
BOLT Hex, M8 x 1.25 x 35mm, Cl 8.8; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
30Qty
2Availability
Part #
SBA398510070Description
BUSHING; Transmission Case; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
31Qty
4Availability
Part #
SBA398460010Description
PLUG M19; Blank; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
32Qty
4Availability
Part #
86517808Description
SCREW M12 x 25mm; Bolt, Hex, M10 x 35; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
33Qty
2Availability
Part #
SBA010211045Description
BOLT; Hex, M10 x 45; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
34Qty
9Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
35Qty
4Availability
Part #

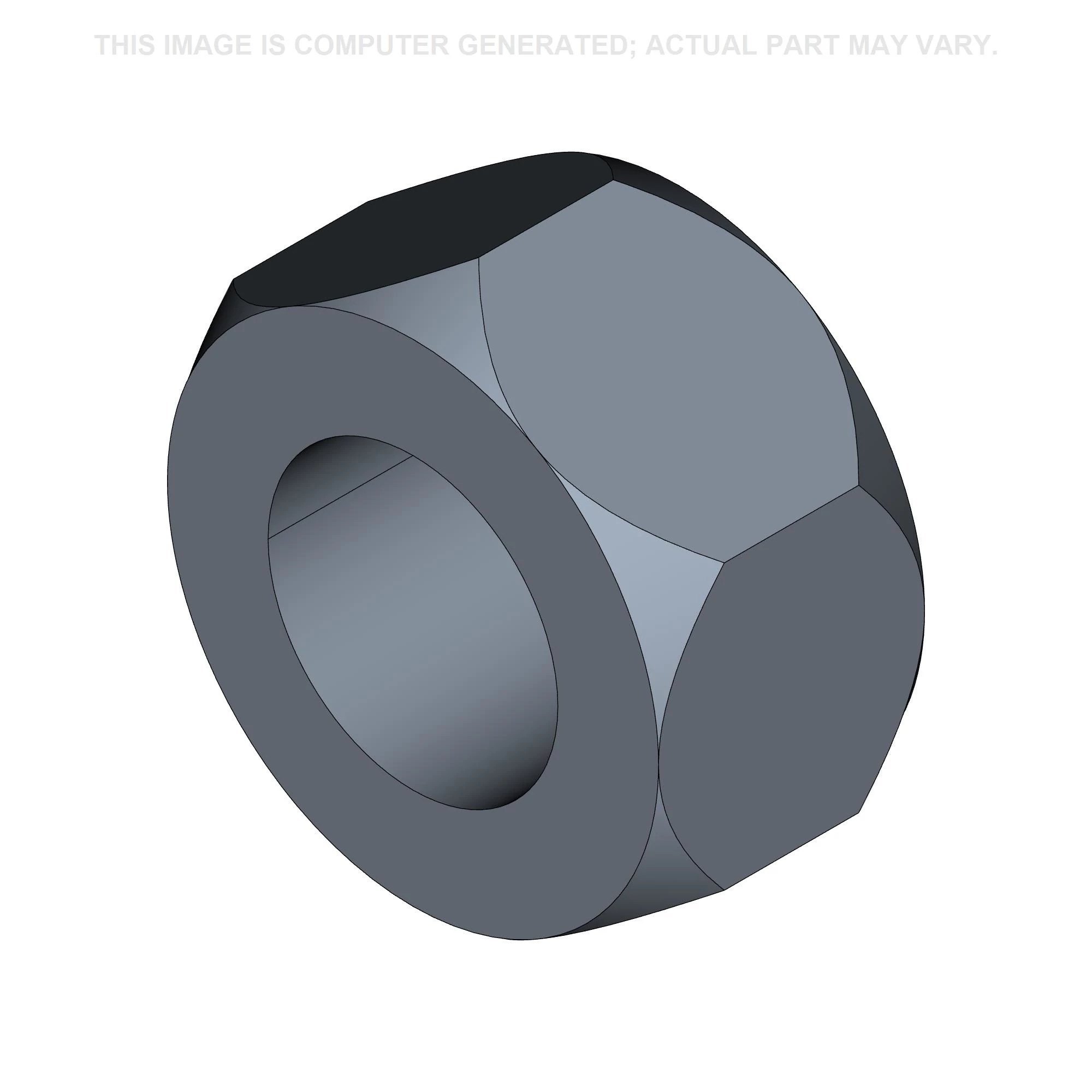

12164121Description
NUT Hex, M16 x 1.5, Cl 10, ZND; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
36Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 5/8''; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
37Qty
5Availability
Part #
SBA021010010Description
NUT M10 x 1.25; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
38Qty
2Availability
Part #
SBA398430030Description
PLUG; Drain; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
39Qty
2Availability
Part #
SBA398990050Description
GASKET; Drain Plug; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
40Qty
1Availability
Part #
SBA390190120Description
DECAL; Caution; (Prod Date) From 01-Jan-1973Img
Alts
Ref.
41Qty
2Availability
Part #
80717Description
LUBE NIPPLE 45 Degree, 1/8'' NPT x 7/8'' lg; Fitting, Lube; (Prod Date) From 01-Jan-1973Img
Alts
