T1510 - 3 CYL COMPACT TRA... 06 - ELECTRICAL SYSTEMS 06.01 - WIRING HARNESS
06.01 - WIRING HARNESS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

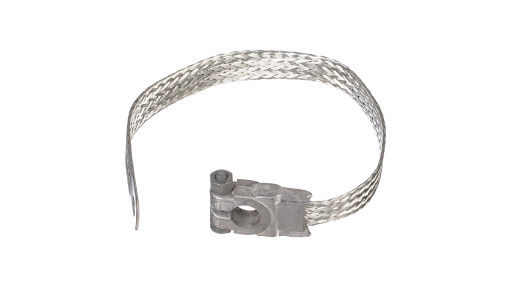

2

Qty

1

Availability

Part #

SBA385650511

Description

NEG BATTERY CABLE; Battery, Negative


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA385612980

Description

HARNESS; Wire, Rear


Alts

Select

Ref.

3A

Qty

1

Availability

Part #

SBA385620380

Description

DIODE; 4 Prongs;Not Illustrated


Alts

Select

Ref.

6

Qty

1

Availability

Part #

SCRP2

Description

CORE;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

F165DS

Description

DRY BATTERY;


Alts

Select

Ref.

7

Qty

2

Availability

Part #

SBA385101050

Description

LAMP; Headlamp Assy.


Alts

Select

Ref.

8

Qty

2

Availability

Part #

SBA398115610

Description

SEAL; Rubber


Alts

Select

Ref.

9

Qty

1

Availability

Part #

263117

Description

CABLE TIE 292.1mm L, Nylon, Black;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

SBA385650880

Description

ELECTRIC CABLE; Battery, Positive, Red, T1510


Alts

Select

Ref.

10

Qty

1

Availability

Part #

SBA385650870

Description

CABLE; CABLE Battery, Positive, Red, T1520


Alts

Select

Ref.

11

Qty

2

Availability

Part #

SBA398750220

Description

CABLE TIE;


Alts

Select

Ref.

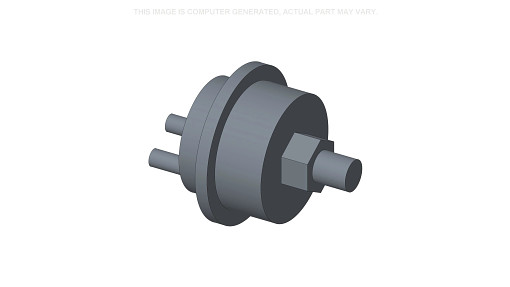

12

Qty

1

Availability

Part #

SBA385200570

Description

SWITCH; Air Filter Restrictor


Alts

Select

Ref.

13

Qty

1

Availability

Part #

SBA385280120

Description

GAUGE; Fuel, Sender


Alts

Select

Ref.

14

Qty

1

Availability

Part #

SBA385041103

Description

INSTRUMENT PANEL;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

SBA385041103R

Description

REMAN-INSTR CLUSTER INSTR CLUSTER; T1510 (11/07-), T1520 (3/07-), Both 3 CYL COMPACT TRACTOR


Alts

Select

Ref.

14

Qty

1

Availability

Part #

SBA385041103C

Description

CORE-CLUSTER, INSTR INSTR CLUSTER; Return Number


Alts

Select

Ref.

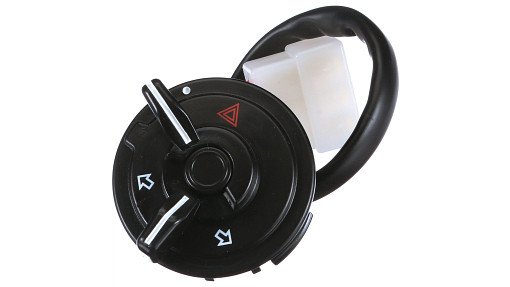

15

Qty

1

Availability

Part #

SBA385202421

Description

SWITCH ASSY; Hazard Turn Signal Combination


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA385613070

Description

WIRE HARNESS; Main T1510


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA385612970

Description

WIRE HARNESS; Main, T1520 Includes: Ref. 16A,16B & 23


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA385613070

Description

WIRE HARNESS; Main, T1520;USED ON & ABOVE PIN Z7GK1152 9x3 & Z7GL1147 HST


Alts

Select

Ref.

16A

Qty

1

Availability

Part #

SBA385620220

Description

DIODE;


Alts

Select

Ref.

16B

Qty

1

Availability

Part #

SBA385620380

Description

DIODE; 4 Prongs


Alts

Select

Ref.

17

Qty

2

Availability

Part #

SBA385100961

Description

LAMP; Hazard


Alts

Select

Ref.

18

Qty

2

Availability

Part #

SBA398460460

Description

PLUG;


Alts

Select

Ref.

19

Qty

2

Availability

Part #

SBA385102070

Description

TAIL LAMP;


Alts

Select

Ref.

21A

Qty

1

Availability

Part #

SBA185736330

Description

COVER;


Alts

Select

Ref.

21B

Qty

1

Availability

Part #

SBA020109160

Description

NUT;


Alts

Select

Ref.

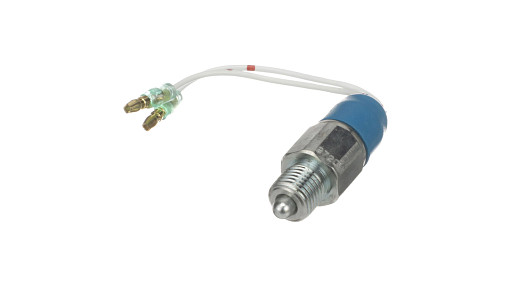

22

Qty

1

Availability

Part #

SBA385200731

Description

SWITCH; Transmission Range Safety


Alts

Select

Ref.

23

Qty

1

Availability

Part #

SBA385410230

Description

FUSE; 40 amp


Alts

Select

Ref.

24

Qty

1

Availability

Part #

SBA385200731

Description

SWITCH; Rear, PTO Safety


Alts

Select

Ref.

26

Qty

2

Availability

Part #

SBA399113340

Description

WIRE CLAMP;


Alts

Select

Ref.

27

Qty

1

Availability

Part #

SBA385604070

Description

WIRE HARNESS;


Alts

Select

Ref.

28

Qty

2

Availability

Part #

SBA398113730

Description

SUPPORT; Rubber


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87385233

Description

SWITCH; Seat


Alts

Select

Ref.

30

Qty

2

Availability

Part #

SBA399112980

Description

CLAMP;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

SBA385605630

Description

WIRE HARNESS; Earth


Alts

Select

Ref.

36

Qty

1

Availability

Part #

SBA385200731

Description

SWITCH; Parking Brake


Alts

Select

Ref.

38

Qty

1

Availability

Part #

SBA385202601

Description

IGNITION SWITCH; T1510 Includes: (1) Ring Nut SBA385240290, (1) Washer SBA385240300 & (2) Keys SBA385210370


Alts

Select

Ref.

38

Qty

1

Availability

Part #

SBA385202620

Description

IGNITION SWITCH; T1520


Alts

Select

Ref.

38

Qty

1

Availability

Part #

SBA385202601

Description

IGNITION SWITCH; T1520 Includes: (1) Ring Nut SBA385240290, (1) Washer SBA385240300 & (2) Keys SBA385210370;USED ON & ABOVE PIN Z7GK1152 9x3 & Z7GL1147 HST


Alts

Select

Ref.

39

Qty

1

Availability

Part #

SBA385609350

Description

WIRE HARNESS; T1520


Alts

Select

Ref.

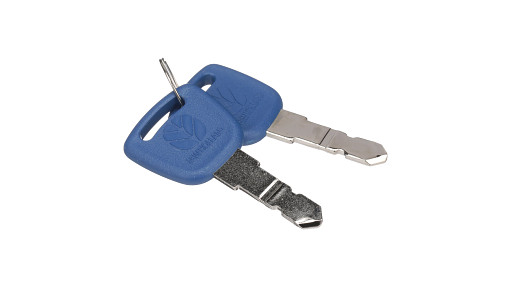

40

Qty

2

Availability

Part #

SBA385210370

Description

IGNITION KEY; T1510


Alts

Select

Ref.

40

Qty

2

Availability

Part #

SBA385210230

Description

KEY; T1520


Alts

Select

Ref.

40

Qty

2

Availability

Part #

SBA385210370

Description

IGNITION KEY; T1520;USED ON & ABOVE PIN Z7GK1152 9x3 & Z7GL1147 HST


Alts

Select

Ref.

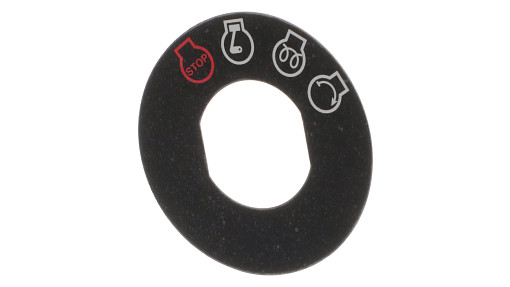

41

Qty

1

Availability

Part #

SBA390197280

Description

DECAL; T1510


Alts

Select

Ref.

41

Qty

1

Availability

Part #

SBA390198900

Description

DECAL; T1520


Alts

Select

Ref.

41

Qty

1

Availability

Part #

SBA390197280

Description

DECAL; T1520;USED ON & ABOVE PIN Z7GK1152 9x3 & Z7GL1147 HST


Alts

Select

Ref.

42

Qty

1

Availability

Part #

SBA385202410

Description

LIGHT SWITCH;


Alts

Select

Ref.

43

Qty

1

Availability

Part #

SBA385202430

Description

SWITCH; Mid PTO Right Side


Alts

Select

Ref.

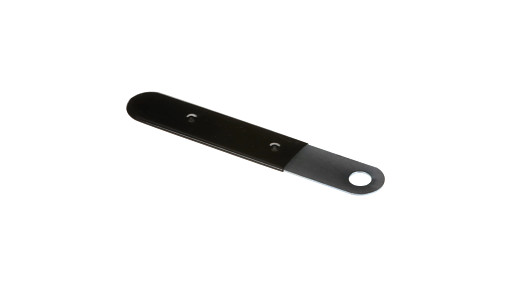

44

Qty

1

Availability

Part #

SBA399110280

Description

CLAMP; Secures cable to LH side frame rail.


Alts
