05.100.01[01] - INITIAL STOCKING LIST (LIST A), 2WD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87391716

Description

FILTER; Hydraulic


Alts

Select

Ref.

2

Qty

1

Availability

Part #

47821136

Description

ELEMENT; Assy Primary


Alts

Select

Ref.

3

Qty

1

Availability

Part #

47821137

Description

ELEMENT; Assy Safety


Alts

Select

Ref.

4

Qty

2

Availability

Part #

73379012

Description

BELT 1425mm L, 6 Ribs;


Alts

Select

Ref.

5

Qty

2

Availability

Part #

73379051

Description

ENGINE OIL FILTER;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

73379174

Description

FUEL FILTER;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

47811305

Description

FUEL FILTER;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

47474586

Description

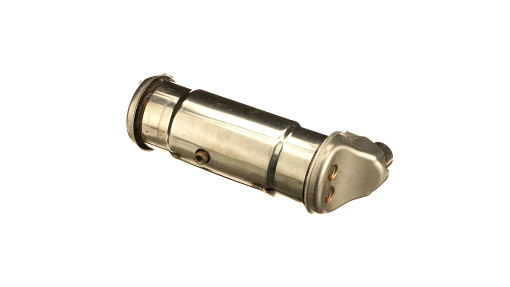

MUFFLER; Filter, Diesel Particulate, AF


Alts

Select

Ref.

8

Qty

1

Availability

Part #

84267722

Description

GASKET KIT; Seal


Alts

Select

Ref.

9

Qty

1

Availability

Part #

73379064

Description

CAP; Assy, Oil Filler


Alts

Select

Ref.

10

Qty

2

Availability

Part #

84405721

Description

QUICK FEMALE COUPLING;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

5087258

Description

QUICK FEMALE COUPLING;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

47669798

Description

HOSE; Suction Pipe to Filter


Alts

Select

Ref.

13

Qty

1

Availability

Part #

47671134

Description

HOSE; Radiator Lower


Alts

Select

Ref.

14

Qty

1

Availability

Part #

47671135

Description

HOSE; Radiator Upper


Alts

Select

Ref.

15

Qty

1

Availability

Part #

47671111

Description

HOSE; Turbo Outlet


Alts

Select

Ref.

16

Qty

1

Availability

Part #

82826727

Description

SWITCH ASSY; Turn Signal


Alts

Select

Ref.

17

Qty

1

Availability

Part #

82826807

Description

SWITCH; Horn


Alts

Select

Ref.

18

Qty

1

Availability

Part #

87304791

Description

IGNITION SWITCH; with Heater


Alts

Select

Ref.

19

Qty

1

Availability

Part #

84340231

Description

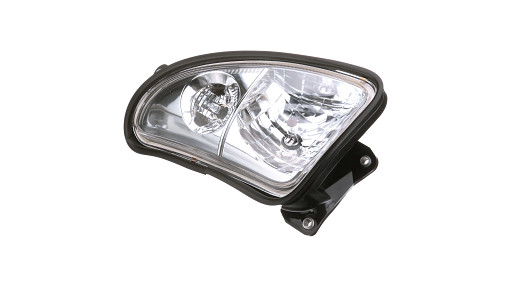

RH HEADLAMP; Front, Cats Eyes


Alts

Select

Ref.

20

Qty

1

Availability

Part #

84340244

Description

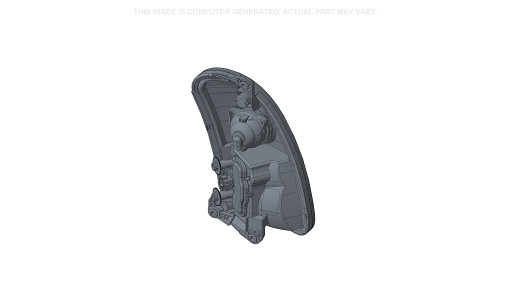

LH HEADLAMP; Front, Cats Eyes


Alts

Select

Ref.

21

Qty

1

Availability

Part #

87666623

Description

NEUTRAL START SWITCH Hi/Low;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

5138819

Description

INDICATOR; Service


Alts

Select

Ref.

23

Qty

1

Availability

Part #

84539292

Description

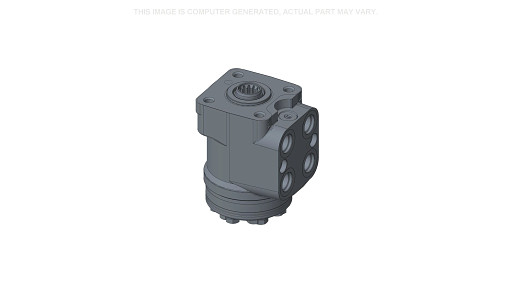

MOTOR; Hydraulic Assy, Steering


Alts

Select

Ref.

24

Qty

2

Availability

Part #

84179929

Description

OIL SEAL; Shifter Housing


Alts

Select

Ref.

25

Qty

1

Availability

Part #

47486027

Description

GASKET; Seal, Between Hoods


Alts

Select

Ref.

26

Qty

1

Availability

Part #

47131175

Description

BRAKE DISC 14mm ID x 70mm OD x 4mm Thk;


Alts

Select

Ref.

27

Qty

1

Availability

Part #

84394768

Description

SENSOR; Temperature, EGT


Alts

Select

Ref.

28

Qty

1

Availability

Part #

47406556

Description

TEMPERATURE SENDER; Sensor


Alts

Select

Ref.

29

Qty

1

Availability

Part #

47441508

Description

INSTRUMENT CLUSTER; Assy, NH


Alts

Select

Ref.

30

Qty

1

Availability

Part #

87642071

Description

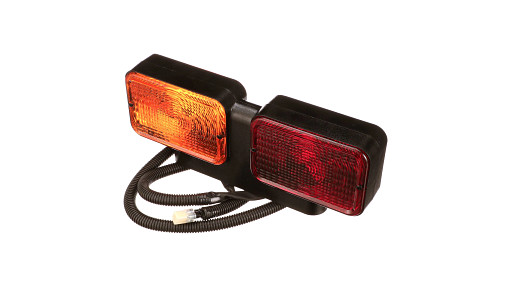

LAMP 12V, 21W, Amber/Red; Rear RH


Alts

Select

Ref.

31

Qty

1

Availability

Part #

87648957

Description

LAMP 12V, 21W, Amber/Red; Rear LH


Alts

Select

Ref.

32

Qty

1

Availability

Part #

82002600

Description

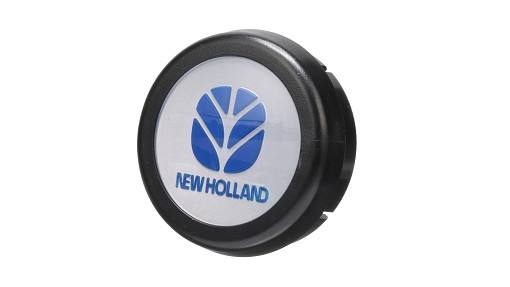

CAP 54mm OD; Assy, Steering Wheel


Alts

Select

Ref.

33

Qty

1

Availability

Part #

82002548

Description

CAP; Steering, Wheel Hub


Alts

Select

Ref.

34

Qty

1

Availability

Part #

82824670

Description

VALVE; Fuel Cock Assy


Alts

Select

Ref.

35

Qty

1

Availability

Part #

87558050

Description

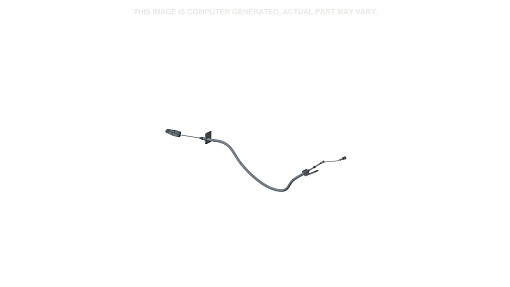

CABLE; Assy Complete PTO Clutch


Alts

Select

Ref.

36

Qty

1

Availability

Part #

47671979

Description

HOSE; Assy Delivery Power Steering Pump to Motor


Alts

Select

Ref.

37

Qty

1

Availability

Part #

47671983

Description

HOSE; Assy Power Steering Motor to Tank


Alts

Select

Ref.

38

Qty

1

Availability

Part #

47671977

Description

HOSE; Assy Motor to Cylinder RH


Alts

Select

Ref.

39

Qty

1

Availability

Part #

47671973

Description

HOSE; Assy Motor to Cylinder LH


Alts

Select

Ref.

40

Qty

2

Availability

Part #

82833546

Description

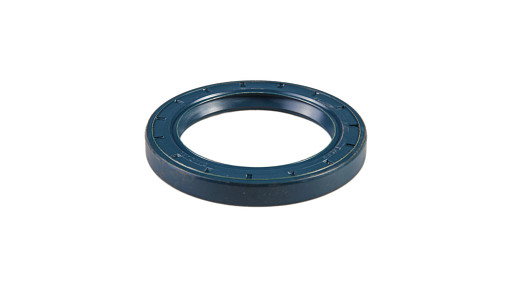

SEAL 59.9mm ID x 86mm OD x 10mm Thk;


Alts

Select

Ref.

41

Qty

2

Availability

Part #

82833509

Description

SEAL 59mm ID x 85.4mm OD x 5mm Thk; Dust Cover Inner


Alts

Select

Ref.

42

Qty

2

Availability

Part #

87699322

Description

HUB; Front Wheel


Alts

Select

Ref.

43

Qty

2

Availability

Part #

10733801

Description

COTTER PIN M4 x 36;


Alts

Select

Ref.

44

Qty

2

Availability

Part #

82833551

Description

PLUG Cap hub front AXLE; Cap, Hub Front Axle, 50HP


Alts

Select

Ref.

45

Qty

2

Availability

Part #

87304741

Description

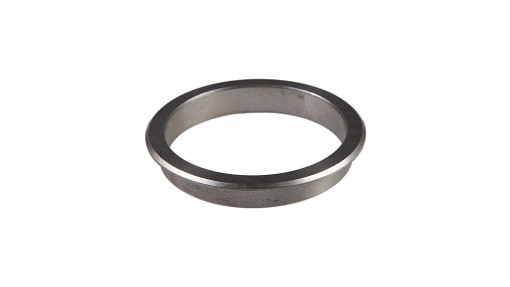

SLEEVE 74mm ID x 90mm OD x 13.8mm L; Hub Front Wheel


Alts

Select

Ref.

46

Qty

2

Availability

Part #

82827173

Description

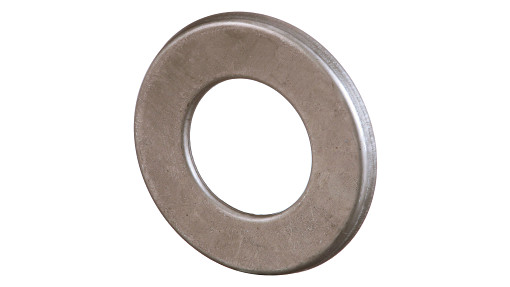

SHIELD; Mud Cover Hub Front Wheel


Alts

Select

Ref.

47

Qty

2

Availability

Part #

82833544

Description

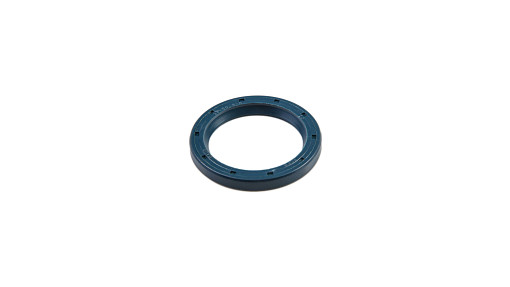

SEAL 36.4mm ID x 50.9mm OD x 6mm Thk;


Alts

Select

Ref.

48

Qty

2

Availability

Part #

82833508

Description

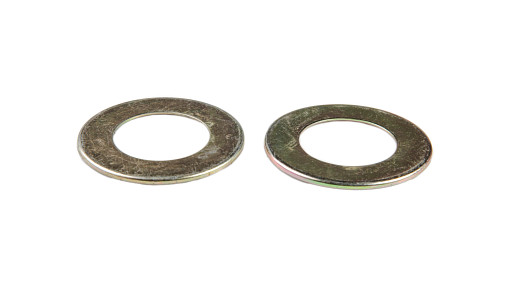

SEAL 38.2mm ID x 66mm OD x 1mm Thk; Dust Cover, Upper


Alts

Select

Ref.

49

Qty

1

Availability

Part #

84162983

Description

HYDRAULIC VALVE; Control


Alts

Select

Ref.

50

Qty

1

Availability

Part #

82823250

Description

PIN; Lynch for Lift Rod


Alts

Select

Ref.

51

Qty

1

Availability

Part #

84279135

Description

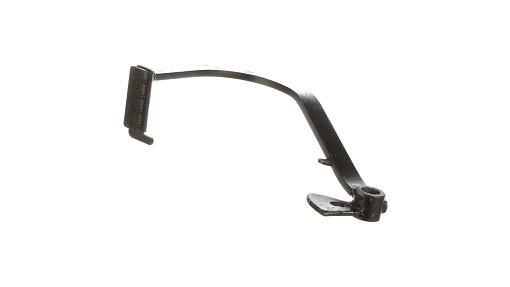

LEVER; Pedal Assy, Brake Left


Alts

Select

Ref.

52

Qty

1

Availability

Part #

84342857

Description

PEDAL; Brake RH


Alts

Select

Ref.

53

Qty

1

Availability

Part #

47664376

Description

HOOD; Assy Rear NH Blue


Alts

Select

Ref.

54

Qty

1

Availability

Part #

47521524

Description

HINGE; Assy, Bracket Top


Alts

Select

Ref.

55

Qty

1

Availability

Part #

87396405

Description

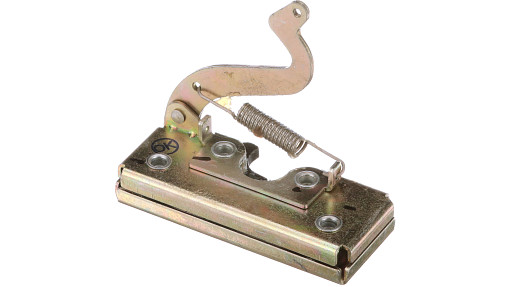

LOCKING DEVICE; Hood Latch Assy


Alts

Select

Ref.

56

Qty

1

Availability

Part #

87645914

Description

CABLE; Shuttler Interlock


Alts

Select

Ref.

57

Qty

2

Availability

Part #

47605137

Description

ACTUATOR; Brake Assy


Alts

Select

Ref.

58

Qty

1

Availability

Part #

47506242C

Description

CORE-JOYSTICK CONTROL, JOY STICK DIVERTER; Core Return


Alts

Select

Ref.

58

Qty

1

Availability

Part #

47506242R

Description

REMAN-JOYSTICK CONTROL, JOY STICK DIVERTER; Reman Control, Diverter


Alts

Select

Ref.

58

Qty

1

Availability

Part #

47506242

Description

JOYSTICK; Control, Diverter


Alts

Select

Ref.

59

Qty

2

Availability

Part #

84337380

Description

RELAY; Tyco, with Resistor, Mini 70A


Alts

Select

Ref.

60

Qty

10

Availability

Part #

84561098

Description

RELAY 12V, 35A;


Alts

Select

Ref.

61

Qty

1

Availability

Part #

47654127

Description

WIRE HARNESS; Alternator


Alts

Select

Ref.

62

Qty

1

Availability

Part #

47485591

Description

WIRE HARNESS; Head Lamp


Alts

Select

Ref.

63

Qty

2

Availability

Part #

82822862

Description

BULB; 12V-21/5 W (993)


Alts

Select

Ref.

64

Qty

1

Availability

Part #

73379155

Description

VALVE, THERMAL EXPAN; Thermostaic Valve Asssy


Alts

Select

Ref.

65

Qty

1

Availability

Part #

73379021

Description

STARTER MOTOR;


Alts

Select

Ref.

65

Qty

1

Availability

Part #

73379021C

Description

CORE-STARTER CORE-STARTER; Return Number


Alts

Select

Ref.

65

Qty

1

Availability

Part #

73379021R

Description

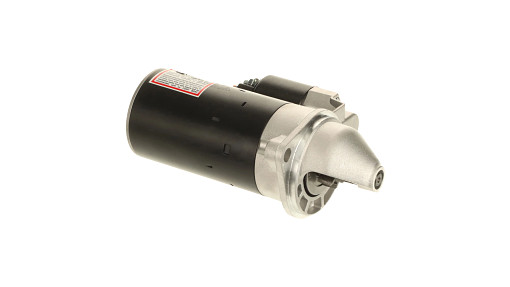

REMAN-STARTER REMAN-STARTER; Reman Starter


Alts

Select

Ref.

66

Qty

1

Availability

Part #

47683791R

Description

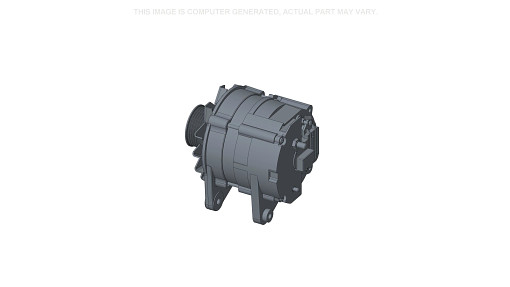

REMAN-ALTERNATOR REMAN-ALTERNATOR -- 75A, 14V; Reman Alternator 75A


Alts

Select

Ref.

66

Qty

1

Availability

Part #

47683791C

Description

CORE-ALTERNATOR CORE-ALTERNATOR -- 75A, 14V; Return Number


Alts

Select

Ref.

66

Qty

1

Availability

Part #

47683791

Description

ALTERNATOR ALTERNATOR -- 75A, 14V; 75A


Alts

Select

Ref.

67

Qty

1

Availability

Part #

47683824C

Description

CORE-ALTERNATOR; Core Return


Alts

Select

Ref.

67

Qty

1

Availability

Part #

47683824

Description

ALTERNATOR; 90A


Alts

Select

Ref.

67

Qty

1

Availability

Part #

47683824R

Description

REMAN-ALTERNATOR 90A, 15V; Reman 90 Amp


Alts

Select

Ref.

68

Qty

3

Availability

Part #

73379119R

Description

REMAN-FUEL INJECTOR INJECTOR, FUEL SYSTEM, ASSEMBL; Reman Option


Alts

Select

Ref.

68

Qty

1

Availability

Part #

73379119C

Description

CORE-FUEL INJECTOR INJECTOR, FUEL SYSTEM, ASSEMBL; Core Return


Alts

Select

Ref.

68

Qty

3

Availability

Part #

73379119

Description

FUEL SYSTEM INJECTOR;


Alts

Select

Ref.

69

Qty

1

Availability

Part #

73379120

Description

SENSOR; Rail Pressure


Alts

Select

Ref.

70

Qty

1

Availability

Part #

73379016

Description

SENSOR; Engine Speed


Alts

Select

Ref.

71

Qty

1

Availability

Part #

73379017

Description

SENSOR; Engine Phase


Alts

Select

Ref.

72

Qty

1

Availability

Part #

73379018

Description

SENSOR; Water Temperature


Alts

Select

Ref.

73

Qty

1

Availability

Part #

73379019

Description

SENSOR; Air Pressure Temp


Alts

Select

Ref.

74

Qty

1

Availability

Part #

73379020

Description

SENSOR; Oil Pressure


Alts

Select

Ref.

75

Qty

5

Availability

Part #

73379023

Description

PLUG; Glow


Alts

Select

Ref.

76

Qty

1

Availability

Part #

73379008

Description

DIPSTICK; Oil, Engine


Alts

Select

Ref.

77

Qty

1

Availability

Part #

9971268

Description

IGNITION KEY;


Alts
