10.04 - HAND THROTTLE ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    100037
    LOCK NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 2
    1
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 3
    1
    280250
    COTTER PIN 3/32'' OD x 3/4'' L;
  • 4
    1
    SBA312070220

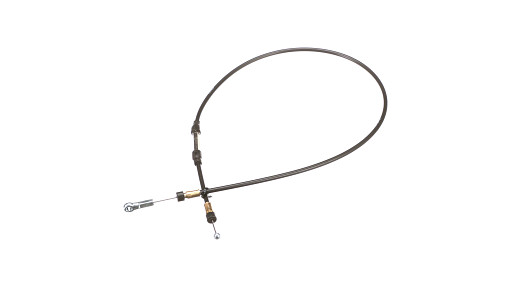

    FLEXIBLE CABLE; Throttle, Hand
  • 5
    2
    86504705
    WASHER M11.1 x 37.9 x 3.3 Thk, Plastic;
  • 6
    1
    86512446
    CARRIAGE BOLT M10 x 1.5 x 30mm, Cl 8.8;
  • 7
    1
    86534989

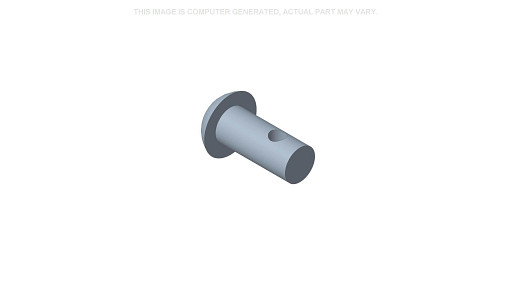

    RIVET Button, 6mm OD x 14mm L; Rivet
  • 8
    1
    86567765
    BRACKET; Hand Throttle
  • 9
    1
    86567866
    LEVER; Throttle
  • 10
    1
    86573736
    WASHER;
  • 11
    2
    9804258
    FLANGE BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8;
  • 12
    1
    9841607
    KNOB; Throttle
  • 13
    1
    9844207

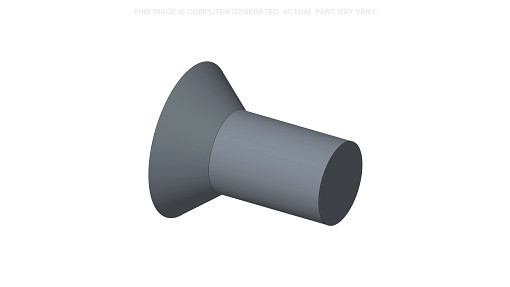

    SCREW Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8;
  • 14
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
  • 15
    1
    SBA398114451
    RUBBER BUSHING; Installed on Fuel Pump Throttle Crank
Select All

Select

Ref.

1

Qty

1

Availability

Part #

100037

Description

LOCK NUT Hex, M10 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

140045

Description

BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

280250

Description

COTTER PIN 3/32'' OD x 3/4'' L;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

SBA312070220

Description

FLEXIBLE CABLE; Throttle, Hand


Alts

Select

Ref.

5

Qty

2

Availability

Part #

86504705

Description

WASHER M11.1 x 37.9 x 3.3 Thk, Plastic;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

86512446

Description

CARRIAGE BOLT M10 x 1.5 x 30mm, Cl 8.8;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

86534989

Description

RIVET Button, 6mm OD x 14mm L; Rivet


Alts

Select

Ref.

8

Qty

1

Availability

Part #

86567765

Description

BRACKET; Hand Throttle


Alts

Select

Ref.

9

Qty

1

Availability

Part #

86567866

Description

LEVER; Throttle


Alts

Select

Ref.

10

Qty

1

Availability

Part #

86573736

Description

WASHER;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

9804258

Description

FLANGE BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

9841607

Description

KNOB; Throttle


Alts

Select

Ref.

13

Qty

1

Availability

Part #

9844207

Description

SCREW Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

80681

Description

LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

SBA398114451

Description

RUBBER BUSHING; Installed on Fuel Pump Throttle Crank


Alts
