TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
-
11KIT DIA RECOLTE-HACH; Kit, Control Valve Includes: Ref. 2 thru 40; (Prod Date) From 01-Sep-1998
-
23COUDE A 90° 7/8'' - 14 JIC x 3/4'' - 16 ORB; 90Y; (Prod Date) From 01-Sep-1998
-
32VIS Hex, 5/16'' - 18 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 1-1/2''; (Prod Date) From 01-Sep-1998
-
43RACCORD HYDRAULIQUE 7/8'' - 14 JIC x 3/8'' - 18 NPT; Connector, Male; (Prod Date) From 01-Sep-1998
-
51COUDE 45 Degree, 3/4'' - 16, 37 Degree x 3/4'' - 16; 45Y; (Prod Date) From 01-Sep-1998
-
61VIS Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd; (Prod Date) From 01-Sep-1998
-
710RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Sep-1998
-
82ECROU 5/16'' - 18, Gr 5; G5, 5/16''-18; (Prod Date) From 01-Sep-1998
-
92VIS A EMBASE Hex, M8 x 1.25 x 25mm, Cl 8.8; Screw, Cap, Flg Hd, CL 8.8, M8 x 1.25 x 25; (Prod Date) From 01-Sep-1998
-
103ECROU M8 x 1.25, Cl 8; (Prod Date) From 01-Sep-1998
-
114RACCORD 3/8'' NPTF; Female, O-Ring used is 122056 & Back-Up Ring used is 647327 3/8'' NPTF; (Prod Date) From 01-Sep-1998
-
123VIS A EMBASE M8 x 1.25 x 48.1mm OAL, Cl 8.8; (Prod Date) From 01-Sep-1998
-
132COUDE A 90° 90 Degree, 37 Degree 3/4''-16 x 9/16''-18 ORB; 90 Degree; (Prod Date) From 01-Sep-1998
-
141SOUPAPE HYDRAULIQUE; Valve Control, Loader (Prince #HC-V-AB10) Refer to Fig. 05H01 For Details;Prince Valve #HC-V-AB10;86519877 (HC-V-AB10) supersedes to 86401169 (HC-V-AE35) components still available.; (Prod Date) From 01-Sep-1998
-
141SOUPAPE HYDRAULIQUE; Valve Control, Loader (Prince #HC-V-AE35) Refer to Fig. 05H01 for details;Prince Valve #HC-V-AE35; (Prod Date) From 01-Sep-1998
-
151SILENTBLOC; Valve; (Prod Date) From 01-Sep-1998
-
162COUDE A 90°; 90 Degree; (Prod Date) From 01-Sep-1998
-
171TUBE 12.70 mm DIA x 542, 335 mm L; Pipe, Oil, Port A2, Black; (Prod Date) From 01-Sep-1998
-
181TUBE 12.70 mm DIA x 520, 362 mm L; Pipe, Oil, Port B2, Gray; (Prod Date) From 01-Sep-1998
-
191TUBE 12.70 mm DIA x 495, 379 mm L; Pipe, Oil, Port B1, Red; (Prod Date) From 01-Sep-1998
-
201TUBE 12.70 mm OD x 379, 580 mm L; Pipe, Oil, Port A1, Yellow; (Prod Date) From 01-Sep-1998
-
211TUBE 15.87 mm DIA x 511.5, 570 mm L; Pipe, Oil, Pressure Port, Red; (Prod Date) From 01-Sep-1998
-
221TUBE 15.87 mm DIA x 510, 442 mm L; Pipe, Oil, Neutral Port/Power Beyond, Gray; (Prod Date) From 01-Sep-1998
-
231TUBE 15.87 mm DIA x 544, 428 mm L; Pipe, Oil, Tank Port, Black; (Prod Date) From 01-Sep-1998
-
241SOUPAPE HYDRAULIQUE; Plate, Valve; (Prod Date) From 01-Sep-1998
-
251SOUFFLET; Joystick; (Prod Date) From 01-Sep-1998
-
261PLAQUE; Tube Support; (Prod Date) From 01-Sep-1998
-
274ADAPTATEUR; Male Bulkhead, Uses 87313 Jam Nut; (Prod Date) From 01-Sep-1998
-
281BOUCHON 29mm OD x 246mm L; Dust, Red; (Prod Date) From 01-Sep-1998
-
291BOUCHON 29mm OD x 246mm L; Dust, Blue; (Prod Date) From 01-Sep-1998
-
301BOUCHON 29mm OD x 246mm L; Dust, Green; (Prod Date) From 01-Sep-1998
-
311BOUCHON 29mm OD x 246mm L; Dust, Yellow; (Prod Date) From 01-Sep-1998
-
321COUVERCLE; Control; (Prod Date) From 01-Sep-1998
-
331AUTOCOLLANT; Coupler Retracting Cylinder; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998
-
341AUTOCOLLANT; Coupler Extending Cylinder; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998
-
351AUTOCOLLANT; Coupler Extending Bucket; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998
-
361AUTOCOLLANT; Coupler Retracting Bucket; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998
-
371SUPPORT; Valve Support Assy.; (Prod Date) From 01-Sep-1998
-
384CONTRE-ECROU Jam, 3/4''-16, G2; Jam, G2, 3/4''-16; (Prod Date) From 01-Sep-1998
-
394ACCOUPLEMENT RAPIDE 3/8'' NPTF; Male Coupler; (Prod Date) From 01-Sep-1998
-
404CACHE-POUSSIERE; (Prod Date) From 01-Sep-1998
-
411AUTOCOLLANT; Control Valve, Refer to Fig. 16A1;Prince Valve #HC-V-AB10; (Prod Date) From 01-Sep-1998
-
411AUTOCOLLANT; Control Valve, Refer to Fig. 16A1;Prince Valve #HC-V-AE35; (Prod Date) From 01-Sep-1998
-
421COUDE; Street, 45?, 3/8'', NPTF, Refer to Service Bulletin 9/97-MP1; (Prod Date) From 01-Sep-1998
-
431VIS Hex, M16 x 40mm, Cl 8.8, Full Thd; Flg Hd, CL 8.8, M16 x 2 x 40; (Prod Date) From 01-Sep-1998
-
441RONDELLE BELLEVILLE M16 Bolt Size x 32mm OD x 2.8mm Thk; WASHER, BELLEVILLE, M16; (Prod Date) From 01-Sep-1998
-
451ENTRETOISE 17mm ID x 31.8mm OD x 12.7mm L; Loader Tube; (Prod Date) From 01-Sep-1998
-
461KIT; Handle Includes: Ref. 47; (Prod Date) From 01-Sep-1998
-
471BOUTON; (Prod Date) From 01-Sep-1998
-
481NON FOURNI; Not Serviced
Sélectionner Tout
![]()
Ref.
1Qté
1Disponibilité
N° de pièce
716390001Description
KIT DIA RECOLTE-HACH; Kit, Control Valve Includes: Ref. 2 thru 40; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
2Qté
3Disponibilité
N° de pièce
86527Description
COUDE A 90° 7/8'' - 14 JIC x 3/4'' - 16 ORB; 90Y; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
3Qté
2Disponibilité
N° de pièce
88275Description
VIS Hex, 5/16'' - 18 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 1-1/2''; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
4Qté
3Disponibilité
N° de pièce
242679Description
RACCORD HYDRAULIQUE 7/8'' - 14 JIC x 3/8'' - 18 NPT; Connector, Male; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
5Qté
1Disponibilité
N° de pièce
248992Description
COUDE 45 Degree, 3/4'' - 16, 37 Degree x 3/4'' - 16; 45Y; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
6Qté
1Disponibilité
N° de pièce
280345Description
VIS Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
7Qté
10Disponibilité
N° de pièce
80681Description
RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
8Qté
2Disponibilité
N° de pièce
9635082Description
ECROU 5/16'' - 18, Gr 5; G5, 5/16''-18; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
9Qté
2Disponibilité
N° de pièce
9671714Description
VIS A EMBASE Hex, M8 x 1.25 x 25mm, Cl 8.8; Screw, Cap, Flg Hd, CL 8.8, M8 x 1.25 x 25; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
10Qté
3Disponibilité
N° de pièce
89706690Description
ECROU M8 x 1.25, Cl 8; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
11Qté
4Disponibilité
N° de pièce
9846343Description
RACCORD 3/8'' NPTF; Female, O-Ring used is 122056 & Back-Up Ring used is 647327 3/8'' NPTF; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
12Qté
3Disponibilité
N° de pièce
86511842Description
VIS A EMBASE M8 x 1.25 x 48.1mm OAL, Cl 8.8; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
13Qté
2Disponibilité
N° de pièce
86512938Description
COUDE A 90° 90 Degree, 37 Degree 3/4''-16 x 9/16''-18 ORB; 90 Degree; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
14Qté
1Disponibilité
N° de pièce
86519877Description
SOUPAPE HYDRAULIQUE; Valve Control, Loader (Prince #HC-V-AB10) Refer to Fig. 05H01 For Details;Prince Valve #HC-V-AB10;86519877 (HC-V-AB10) supersedes to 86401169 (HC-V-AE35) components still available.; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
14Qté
1Disponibilité
N° de pièce
86401169Description
SOUPAPE HYDRAULIQUE; Valve Control, Loader (Prince #HC-V-AE35) Refer to Fig. 05H01 for details;Prince Valve #HC-V-AE35; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
15Qté
1Disponibilité
N° de pièce
86522829Description
SILENTBLOC; Valve; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
16Qté
2Disponibilité
N° de pièce
86526859Description

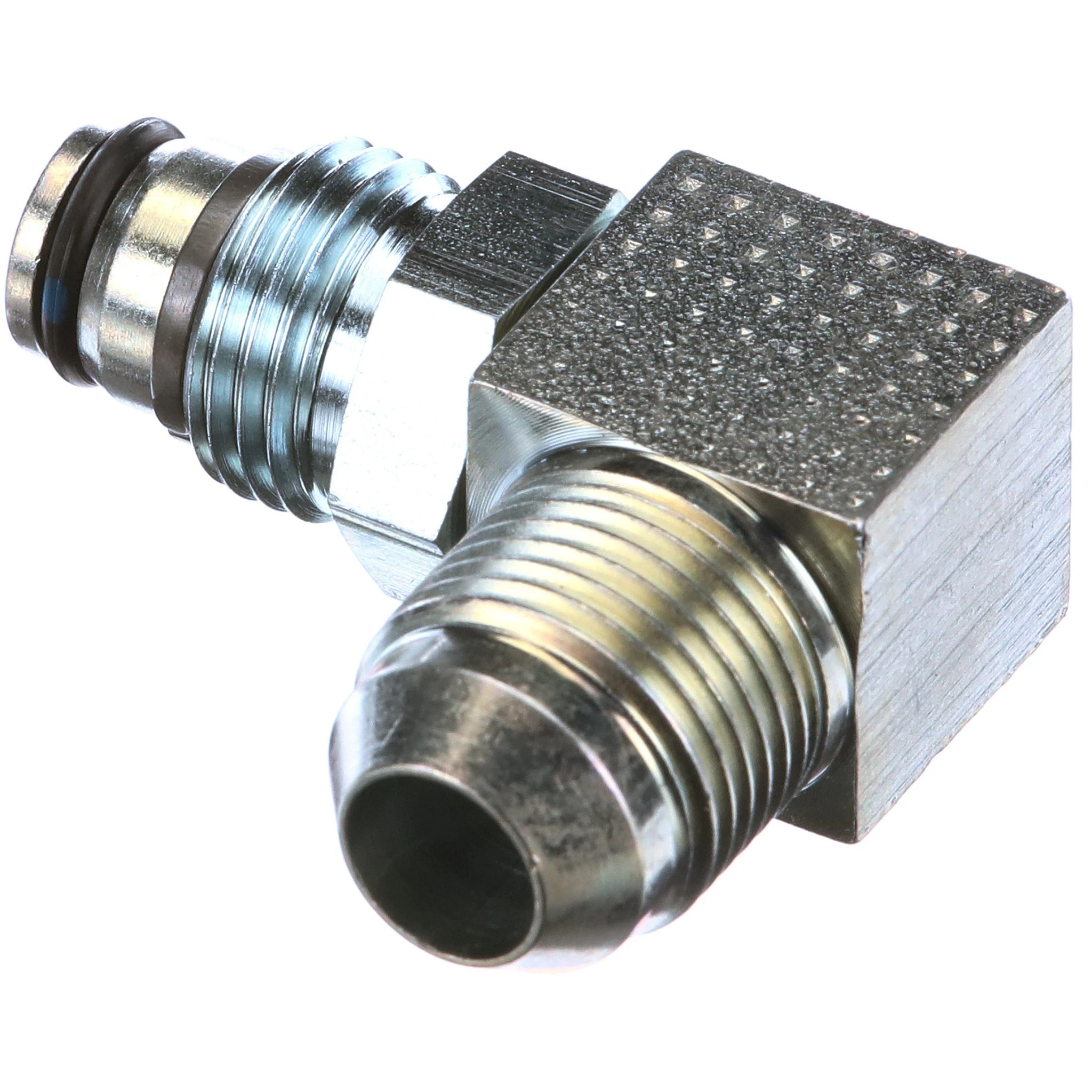

COUDE A 90°; 90 Degree; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
17Qté
1Disponibilité
N° de pièce
86526865Description
TUBE 12.70 mm DIA x 542, 335 mm L; Pipe, Oil, Port A2, Black; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
18Qté
1Disponibilité
N° de pièce
86526867Description
TUBE 12.70 mm DIA x 520, 362 mm L; Pipe, Oil, Port B2, Gray; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
19Qté
1Disponibilité
N° de pièce
86526866Description
TUBE 12.70 mm DIA x 495, 379 mm L; Pipe, Oil, Port B1, Red; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
20Qté
1Disponibilité
N° de pièce
86526864Description
TUBE 12.70 mm OD x 379, 580 mm L; Pipe, Oil, Port A1, Yellow; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
21Qté
1Disponibilité
N° de pièce
86526868Description
TUBE 15.87 mm DIA x 511.5, 570 mm L; Pipe, Oil, Pressure Port, Red; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
22Qté
1Disponibilité
N° de pièce
86526869Description
TUBE 15.87 mm DIA x 510, 442 mm L; Pipe, Oil, Neutral Port/Power Beyond, Gray; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
23Qté
1Disponibilité
N° de pièce
86526870Description
TUBE 15.87 mm DIA x 544, 428 mm L; Pipe, Oil, Tank Port, Black; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
24Qté
1Disponibilité
N° de pièce
86526872Description
SOUPAPE HYDRAULIQUE; Plate, Valve; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
25Qté
1Disponibilité
N° de pièce
86530982Description
SOUFFLET; Joystick; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
26Qté
1Disponibilité
N° de pièce
86532861Description
PLAQUE; Tube Support; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
27Qté
4Disponibilité
N° de pièce
86532865Description
ADAPTATEUR; Male Bulkhead, Uses 87313 Jam Nut; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
28Qté
1Disponibilité
N° de pièce
86597754Description
BOUCHON 29mm OD x 246mm L; Dust, Red; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
29Qté
1Disponibilité
N° de pièce
86597755Description
BOUCHON 29mm OD x 246mm L; Dust, Blue; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
30Qté
1Disponibilité
N° de pièce
86597757Description
BOUCHON 29mm OD x 246mm L; Dust, Green; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
31Qté
1Disponibilité
N° de pièce
86597758Description
BOUCHON 29mm OD x 246mm L; Dust, Yellow; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
32Qté
1Disponibilité
N° de pièce
86530792Description
COUVERCLE; Control; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
33Qté
1Disponibilité
N° de pièce
86532919Description
AUTOCOLLANT; Coupler Retracting Cylinder; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
34Qté
1Disponibilité
N° de pièce
86532920Description
AUTOCOLLANT; Coupler Extending Cylinder; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
35Qté
1Disponibilité
N° de pièce
86532921Description
AUTOCOLLANT; Coupler Extending Bucket; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
36Qté
1Disponibilité
N° de pièce
86532922Description
AUTOCOLLANT; Coupler Retracting Bucket; (SN Break) Between Refer and Fig.16A1; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
37Qté
1Disponibilité
N° de pièce
86535735Description
SUPPORT; Valve Support Assy.; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
38Qté
4Disponibilité
N° de pièce
87313Description
CONTRE-ECROU Jam, 3/4''-16, G2; Jam, G2, 3/4''-16; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
39Qté
4Disponibilité
N° de pièce
9846344Description
ACCOUPLEMENT RAPIDE 3/8'' NPTF; Male Coupler; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
40Qté
4Disponibilité
N° de pièce
86532892Description
CACHE-POUSSIERE; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
41Qté
1Disponibilité
N° de pièce
86532911Description
AUTOCOLLANT; Control Valve, Refer to Fig. 16A1;Prince Valve #HC-V-AB10; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
41Qté
1Disponibilité
N° de pièce
86401095Description
AUTOCOLLANT; Control Valve, Refer to Fig. 16A1;Prince Valve #HC-V-AE35; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
42Qté
1Disponibilité
N° de pièce
128109Description
COUDE; Street, 45?, 3/8'', NPTF, Refer to Service Bulletin 9/97-MP1; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
43Qté
1Disponibilité
N° de pièce
9804271Description
VIS Hex, M16 x 40mm, Cl 8.8, Full Thd; Flg Hd, CL 8.8, M16 x 2 x 40; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
44Qté
1Disponibilité
N° de pièce
140048Description
RONDELLE BELLEVILLE M16 Bolt Size x 32mm OD x 2.8mm Thk; WASHER, BELLEVILLE, M16; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
45Qté
1Disponibilité
N° de pièce
86532860Description
ENTRETOISE 17mm ID x 31.8mm OD x 12.7mm L; Loader Tube; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
46Qté
1Disponibilité
N° de pièce
86532990Description
KIT; Handle Includes: Ref. 47; (Prod Date) From 01-Sep-1998Img
Alts
Ref.
47Qté
1Disponibilité
N° de pièce
511632Description
BOUTON; (Prod Date) From 01-Sep-1998Img
Alts
