Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11NOT SERVICED; Bracket, Backhoe Hitch, RH;Not Serviced
-
21NOT SERVICED; Bracket, Backhoe Hitch, LH;Not Serviced
-
4PROCURE LOCALLY; Bolt, HH, 3/4''-16 x 2.75, Hitch Brkt. to Side Rail
-
4PROCURE LOCALLY; Washer, Lock, 3/4'', Hitch Brkt. to Side Rail
-
8PROCURE LOCALLY; Nut, Hex, 5/8''-18, Hitch Brkt. to Side Rail
-
8PROCURE LOCALLY; Bolt, HH, 5/8''-18 x 3.0, Hitch Brkt to Side Rail
-
8PROCURE LOCALLY; Washer, Lock, 5/8'', Hitch Brkt. to Side Rail
-
8PROCURE LOCALLY; Nut, Hex, 5/8''-18, Hitch Brkt. to Side Rail
-
32NOT SERVICED; Link Assy., Hitch;Not Serviced
-
42PIN; Link, 1-1/4'' x 3.5, Link to Pivot Bracket
-
4A4SNAP RING #125, Ext; Ring, Snap, , Prior, Link to Pivot Bracket #125, Ext
-
2PROCURE LOCALLY; Pin, Cotter, 3/8'' x 3'', Link to Pivot Bracket
-
52SPARE PART; Arm, Clevis
-
62SPARE PART; Pin, Arm, 3/4'' x 2.12;No Longer Serviced; (SN Break) Between Arm and Hitch
-
4SNAP RING #75, Ext; Ring, Snap, , Arm to Hitch #75, Ext
-
72WASHER; Channel, Arm Retaining;No Longer Serviced
-
2PROCURE LOCALLY; Washer, Lock, 3/4'', Arm Retaining
-
82PROCURE LOCALLY; Nut, Hex, 3/4''-16, Arm Retaining
-
91HOSE; Assy., Backhoe Oil Supply;No Longer Serviced
-
101NOT SERVICED; Tube, Pump Inlet;Not Serviced
-
111HOSE; Return;No Longer Serviced
-
122HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, , Assy #40, 2.06/3.00 Type F Worm
-
131NOT SERVICED; Tube Assy.;Not Serviced
-
141SPARE PART; Elbow Assy., 90?, Adjustable;No Longer Serviced
-
151BRACKET; Hose Clamp, High Pressure Line;No Longer Serviced
-
161CLAMP; Tube, High Pressure Line;No Longer Serviced
-
171BRACKET; Hose Clamp, Low Pressure Line;No Longer Serviced
-
181CLAMP; Tube, Low Pressure Line;No Longer Serviced
-
191BRACKET; Hose Clamp, Both Lines;No Longer Serviced
-
201CLAMP; Tube, Both Lines;No Longer Serviced
-
1PROCURE LOCALLY; Bolt, HH, 7/16''-14 x 4.50, High Pressure Bracket
-
2PROCURE LOCALLY; Washer, Lock, 7/16''; (SN Break) Between Clamp and Bracket
-
2PROCURE LOCALLY; Nut, Hex, 7/16''-14; (SN Break) Between Clamp and Bracket
-
1PROCURE LOCALLY; Bolt, HH, 5/16''-18 x 1''; (SN Break) Between Clamp and Bracket
-
3PROCURE LOCALLY; Washer, Lock, 5/16''; (SN Break) Between Clamp and Bracket
-
3PROCURE LOCALLY; Nut, Hex, 5/16''-18; (SN Break) Between Clamp and Bracket
-
1PLUG; Assy.;No Longer Serviced
-
1TUBE; Low Pressure, Valve Side Return, Replaced by P/N 193269
Select All
Select
Ref.
1Qty
1Availability
Part #
NSDescription
NOT SERVICED; Bracket, Backhoe Hitch, RH;Not ServicedImg
Alts
Select
Ref.
2Qty
1Availability
Part #
NSDescription
NOT SERVICED; Bracket, Backhoe Hitch, LH;Not ServicedImg
Alts
Select
Ref.
Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, 3/4''-16 x 2.75, Hitch Brkt. to Side RailImg
Alts
Select
Ref.
Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 3/4'', Hitch Brkt. to Side RailImg
Alts
Select
Ref.
Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Hex, 5/8''-18, Hitch Brkt. to Side RailImg
Alts
Select
Ref.
Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, 5/8''-18 x 3.0, Hitch Brkt to Side RailImg
Alts
Select
Ref.
Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 5/8'', Hitch Brkt. to Side RailImg
Alts
Select
Ref.
Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Hex, 5/8''-18, Hitch Brkt. to Side RailImg
Alts
Select
Ref.
3Qty
2Availability
Part #
NSDescription
NOT SERVICED; Link Assy., Hitch;Not ServicedImg
Alts
Select
Ref.
4Qty
2Availability
Part #
7700627Description
PIN; Link, 1-1/4'' x 3.5, Link to Pivot BracketImg
Alts
Select
Ref.
4AQty
4Availability
Part #
40974Description

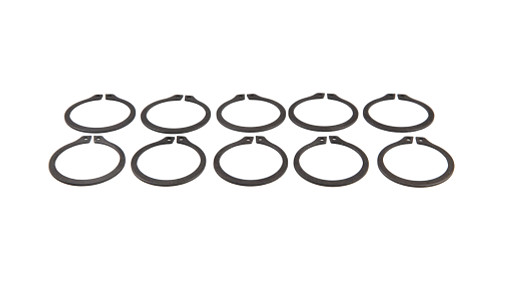

SNAP RING #125, Ext; Ring, Snap, , Prior, Link to Pivot Bracket #125, ExtImg
