004 - SWING MOTOR CARRIAGE ASSEMBLY - EXCEPT 19-454,19-494,19-561,19-562
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    7705095
    SUPPORT; Carriage, Swing Motor
  • 2
    2
    7704180
    CLAMP; Motor Carriage
  • 3
    2
    7704129
    PIN; Clamp Pivot
  • 4
    2
    7704130
    BULLONE; Pivot Pin
  • 5
    2
    7702734
    CILINDRO IDRAULICO; Cylinder Assy., Carriage Clamp, 19-618, 19-620, 19-646, 19-648, 19-696, 19-698, 19-700, 19-702
  • 6
    2
    7703536
    PRIGIONIERO; Carriage Clamp, 19-617, 19-619, 19-645, 19-647, 19-695, 19-697, 19-699, 19-701
  • 7
    2
    7703437
    RONDELLA; Tab, 19-618, 19-620, 19-646, 19-648, 19-696, 19-698, 19-700, 19-702
  • 8
    1
    C5NNN480A
    DADO DI BLOCCAGGIO; Nut, Lock
  • 9
    1
    81902258
    FERMO; Swing Shaft
  • 10
    2
    292484
    PRIGIONIERO; Special, 3/4 - 16 - 1-1/2 -1.00
  • 11
    2
    81833776
    DADO RUOTA; Wheel Disc
  • 12
    6
    87340
    LÅSESKIVE Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
  • 13
    6
    58740S36
    BOLT; Screw, Cap, HH, G8, 3/4''-10 x 1-3/4'', Retainer to Motor Frame
  • 14
    1
    293062
    BØSNING 143.027 mm ID x 149.809 mm OD x 34.163 mm; Bearing, Lower
  • 15
    1
    HIT293059
    GEVINDSTANG; Washer, Thrust Lower
  • 16
    1
    293061
    BØSNING 130.124 mm ID x 142.7 mm OD x 38.151 mm; Bearing Lower
  • 17
    1
    293060
    PRZYŁĄCZE; Thrust Lower
  • 18
    1
    7700391
    TULEJA 6.864'' ID x 7.137'' OD x 1.23''; Bearing, Upper
  • 19
    1
    293055
    POPRZECZNICA; Washer, Thrust Upper
  • 20
    1
    7705501
    PRZYŁĄCZE; Bearing Upper
  • 21
    1
    7703603
    PRZYŁĄCZE; Thrust Upper
  • 22
    1
    7703426
    PŁYTA; Swing Motor Top
  • 23
    4
    7704176
    PODKŁADKA; Top Plate
  • 24
    4
    84128
    ŚRUBA Hex, 1'' x 3'', Gr 5; Screw, Cap, HH, G5, 1''-8 x 3'', Top Plate to Carriage
  • 25
    1
    7704184
    POKRYWA; Top Plate
  • 26
    1
    7704185
    GASKET; Top Plate
  • 27
    4
    80682
    LOCK WASHER 1/4''; Washer, Lock, 1/4''
  • 28

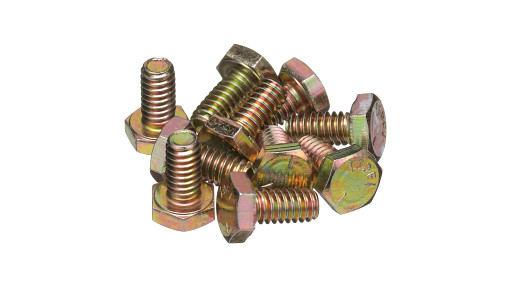

    4
    88542
    BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2'', Cover to Top Plate
  • 29
    1
    D6NNB662A
    CLAMP; Hose
  • 30
    1
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
  • 31

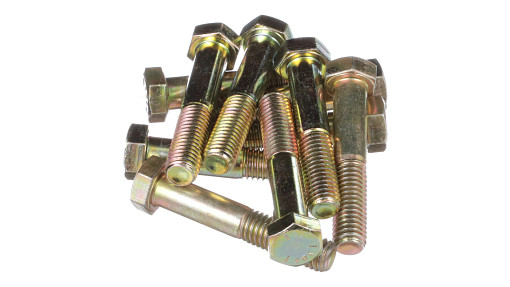

    1
    87974
    BOLT Hex, 1/2'' - 13 x 2 3/4'', Gr 5; Hex. Hd., 1/2 - 13 x 2-1/2
  • 32
    AR
    NSS
    SÆLGES IKKE SEPARAT; Cylinder Assy., Swing, Refer to Swing Cyl. Assy. for Components
  • 33
    1
    7703602
    SPECIALNØGLE; Wrench, Clamp Stud
  • 34

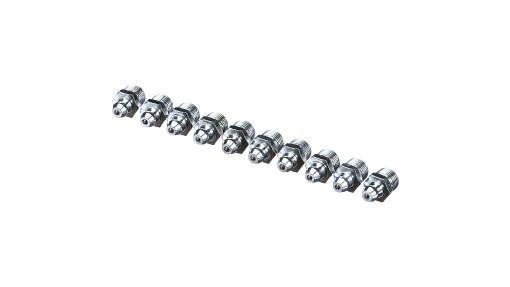

    2
    80710
    SMØRENIPPEL 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
