Ref.
Qty
Part #
Alts
Description
-
11CARRIER; Assy., Blade 60''
-
21NOT SOLD SEPARAT; Bolt, HH, 3/8''-16 x 2-3/4''
-
31NOT SOLD SEPARAT; Nut, Lock, Hex, 3/8''-16
-
42KNIFE BLADE; Blade, Cutter Regular, See Accessories Group for other Blades
-
52KIT; Blade Attaching Includes Ref: 6 thru 9
-
62SPACER; 3/4'' x 1-1/2'' x 13/32''
-
72BOLT; Carriage, 3/4''-16 x 2''
-
82SLOTTED NUT 3/4''-16; Nut, Slotted, G2, , Blade to Carrier 3/4''-16
-
92NOT SOLD SEPARAT; Pin, Cotter, 1/8'' x 1-1/2''
-
101NOT SOLD SEPARAT; Carrier Assy., Blade, Replaced by P/N 7502462
-
111CARRIER; Assy., Blade, 27-1/4'' Lg.
-
121NO LONGER SERVICED; Carrier Assy., Plate;No Longer Serviced
-
132SPACER; Carrier, 3/4'' x 2-1/2'' x 7/16'' Thick;No Longer Serviced
-
142BOLT Hex, 3/4 - 16 x 2.5, Gr 5; Cap, HH, Drilled, G5, 3/4''-16 x 2-1/2''
-
152SLOTTED NUT 3/4''-16; Nut, Slotted, G2, , Plate to Carrier 3/4''-16
-
162NOT SOLD SEPARAT; Pin, Cotter, 1/8'' x 1-1/2''
-
171WASHER; Flat, 1'' I.D. x 2-7/8'' O.D.
-
181SLOTTED NUT 1''-14; Nut, Special, Slotted, G2, , Carrier to Shaft 1''-14
-
191NOT SOLD SEPARAT; Pin, Cotter, 3/16'' x 1-3/4''
-
202KNIFE BLADE; Blade, Cutter Regular, 22'' Lg.
-
212FAN BLADE; Blade, Cutter Regular, 27-1/8'' Lg., 1/2'' Thick, Round End
-
222FAN BLADE; Blade, Cutter Regular, 27-1/8'' Lg., 1/2'' Thick, Round End, See Fig. 020 for other Blades
-
232SPACER; 3/4'' x 1-1/2'' x 13/32''
-
242BOLT; Carriage, Drilled, 3/4''-16 x 2-3/8''
-
2BOLT; Shoulder, 1-1/8''-12 x 3, .412 Shoulder
-
252BOLT; Shoulder, 1-1/8''-12 x 3, .540 Shoulder
-
262NUT; Lock, Hex, 1-1/8''-12
-
272SLOTTED NUT 3/4''-16; Nut, Slotted, G2, , Blades to Carrier 3/4''-16
-
282NOT SOLD SEPARAT; Pin, Cotter, 1/8'' x 1-1/2''
-
2NOT SOLD SEPARAT; Key, Woodruff, 3/16'' x 3/4'', Used W/Prior Bolts W/Key Way
-
1PLATE; Assy., Round Blade Carrier, 60''
-
291PLATE; Assy., Round Blade Carrier, 72''
-
301WASHER; Flat, 1'' I.D. x 2-7/8'' O.D.
-
311SLOTTED NUT 1''-14; Nut, Special, Slotted, G2, , Plate to Shaft 1''-14
-
1NOT SOLD SEPARAT; Pin, Cotter, 3/16'' x 1-3/4''
-
2KNIFE BLADE; Blade, Cutter, Regular, 22'' Lg.
-
2FAN BLADE; Blade, Cutter, Regular, 27-1/8'' Lg., 1/2'' Thick, Round End;No Longer Serviced
-
322FAN BLADE; Blade, Cutter, Regular, 27-1/8'' Lg., 1/2'' Thick, Round End
-
2BOLT; Shoulder, 1-1/8''-12 x 3, .412 Shoulder
-
332BOLT; Shoulder, 1-1/8''-12 x 3, .540 Shoulder
-
342NUT; Lock, Hex, 1-1/8''-12
Select All
Select
Ref.
2Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Bolt, HH, 3/8''-16 x 2-3/4''Img
Alts
Select
Ref.
3Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Nut, Lock, Hex, 3/8''-16Img
Alts
Select
Ref.
4Qty
2Availability
Part #
220633Description
KNIFE BLADE; Blade, Cutter Regular, See Accessories Group for other BladesImg
Alts
Select
Ref.
5Qty
2Availability
Part #
309719Description
KIT; Blade Attaching Includes Ref: 6 thru 9Img
Alts
Select
Ref.
6Qty
2Availability
Part #
86613142Description
SPACER; 3/4'' x 1-1/2'' x 13/32''Img
Alts
Select
Ref.
8Qty
2Availability
Part #
88886Description

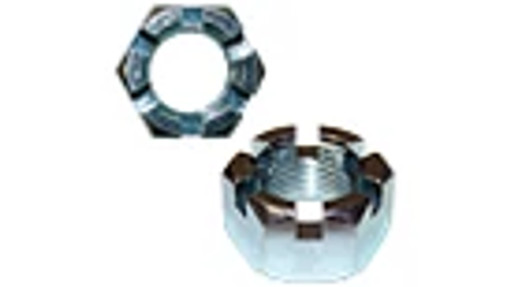

SLOTTED NUT 3/4''-16; Nut, Slotted, G2, , Blade to Carrier 3/4''-16Img
Alts
Select
Ref.
9Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pin, Cotter, 1/8'' x 1-1/2''Img
Alts
Select
Ref.
10Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Carrier Assy., Blade, Replaced by P/N 7502462Img
Alts
Select
Ref.
11Qty
1Availability
Part #
7502462Description
CARRIER; Assy., Blade, 27-1/4'' Lg.Img
Alts
Select
Ref.
12Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Carrier Assy., Plate;No Longer ServicedImg
Alts
Select
Ref.
13Qty
2Availability
Part #
7500083Description
SPACER; Carrier, 3/4'' x 2-1/2'' x 7/16'' Thick;No Longer ServicedImg
Alts
Select
Ref.
14Qty
2Availability
Part #
573958Description

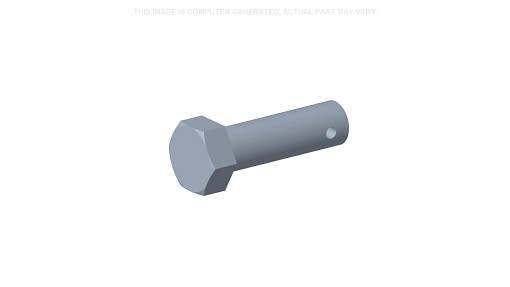

BOLT Hex, 3/4 - 16 x 2.5, Gr 5; Cap, HH, Drilled, G5, 3/4''-16 x 2-1/2''Img
Alts
Select
Ref.
15Qty
2Availability
Part #
88886Description
SLOTTED NUT 3/4''-16; Nut, Slotted, G2, , Plate to Carrier 3/4''-16Img
Alts
Select
Ref.
16Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pin, Cotter, 1/8'' x 1-1/2''Img
Alts
Select
Ref.
17Qty
1Availability
Part #
291638Description
WASHER; Flat, 1'' I.D. x 2-7/8'' O.D.Img
Alts
Select
Ref.
18Qty
1Availability
Part #
87449Description
SLOTTED NUT 1''-14; Nut, Special, Slotted, G2, , Carrier to Shaft 1''-14Img
Alts
Select
Ref.
19Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pin, Cotter, 3/16'' x 1-3/4''Img
Alts
Select
Ref.
20Qty
2Availability
Part #
220633Description

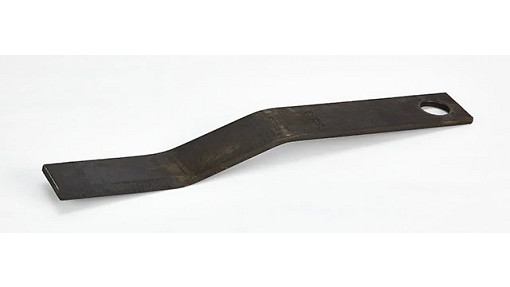

KNIFE BLADE; Blade, Cutter Regular, 22'' Lg.Img
