001 - MAIN SHIELD, KNIVES, GAUGE WHEEL & RELATED PARTS SERIES 939
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    BMB1348
    SHIELD; Main
  • 2
    1
    NSS
    NOT SOLD SEPARAT; Gearbox W/Shear Pin Refer to Fig. 004 for Details
  • 3
    1
    BMB1349
    BAR; Rotor, W/Hub
  • 4
    1
    BMB6192
    WASHER;
  • 5
    1
    BMB7202
    BOLT AND NUT; Nut, Castle, 1''-14
  • 6
    1
    BMB8082
    KIT; Knives, Sction, Standard, Sold in Pairs
  • 6
    1
    BMB2385
    KNIFE; Knives, Brush, Optional, Sold in Pairs
  • 7
    2
    BMB7249
    STRAP; Mounting Knives
  • 8
    2
    BMB2367
    BOLT; Pivot, 3/4'', W/Slotted Nut & Cotte Key
  • 9
    2
    BMB8081
    BUSHING; Knives
  • 10
    2
    BMB2328
    BOLT; Anchor, 5/8'' , W/Slotted Nut & Cotter Key
  • 11
    1
    NSS
    NOT SOLD SEPARAT; Driveline Complete Refer to Fig 'Driveline (Old Style) for Details
  • 12
    1
    BMB1056
    BOLT; Pin, SHear, W/Nut & Washer
  • 13
    1
    BMB7192
    RING; Snap Yoke
  • 14
    2
    BMB1350
    STRUT; Rear
  • 15
    2
    BMB1059
    SUPPORT; Brace Hitch
  • 16
    2
    BMB2544
    PIN; Hitch, Category I
  • AR
    NSS
    NOT SOLD SEPARAT; Nut, Lock, 7/8''
  • 17
    1
    BMB4075
    SPACER; Hitch
  • 18
    1
    BMB1101
    SPARE PART; Front Strut Assy., A-Frame
  • 19
    1
    BMB1219
    FRAME; Main Gauge Wheel
  • 20
    1
    BMB8713
    FORK; Gauge Wheel
  • 21
    2
    BMB3140
    SEALING RING COLLAR; Collar, Set
  • 22
    1
    AUB150646

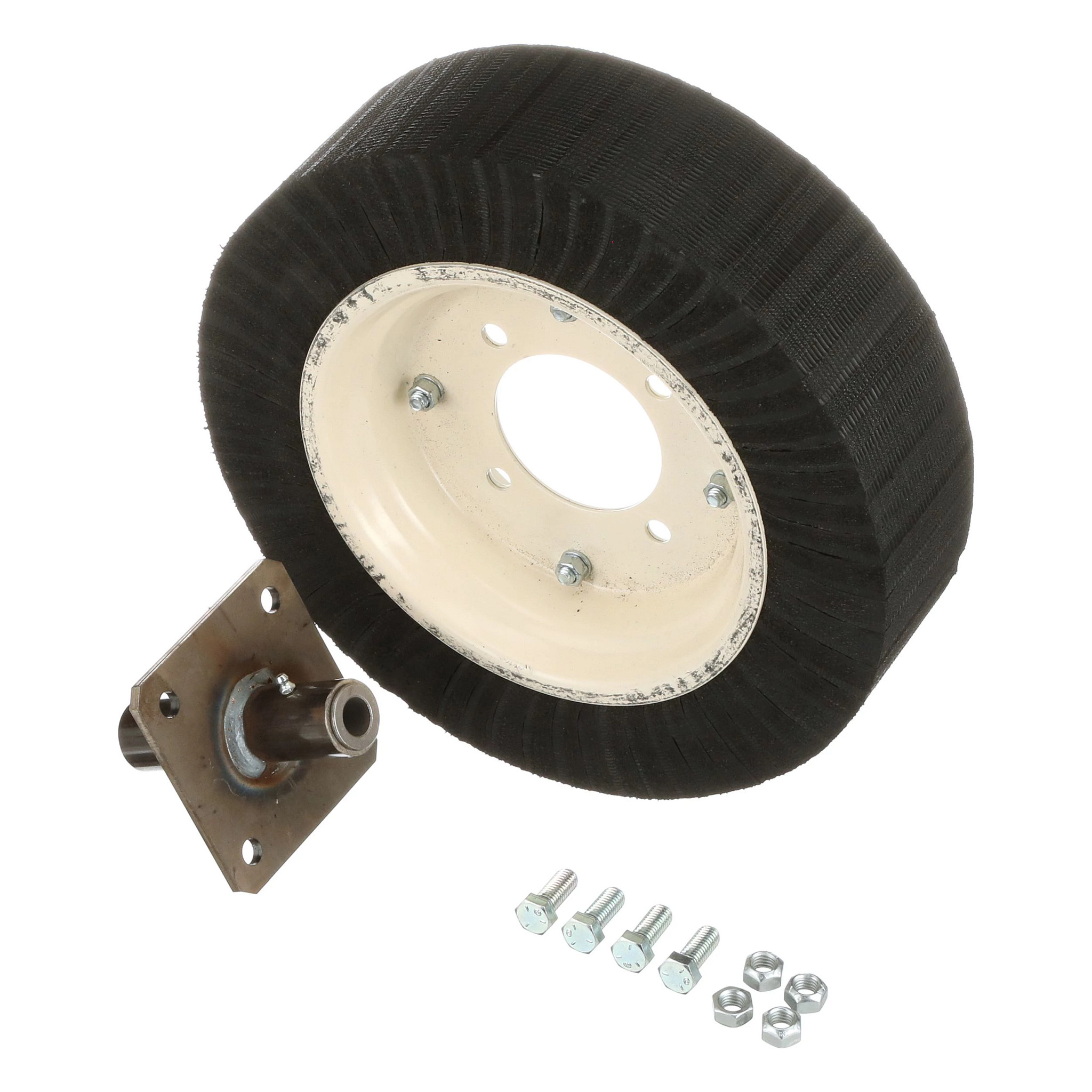

    WHEEL ASSY; Wheel & Hub
  • 23
    2
    BMB1046
    BEARING; Flanged 1-3/8'' O.D.
  • 24
    1
    220248
    TYRE/TIRE; Tire, Laminated
  • 25
    1
    BMB2307
    RIM; Wheel, L/Hub
  • 26
    1
    BMB1167
    BOLT; Axle, W/3/4'' Lock Nut
  • 27
    2
    BMB1169
    WASHER; Special, 18 Gauge x 3/4''
  • 28
    1
    PL
    PROCURE LOCALLY; Nut, Lock, 3/4'', for BMB-AB-703
  • 29
    1
    BMB1228
    HOOD; Gearbox
  • 30
    AR
    PL
    PROCURE LOCALLY; Bolt, Hex, 3/8''-16 x 3/4''
  • 31
    AR
    PL
    PROCURE LOCALLY; Washer, Flat, 3/8''
  • 32
    AR
    PL
    PROCURE LOCALLY; Nut, Hex, 3/8''-16
