TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
ARORDER WHOLEGOODS; Kit, Loader Attaching & Hydraulic, Prior 2130,4130 Industrial Tractors, 19-430
-
ARORDER WHOLEGOODS; Kit, Loader Attaching & Hydraulic, Prior 2130,4130 Industrial Tractors, 19-538
-
11MOUNTING PLATE; Plate Assy., Pump Mounting, 19-538
-
21MEASURING INSTRUMENT; Plate Assy., Pump Mounting;No Longer Serviced
-

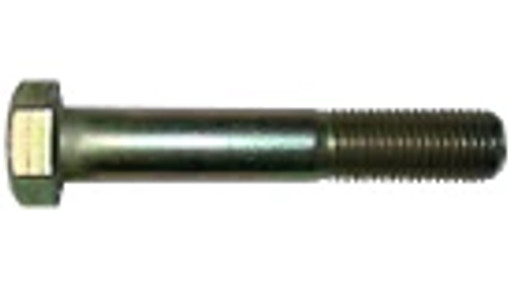

31BOLT Hex, 5/8'' - 18 x 1 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-18 x 1-3/4'', Mounting Plate to Tractor
-
41LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Mounting Plate to Tractor 5/8''
-
52BOLT Hex, 3/4'' - 16 x 1 1/2'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/4''-16 x 1-1/2'', Mounting Plate to Tractor
-
62LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
2BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2'', Pump to Mounting Plate, 19-430
-
2LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, , Pump to Mounting Plate, 19-430 3/8''
-
2NUT 3/8'' - 16, Gr 5; G5, 3/8''-16, Pump to Mounting Plate
-
72BOLT 1/2''-13 x 1-3/4'', Gr 5; Pump to Mounting Plate, 19-538 Hex, 1/2''-13 x 1 3/4'', G5
-
82LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, , Pump to Mounting Plate, 19-538 1/2''
-

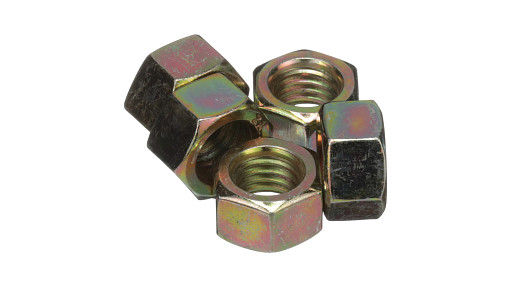

92NUT 1/2''-13, G5; Pump to Mounting Plate, 19-538 1/2''-13, G5
-

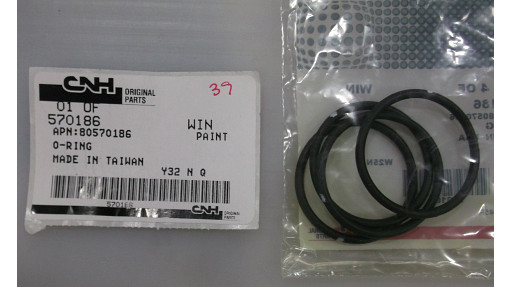

101O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 90 Duro, 1.475'' ID x .118'' Thk
-
111TESTER; Connector, Hose, 1-5/8''-12
-
122HOSE 37.3mm ID x 76.2mm L, SAE 20R1;
-
134HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, , Assy, Hose to Connector & Tube #40, 2.06/3.00 Type F Worm
-
141HYDRAULIC VALVE; Tube, Suction, 19-430
-
141PIPE; Tube, Suction, 19-538
-
152PLATE; Adapter
-
164SCREW; Bolt, Plow, G5, 5/8''-11 x 1-3/4'', Adapter
-
174SCREW; Bolt, Plow, 5/8''-11 x 7'', Adapter
-
188LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
198NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Adapter Plate to Loader
Select All
Select
Ref.
Qty
ARAvailability
Part #
W0Description
ORDER WHOLEGOODS; Kit, Loader Attaching & Hydraulic, Prior 2130,4130 Industrial Tractors, 19-430Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
W0Description
ORDER WHOLEGOODS; Kit, Loader Attaching & Hydraulic, Prior 2130,4130 Industrial Tractors, 19-538Img
Alts
Select
Ref.
1Qty
1Availability
Part #
290363Description
MOUNTING PLATE; Plate Assy., Pump Mounting, 19-538Img
Alts
Select
Ref.
2Qty
1Availability
Part #
291942Description
MEASURING INSTRUMENT; Plate Assy., Pump Mounting;No Longer ServicedImg
Alts
Select
Ref.
3Qty
1Availability
Part #
86509456Description
BOLT Hex, 5/8'' - 18 x 1 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-18 x 1-3/4'', Mounting Plate to TractorImg
Alts
Select
Ref.
4Qty
1Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Mounting Plate to Tractor 5/8''Img
Alts
Select
Ref.
5Qty
2Availability
Part #
280245Description
BOLT Hex, 3/4'' - 16 x 1 1/2'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/4''-16 x 1-1/2'', Mounting Plate to TractorImg
Alts
Select
Ref.
6Qty
2Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Select
Ref.
Qty
2Availability
Part #
88044Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2'', Pump to Mounting Plate, 19-430Img
Alts
Select
Ref.
Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, , Pump to Mounting Plate, 19-430 3/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; G5, 3/8''-16, Pump to Mounting PlateImg
Alts
Select
Ref.
7Qty
2Availability
Part #
9707516Description
BOLT 1/2''-13 x 1-3/4'', Gr 5; Pump to Mounting Plate, 19-538 Hex, 1/2''-13 x 1 3/4'', G5Img
Alts
Select
Ref.
8Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, , Pump to Mounting Plate, 19-538 1/2''Img
Alts
Select
Ref.
9Qty
2Availability
Part #
280431Description
NUT 1/2''-13, G5; Pump to Mounting Plate, 19-538 1/2''-13, G5Img
Alts
Select
Ref.
10Qty
1Availability
Part #
570186Description
O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 90 Duro, 1.475'' ID x .118'' ThkImg
Alts
Select
Ref.
11Qty
1Availability
Part #
291328Description
TESTER; Connector, Hose, 1-5/8''-12Img
Alts
Select
Ref.
12Qty
2Availability
Part #
196646Description
HOSE 37.3mm ID x 76.2mm L, SAE 20R1;Img
Alts
Select
Ref.
13Qty
4Availability
Part #
82012728Description
HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, , Assy, Hose to Connector & Tube #40, 2.06/3.00 Type F WormImg
Alts
Select
Ref.
14Qty
1Availability
Part #
291960Description
HYDRAULIC VALVE; Tube, Suction, 19-430Img
Alts
Select
Ref.
16Qty
4Availability
Part #
81843615Description
SCREW; Bolt, Plow, G5, 5/8''-11 x 1-3/4'', AdapterImg
Alts
Select
Ref.
17Qty
4Availability
Part #
301226S36Description
SCREW; Bolt, Plow, 5/8''-11 x 7'', AdapterImg
Alts
Select
Ref.
18Qty
8Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Select
Ref.
19Qty
8Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Adapter Plate to LoaderImg
Alts
