007 - HYDRAULIC LINES & HOSES, GROUP 3-1 - 730-SERIES,19-425,19-426,19-427,19-512,19-513,19-528,19-529
TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
  • 1
    1
    NSS
    NOT SOLD SEPARAT; Valve Assy., Control, Refer to Fig. 031 for Breakdown
  • 3
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4'', Valve to Frame
  • 3
    80680
    SICHERUNGSSCHEIBE 3/8 0.381 CST ZND; WASHER, LOCK, , Valve to Frame 3/8''
  • 2
    1
    86505727

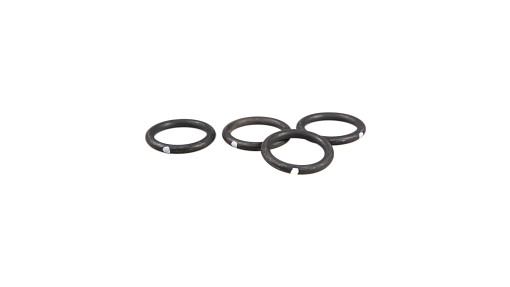

    JOINT TORIQUE 0.139'' Thk x 0.796'' ID, -211, Cl 5, 75 Duro; Valve Seal
  • 3
    1
    290862
    SOUPAPE HYDRAULIQUE; Valve Assy., Restrictor, Includes: Ref. 4 & 5
  • 4
    1
    290863
    GUIDE DE COULISSAGE; Slide, Restrictor Valve
  • 5
    1
    167269

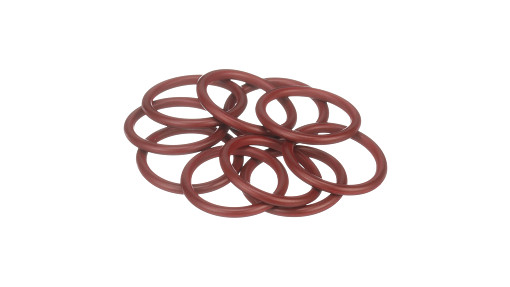

    JOINT TORIQUE 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
  • 6
    2
    330345

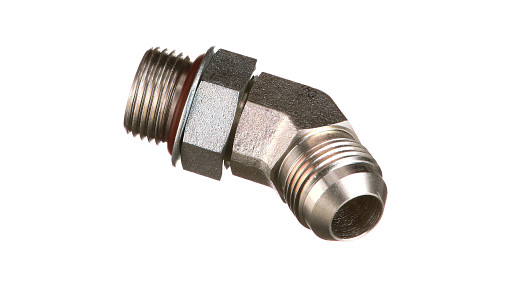

    COUDE A 45° 45 Degree, 7/8''-14 x 7/8''-14, O-Ring; Assy., Adjusting, 45?
  • 7
    2
    378240S36
    CONECTOR HIDRÁUL; Connector, 7/8''-14, 37? Flare
  • 8
    1
    114458
    CONECTOR HIDRÁUL; Connector, 7/8''-14 to 1-3/16''-12, 37? Flare
  • 9
    5
    167269
    JOINT TORIQUE 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
  • 10
    1
    291457
    TUYAU HYDRAULIQUE 8.5, 4.2'' Length; Tube Assy., Valve to Lift Cylinder, Lower, 19-425,19-426,19-512,19-513,19-528,19-529
  • 11
    1
    291458
    TUYAU HYDRAULIQUE 0.625'' OD, 10.25, 5'' Length; Tube Assy., Valve to Lift Cylinder, Upper, 19-425,19-426,19-512,19-513,19-528,19-529
  • 11
    1
    291459
    TUBE; Assy., Valve to Lift Cylinder, Upper, 19-427;No Longer Serviced
  • 12
    2
    378237S8
    ADAPTATEUR; 7/8''-14, 37? Flare to 3/8'' NPT, 19-425,19-426,19-512,19-513,19-528,19-529
  • 12
    1
    378237S8
    ADAPTATEUR; 7/8''-14, 37? Flare to 3/8'' NPT, 19-427
  • 13
    1
    7700181
    TUBE; Assy., Lift Cylinder Supply, 19-425,19-426,19-512,19-513,19-528,19-529
  • 14
    1
    7700182
    TUBE; Assy., Lift Cylinder Supply
  • 15
    2
    292838
    HOSE 9.53mm ID x 161.29mm L; Hose Assy., 24'', 19-425,19-426,19-512,19-513,19-528,19-529
  • 16
    2
    86555465
    HOSE; Assy., 35''
  • 17
    2
    NSS
    NOT SOLD SEPARAT; Cylinder Assy., Lift D.A., Refer to Fig. 026 & 029 For Breakdown, 19-425,19-426,19-512,19-513,19-528,19-529
  • 17
    2
    NSS
    PAS VENDU SÉPARÉMENT; Cylinder Assy., Lift S.A., Refer to Fig. 026 & 029 For Breakdown, 19-427
  • 18
    2
    291481
    FLEXIBLE; Assy., 26''
  • 19
    1
    290360
    TUYAU HYDRAULIQUE 49, 31.25'' Length; Tube Assy., Bucket Cylinder, Extending
  • 20
    1
    291493
    TUBE; Assy., Bucket Cylinder, Retracting
  • 21
    4
    292838
    FLEXIBLE 9.53mm ID x 161.29mm L; Hose Assy., 24''
  • 22
    2
    NSS
    PAS VENDU SÉPARÉMENT; Cylinder Assy., Bucket, Refer to Fig. 026 for Breakdown
  • 23
    1
    291460
    TUBE 0.875'' OD, 16.5, 15.75'' Length; Assy., Pressure, Rear
  • 24
    1
    7700235
    RIGID TUBE; Tube Assy., Pressure, Front, 19-425,19-426,19-427,19-512,19-513
  • 24
    1
    7701129
    RIGID TUBE; Tube Assy., Pressure, Front, 19-528,19-529
  • 26
    1
    7701130
    PIPE; Tube, Suction;Not included W/Models in this Fig., Parts ar components of Attaching & Hydraulic Kits, Groups 4-2 & 4-3 (19-540,19-564)
  • 27
    2
    196646

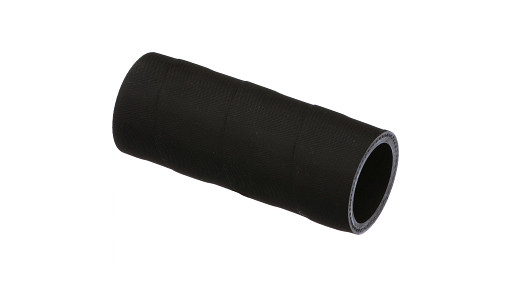

    HOSE 37.3mm ID x 76.2mm L, SAE 20R1; Suction Tube;Not included W/Models in this Fig., Parts ar components of Attaching & Hydraulic Kits, Groups 4-2 & 4-3 (19-540,19-564)
  • 28
    4
    82012728

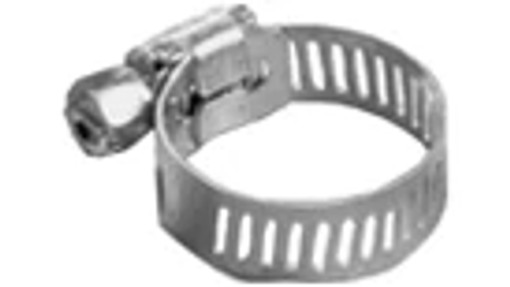

    BRIDE, FLEXIBLE 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm;Not included W/Models in this Fig., Parts ar components of Attaching & Hydraulic Kits, Groups 4-2 & 4-3 (19-540,19-564)
  • 29
    1
    290991
    RESSORT; Suction Hose;Not included W/Models in this Fig., Parts ar components of Attaching & Hydraulic Kits, Groups 4-2 & 4-3 (19-540,19-564)
