3600 - 3 CYL AG TRACTOR A... 01 - ENGINE 06A01 - CYLINDER BLOCK, H...
06A01 - CYLINDER BLOCK, HEAD & RELATED PARTS, GASOLINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    E6NN6009AXA
    SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 231, 2600; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982
  • 1
    1
    E6NN6009AYA
    SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 3600, 335, 420;When replacing prior level blocks with E6-Level, Stepped Stud Kit, FP115 is also required.; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982
  • 1
    1
    D5NN6009A
    SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 4600, 515, 531, 535; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982
  • 1A
    1
    D3NN6049H
    CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 335, 420, 515, 531, 535, 3600, 4600; (Prod Date) Between 01-Jan-1975 and 31-May-1976
  • 1A
    1
    D3NN6049J
    CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 6600; (Prod Date) Between 01-Jan-1975 and 31-May-1976
  • 1A
    1
    D5NN6049K
    CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 231, 2600; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982
  • 1A
    1
    E4NN6049CC
    CYLINDER HEAD; Head Assy., Cylinder, Use W/E4NN6051AA, Includes: Ref. 3 thru 5, 335, 420, 515, 531, 535, 3600, 4600; (Prod Date) Between 01-Jun-1976 and 30-Apr-1982
  • 3
    3/4
    83909432
    VALVE SEAT; Insert, Exhaust Valve Seat, Standard; (Prod Date) From 01-Jan-1975
  • 3
    AR
    D4NN6057B
    INSERT; Exhaust Valve Seat, .010'' (.254mm) O/S; (Prod Date) From 01-Jan-1975
  • 3
    AR
    D4NN6057C
    INSERT; Exhaust Valve Seat, .020'' (.508mm) O/S; (Prod Date) From 01-Jan-1975
  • 3
    AR
    87800559
    INSERT; Exhaust Valve Seat, .030'' (.762mm) O/S; (Prod Date) From 01-Jan-1975
  • 4
    1
    83957025
    PLUG; 1.75'' (44.5mm); (Prod Date) From 01-Jan-1975
  • 5
    3/4
    380391S
    PLUG; Cup, .875 to .877 OD; (Prod Date) From 01-Jan-1975
  • 6
    1
    C4AH10884A
    SENDER UNIT; Sender Assy., Water Temp. Indicator; (Prod Date) Between 01-Jan-1975 and 31-May-1976
  • 6
    1
    D5NN10884A
    SENDER UNIT; Sender Assy., Water Temp. Indicator; (Prod Date) Between 01-Jun-1976 and 31-May-1979
  • 6
    1
    9712608
    TEMPERATURE SENDER 3/8'' - 18; Sender Assy., Water Temperature Indicator; (Prod Date) From 01-Jun-1979
  • AR
    383442S
    PLUG; .931 OD Cup, Used for O/S Hole in Hd., Service Only; (Prod Date) Between 01-Jan-1975 and 31-May-1975
  • AR
    83957026
    PLUG; 1.81'', 46.0mm, Service Only; (Prod Date) From 01-Jan-1975
  • AR
    83957022
    PLUG; 1.18'', 30.0mm, Service Only; (Prod Date) From 01-Jan-1975
  • 7
    10/13
    83907721
    BOLT; HH, 1/2''-13 x 4.75 (Replaces D5NN6065C); (Prod Date) From 01-Jan-1975
  • 10/13
    377490S
    WASHER 13.46mm ID x 26.98mm OD x 4.32mm Thk; Flat, 1/2''; (Prod Date) From 01-Jan-1975
  • 8
    2
    83960218
    BUSHING 15.16mm ID x 17.21mm OD x 11.2mm L; Dowell, Split, .676'' x .44''; (Prod Date) From 01-Jan-1975
  • 9
    1
    82845222

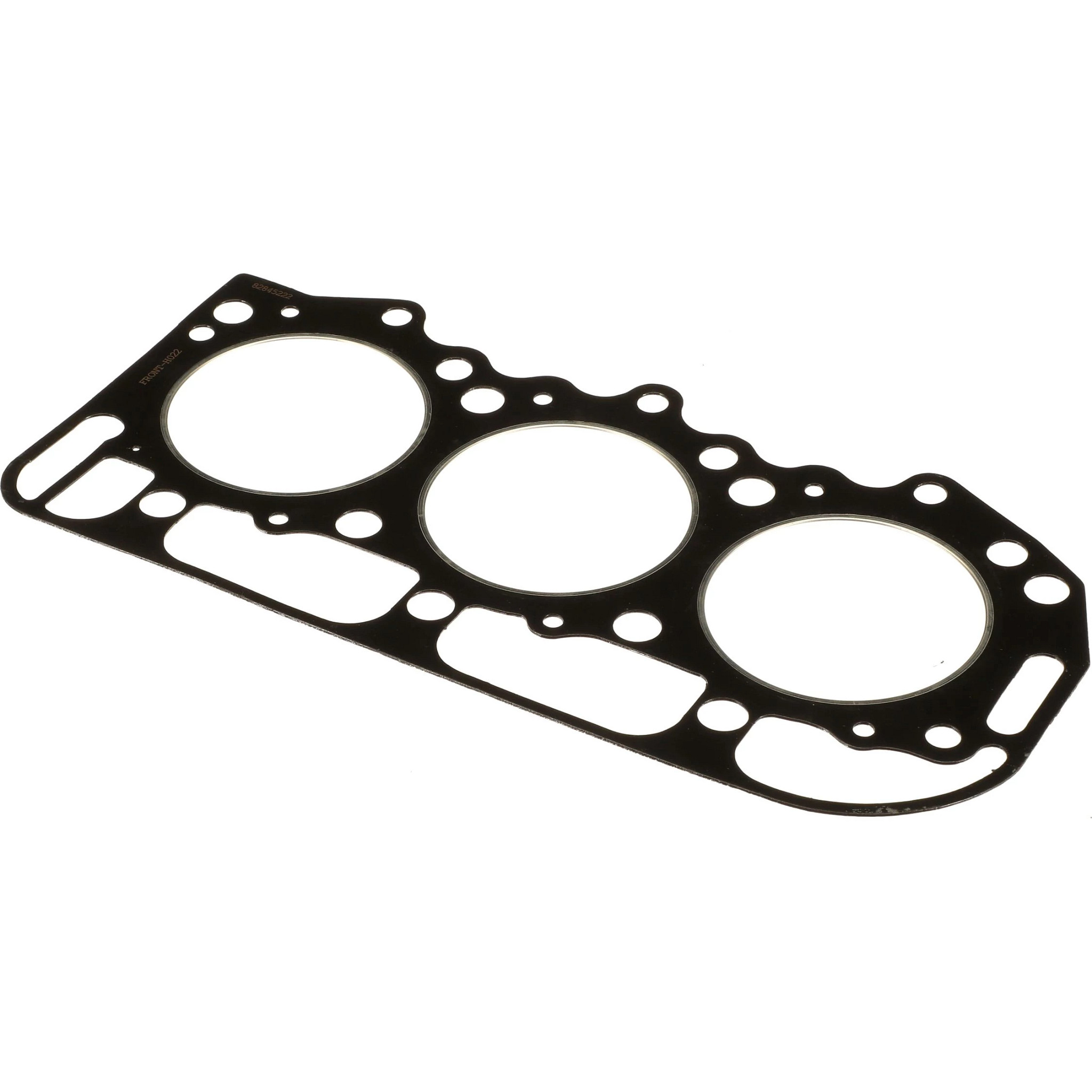

    CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 231, 2600, 335, 3600, 420; (Prod Date) From 01-Jan-1975
  • 9
    1
    82845201
    CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 4600, 515, 531, 535; (Prod Date) From 01-Jan-1975
  • 9
    1
    82845202
    CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 6600; (Prod Date) From 01-Jan-1975
  • 9
    1
    87801653
    CYLINDER HEAD GASKET 1.8mm Thk; Gasket, Use W/E4NN6049CC; (Prod Date) From 01-Jan-1975
  • 10
    1
    D3NN6C052A
    COVER; Water Outlet; (Prod Date) From 01-Jan-1975
  • 10
    1
    D5NN6C052A
    COVER; Water Outlet, W/Cab; (Prod Date) From 01-Apr-1974
  • 2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1975
  • 11
    2
    304701S36
    SCREW; Cap, HH, G5, 5/16''-18 x 1-1/8''; (Prod Date) From 01-Jan-1975
  • 12
    1
    E6NN6010DA
    CYLINDER BLOCK; Block Assy., Cylinder, 6600, Includes: Ref. 13 thru 19;When Replacing E1NN6010FE And E1NN6010KE With E6NN6010CA, The Following Additional Parts Are Required: (1) E5HN6N306AB, (1) E5HN6N305AC, (1) E5NN6701BA, (1) E6NN6269AA, (1) FP115, (8) 34791S36, (2) 34792S36, (8) 304682S36.; (Prod Date) Between 01-Jan-1975 and 31-May-1976
  • 12
    1
    E2NN6010AC
    BLOCK; Assy., Cylinder, 231, 2600, 335, 3600, 420, Includes: Ref. 13 thru 19;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975
  • 12
    1
    E2NN6010BD
    CYLINDER BLOCK; Block Assy., Cylinder, 4600, 515, 531, 535, Includes: Ref. 13 thru 19;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975
  • 13
    2
    83957025
    PLUG; 1.75'' (44.5mm); (Prod Date) From 01-Jan-1975
  • 13
    2
    83957023
    PLUG; 1.50'' (38.0mm); (Prod Date) From 01-Jan-1975
  • 13
    AR
    83957024
    CUP PLUG 1.57''; PLUG, CUP, (39.6mm), Service Only 1.57''; (Prod Date) From 01-Jan-1975
  • 14
    1
    502046
    PLUG; Pipe, 1/8''-27; (Prod Date) From 01-Jan-1975
  • 15
    2
    80781
    PLUG 3/8'' - 18 NPT; Pipe, Sq Hd, 3/8''-18;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975
  • 16
    2
    81808472
    DOWEL; Pin, 3/8'' x 1-1/8''; (Prod Date) From 01-Jan-1975
  • 17
    2
    378336S36
    PLUG; Cup; (Prod Date) From 01-Jan-1975
  • 18
    8/10
    379548S

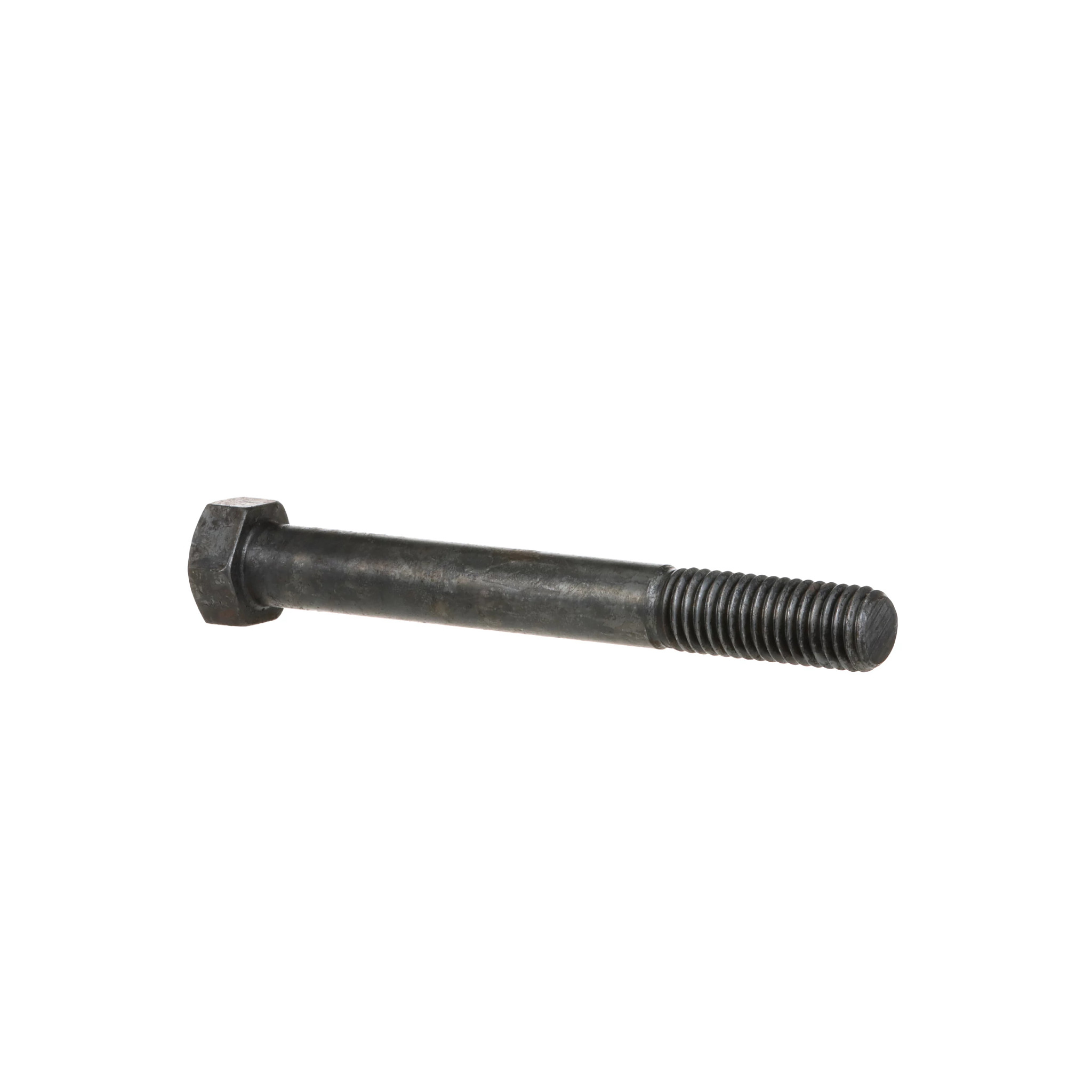

    BOLT; HH, 9/16''-12 x 4.45; (Prod Date) From 01-Jan-1975
  • 19
    4/5
    87800499
    CAMSHAFT BEARING; Bearing, Camshaft Front; (Prod Date) From 01-Jan-1975
  • 19A
    3
    C5NN6055A
    SLEEVE; Block, 4.2'' Bore, 4.1 ID x 4.32 OD; (Prod Date) From 01-Jan-1975
  • 19A
    3/4
    D7NN6055A
    LINER, ENGINE CYLIND; Sleeve, Block, 4.4'' Bore, 4.3 ID x 4.5 OD; (Prod Date) From 01-Jan-1975
  • 19A
    AR
    D0NN6055A
    SLEEVE; Block, Use W/Blocks Rebored to 4.4'' (111.76mm) 4.19 ID x 4.40 OD, Service Only; (Prod Date) From 01-Jan-1975
  • 20
    1
    81465471
    DRAINCOCK/TAP SUPPLY; Draincock; (Prod Date) From 01-Jan-1975
  • 21
    1
    86584393
    TUBE 0.38'' OD x 4.46'' L; Oil Level Indicator, 4.46'' (62.5mm) Long; (Prod Date) From 01-Jan-1975
  • 22
    1
    87801534
    DIPSTICK; Indicator, Oil Level; (Prod Date) From 01-Jan-1975
  • 23
    1
    D9NN6059BA
    COVER; Cylinder Front; (Prod Date) From 01-Jan-1975
  • 24
    1
    83907851
    FILLER CAP; Cap Assy., Oil Filler; (Prod Date) From 01-Jan-1975
  • 25
    1
    83959876
    GASKET 0.89mm Thk; Front Cover; (Prod Date) From 01-Jan-1975
  • 26
    1
    E5NN6C044BA
    PLATE; Front Cover; (Prod Date) From 01-Jan-1975
  • 27
    1
    E6NN6C045BA
    GASKET; Front Plate; (Prod Date) From 01-Jan-1975
  • 28
    2
    88346
    BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; w/Washer Hex, 5/16''-18 x 2 1/2'', G5; (Prod Date) From 01-Jan-1975
  • 28
    12
    378339S36
    SCREW Hex, 5/16'' - 18 x 2.12''; & Washer Assy., 5/16-18 x 2-1/2''; (Prod Date) From 01-Jan-1975
  • 29
    1
    88346
    BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; w/Washer Hex, 5/16''-18 x 2 1/2'', G5; (Prod Date) From 01-Jan-1975
  • 30
    4
    45964S36
    SCREW; Cap, HH, G5, Self-Locking, 5/16''-18 x 3/4''; (Prod Date) From 01-Jan-1975
  • 31
    1
    E5NN6A373AB
    PLATE; Rear Cover; (Prod Date) From 01-Jan-1975
  • 32
    1
    C7NN6N008B
    GASKET 3.3mm Thk; Bolt to Rear Engine Plate; (Prod Date) From 01-Jan-1975
  • 33
    2
    86505157
    STRAIGHT PIN 1/2'' x 1''; Block Flywheel Housing 1/2'' x 1''; (Prod Date) From 01-Jan-1975
  • 34
    3
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1975
  • 35
    3
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''; (Prod Date) From 01-Jan-1975
  • 36
    1
    81804217
    COVER; Flywheel Access; (Prod Date) From 01-Jan-1975
  • 37
    1
    43392S36
    SCREW; & Washer Assy., 5/16-18 x 5/8 Fill. Hd.; (Prod Date) From 01-Jan-1975
  • 38
    1
    C7NND852A
    COVER; Hydraulic Pump Flange, L/Hd. Pump; (Prod Date) From 01-Jan-1975
  • 39
    1
    81822547
    GASKET 1.52mm Thk; Hydraulic Pump Flange Cover; (Prod Date) From 01-Jan-1975
  • 40
    4
    81818852
    SCREW; HH, W/Washer, 3/8''-16 x 7/8''; (Prod Date) From 01-Jan-1975
  • 41
    1
    C5NE3B681A
    COVER; Power Steering Pump, L/Power Steering; (Prod Date) From 01-Jan-1975
  • 42
    1
    379275S94
    O-RING 0.103'' Thk x 3.237'' ID, -152, Cl 5, 75 Duro; 3.237 ID x .103 Width; (Prod Date) From 01-Jan-1975
  • 43
    2
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1975
  • 44
    2
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16; (Prod Date) From 01-Jan-1975
  • 45
    2
    P0301634
    BOLT; HH, 3/8-16 x 2.50; (Prod Date) From 01-Jan-1975
  • 46
    1
    81814206
    DEFLECTOR; Fan Air LH; (Prod Date) From 01-Jan-1975
  • 47
    2
    E8NN8N630AA
    DEFLECTOR; Fan Air LH & RH, L/Cab; (Prod Date) From 01-Jan-1975
  • 47
    1
    E8NN8N630AA
    DEFLECTOR; Fan Air RH, W/Cab; (Prod Date) From 01-Apr-1976
  • 48
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1975
  • 49
    2
    9635082
    NUT 5/16'' - 18, Gr 5; G5, 5/16''-18; (Prod Date) From 01-Jan-1975
  • 50
    1
    D0NN6890A
    INSERT; Oil Filter Mounting; (Prod Date) From 01-Jan-1975
  • 51
    1
    86546614
    ENGINE OIL FILTER; Filter, Engine Oil, Spin-on 1 quart, Exc. 6600C; (Prod Date) From 01-Jan-1975
  • 51
    1
    86546614DS
    ENGINE OIL FILTER; Filter, Engine Oil, Spin-on 1 quart, Exc. 6600C
  • 51
    1
    86546617
    ENGINE OIL FILTER; Filter Assy., Oil, Spin-on 1 quart, 6600C; (Prod Date) From 01-Jan-1975
Select All

Select

Ref.

1

Qty

1

Availability

Part #

E6NN6009AXA

Description

SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 231, 2600; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982


Alts

Select

Ref.

1

Qty

1

Availability

Part #

E6NN6009AYA

Description

SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 3600, 335, 420;When replacing prior level blocks with E6-Level, Stepped Stud Kit, FP115 is also required.; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982


Alts

Select

Ref.

1

Qty

1

Availability

Part #

D5NN6009A

Description

SHORT ENGINE; Engine Assy., Cylinder Block & Crankshaft, 4600, 515, 531, 535; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982


Alts

Select

Ref.

1A

Qty

1

Availability

Part #

D3NN6049H

Description

CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 335, 420, 515, 531, 535, 3600, 4600; (Prod Date) Between 01-Jan-1975 and 31-May-1976


Alts

Select

Ref.

1A

Qty

1

Availability

Part #

D3NN6049J

Description

CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 6600; (Prod Date) Between 01-Jan-1975 and 31-May-1976


Alts

Select

Ref.

1A

Qty

1

Availability

Part #

D5NN6049K

Description

CYLINDER HEAD; Head Assy., Cylinder, Includes: Ref. 3 thru 5, 231, 2600; (Prod Date) Between 01-Jan-1975 and 30-Apr-1982


Alts

Select

Ref.

1A

Qty

1

Availability

Part #

E4NN6049CC

Description

CYLINDER HEAD; Head Assy., Cylinder, Use W/E4NN6051AA, Includes: Ref. 3 thru 5, 335, 420, 515, 531, 535, 3600, 4600; (Prod Date) Between 01-Jun-1976 and 30-Apr-1982


Alts

Select

Ref.

3

Qty

3/4

Availability

Part #

83909432

Description

VALVE SEAT; Insert, Exhaust Valve Seat, Standard; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

3

Qty

AR

Availability

Part #

D4NN6057B

Description

INSERT; Exhaust Valve Seat, .010'' (.254mm) O/S; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

3

Qty

AR

Availability

Part #

D4NN6057C

Description

INSERT; Exhaust Valve Seat, .020'' (.508mm) O/S; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

3

Qty

AR

Availability

Part #

87800559

Description

INSERT; Exhaust Valve Seat, .030'' (.762mm) O/S; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

4

Qty

1

Availability

Part #

83957025

Description

PLUG; 1.75'' (44.5mm); (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

5

Qty

3/4

Availability

Part #

380391S

Description

PLUG; Cup, .875 to .877 OD; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

6

Qty

1

Availability

Part #

C4AH10884A

Description

SENDER UNIT; Sender Assy., Water Temp. Indicator; (Prod Date) Between 01-Jan-1975 and 31-May-1976


Alts

Select

Ref.

6

Qty

1

Availability

Part #

D5NN10884A

Description

SENDER UNIT; Sender Assy., Water Temp. Indicator; (Prod Date) Between 01-Jun-1976 and 31-May-1979


Alts

Select

Ref.

6

Qty

1

Availability

Part #

9712608

Description

TEMPERATURE SENDER 3/8'' - 18; Sender Assy., Water Temperature Indicator; (Prod Date) From 01-Jun-1979


Alts

Select

Ref.

Qty

AR

Availability

Part #

383442S

Description

PLUG; .931 OD Cup, Used for O/S Hole in Hd., Service Only; (Prod Date) Between 01-Jan-1975 and 31-May-1975


Alts

Select

Ref.

Qty

AR

Availability

Part #

83957026

Description

PLUG; 1.81'', 46.0mm, Service Only; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

Qty

AR

Availability

Part #

83957022

Description

PLUG; 1.18'', 30.0mm, Service Only; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

7

Qty

10/13

Availability

Part #

83907721

Description

BOLT; HH, 1/2''-13 x 4.75 (Replaces D5NN6065C); (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

Qty

10/13

Availability

Part #

377490S

Description

WASHER 13.46mm ID x 26.98mm OD x 4.32mm Thk; Flat, 1/2''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

8

Qty

2

Availability

Part #

83960218

Description

BUSHING 15.16mm ID x 17.21mm OD x 11.2mm L; Dowell, Split, .676'' x .44''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

9

Qty

1

Availability

Part #

82845222

Description

CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 231, 2600, 335, 3600, 420; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

9

Qty

1

Availability

Part #

82845201

Description

CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 4600, 515, 531, 535; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

9

Qty

1

Availability

Part #

82845202

Description

CYLINDER HEAD GASKET; Gasket, Hd., .037'' (.940mm) Thick, 6600; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

9

Qty

1

Availability

Part #

87801653

Description

CYLINDER HEAD GASKET 1.8mm Thk; Gasket, Use W/E4NN6049CC; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

10

Qty

1

Availability

Part #

D3NN6C052A

Description

COVER; Water Outlet; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

10

Qty

1

Availability

Part #

D5NN6C052A

Description

COVER; Water Outlet, W/Cab; (Prod Date) From 01-Apr-1974


Alts

Select

Ref.

Qty

2

Availability

Part #

80681

Description

LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

11

Qty

2

Availability

Part #

304701S36

Description

SCREW; Cap, HH, G5, 5/16''-18 x 1-1/8''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

12

Qty

1

Availability

Part #

E6NN6010DA

Description

CYLINDER BLOCK; Block Assy., Cylinder, 6600, Includes: Ref. 13 thru 19;When Replacing E1NN6010FE And E1NN6010KE With E6NN6010CA, The Following Additional Parts Are Required: (1) E5HN6N306AB, (1) E5HN6N305AC, (1) E5NN6701BA, (1) E6NN6269AA, (1) FP115, (8) 34791S36, (2) 34792S36, (8) 304682S36.; (Prod Date) Between 01-Jan-1975 and 31-May-1976


Alts

Select

Ref.

12

Qty

1

Availability

Part #

E2NN6010AC

Description

BLOCK; Assy., Cylinder, 231, 2600, 335, 3600, 420, Includes: Ref. 13 thru 19;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

12

Qty

1

Availability

Part #

E2NN6010BD

Description

CYLINDER BLOCK; Block Assy., Cylinder, 4600, 515, 531, 535, Includes: Ref. 13 thru 19;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

13

Qty

2

Availability

Part #

83957025

Description

PLUG; 1.75'' (44.5mm); (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

13

Qty

2

Availability

Part #

83957023

Description

PLUG; 1.50'' (38.0mm); (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

13

Qty

AR

Availability

Part #

83957024

Description

CUP PLUG 1.57''; PLUG, CUP, (39.6mm), Service Only 1.57''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

14

Qty

1

Availability

Part #

502046

Description

PLUG; Pipe, 1/8''-27; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

15

Qty

2

Availability

Part #

80781

Description

PLUG 3/8'' - 18 NPT; Pipe, Sq Hd, 3/8''-18;When Replacing Engines Or Blocks Built 75/5-76, Hole At Filter Port On Replacing Engine Or Block Must Be Plugged With 80781 Plug.; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

16

Qty

2

Availability

Part #

81808472

Description

DOWEL; Pin, 3/8'' x 1-1/8''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

17

Qty

2

Availability

Part #

378336S36

Description

PLUG; Cup; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

18

Qty

8/10

Availability

Part #

379548S

Description

BOLT; HH, 9/16''-12 x 4.45; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

19

Qty

4/5

Availability

Part #

87800499

Description

CAMSHAFT BEARING; Bearing, Camshaft Front; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

19A

Qty

3

Availability

Part #

C5NN6055A

Description

SLEEVE; Block, 4.2'' Bore, 4.1 ID x 4.32 OD; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

19A

Qty

3/4

Availability

Part #

D7NN6055A

Description

LINER, ENGINE CYLIND; Sleeve, Block, 4.4'' Bore, 4.3 ID x 4.5 OD; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

19A

Qty

AR

Availability

Part #

D0NN6055A

Description

SLEEVE; Block, Use W/Blocks Rebored to 4.4'' (111.76mm) 4.19 ID x 4.40 OD, Service Only; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

20

Qty

1

Availability

Part #

81465471

Description

DRAINCOCK/TAP SUPPLY; Draincock; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

21

Qty

1

Availability

Part #

86584393

Description

TUBE 0.38'' OD x 4.46'' L; Oil Level Indicator, 4.46'' (62.5mm) Long; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

22

Qty

1

Availability

Part #

87801534

Description

DIPSTICK; Indicator, Oil Level; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

23

Qty

1

Availability

Part #

D9NN6059BA

Description

COVER; Cylinder Front; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

24

Qty

1

Availability

Part #

83907851

Description

FILLER CAP; Cap Assy., Oil Filler; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

25

Qty

1

Availability

Part #

83959876

Description

GASKET 0.89mm Thk; Front Cover; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

26

Qty

1

Availability

Part #

E5NN6C044BA

Description

PLATE; Front Cover; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

27

Qty

1

Availability

Part #

E6NN6C045BA

Description

GASKET; Front Plate; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

28

Qty

2

Availability

Part #

88346

Description

BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; w/Washer Hex, 5/16''-18 x 2 1/2'', G5; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

28

Qty

12

Availability

Part #

378339S36

Description

SCREW Hex, 5/16'' - 18 x 2.12''; & Washer Assy., 5/16-18 x 2-1/2''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

29

Qty

1

Availability

Part #

88346

Description

BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; w/Washer Hex, 5/16''-18 x 2 1/2'', G5; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

30

Qty

4

Availability

Part #

45964S36

Description

SCREW; Cap, HH, G5, Self-Locking, 5/16''-18 x 3/4''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

31

Qty

1

Availability

Part #

E5NN6A373AB

Description

PLATE; Rear Cover; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

32

Qty

1

Availability

Part #

C7NN6N008B

Description

GASKET 3.3mm Thk; Bolt to Rear Engine Plate; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

33

Qty

2

Availability

Part #

86505157

Description

STRAIGHT PIN 1/2'' x 1''; Block Flywheel Housing 1/2'' x 1''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

34

Qty

3

Availability

Part #

80680

Description

LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

35

Qty

3

Availability

Part #

88434

Description

BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

36

Qty

1

Availability

Part #

81804217

Description

COVER; Flywheel Access; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

37

Qty

1

Availability

Part #

43392S36

Description

SCREW; & Washer Assy., 5/16-18 x 5/8 Fill. Hd.; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

38

Qty

1

Availability

Part #

C7NND852A

Description

COVER; Hydraulic Pump Flange, L/Hd. Pump; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

39

Qty

1

Availability

Part #

81822547

Description

GASKET 1.52mm Thk; Hydraulic Pump Flange Cover; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

40

Qty

4

Availability

Part #

81818852

Description

SCREW; HH, W/Washer, 3/8''-16 x 7/8''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

41

Qty

1

Availability

Part #

C5NE3B681A

Description

COVER; Power Steering Pump, L/Power Steering; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

42

Qty

1

Availability

Part #

379275S94

Description

O-RING 0.103'' Thk x 3.237'' ID, -152, Cl 5, 75 Duro; 3.237 ID x .103 Width; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

43

Qty

2

Availability

Part #

80680

Description

LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

44

Qty

2

Availability

Part #

9628503

Description

NUT 3/8'' - 16, Gr 5; G5, 3/8''-16; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

45

Qty

2

Availability

Part #

P0301634

Description

BOLT; HH, 3/8-16 x 2.50; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

46

Qty

1

Availability

Part #

81814206

Description

DEFLECTOR; Fan Air LH; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

47

Qty

2

Availability

Part #

E8NN8N630AA

Description

DEFLECTOR; Fan Air LH & RH, L/Cab; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

47

Qty

1

Availability

Part #

E8NN8N630AA

Description

DEFLECTOR; Fan Air RH, W/Cab; (Prod Date) From 01-Apr-1976


Alts

Select

Ref.

48

Qty

2

Availability

Part #

80681

Description

LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

49

Qty

2

Availability

Part #

9635082

Description

NUT 5/16'' - 18, Gr 5; G5, 5/16''-18; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

50

Qty

1

Availability

Part #

D0NN6890A

Description

INSERT; Oil Filter Mounting; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

51

Qty

1

Availability

Part #

86546614

Description

ENGINE OIL FILTER; Filter, Engine Oil, Spin-on 1 quart, Exc. 6600C; (Prod Date) From 01-Jan-1975


Alts

Select

Ref.

51

Qty

1

Availability

Part #

86546614DS

Description

ENGINE OIL FILTER; Filter, Engine Oil, Spin-on 1 quart, Exc. 6600C


Alts

Select

Ref.

51

Qty

1

Availability

Part #

86546617

Description

ENGINE OIL FILTER; Filter Assy., Oil, Spin-on 1 quart, 6600C; (Prod Date) From 01-Jan-1975


Alts
