4610 - 3 CYL AG TRACTOR A... 07 - HYDRAULIC SYSTEMS 10A02 - HYDRAULIC PUMP AS...
10A02 - HYDRAULIC PUMP ASSEMBLY, ENGINE MOUNTED, GEAR TYPE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    E1NN600AB
    HYDRAULIC PUMP; Pump Assy., 2310, 234, 2610, 3610; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 1
    E2NN600AB
    PUMP; Pump Assy., 2810, 2910, 3910, 4110, 4610, 4610O, 4610SU; (Prod Date) From 01-Apr-1983
  • 1
    83996336R
    REMAN-HYD PUMP HYD PUMP; 2810 (1/84-2/90), 2910 & 3910 (BOTH 5/83-2/90), 3910H & 3910N (BOTH 1/83-2/90), 3910R (1/81-12/84), 3910V (12/83-2/90), 4110N (12/81-2/90), 4110NO, 4110O, 4110V, 4610, 4610NO & 4610O (ALL 1/81-2/90), 4610SU (8/81-2/90) - ALL (START YEAR: 01-APR-83). Reman for New P/N E2NN600AB.
  • -
    83996336C
    CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return Number
  • 1
    1
    D4NN965C
    BODY; Includes: Ref. 2 thru 22;NH-E Only.; (Prod Date) From 01-Jan-1981
  • 2
    1
    E3NN877AA
    SUMP; Housing Assy., Includes: Ref. 3;No Longer Serviced, Must Order Pump Assy..; (Prod Date) From 01-Jan-1981
  • 2
    1
    83996272R
    REMAN-HYD PUMP 14.39 CC - GEAR ENGINE MOUNTED W/ FILTER; 4110NO, 4610NO, Both 3 CYL NARROW ORCHARD TRACTOR, 4110O, 4610O, Both 3 CYL ORCHARD TRACTOR, 4610SU 3 CYL SPECIAL UTILITY TRACTOR, All (1/81-2/90), 3910V (12/83-2/90), 4110V (1/81-2/90), Both 3 CYL VINEYARD TRACTOR, 2810 (1/84-2/90), 2910 (5/83-2/90), Both 3 CYL AG TRACTOR, 3910 (5/83-2/90), 4610 (1/81-2/90), All 3 CYL AG TRACTOR ALL PURPOSE, 3910H 3 CYL HIGHWAY TRACTOR (1/83-2/90), 3910N (1/83-2/90), 4110N (12/81-2/90), Both 3 CYL AG NARROW TRACTOR, 3910R 3 CYL AG RICE TRACTOR (1/81-12/84), All Housing Assy, Reman for New PN E3NN877AA
  • 2
    1
    83996272C
    CORE-HYDRAULIC PUMP 14.39 CC - GEAR ENGINE MOUNTED W/ FILTER; Return Number
  • 3
    2
    D4NNK989A
    BUSHING; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 4
    2
    83926108
    BEARING ASSY; .;NH-E Only.;No Longer Serviced, Must Order Pump Assy..; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 5
    1
    NSS
    NOT SOLD SEPARAT; Gear, Driven; (Prod Date) From 01-Jan-1981
  • 6A
    1
    83926113
    GEAR; Kit, Gear;NH-E Only.;No Longer Serviced, Must Order Pump Assy..; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 6
    1
    EFPNN660AA
    KIT; Gear, Drive;NH-E Only.; (Prod Date) From 01-Apr-1983
  • 7
    2
    D2NN3R542A
    O-RING 0.103'' Thk x 2.55'' ID, -145, Cl 6, 90 Duro; Seal; (Prod Date) From 01-Jan-1981
  • 8
    2
    D2NN3R543A
    O-RING 0.103'' Thk x 1.862'' ID, -134, Cl 6, 90 Duro; Seal;Use W/E1NN600AB (83996272).; (Prod Date) From 01-Jan-1981
  • 8
    2
    E0NNS844AA
    RING; Seal;Use W/E2NN600AA (E2NN600AA) or E2NN600AB (83996336).; (Prod Date) From 01-Jan-1981
  • 9
    2
    D4NNL833A
    STRIP; Back-up;Use W/E1NN600AB (83996272).; (Prod Date) From 01-Jan-1981
  • 9
    2
    E0NNE869AA
    RING; Strip, Nylon Back-Up;Use W/E2NN600AA (E2NN600AA) or E2NN600AB (83996336).; (Prod Date) From 01-Jan-1981
  • 10
    2
    E0NN3N529AA
    SEAL; Seal; (Prod Date) From 01-Apr-1981
  • 11
    1
    D4NN908C
    GEAR; (Prod Date) From 01-Jan-1981
  • 1
    84071
    WOODRUFF KEY #5, 1/8'' x 5/8''; Key, Woodruff #5, 1/8'' x 5/8''; (Prod Date) From 01-Jan-1981
  • 11A
    1
    957E994633
    WASHER; Washer, Lock, 7/16'', Retaining Tab; (Prod Date) From 01-Jan-1981
  • 11B
    1
    87891
    BHD LOCK NUT Jam, 7/16''-20, G2; Jam, G2, 7/16''-20; (Prod Date) From 01-Jan-1981
  • 12
    1
    D4NNL830A
    CIRCLIP; (Prod Date) From 01-Jan-1981
  • 13
    1
    D4NN636A
    PLUG; 63.5mm;Check dimension before ordering.; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 13
    2
    E3NN636AA
    COVER; Plug, 59.85mm;Check dimension before ordering.; (Prod Date) From 01-Apr-1983
  • 14
    1

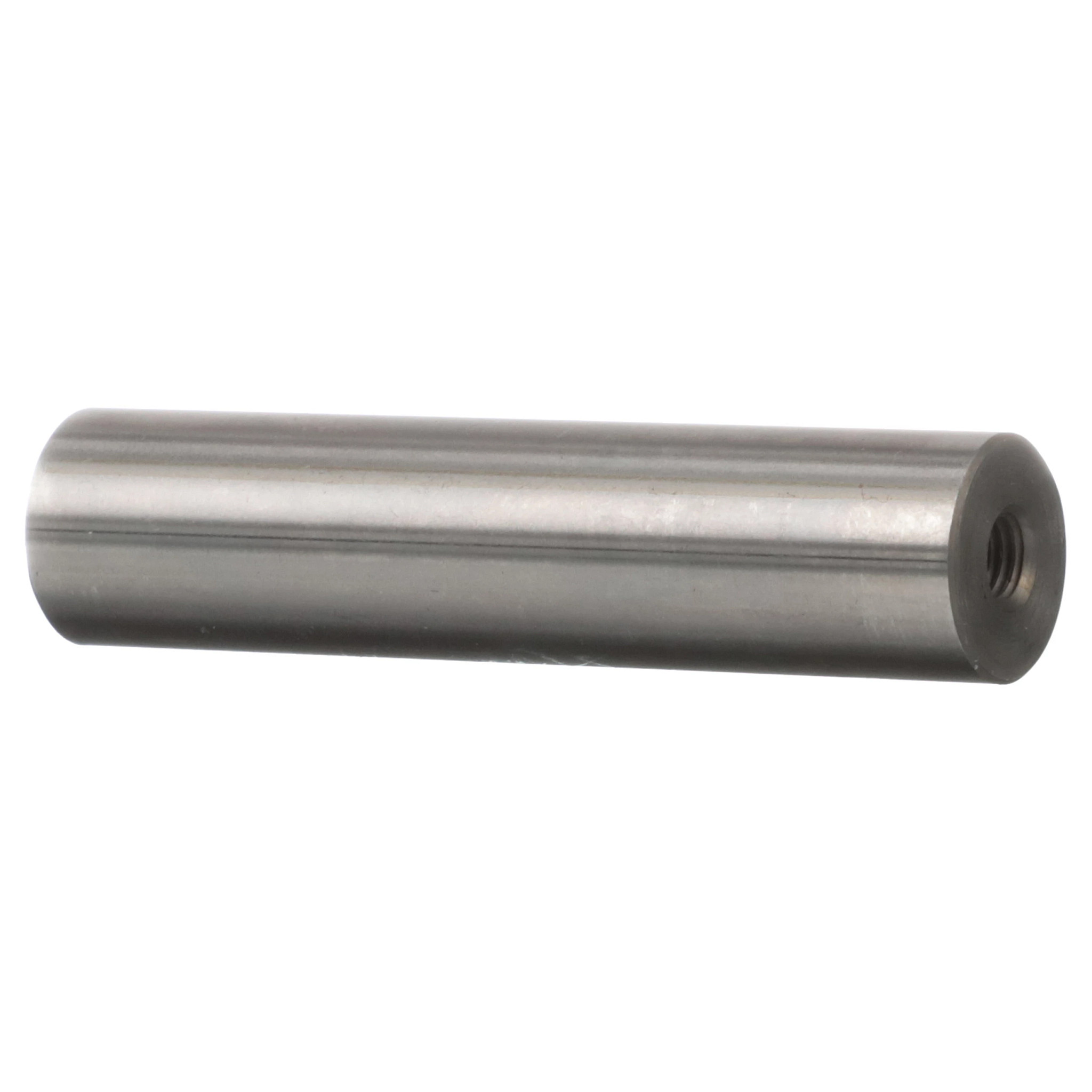

    D4NN872A
    SHAFT; (Prod Date) From 01-Jan-1981
  • 15
    1
    D4NN873A
    GEAR; (Prod Date) From 01-Jan-1981
  • 15A
    2
    D4NNK994A
    WASHER; (Prod Date) From 01-Jan-1981
  • 16
    1
    E3NNK991AA
    PLUG; (Prod Date) From 01-Jan-1981
  • 16
    1
    D4NNK991A
    PLUG; Use w/D4NN636A; (Prod Date) From 01-Jan-1981
  • 16A
    1

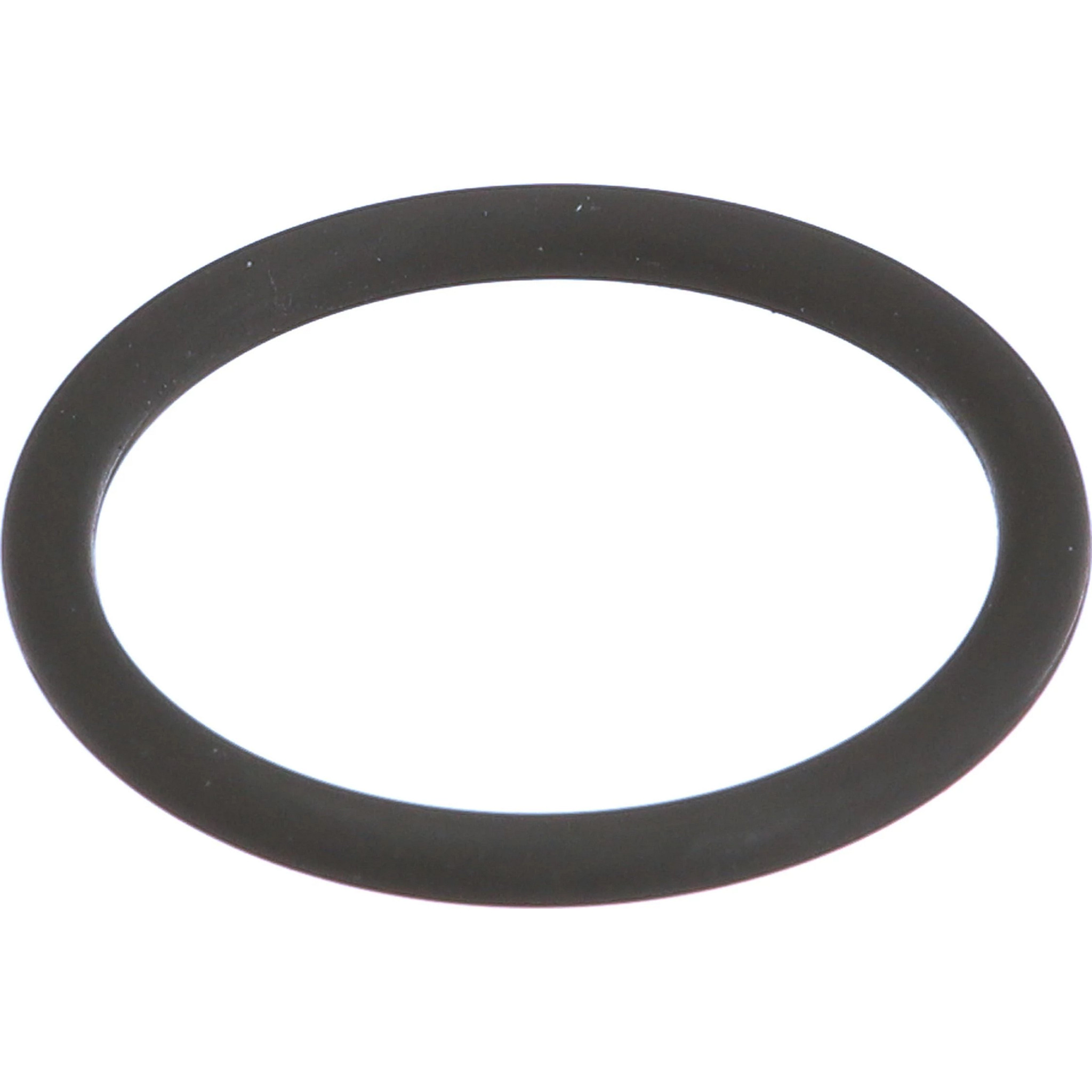

    E3NNT837AA
    O-RING; Seal; (Prod Date) From 01-Jan-1981
  • 16A
    1
    14453981
    O-RING 25.1mm ID x 1.78mm Thk, FKM; -022, Cl 7, .989 '' ID x .070'' Thk, Use w/D4NNK991A
  • 16B
    1
    D8NNK990AA
    CIRCLIP; (Prod Date) From 01-Jan-1981
  • 17
    1
    D4NNN619B
    COVER; (Prod Date) From 01-Jan-1981
  • 18
    4
    C5NN3N532A
    SLEEVE; (Prod Date) From 01-Jan-1981
  • 19
    4
    D4NND931A
    BOLT; 3/8''-16 x 4.35''; (Prod Date) From 01-Jan-1981
  • 20
    4
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jan-1981
  • 21
    1
    D4NNH972A
    ADAPTER; (Prod Date) From 01-Jan-1981
  • 22
    1
    134372
    O-RING 28.2mm ID x 3.53mm Thk, NBR; 1.109'' ID x .139'' Thk;Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 23
    1
    E4NN911AA
    GASKET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 24
    4
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8'';Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 25
    2
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2'';Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 26
    1
    385894S36
    BOLT; 3/8''-16 x 1-1/2'';Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 27
    1
    353374S36
    BOLT; 3/8''-16 x 2-3/8'';Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 28
    1
    D6NNB486A
    FILTER; Assy., w/Vertical Exhaust;NH-E Only.; (Prod Date) From 01-Jan-1981
  • 28
    1
    D8NNB486CA
    HYDRAULIC OIL FILTER; Filter Assy., w/Vertical Exhaust;Included in Kit EGPN600A (83955397).;NHNA Only.; (Prod Date) From 01-Jan-1981
  • 28
    1
    D8NNB486AA
    FILTER; Assy., w/Horizontal Exhaust;NH-E Only.; (Prod Date) From 01-Jan-1981
  • 28
    1
    D8NNB486EA
    FILTER; Assy., w/Horizontal Exhaust;Included in Kit EGPN600A (83955397).;NHNA Only.; (Prod Date) From 01-Jan-1981
  • 29
    1
    E0NNE897CA
    HYD TUBE 12.95 mm OD x 742.5 mm L; Tube Assy.; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 29
    1
    E2NNE897AA
    HYD TUBE 0.51'' OD x 28.88'' L; Tube Assy.;Also See Fig. 10C03 'Aux. Engine Mounted Hydraulic Pump Tubing'.;NHNA Only.; (Prod Date) From 01-Apr-1983
  • 29
    1
    E2NNE897CA
    HYD TUBE 12.95 mm OD x 736 mm L; Tube Assy.;Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Apr-1983
  • 30
    1
    128818
    UNION 3/4'' - 16 ORB x 3/4'' - 16 JIC; Connector;Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 31
    2
    128825
    O-RING 0.087in Thk x 0.644in ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk;Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 32
    1
    86327S100
    ELBOW; Assy.; (Prod Date) From 01-Jan-1981
  • 33
    1
    D3NN638A
    HYDRAULIC VALVE; Valve Assy.; (Prod Date) From 01-Jan-1981
  • 33A
    1
    D4NNN629A
    SEALING RING 1.134'' ID; SEALRING, 1.134'' ID; (Prod Date) From 01-Jan-1981
  • 33B
    1
    D4NNN629B
    SEALING RING .433'' ID; SEALRING, .433'' ID; (Prod Date) From 01-Jan-1981
  • 33C
    1
    D4NNK998A
    RING; O-Ring; (Prod Date) From 01-Jan-1981
  • 34
    1
    E0NNB835AA
    HYD TUBE 28.575 mm OD x 804.5 mm L; Tube; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 34
    1
    E2NNB835BA
    HYD TUBE 28.575 mm OD x 1063 mm L; Tube; (Prod Date) From 01-Apr-1983
  • 35
    1
    D3NNE883A
    ELBOW; (Prod Date) From 01-Jan-1981
  • 36
    1
    134372
    O-RING 28.2mm ID x 3.53mm Thk, NBR; 1.109'' ID x .139'' Thk; (Prod Date) From 01-Jan-1981
  • 37
    1
    87057S95
    O-RING 1.250'' ID x .139'' Thk, 90 Duro; 90 Duro, 1.250'' ID x .139'' Thk; (Prod Date) From 01-Jan-1981
  • 38
    1
    D5NNN871A
    GROMMET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 39
    1
    D4NNN885B
    BRACKET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 40
    1
    D5NNN885B
    BRACKET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 41
    1
    D3NNN871E
    GROMMET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 42
    1
    E0NNN885AA
    BRACKET; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 42
    1
    E2NNN885AA
    BRACKET; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Apr-1983
  • 43
    1
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8'';Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 44
    1
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 45
    1
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5; Included in Kit EGPN600A (83955397).; (Prod Date) From 01-Jan-1981
  • 46
    1
    165216
    O-RING 63.2mm ID x 2.62mm Thk, NBR; -144, 90 Duro, 2.487'' ID x .103'' Thk;Use w/63.5mm Plug.; (Prod Date) Between 01-Jan-1981 and 31-Mar-1983
  • 46
    1
    E3NNT838AA
    O-RING 59.5 mm ID; (Prod Date) From 01-Apr-1983
  • 47
    1
    EGPN600A
    KIT; Dual Pump, Attaching, Includes: Ref. 22 thru 27, D8NNB486CA, D8NNB486EA, E2NNE897CA, 30 & 31, 38 thru 41 thru 45, E2NNB835BA & E2NNE897CA; (Prod Date) From 01-Feb-1986
  • 1
    E2NNB835BA
    HYD TUBE 28.575 mm OD x 1063 mm L; Tube, Inlet; (Prod Date) From 01-Jan-1981
  • 1
    E2NNE897CA
    HYD TUBE 12.95 mm OD x 736 mm L; Tube; (Prod Date) From 01-Jan-1981
