PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11NOT SERVICED; Cover, Hydraulic Lift, W/O Drawbar Control Lever 9N, 2N;Not Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
11COVER; Hydraulic Lift, W/O Drawbar Control Lever, 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
23PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 2.50'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
37PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 1.50''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
44PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 3.62''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
61NO LONGER SERVICED; Bolt, HH, Cover to Housing, 7/16''-14 x 3.62'', 8N {354288S8};No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
71GASKET; Hydraulic Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
81LEVER; Assy., Hydraulic Lift Control; (Prod Date) From 01-Jan-1939
-
92PROCURE LOCALLY; Washer, Lock, 1/4''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
102PROCURE LOCALLY; Bolt, HH, Lever to Friction Plate, 1/4''-20 x 1-1/2''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
111SPARE PART; Quadrant Assy., Hydraulic, 9N, 2N;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
111NO LONGER SERVICED; Quadrant Assy., Hydraulic, 8N;8N515; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
124PROCURE LOCALLY; Bolt, HH, Quadrant to Lift Cover, 7/16''-14 x 1''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
131NO LONGER SERVICED; Plate, Lift Control, Friction, Optional W/2N516A2 & 2N516B;2N516A1; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
131PLATE; Lift Control, Friction, Optional W/2N516A1 & 2N516B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
131NO LONGER SERVICED; Plate, Lift Control, Friction, Optional W/2N516A1 & 2N516A2;2N516B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
141SHAFT; Hydraulic Lift Control Lever, 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
141SPARE PART; Shaft, Hydraulic Lift Control Lever, 9N, 2N;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
151NO LONGER SERVICED; Washer, Flat, 3/8'', 9N, 2N;351385S7; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
161PROCURE LOCALLY; Pin, Cotter, 3/32'' x 5/8'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
171PROCURE LOCALLY; Nut, Lock, Shaft to Lever & Friction Plate, 7/16''-20, 9N, 2N, 8N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
181PROCURE LOCALLY; Washer, Flat, 7/16'', 9N, 2N, 8N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
191WASHER 5/8'' x 1'' x .096'' Thk; 9N, 2N, 8N 5/8'' x 1'' x .096'' Thk; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
201PROCURE LOCALLY; Key, Woodruff, 5/32'' x 5/8'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
20A1PROCURE LOCALLY; Pin, Cotter, 1/8'' x 1'', 9N, 2N;Not illustrated; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947
-
20B1PROCURE LOCALLY; Nut, HH, Shaft to Control Valve Lever, 3/8''-24, 8N;Not illustrated; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
211DISC 15.75mm ID x 76.2mm OD x 5.33mm Thk; Lift Cover, Friction; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
221RETAINER; Lift Control, Lower;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
232PROCURE LOCALLY; Bolt, Retainer to Quadrant, 5/16''-18 x 3/8''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
241STOP; Assy., Lift Lever; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
251PROCURE LOCALLY; Washer, Flat, 1/4''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
261NUT; Wing, Stop Assy. to Control Lever Return, 1/4''-28; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
271COMPRESSION SPRING Compression, 16.77mm OD x 7.87mm L; Control Lever to Shaft Spring; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
281SEAT; Lift Draft Control Spring Adjuster; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
291PLATE; Hydraulic Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
303PROCURE LOCALLY; Bolt, HH, Plate to Cover, 7/16''-14 x 1.12''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
311FELT SEAL; Felt, Hydraulic Lift, Draft Control, Spring Seat; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
321GASKET; Quadrant to Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
331PLUNGER; Hydraulic Lift Draft Control, 5/8''-24; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
341YOKE; Control Spring, 5/8''-24, Use W/8N541B;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
351PROCURE LOCALLY; Pin, Cotter, 5/32'' x 1''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
361SPRING; Lift, Draft Control;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
371SUPPORT; Lift, Draft Control, Spring Seat; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952
-
381NOT SERVICED; Handle, Hydraulic Lift, Draw Bar Control, 8N;Not Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
391RIVET; Flat Hd, 3/16'' x 1'', Handle, Shaft to Arm , 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
401SPRING; Draw Bar, Control Arm, Mesh, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
411VALVE SEAT; Drawbar, Control Arm, Mesh, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
-
421PROCURE LOCALLY; Nut, Lock, Hex, 7/16''-20; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952
Select All
Select
Ref.
1Qty
1Availability
Part #
NSDescription
NOT SERVICED; Cover, Hydraulic Lift, W/O Drawbar Control Lever 9N, 2N;Not Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
1Qty
1Availability
Part #
8N501Description
COVER; Hydraulic Lift, W/O Drawbar Control Lever, 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
2Qty
3Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 2.50'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
3Qty
7Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 1.50''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
4Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Cover to Housing, 7/16''-14 x 3.62''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
6Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Bolt, HH, Cover to Housing, 7/16''-14 x 3.62'', 8N {354288S8};No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
7Qty
1Availability
Part #
NAA502ADescription
GASKET; Hydraulic Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
8Qty
1Availability
Part #
86604031Description
LEVER; Assy., Hydraulic Lift Control; (Prod Date) From 01-Jan-1939Img
Alts
Select
Ref.
9Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 1/4''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
10Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Lever to Friction Plate, 1/4''-20 x 1-1/2''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
11Qty
1Availability
Part #
9N515A3Description
SPARE PART; Quadrant Assy., Hydraulic, 9N, 2N;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
11Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Quadrant Assy., Hydraulic, 8N;8N515; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
12Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Quadrant to Lift Cover, 7/16''-14 x 1''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
13Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Plate, Lift Control, Friction, Optional W/2N516A2 & 2N516B;2N516A1; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
13Qty
1Availability
Part #
2N516A2Description

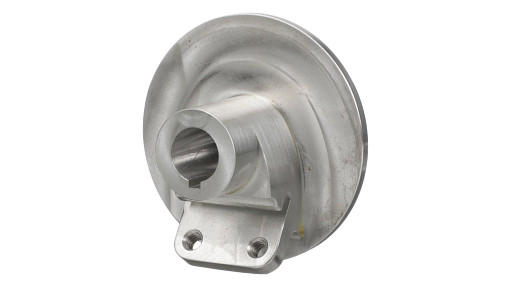

PLATE; Lift Control, Friction, Optional W/2N516A1 & 2N516B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
13Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Plate, Lift Control, Friction, Optional W/2N516A1 & 2N516A2;2N516B; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
14Qty
1Availability
Part #
8N517Description
SHAFT; Hydraulic Lift Control Lever, 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
14Qty
1Availability
Part #
9N517Description
SPARE PART; Shaft, Hydraulic Lift Control Lever, 9N, 2N;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
15Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Washer, Flat, 3/8'', 9N, 2N;351385S7; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
16Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 3/32'' x 5/8'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
17Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Lock, Shaft to Lever & Friction Plate, 7/16''-20, 9N, 2N, 8N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
18Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Flat, 7/16'', 9N, 2N, 8N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
19Qty
1Availability
Part #
351502S36Description
WASHER 5/8'' x 1'' x .096'' Thk; 9N, 2N, 8N 5/8'' x 1'' x .096'' Thk; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
20Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Key, Woodruff, 5/32'' x 5/8'', 9N, 2N; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
20AQty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 1/8'' x 1'', 9N, 2N;Not illustrated; (Prod Date) Between 01-Jan-1939 and 31-Dec-1947Img
Alts
Select
Ref.
20BQty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, HH, Shaft to Control Valve Lever, 3/8''-24, 8N;Not illustrated; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
21Qty
1Availability
Part #
83977032Description

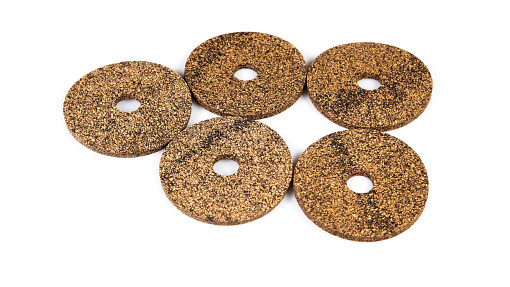

DISC 15.75mm ID x 76.2mm OD x 5.33mm Thk; Lift Cover, Friction; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
22Qty
1Availability
Part #
9N520Description
RETAINER; Lift Control, Lower;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
23Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Retainer to Quadrant, 5/16''-18 x 3/8''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
24Qty
1Availability
Part #
9N521Description
STOP; Assy., Lift Lever; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
25Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Flat, 1/4''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
26Qty
1Availability
Part #
350890ES36Description
NUT; Wing, Stop Assy. to Control Lever Return, 1/4''-28; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
27Qty
1Availability
Part #
E1ADDN522BDescription
COMPRESSION SPRING Compression, 16.77mm OD x 7.87mm L; Control Lever to Shaft Spring; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
28Qty
1Availability
Part #
9N525BDescription
SEAT; Lift Draft Control Spring Adjuster; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
29Qty
1Availability
Part #
957E527Description
PLATE; Hydraulic Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
30Qty
3Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, Plate to Cover, 7/16''-14 x 1.12''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
31Qty
1Availability
Part #
E9N529Description
FELT SEAL; Felt, Hydraulic Lift, Draft Control, Spring Seat; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
32Qty
1Availability
Part #
9N532Description
GASKET; Quadrant to Lift Cover; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
33Qty
1Availability
Part #
8N541BDescription
PLUNGER; Hydraulic Lift Draft Control, 5/8''-24; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
34Qty
1Availability
Part #
9N546CDescription
YOKE; Control Spring, 5/8''-24, Use W/8N541B;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
35Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 5/32'' x 1''; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
36Qty
1Availability
Part #
9N547BDescription
SPRING; Lift, Draft Control;No Longer Serviced.; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
37Qty
1Availability
Part #
2N624Description
SUPPORT; Lift, Draft Control, Spring Seat; (Prod Date) Between 01-Jan-1939 and 31-Dec-1952Img
Alts
Select
Ref.
38Qty
1Availability
Part #
NSDescription
NOT SERVICED; Handle, Hydraulic Lift, Draw Bar Control, 8N;Not Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
39Qty
1Availability
Part #
60160SDescription
RIVET; Flat Hd, 3/16'' x 1'', Handle, Shaft to Arm , 8N;No Longer Serviced.; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
40Qty
1Availability
Part #
797234Description

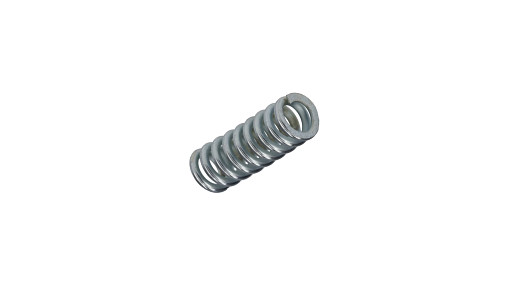

SPRING; Draw Bar, Control Arm, Mesh, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
41Qty
1Availability
Part #
747238FDescription
VALVE SEAT; Drawbar, Control Arm, Mesh, 8N; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
Alts
Select
Ref.
42Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Lock, Hex, 7/16''-20; (Prod Date) Between 01-Jan-1948 and 31-Dec-1952Img
