TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11DRIVEN SHAFT; Drive Shaft, Front End After S/N 106115, 10 Splines/23 Splines; (Prod Date) From 01-Jan-1960
-
11PTO; Drive Shaft, Front End (7.88 Long), 5-Speed Exc. NAA, W/5-Speed Prior to S/N 106116, 10 Splines/10 Splines; (Prod Date) Between 01-Jan-1955 and 31-Dec-1959
-
21COUPLING; Assy., Transmission to Pinion, 8.36'' Long, 4-Speed Transmission, Prior to S/N 54166; (Prod Date) Between 01-Jan-1955 and 31-Dec-1958
-
21COUPLING; Assy., Transmission to Pinion, 4-Speed Transmission, After S/N 54165; (Prod Date) From 01-Jan-1958
-
21SPARE PART; Coupling Assy., Transmission to Pinion, 3.39'' Long, 5-Speed Trans. Exc. NAA, W/55 Pounds Prior to S/N 106116; (Prod Date) Between 01-Jan-1955 and 31-Dec-1959
-
21TUBE; Coupling Assy., Drive Shaft; (Prod Date) From 01-Jan-1960
-
41TUBE 0.983 - 1.008'' OD, 26.72'' Length; Assy., Hyd. Intake (5-Speed Trans.), After S/N 14256; (Prod Date) From 01-Jan-1958
-
31GASKET; Center Housing to Transmission Case, Prior to S/N 14257 Exc. NAA, W/4-Speed; (Prod Date) Between 01-Jan-1955 and 31-Dec-1958
-
31GASKET; Center Housing to Transmission Case, Exc. NAA, After S/N 14256, W/4-Speed, W/55 Pd. & Select-O-Speed Transmission; (Prod Date) From 01-Jan-1958
-
41SPARE PART; Tube Assy., Hyd. Intake (4-Speed Trans.), Prior to S/N 14257; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957
-
41SPARE PART; Tube Assy., Hyd. Intake (5-Speed Trans.), Prior to S/N 14257; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957
-
41TUBE 0.983 - 1.008'' OD, 26.72'' Length; Assy., Hyd. Intake (4-Speed Trans.), After S/N 14256; (Prod Date) From 01-Jan-1958
-
51SPARE PART 0.507'' OD x 26.58'' L; Tube Assy., Hyd. Pressure (4-Speed Trans.); (Prod Date) From 01-Jan-1955
-
51SPARE PART 0.487'' ID x 0.507'' OD x 26.58'' L; Tube Assy., Hyd. Pressure (5-Speed Trans.); (Prod Date) From 01-Jan-1955
-
61SPARE PART; Plug, Rear Axle Center Housing, Inner, L/Hydraulic System; (Prod Date) From 01-Jan-1955
-
71O-RING 15.6mm ID x 2.62mm Thk, FKM; -114, Cl 7, .612'' ID x .103'' Thk, Press Tube Between Center Housing & Trans. Case; (Prod Date) From 01-Jan-1955
-
81O-RING 28.2mm ID x 3.53mm Thk, NBR; 1.109'' ID x .139'' Thk, Intake Tube Between Center Housing & Trans. Case; (Prod Date) From 01-Jan-1955
-
92PLUG 3/8'' - 18 NPT; Pipe, Sq Hd, 3/8''-18; (Prod Date) From 01-Jan-1955
-
111O-RING 17.2mm ID x 2.62mm Thk, NBR; .674'' ID x .103'' Thk, Safety Valve Assy.; (Prod Date) From 01-Jan-1955
-
2PROCURE LOCALLY; Bolt, Heavy Duty Industrial, L/Hydraulic System, 7/16''-14 x 3.75; (Prod Date) From 01-Jan-1958
-
121O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; 5-1, 90 Duro, .414'' ID x .072'' Thk, Safety Valve Assy; (Prod Date) From 01-Jan-1955
-
131HYDRAULIC VALVE; Valve Assy., Hydraulic Pump Relief, Replaces NCA638C; (Prod Date) From 01-Jan-1955
-
141GASKET; Hydraulic Lift Pump Cover Plate; (Prod Date) From 01-Jan-1955
-
151PLATE; Assy., Hydraulic Lift Sump Cover; (Prod Date) From 01-Jan-1955
-
165PROCURE LOCALLY; Bolt, Screw, 3/8''-16 x 1.00; (Prod Date) From 01-Jan-1955
-
171HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (600 & 2120 Only); (Prod Date) From 01-Jan-1955
-
171HOUSING; Assy., Rear Axle, Differential Center (7/16), LCG; (Prod Date) From 01-Jan-1961
-
171HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (800 & 4120); (Prod Date) From 01-Jan-1955
-
171HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (801 W/Hd. Frt. End), H. D. Industrial; (Prod Date) Between 01-Jan-1958 and 31-Dec-1960
-
171SPARE PART; Housing Assy., Rear Axle, Differential Center (7/16), Row Crop; (Prod Date) From 01-Jan-1955
-
171HOUSING; Assy., Rear Axle, Differential Center, (9/16), All Purpose (801 & 4120 W/Hd. Frt. End);When replacing C0NN4025F W/DAPN4025A, two (2) C5NN4885F Gaskets must be used.; (Prod Date) From 01-Jan-1961
-
182PROCURE LOCALLY; Plug, Pipe Square Hd., 1/2''-14; (Prod Date) From 01-Jan-1955
-
192BUSHING 25.45mm ID x 27mm OD x 25.4mm L; Brake Cross Shaft; (Prod Date) From 01-Jan-1955
-
205PROCURE LOCALLY; Bolt, 7/16''-20 x 1.56 HH, 5-Speed Transmission; (Prod Date) From 01-Jan-1955
-
2011PROCURE LOCALLY; Bolt, 7/16''-20 x 1.56 HH, 4-Speed Transmission; (Prod Date) From 01-Jan-1955
-
202PROCURE LOCALLY; Bolt, 7/16''-14 x 2.25, 4-Speed Transmission; (Prod Date) From 01-Jan-1955
-
216PROCURE LOCALLY; Stud. 9/16''-14-18 x 2.48; (Prod Date) From 01-Jan-1961
-
216PROCURE LOCALLY; Stud, 5-Speed Transmission, 7/16''-14-20 x 1.68; (Prod Date) From 01-Jan-1958
-
22ARPROCURE LOCALLY; Nut, 7/16''-20; (Prod Date) From 01-Jan-1955
-
22ARPROCURE LOCALLY; Nut, 9/16''-18; (Prod Date) From 01-Jan-1955
-
231BLOCK; Rear Axle, Drive Gear Thrust, All Purpose (600 & 2120); (Prod Date) From 01-Jan-1955
-
231BLOCK; Rear Axle, Drive Gear Thrust, LCG; (Prod Date) From 01-Jan-1961
-
231SPARE PART; Block, Rear Axle, Drive Gear Thrust, Row Crop; (Prod Date) From 01-Jan-1955
-
231BLOCK; Rear Axle, Drive Gear, Thrust, All Purpose (800 & 4120); (Prod Date) From 01-Jan-1955
-
231BLOCK; Rear Axle, Drive Gear, Thrust, Industrial, H. D. Industrial, & Grove; (Prod Date) From 01-Jan-1958
-
2PROCURE LOCALLY; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1955
-
2PROCURE LOCALLY; Bolt, HH, 3/8''-16 x 1''; (Prod Date) From 01-Jan-1955
-
242GASKET; Gasket, Center Housing to Rear Axle Housing, Replaces C0NN4036A; (Prod Date) From 01-Jan-1961
-
242GASKET; Gasket, Center Housing to Rear Axle Housing, Use W/DAPN-4025-A; (Prod Date) From 01-Jan-1961
-
251ROLLER; Rocker, Hydraulic Lift Yoke; (Prod Date) From 01-Jan-1955
-
261PIN; Hydraulic Lift Yoke; (Prod Date) From 01-Jan-1955
-
27ARPROCURE LOCALLY; Pin, Cotter, 1/8'' x 1''
-
281PLUG; Rear Axle Filler; (Prod Date) From 01-Jan-1953
-
291GASKET; Rear Axle Filler Plug; (Prod Date) From 01-Jan-1953
-
301COVER; Rear Axle, Differential Center Housing Top, L/Hydraulic System; (Prod Date) From 01-Jan-1955
-
311PROCURE LOCALLY; Bolt, 7/16''-14 x 2-1/2''; (Prod Date) From 01-Jan-1955
-
321PROCURE LOCALLY; Bolt, 7/16''-14 x 3-3/4''; (Prod Date) From 01-Jan-1955
-
331PROCURE LOCALLY; Bolt, 7/16''-14 x 1-1/2''; (Prod Date) From 01-Jan-1955
-
341PROCURE LOCALLY; Bolt, 7/16''-14 x 3.25; (Prod Date) From 01-Jan-1955
-
35ARPROCURE LOCALLY; Bolt, 7/16''-14 x 2.88
-
361GASKET; Hydraulic Lift Cover; (Prod Date) From 01-Jan-1955
-
372O-RING; .500'' ID x .103'' Thk, Exhaust Tube; (Prod Date) From 01-Jan-1955
-
381SPARE PART 0.504'' ID x 0.51'' OD x 13'' L; Tube Assy., Hydraulic Lift Cylinder, Exhaust; (Prod Date) From 01-Jan-1955
-
391SPARE PART 0.502'' ID x 0.51'' OD x 12.6'' L; Tube, Hydraulic Lift Cylinder Inlet; (Prod Date) From 01-Jan-1955
-
401GASKET; Shift Plate; (SN Break) Between Cover and Housing; (Prod Date) From 01-Jan-1955
-
411SPARE PART; Plate, PTO Shifter; (Prod Date) From 01-Jan-1955
-
421LEVER; PTO Shifter; (Prod Date) From 01-Jan-1955
-
431PROCURE LOCALLY; Rivet, Round Hd., 1/4'' x 1/4''; (Prod Date) From 01-Jan-1955
-
441INDICATOR; Assy., Hydraulic Lift Oil Level, Except Offset & Grove; (Prod Date) From 01-Jan-1955
-
441INDICATOR; Assy., Hydraulic Lift Oil Level, Offset & Grove; (Prod Date) From 01-Jan-1959
-
451SPARE PART; Vent Assy., Rear Axle, Differential Center Housing (In 72 Plates), L/Hydraulic System; (Prod Date) From 01-Jan-1955
-
101O-RING 9.2mm ID x 1.78mm Thk, HNBR; 90 Duro, .364'' ID x .070'' Thk, Cover Plate To Center Housing; (Prod Date) From 01-Jan-1955
Select All
Ref.
1Qty
1Availability
Part #
C3NN4680BDescription
DRIVEN SHAFT; Drive Shaft, Front End After S/N 106115, 10 Splines/23 Splines; (Prod Date) From 01-Jan-1960Img
Alts
Ref.
1Qty
1Availability
Part #
NDA4680CDescription
PTO; Drive Shaft, Front End (7.88 Long), 5-Speed Exc. NAA, W/5-Speed Prior to S/N 106116, 10 Splines/10 Splines; (Prod Date) Between 01-Jan-1955 and 31-Dec-1959Img
Alts
Ref.
2Qty
1Availability
Part #
NCA4685BDescription
COUPLING; Assy., Transmission to Pinion, 8.36'' Long, 4-Speed Transmission, Prior to S/N 54166; (Prod Date) Between 01-Jan-1955 and 31-Dec-1958Img
Alts
Ref.
2Qty
1Availability
Part #
313218Description
COUPLING; Assy., Transmission to Pinion, 4-Speed Transmission, After S/N 54165; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
2Qty
1Availability
Part #
NDA4685BDescription
SPARE PART; Coupling Assy., Transmission to Pinion, 3.39'' Long, 5-Speed Trans. Exc. NAA, W/55 Pounds Prior to S/N 106116; (Prod Date) Between 01-Jan-1955 and 31-Dec-1959Img
Alts
Ref.
2Qty
1Availability
Part #
B9NN4685ADescription
TUBE; Coupling Assy., Drive Shaft; (Prod Date) From 01-Jan-1960Img
Alts
Ref.
4Qty
1Availability
Part #
310839Description
TUBE 0.983 - 1.008'' OD, 26.72'' Length; Assy., Hyd. Intake (5-Speed Trans.), After S/N 14256; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
3Qty
1Availability
Part #
NCA44025ADescription
GASKET; Center Housing to Transmission Case, Prior to S/N 14257 Exc. NAA, W/4-Speed; (Prod Date) Between 01-Jan-1955 and 31-Dec-1958Img
Alts
Ref.
3Qty
1Availability
Part #

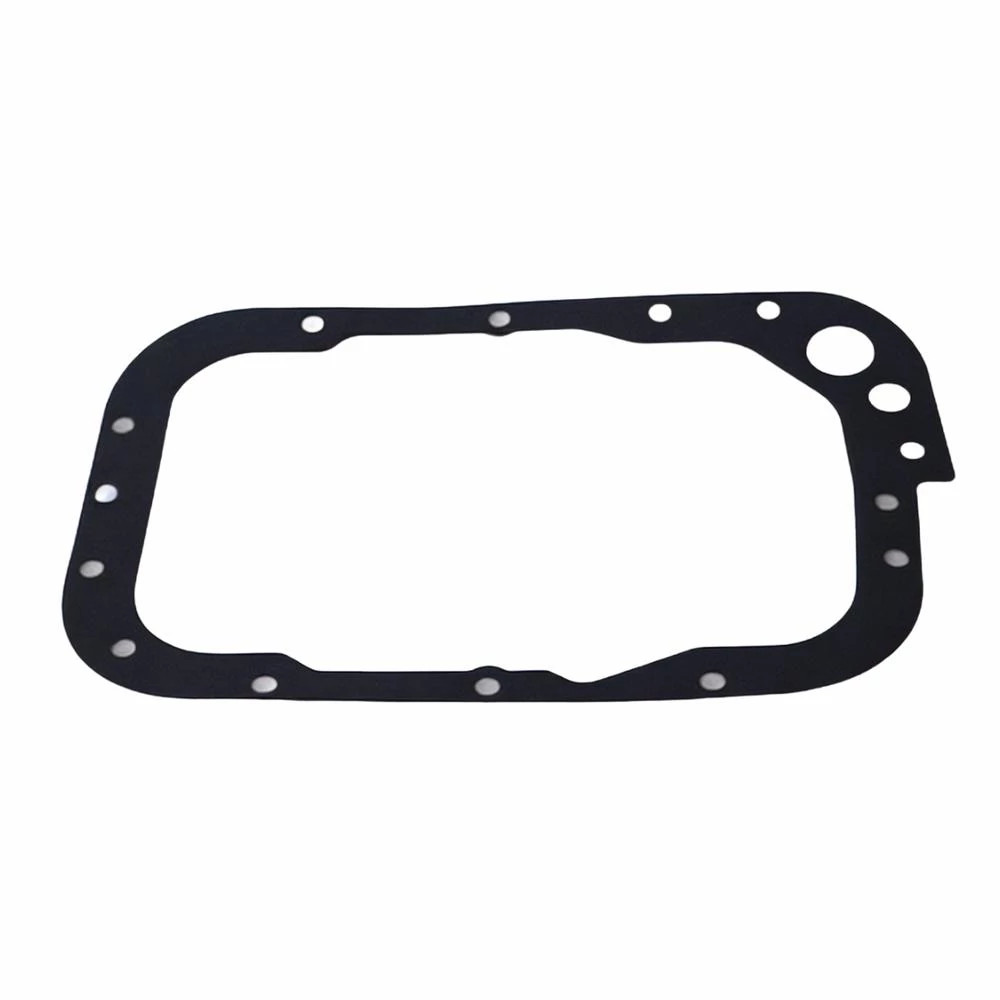

310590Description
GASKET; Center Housing to Transmission Case, Exc. NAA, After S/N 14256, W/4-Speed, W/55 Pd. & Select-O-Speed Transmission; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
4Qty
1Availability
Part #
NCA941CDescription
SPARE PART; Tube Assy., Hyd. Intake (4-Speed Trans.), Prior to S/N 14257; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957Img
Alts
Ref.
4Qty
1Availability
Part #
NDA941CDescription
SPARE PART; Tube Assy., Hyd. Intake (5-Speed Trans.), Prior to S/N 14257; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957Img
Alts
Ref.
4Qty
1Availability
Part #
310838Description
TUBE 0.983 - 1.008'' OD, 26.72'' Length; Assy., Hyd. Intake (4-Speed Trans.), After S/N 14256; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
5Qty
1Availability
Part #
NCA945BDescription
SPARE PART 0.507'' OD x 26.58'' L; Tube Assy., Hyd. Pressure (4-Speed Trans.); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
5Qty
1Availability
Part #
NDA945BDescription
SPARE PART 0.487'' ID x 0.507'' OD x 26.58'' L; Tube Assy., Hyd. Pressure (5-Speed Trans.); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
6Qty
1Availability
Part #
NCA44033BDescription
SPARE PART; Plug, Rear Axle Center Housing, Inner, L/Hydraulic System; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
7Qty
1Availability
Part #
14457281Description
O-RING 15.6mm ID x 2.62mm Thk, FKM; -114, Cl 7, .612'' ID x .103'' Thk, Press Tube Between Center Housing & Trans. Case; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
8Qty
1Availability
Part #
134372Description
O-RING 28.2mm ID x 3.53mm Thk, NBR; 1.109'' ID x .139'' Thk, Intake Tube Between Center Housing & Trans. Case; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
9Qty
2Availability
Part #
80781Description
PLUG 3/8'' - 18 NPT; Pipe, Sq Hd, 3/8''-18; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
11Qty
1Availability
Part #
129979Description
O-RING 17.2mm ID x 2.62mm Thk, NBR; .674'' ID x .103'' Thk, Safety Valve Assy.; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Heavy Duty Industrial, L/Hydraulic System, 7/16''-14 x 3.75; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
12Qty
1Availability
Part #
129270Description
O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; 5-1, 90 Duro, .414'' ID x .072'' Thk, Safety Valve Assy; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
13Qty
1Availability
Part #
86512642Description
HYDRAULIC VALVE; Valve Assy., Hydraulic Pump Relief, Replaces NCA638C; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
14Qty
1Availability
Part #
NCA898ADescription
GASKET; Hydraulic Lift Pump Cover Plate; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
15Qty
1Availability
Part #
NCA894ADescription
PLATE; Assy., Hydraulic Lift Sump Cover; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
16Qty
5Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Screw, 3/8''-16 x 1.00; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
17Qty
1Availability
Part #
312475Description
HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (600 & 2120 Only); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
17Qty
1Availability
Part #
312475Description
HOUSING; Assy., Rear Axle, Differential Center (7/16), LCG; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
17Qty
1Availability
Part #
312479Description
HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (800 & 4120); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
17Qty
1Availability
Part #
312479Description
HOUSING; Assy., Rear Axle, Differential Center (7/16), All Purpose (801 W/Hd. Frt. End), H. D. Industrial; (Prod Date) Between 01-Jan-1958 and 31-Dec-1960Img
Alts
Ref.
17Qty
1Availability
Part #
312477Description
SPARE PART; Housing Assy., Rear Axle, Differential Center (7/16), Row Crop; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
17Qty
1Availability
Part #
DAPN4025ADescription
HOUSING; Assy., Rear Axle, Differential Center, (9/16), All Purpose (801 & 4120 W/Hd. Frt. End);When replacing C0NN4025F W/DAPN4025A, two (2) C5NN4885F Gaskets must be used.; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
18Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Plug, Pipe Square Hd., 1/2''-14; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
19Qty
2Availability
Part #

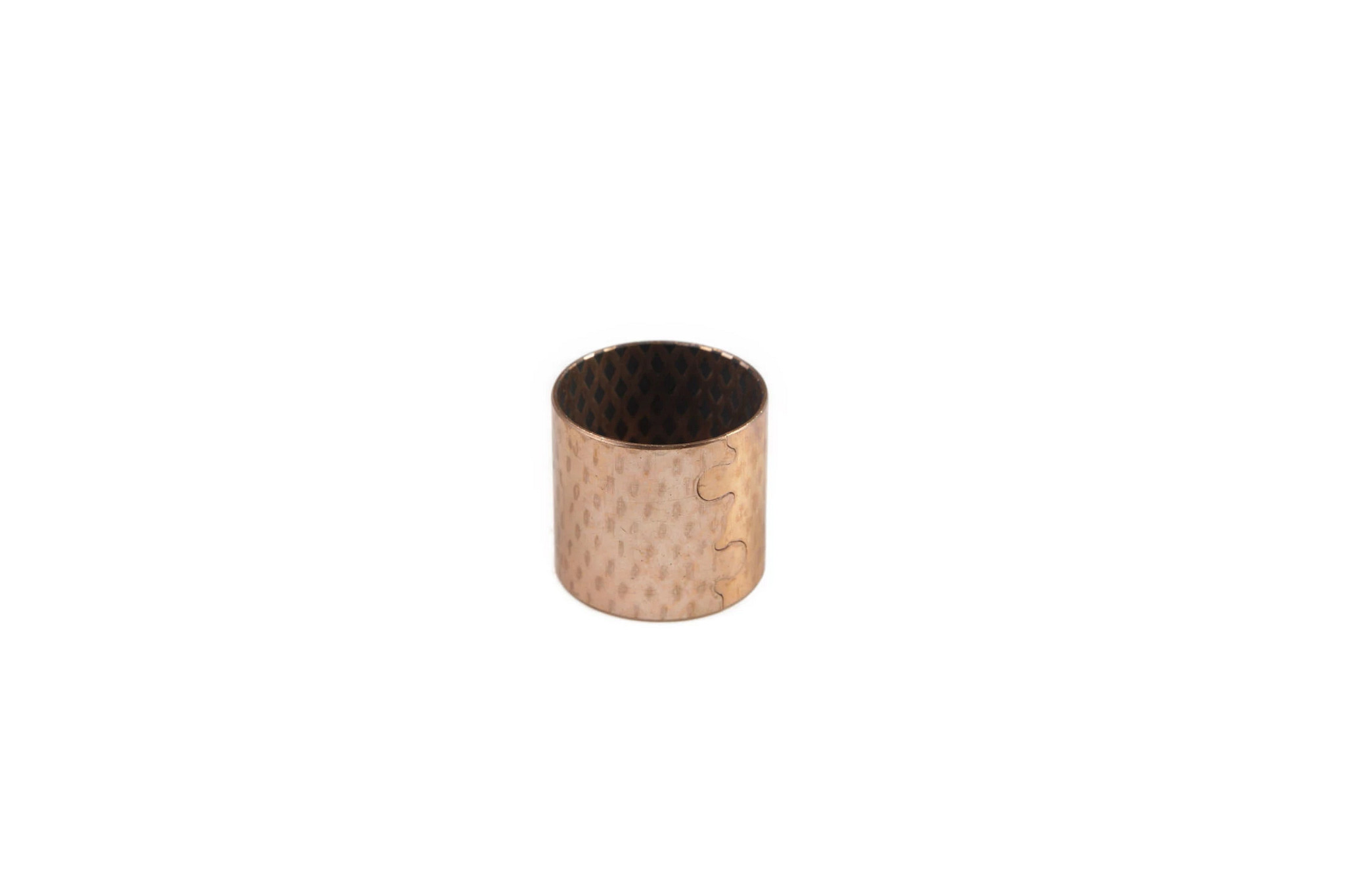

782477Description
BUSHING 25.45mm ID x 27mm OD x 25.4mm L; Brake Cross Shaft; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
20Qty
5Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-20 x 1.56 HH, 5-Speed Transmission; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
20Qty
11Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-20 x 1.56 HH, 4-Speed Transmission; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
20Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-14 x 2.25, 4-Speed Transmission; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
21Qty
6Availability
Part #
PLDescription
PROCURE LOCALLY; Stud. 9/16''-14-18 x 2.48; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
21Qty
6Availability
Part #
PLDescription
PROCURE LOCALLY; Stud, 5-Speed Transmission, 7/16''-14-20 x 1.68; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
22Qty
ARAvailability
Part #
PLDescription
PROCURE LOCALLY; Nut, 7/16''-20; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
22Qty
ARAvailability
Part #
PLDescription
PROCURE LOCALLY; Nut, 9/16''-18; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
23Qty
1Availability
Part #
NCA4194BDescription
BLOCK; Rear Axle, Drive Gear Thrust, All Purpose (600 & 2120); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
23Qty
1Availability
Part #
NCA4194BDescription
BLOCK; Rear Axle, Drive Gear Thrust, LCG; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
23Qty
1Availability
Part #
NCB4194BDescription
SPARE PART; Block, Rear Axle, Drive Gear Thrust, Row Crop; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
23Qty
1Availability
Part #
NDA4194BDescription
BLOCK; Rear Axle, Drive Gear, Thrust, All Purpose (800 & 4120); (Prod Date) From 01-Jan-1955Img
Alts
Ref.
23Qty
1Availability
Part #
NDA4194BDescription
BLOCK; Rear Axle, Drive Gear, Thrust, Industrial, H. D. Industrial, & Grove; (Prod Date) From 01-Jan-1958Img
Alts
Ref.
Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 3/8''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, HH, 3/8''-16 x 1''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
24Qty
2Availability
Part #
NAA4036ADescription
GASKET; Gasket, Center Housing to Rear Axle Housing, Replaces C0NN4036A; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
24Qty
2Availability
Part #
NAA4036ADescription
GASKET; Gasket, Center Housing to Rear Axle Housing, Use W/DAPN-4025-A; (Prod Date) From 01-Jan-1961Img
Alts
Ref.
25Qty
1Availability
Part #
NCA535ADescription
ROLLER; Rocker, Hydraulic Lift Yoke; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
26Qty
1Availability
Part #
8N486BDescription
PIN; Hydraulic Lift Yoke; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
27Qty
ARAvailability
Part #
PLDescription
PROCURE LOCALLY; Pin, Cotter, 1/8'' x 1''Img
Alts
Ref.
28Qty
1Availability
Part #
9N7010Description
PLUG; Rear Axle Filler; (Prod Date) From 01-Jan-1953Img
Alts
Ref.
29Qty
1Availability
Part #
8N7011Description
GASKET; Rear Axle Filler Plug; (Prod Date) From 01-Jan-1953Img
Alts
Ref.
30Qty
1Availability
Part #
NCA4033ADescription
COVER; Rear Axle, Differential Center Housing Top, L/Hydraulic System; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
31Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-14 x 2-1/2''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
32Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-14 x 3-3/4''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
33Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-14 x 1-1/2''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
34Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 7/16''-14 x 3.25; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
36Qty
1Availability
Part #
NCA502ADescription
GASKET; Hydraulic Lift Cover; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
37Qty
2Availability
Part #
87033S94Description
O-RING; .500'' ID x .103'' Thk, Exhaust Tube; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
38Qty
1Availability
Part #
NCA942BDescription
SPARE PART 0.504'' ID x 0.51'' OD x 13'' L; Tube Assy., Hydraulic Lift Cylinder, Exhaust; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
39Qty
1Availability
Part #
NCA567ADescription
SPARE PART 0.502'' ID x 0.51'' OD x 12.6'' L; Tube, Hydraulic Lift Cylinder Inlet; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
40Qty
1Availability
Part #
9N4131Description
GASKET; Shift Plate; (SN Break) Between Cover and Housing; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
41Qty
1Availability
Part #
NCA721BDescription
SPARE PART; Plate, PTO Shifter; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
42Qty
1Availability
Part #
9N723Description
LEVER; PTO Shifter; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
43Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Rivet, Round Hd., 1/4'' x 1/4''; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
44Qty
1Availability
Part #
NCA927BDescription
INDICATOR; Assy., Hydraulic Lift Oil Level, Except Offset & Grove; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
44Qty
1Availability
Part #
313893Description
INDICATOR; Assy., Hydraulic Lift Oil Level, Offset & Grove; (Prod Date) From 01-Jan-1959Img
Alts
Ref.
45Qty
1Availability
Part #
C0NN4022ADescription
SPARE PART; Vent Assy., Rear Axle, Differential Center Housing (In 72 Plates), L/Hydraulic System; (Prod Date) From 01-Jan-1955Img
Alts
Ref.
10Qty
1Availability
Part #
9993141Description
O-RING 9.2mm ID x 1.78mm Thk, HNBR; 90 Duro, .364'' ID x .070'' Thk, Cover Plate To Center Housing; (Prod Date) From 01-Jan-1955Img
Alts
