06O01 - OIL FILTER & RELATED PARTS, DIESEL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    C5NE6890B
    INSERT; Mounting Bolt;No Longer Serviced.
  • 2
    1
    DDPN6731A
    KIT; Element & Gasket, 2 Quart, Mexico & U.K., 5100, Includes: Ref. 3 thru 5
  • 2
    1
    86546611
    FILTER; Kit, Oil Filter Element & Gasket, 2 Quart, 4.87L,.75 pilot hole Includes: Ref. 3 thru 5;NHNA Only.
  • 3
    1
    EAA6746A
    GASKET; No Longer Serviced.
  • 4
    1
    EAA6749A
    GASKET;
  • 5
    1
    D8NN6N818AA
    GASKET;
  • 6
    1
    EAA6898B
    RETAINER; Element;No Longer Serviced NH-E.
  • 7
    1
    EAA6889B
    SPRING; Element Retaining
  • 8
    1
    C5NE6737B
    COVER; Assy.
  • 9
    1
    D3NN6A732B
    HYDRAULIC VALVE; Bolt & Valve Assy., Center;No Longer Serviced.

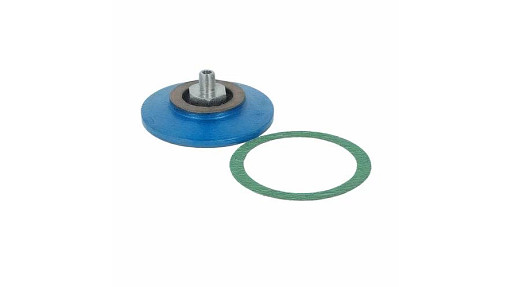

  • 10
    1
    309825F
    CONVERSION KIT; Kit, Conversion, 2 Quart to 1 Quart Spin-On, Includes: Ref. 11 & 12
  • 11
    1
    C5NE6890D
    INSERT; Serviced Separately U.S. Only;NHNA Only.
  • 1
    NSS
    NOT SOLD SEPARAT; Adaptor
  • 12
    1
    D8NN6N818AA
    GASKET; Replaces EDL-6838-A
  • 13
    1
    81820974
    INSERT; Mounting;No Longer Serviced.
  • 13A
    1
    D0NN6890A
    INSERT; Mounting, Nut not required
  • 14
    1
    44746S8
    WASHER; 3/4'';No Longer Serviced NHNA.
  • 15
    1
    370260S
    NUT; Jam, 3/4''-16;No Longer Serviced.

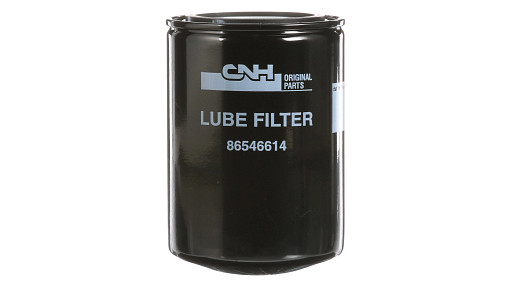

  • 16
    1
    86546614
    ENGINE OIL FILTER; Filter Assy, Oil, Spin-On, 1 Quart, Except 7000;NHNA Only.
  • 16
    1
    87800068
    ENGINE OIL FILTER; Filter Assy., Oil, Spin-On, 1 Quart. Except 7000;NHNA Only.

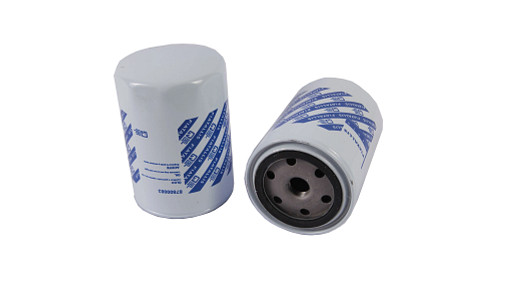

  • 16
    1
    87800083
    ENGINE OIL FILTER Spin-on, 3/4'' - 16, 98mm OD x 140mm L; Filter, Engine Oil, Spin-On 1 Quart, 7000

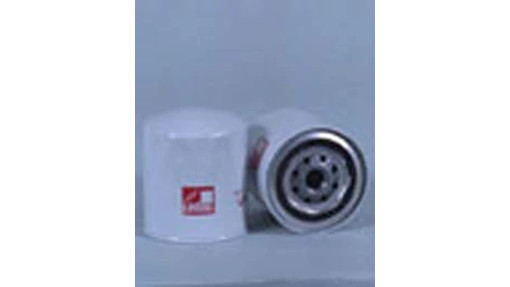

  • 16
    1
    86546617
    ENGINE OIL FILTER; Filter, Assy., Engine, Spin-On 1 Quart, 3400, 3500, 3550, 5200

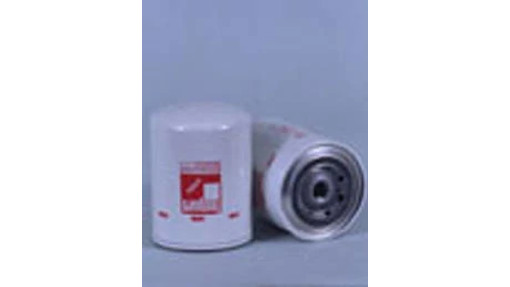

  • 16
    1
    86546609
    ENGINE OIL FILTER; Filter Assy., Engine, Spin-On, 2 Quart, 7000
