11KIT; Swinging Drawbar & Clevis, Includes Ref. 1 thru 14;NH-E Only;No Longer Serviced.; (Prod Date) From 01-Jan-1965
-
1A1HOOK; Hanger Assy., Replaces C5NN809-J, Not labeled on Art; (Prod Date) From 01-Jan-1965
-
21PLATE; Reinforcing; (Prod Date) From 01-Jan-1965
-
34BOLT Hex, 5/8'' - 11 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-1/2''; (Prod Date) From 01-Jan-1965
-
42WASHER 16.54mm ID x 42.67mm OD x 6.35mm Thk; Flat, 5/8''; (Prod Date) From 01-Jan-1965
-
52BOLT 5/8'' - 11 x 1 3/8'', Gr 12.9; Flange Hd., Serrated, 5/8''-11 x 1-3/8''; (Prod Date) From 01-Jan-1965
-
61SWINGING DRAWBAR 835mm L x 52mm W x 32.5mm Thk, 36.5mm Offset; Drawbar; (Prod Date) From 01-Jan-1965
-
71PIN 22.35mm OD x 83.3mm L; Clevis; (Prod Date) From 01-Jan-1965
-
81SPRING; Pin, Clevis, Pin Spring; (Prod Date) From 01-Jan-1965
-
91STRAP; Clevis;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
-
10ARLOCK WASHER; Washer, Lock, 5/8''
-
11ARNUT; Hex, 5/8''-18
-
122SCREW; Cap, HH, G5, 5/8''-18 x 3-1/4''; (Prod Date) From 01-Jan-1965
-
131STRAP; Reinforcing 4'' (10.16cm), Replaces C5NNN819A; (Prod Date) From 01-Jan-1965
-
141STRAP; Reinforcing, 7'' (17.78cm), Replaces C5NNN819B; (Prod Date) From 01-Jan-1965
-
156SPACER; Hanger, 3500; (Prod Date) Between 01-Jan-1965 and 31-Dec-1972
-
16ARKIT; Swinging Drawbar Pin & Clip, Accessory, Includes: Ref. 17 & 18; (Prod Date) From 01-Jan-1965
-
172PIN 11.18mm OD x 71.37mm L; U.K.-Antwerp Only; (Prod Date) From 01-Jan-1965
-
182COTTER PIN; Pin, Replaces E100GD9; (Prod Date) From 01-Jan-1965
Select All
Ref.
1Qty
1Availability
Part #
81811982Description
KIT; Swinging Drawbar & Clevis, Includes Ref. 1 thru 14;NH-E Only;No Longer Serviced.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
1AQty
1Availability
Part #
D1NN809ADescription
HOOK; Hanger Assy., Replaces C5NN809-J, Not labeled on Art; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
2Qty
1Availability
Part #
C5NNA804ADescription
PLATE; Reinforcing; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
3Qty
4Availability
Part #
88062Description
BOLT Hex, 5/8'' - 11 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-1/2''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
4Qty
2Availability
Part #
C5NNN826ADescription
WASHER 16.54mm ID x 42.67mm OD x 6.35mm Thk; Flat, 5/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
5Qty
2Availability
Part #
F1NNU835BADescription
BOLT 5/8'' - 11 x 1 3/8'', Gr 12.9; Flange Hd., Serrated, 5/8''-11 x 1-3/8''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
6Qty
1Availability
Part #
82009197Description

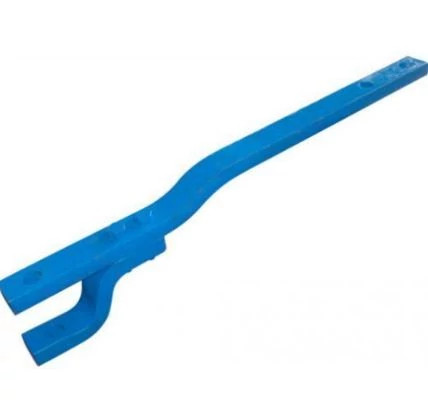

SWINGING DRAWBAR 835mm L x 52mm W x 32.5mm Thk, 36.5mm Offset; Drawbar; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
7Qty
1Availability
Part #
E4NN807AADescription

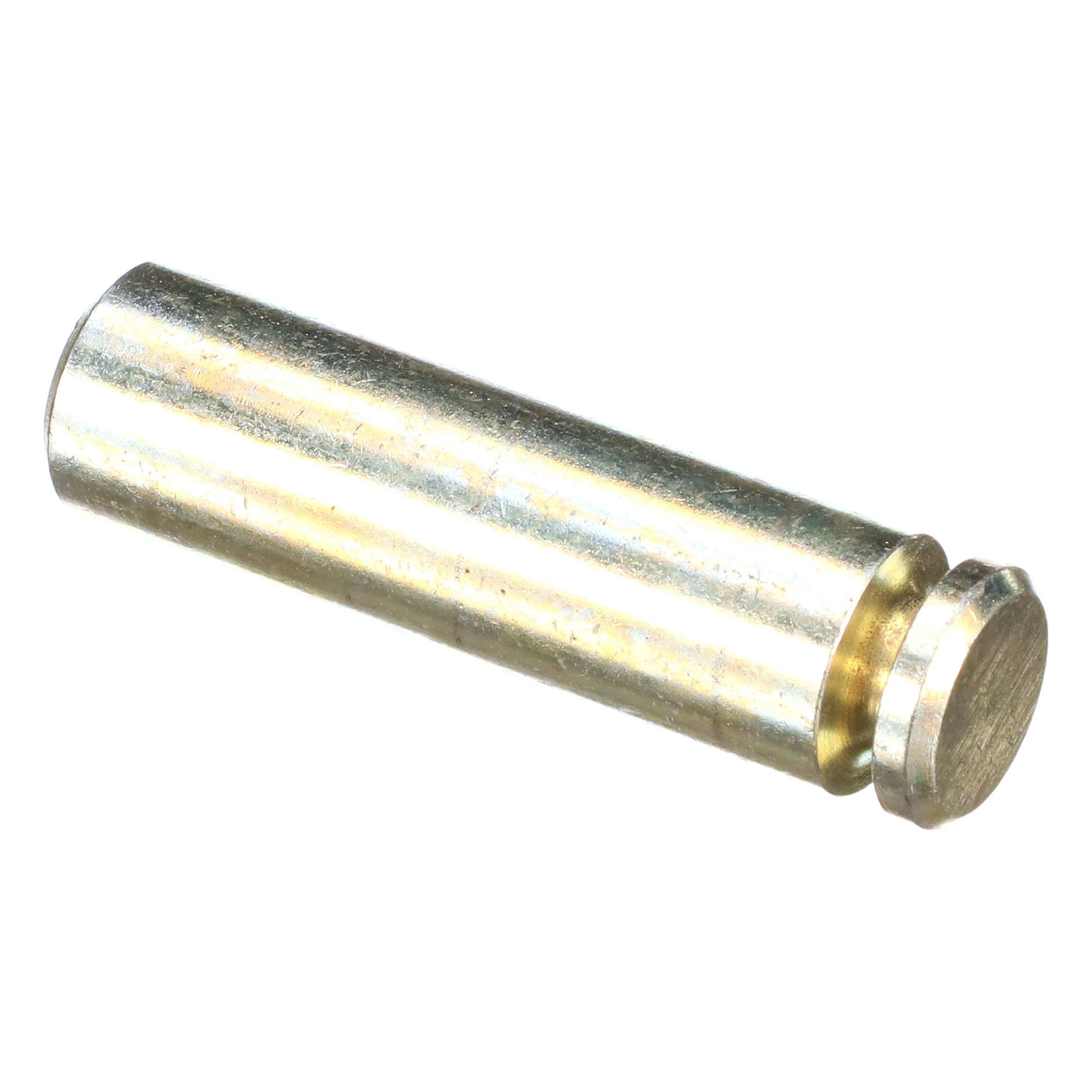

PIN 22.35mm OD x 83.3mm L; Clevis; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
8Qty
1Availability
Part #
311920Description
SPRING; Pin, Clevis, Pin Spring; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
9Qty
1Availability
Part #
C5NNA828BDescription
STRAP; Clevis;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
12Qty
2Availability
Part #
SS30187ZDSDescription
SCREW; Cap, HH, G5, 5/8''-18 x 3-1/4''; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
13Qty
1Availability
Part #
C5NNN819EDescription
STRAP; Reinforcing 4'' (10.16cm), Replaces C5NNN819A; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
14Qty
1Availability
Part #
C5NNN819FDescription
STRAP; Reinforcing, 7'' (17.78cm), Replaces C5NNN819B; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
15Qty
6Availability
Part #
C5NNA805BDescription
SPACER; Hanger, 3500; (Prod Date) Between 01-Jan-1965 and 31-Dec-1972Img
Alts
Ref.
16Qty
ARAvailability
Part #
CFPN815DDescription
KIT; Swinging Drawbar Pin & Clip, Accessory, Includes: Ref. 17 & 18; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
17Qty
2Availability
Part #
C5NNN823GDescription
PIN 11.18mm OD x 71.37mm L; U.K.-Antwerp Only; (Prod Date) From 01-Jan-1965Img
Alts
Ref.
18Qty
2Availability
Part #
85700612Description
COTTER PIN; Pin, Replaces E100GD9; (Prod Date) From 01-Jan-1965Img
