4000 - SERIES - 3 CYL TRA... 02 - FUEL SYSTEM 09C01 - THROTTLE CONTROLS...
09C01 - THROTTLE CONTROLS & RELATED PARTS, GASOLINE (PETROL)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    86531510
    BUTTERFLY; Lever, Throttle Control, 2000-3000;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 1
    1
    86551808
    BUTTERFLY; Lever, Throttle Control, 4000 Except 4200;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 1
    1
    C5NN9A794A
    LEVER; Throttle Control, 5100;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 1A
    1
    C5NN9805D
    LEVER; Assy., Hand Throttle, 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 1B
    1
    C5NN9779Z
    ROD; Assy., Throttle Control, 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 1C
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, , 4200 5/16''; (Prod Date) From 01-Jan-1966
  • 1D
    2
    50161S36
    SCREW; Fillister Hd, W/Washer, 5/16''-24 x 5/8'', 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 2
    1
    353873S
    GROMMET; Control Lever; (Prod Date) From 01-Jan-1965
  • 3
    1
    81807757
    SPRING; Control Lever (Replaces E1ADKN19243); (Prod Date) From 01-Jan-1965
  • 4
    AR
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 5
    1
    377360S36
    NUT; 3/8''-24; (Prod Date) From 01-Jan-1965
  • 6
    1
    C5NN9807C
    ARM; Assy., Control Lever, 2000-3000-4200; (Prod Date) From 01-Jan-1965
  • 6
    1
    C5NN9807B
    ARM; Assy., Control Lever, 4100-4400-4500-5100; (Prod Date) From 01-Jan-1965
  • 7
    AR
    352321S36
    WASHER; Flat, 5/16''
  • 8
    AR
    86629539
    NUT 5/16''-24, G5; G5, 5/16''-24
  • 9
    1
    379586S36
    BOLT; Square Hd., 5/16''-24 x 1-1/4''; (Prod Date) From 01-Jan-1965
  • 10
    1
    83924272
    FRICTION WASHER 14mm ID x 50mm OD x 3mm Thk; WASHER, FRICTION (Disc), Throttle Control, Replaces P/N C5NN9B746B; (Prod Date) From 01-Jan-1966
  • 11
    1
    C5NN9B737Z
    PLATE; Friction Disc, 2000-3000; (Prod Date) From 01-Jan-1965
  • 11
    1
    C5NN9B737E
    PLATE; Friction Disc, 4000;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 11
    1
    C5NN9B737R
    PLATE; Friction Disc, 5100;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 12
    1
    311924
    HYD CONNECTOR; Connector Assy., 1-3/4'' (44.45mm) Lg., 2000-3000-4000, Includes: Connector, Ref. 12A;No Longer Serviced NH-E.; (Prod Date) Between 01-Jan-1965 and 31-Dec-1970
  • 12
    1
    81811646
    SOCKET; (Connector Assy), 2-1/4'' (57.15mm) Lg., 5100, Includes: Connector, Ref. 12A & Ref. 13; (Prod Date) From 01-Jan-1966
  • 12
    1
    81811646
    SOCKET; (Connector Assy), 2-1/4'' (57.15mm) Lg., 2000-3000-4000, Includes: Connector, Ref. 12A & Ref. 13; (Prod Date) From 01-Jan-1971
  • 12A
    1
    B9NN9A791A
    CLIP; Throttle Control Rod; (Prod Date) From 01-Jan-1965
  • 13
    1
    34081S36
    NUT; 1/4''-28; (Prod Date) From 01-Jan-1965
  • 14
    1
    C5NN9A722D
    ROD; Throttle Control, 20.25'' (51.44cm) Lg., 2000-3000;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 14
    1
    C7NN9A722C
    ROD; Throttle Control, 22.23'' (55.46cm) Lg., U.K.-Antwerp, 2000-3000;No Longer Serviced NHNA.; (Prod Date) Between 01-Sep-1968 and 31-Oct-1968
  • 14
    1
    C7NN9A722V
    ROD; Throttle Control, 22.23'' (55.46cm) Lg., 2000-3000;No Longer Serviced NHNA.; (Prod Date) From 01-Nov-1968
  • 14
    1
    C5NN9A722E
    ROD; Throttle Control, 19.07'' (48.44cm) Lg., 4000 Except 4200;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 14
    1
    C7NN9A722E
    ROD; Throttle Control, 20.98'' (53.29cm) Lg. 4000 Except 4200;No Longer Serviced NHNA.; (Prod Date) Between 01-Sep-1968 and 31-Oct-1968
  • 14
    1
    C7NN9A722U
    ROD; Throttle Control, 4000 Except 4200; (Prod Date) From 01-Nov-1968
  • 14
    1
    C5NN9A722T
    ROD; Throttle Control, 17.0'' (43.28cm) Lg., 4200;NHNA Only.;No Longer Serviced.; (Prod Date) Between 01-Jan-1966 and 31-Aug-1968
  • 14
    1
    C7NN9A722Y
    ROD; Throttle Control, 18.78'' (47.7cm) Lg.;NHNA Only.;No Longer Serviced.; (Prod Date) Between 01-Sep-1968 and 31-Oct-1968
  • 14
    1
    C7NN9A722Y
    ROD; Throttle Control, 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Nov-1968
  • 14
    1
    NLS
    NO LONGER SERVICED; Rod, Throttle Control, 5100;C5NN9A722R; (Prod Date) Between 01-Jan-1966 and 31-Mar-1967
  • 14
    1
    D4NN9A722F
    SPARE PART; Rod, Throttle Control (When replacing C5NN-9A722-R use (1) of C5NN-12N451-A Lever & 8M-9826 Clip.), 5100;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Apr-1967
  • 1
    390050S36
    WASHER; Friction Disc Spring, 5100; (Prod Date) From 01-Jan-1966
  • 15
    1
    81874177
    CLIP; Linkage; (Prod Date) Between 01-Jan-1966 and 31-Mar-1967
  • 15
    1
    81874177
    CLIP; Linkage; (Prod Date) From 01-Sep-1968
  • 15
    1
    174273
    CLIP; Linkage, 5000; (Prod Date) Between 01-Apr-1967 and 31-Aug-1968
  • 16
    1
    C5NE12A471A
    ARM; Governor Control Lever, 2000-3000-4000;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 16A
    1
    C7NN12N451A
    ARM; Assy, Governor Control Lever, 2000-3000-4000;No Longer Serviced NHNA.; (Prod Date) Between 01-Sep-1968 and 31-Oct-1968
  • 16A
    1
    C5NN12N451A
    ARM; Assy, Governor Control Lever, 5000;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1966
  • 16A
    1
    C5NN12N451A
    ARM; Governor Control Lever, 2000-3000-4000;No Longer Serviced NH-E.; (Prod Date) From 01-Nov-1968
  • 17
    1
    C5NN12B460A
    SPACER; Governor Control; (Prod Date) From 01-Jan-1965
  • 18
    1
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''; (Prod Date) From 01-Jan-1965
  • 19
    3
    377488S43
    WASHER; 1/2'' Flat;No Longer Serviced NHNA.; (Prod Date) From 01-Jan-1965
  • 20
    1
    280431
    NUT 1/2''-13, G5; (Prod Date) From 01-Jan-1965
  • 21
    1
    9706716
    BOLT Hex, 1/2'' - 13 x 2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2''; (Prod Date) From 01-Jan-1965
  • 22
    AR
    87305
    JAM NUT Jam, 1/4''-20, G2; Jam, G2, 1/4''-20
  • 23
    1
    377491S43
    BOLT Hex, 1/4'' - 20 x 1.12'', Full Thd; Bolt, 1/4'' - 20 x 1-1/8'' Hex Hd.;No Longer Serviced.; (Prod Date) From 01-Jan-1965
  • 24
    1
    C5NEB464B
    SPRING; Governor Override (Less Foot Accel.) 2000-3000-4000; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 24
    1
    C5NN2472C
    SPRING; Governor Override (With Foot Accel.) 2000-3000-4000; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 24A
    1
    C7NN12B463A
    SPRING; Assy, Governor Control, 5000; (Prod Date) From 01-Jan-1966
  • 24A
    1
    C7NN12B463A
    SPRING; Assy, Governor Control, (Repl. C6NE12B463A & C5NN12B463B), 2000-3000-4000; (Prod Date) From 01-Sep-1968
  • 24B
    1
    C7NN12A455B
    ROD; Governor Control, 2000-3000-4000;No Longer Serviced NHNA.; (Prod Date) Between 01-Sep-1968 and 31-Oct-1968
  • 24B
    1
    C7NN12A455C
    ROD; Governor Control, 2000-3000-4000;No Longer Serviced.; (Prod Date) From 01-Nov-1968
  • 24B
    1
    C7NN12A455A
    ROD; Governor Control, 5000 (Repl. C5NN12A455A);NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 24
    1
    34081S36
    NUT; 1/4''-28, 5000; (Prod Date) From 01-Jan-1966
  • 25
    1
    C5NE12A455D
    ROD; Governor Control, 2000, 3000 & 4000;When replacing P/N C5NE-12A457-B(81806921) use (1) P/N C5NN-9740-A(81811646) Connector. Note: Carburetors stamped W/Prefix C5NE or C5NN use Linkage dated 65/8-68. Carburetors stamped W/Prefix C7NN use Linkage dated 9-68/;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 25A
    2
    44718S43
    WASHER; 1/4'', 2000, 3000 & 4000;No Longer Serviced NHNA.; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 25B
    1
    280236
    COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), , 2000, 3000 & 4000 1/16'' x 1/2''; (Prod Date) Between 01-Jan-1965 and 31-Aug-1968
  • 26
    2
    81874177
    CLIP; Governor Control Rod; (Prod Date) From 01-Jan-1965
  • 27
    1
    D0NN12A457A
    ROD; Governor to Carb., 2000, 3000, 4000;When replacing P/N C5NE-12A457-B(81806921) use (1) P/N C5NN-9740-A(81811646) Connector. Note: Carburetors stamped W/Prefix C5NE or C5NN use Linkage dated 65/8-68. Carburetors stamped W/Prefix C7NN use Linkage dated 9-68/; (Prod Date) From 01-Jan-1965
  • 27
    1
    C7NN12A457A
    HYD CONNECTOR; Rod, Governor to Carb. (12.10''(30.73cm), 5000;NHNA Only.; (Prod Date) Between 01-Jan-1966 and 31-Dec-1970
  • 27
    1
    D0NN12A457B
    ROD; Governor to Carb., 5000;No Longer Serviced.; (Prod Date) From 01-Jan-1971
  • 28
    1
    34801S36
    LOCK WASHER; Nut, 1/4'' - 28 Hex;No Longer Serviced NH-E.; (Prod Date) From 01-Jan-1965
  • 29
    1
    311924
    HYD CONNECTOR; Connector, Control;No Longer Serviced NH-E.; (SN Break) Between Rod and Carburetor; (Prod Date) Between 01-Jan-1965 and 31-Dec-1970
  • 29
    1
    81811646
    SOCKET; (Connector), Control Rod to Carburetor, Includes: Connector Plus Ref. 30; (Prod Date) From 01-Jan-1971
  • 30
    1
    B9NN9A791A
    CLIP; (Prod Date) From 01-Jan-1965
  • 31
    1
    C5NN9700C
    CONTROL UNIT; Control Assy, Carburetor Choke, 2000, 3000 & 4000; (Prod Date) From 01-Jan-1965

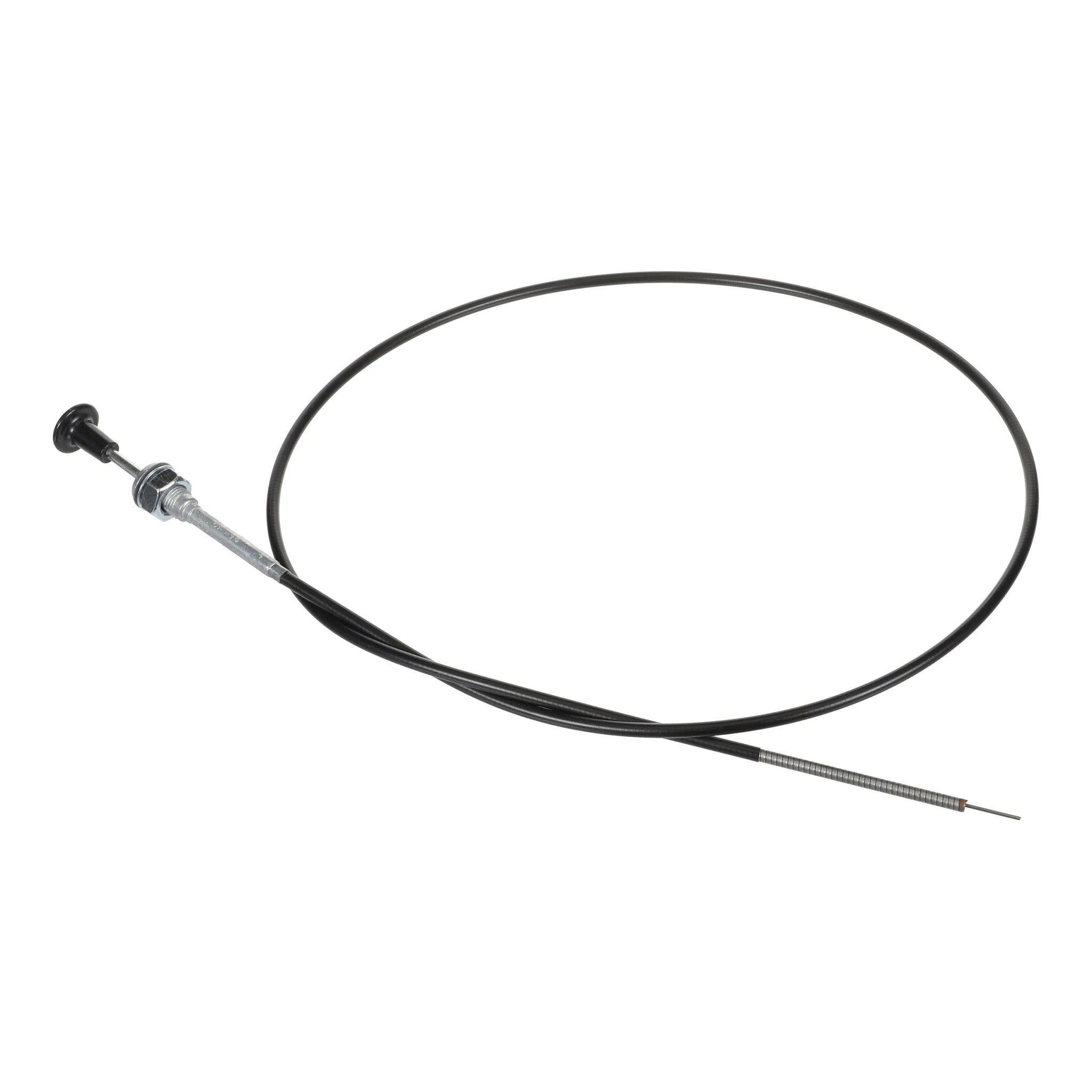

  • 31
    1
    C5NN9700E
    THROTTLE CONTROL Cable; Assy, Carburetor Choke, 5000; (Prod Date) From 01-Jan-1966
  • 32
    AR
    351452S36
    LOCK WASHER; Washer, 1/2'' Lock
  • 33
    1
    87309
    JAM NUT Jam, 1/2''-20, G2; Jam, G2, 1/2''-20; (Prod Date) From 01-Jan-1965
  • 34
    1
    C5NN9D270B
    CLIP; Clamp, Choke Control Cable, Except 4200; (Prod Date) Between 01-Jan-1965 and 31-Dec-1973
  • 34
    1
    C5NN9D270B
    CLIP; Clamp, Choke Control Cable, 5100 W/Power Steering; (Prod Date) Between 01-Jan-1965 and 30-Jun-1970
  • 34
    1
    D1NN14N204A
    CLIP; Choke Control Cable; (Prod Date) From 01-Jan-1974
  • 34
    1
    354905S100
    CLIP; Choke Control Cable, 4200;NHNA Only.;No Longer Serviced.; (Prod Date) From 01-Jan-1966
  • 1
    80682
    LOCK WASHER 1/4''; Washer, Lock, 1/4''; (Prod Date) From 01-Jan-1966
  • 1
    87305
    JAM NUT Jam, 1/4''-20, G2; Jam, G2, 1/4''-20; (Prod Date) From 01-Jan-1966
  • 1
    84467
    SCREW Slotted Truss Hd, 1/4'' - 20 x 1/2''; Truss Hd, G2, 1/4''-20 x 1/2'', 4200; (Prod Date) From 01-Jan-1966
  • 1
    309803
    LOCK; Kit, Governor Linkage Conversion, 2000, 3000;Order Components;NHNA Only.; (Prod Date) Between 01-Jan-1965 and 31-Oct-1968
  • 1
    309806
    ENVELOPE; Kit, Governor Linkage Conversion, 4000 Except 4200;NHNA Only.; (Prod Date) Between 01-Jan-1965 and 31-Oct-1968
  • 1
    309805
    SPARE PART; Kit, Governor Linkage Conversion, 4200 Includes: (1) C9NN-9581-A Shaft Assy (1) C7NN-9A722-Y Rod (W/Kit 309805) (1) C7NN-9A722-U Rod (W/Kit 309804) (1) C7NN-9A722-V Rod (W/Kit 309803) (1) C5NN-12N451-A Arm Assy (1) C6NE-12452-A Hsg. &;Order Components;NHNA Only.; (Prod Date) Between 01-Jan-1966 and 31-Oct-1968
