TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11DUCT; Manifold Assy., Intake, 2000, 3000 & 4000, Includes Ref. 2 & 3
-
11CONDUITE; Manifold Assy., Intake, U.K.- Antwerp, 2000, Includes Ref. 2 & 3
-
11CONDUITE; Manifold Assy., Intake, Replaces C6NE-9424-A, 5100, 5200, Includes Ref. 2 & 3
-
24/5PLUG; Pipe, 3/4''
-
31COTTER PIN; Pin, 1/4'' x .88, 2000, 3000 & 4000;No Longer Serviced.
-
3A1COCK; Vent Assy., Air, 5100,5200
-
41GASKET; Manifold to Cylinder Head, 2000,3000,4000
-
41GASKET; Manifold to Cylinder Head, 5100, 5190, 5200
-
41JOINT DE COLLECTEUR; Manifold to Cylinder Head, 4000 L.P.G.;NHNA Only.;No Longer Serviced.
-
57/9RONDELLE FREIN; Washer, Lock, 3/8''
-
67/9VIS Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
71EXHAUST MANIFOLD; Manifold, Exhaust, Horizontal Exhaust, 2000, 3000 & 4000
-
71COLLECTEUR; Exhaust, Horizontal Exhaust, 5100, 5200
-
81COLLECTEUR; Exhaust, Vertical Exhaust, 2000, 3000 & 4000
-
81COLLECTEUR; Exhaust, Vertical Exhaust, 5100, 5200
-
91GASKET 1.1mm Thk; Manifold, 2000, 3000 & 4000
-
91GASKET 1.1mm Thk; Manifold, 5100, 5200
-
102WASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''
-
11ARWASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''
-
121BOLT Hex, 3/8'' - 16 x 5'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 5''
-
135/8BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
-
141SHIELD; Manifold Heat, Horizontal Exhaust Only
-
152WASHER 5/16'', .354'' x .688'' x .08'' Thk; Horizontal Exhaust Only 5/16'', .354'' x .688'' x .08'' Thk;NHNA Only.;No Longer Serviced.
-
162LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, , Horizontal Exhaust Only 5/16''
-
172BOLT Hex, 5/16''- 18 x 3'', Gr 5; Horizontal Exhaust, U.K. Hex, 5/16''-18 x 3'', G5
-
172BOLT Hex, 5/16''- 18 x 3'', Gr 5; U.S. Hex, 5/16''-18 x 3'', G5
-
181RIGID TUBE; Pipe, Inlet, 2000 & 3000
-
191EXHAUST SYSTEM PIPE; Pipe, Inlet, Horizontal Exhaust, 5100 & 5200, W/& L/10 Speed Transmission
-
191NOT SOLD SEPARAT; Pipe, Inlet, Horizontal Exhaust, L/10 Speed Transmission
-
191TUBE; Pipe, Inlet, Horizontal Exhaust, 5000 W/Speed
-
191EXHAUST SYSTEM PIPE; Pipe, Inlet, Horizontal Exhaust, 4000
-
191PIPE; Muffler Inlet, Horizontal, Narrow Orchard, U.S.
-
201CLAMP; Assy., Pipe to Manf. Outlet, Horizontal Exhaust, 2.12'' ID
-
211GUARD; Shield Assy., Muffler Inlet Pipe Heat, 2000, 3000
-
221SHIELD; Assy., Inlet Pipe Heat, 4000 & Narrow Orchard
-
291MUFFLER; Assy., Horizontal Exhaust, 2000, 3000
-
301MUFFLER; Assy., Horizontal Exhaust, 4000
-
301MUFFLER; Assy., Horizontal Exhaust, Replaces P/N C5NN-5230-F, 5100, 5200
-
301MUFFLER; Assy., Horizonta, Narrow Orchard, U.S.
-
312COLLIER; Assy., Shield & Muffler to Inlet Pipe, 1-3/4'' ID
-
35A1SILENCIEUX; Assy., Vertical Exhaust, U.S., 2000 & 3000
-
35A1SILENCIEUX; Assy., Vertical Exhaust, 4000 & 5000
-
35B1MUFFLER; Assy., Vertical Exhaust, Round, U.K. - Antwerp;When Replacing P/N C5NN-5230-BC, Enlarge holes in hood
-
35B1MUFFLER; Assy., Vertical, Economy, Service Only, U.S.;NHNA Only.
-
361CAP; Rain Cap Assy., Vertical Exhaust, U.S.
-
36-CAP; Rain Cap Assy., Vertical Exhaust, U.K - Antwerp
-
36A1COVER; Rain Cap Assy., Vertical Exhaust, U.K.- Antwerp, Replaces P/N C7NN-5C208-B
-
36B2SCREW Hex Wshr Hd, 5/16'' - 18 x 1/2''; Self-Tapping, HWH, 5/16''-18 x 1/2''
-
36B2SCREW Hex, 5/16'' - 18 x 3/4'', W/ LW; & Washer Assy., HH, W/Vertical Exhaust, 5/16''-18 x .75
-
36B1SCREW Hex, 5/16'' - 18 x 3/4'', W/ LW; & Washer Assy., HH, W/Horizontal Exhaust, 5/16''-18 x .75
-
391DEFLECTOR; Assy., Heat, 3500, 4100, 4400, 4500
-
391DEFLECTOR; Assy., Heat, 2100, 2110, 3100, 4110, 4140
-
391DEFLECTOR; Assy., Heat, L/Torque Coverter, 3400, 4200;NHNA Only.
-
391SPARE PART; Deflector Assy., Heat, Replaces P/N C5NN-6A683-A, U.K.- Antwerp, 2100, 3100;No Longer Serviced.
-
391DEFLECTOR; Heat, 5100, 5200, Includes: Ref. 39A Thru 39C
-
39A2TUBE; Anti-Rattle, Tranmisson Oil Cooler Tube, 2000, 3000 & 4000
-
39B4WASHER 0.25'' ID x 0.56'' OD x 0.05'' Thk; #12
-
39C4SCREW; Pan Hd., #12-14 x 3/8'', 2000, 3000 & 4000;No Longer Serviced.
-
401SHIELD; Fuel Tank Heat, U.S., 2000, 3000 & 4000
-
412BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2'', 2000, 3000 & 4000
-
421ADAPTER; Assy., Inlet Pipe, 17.50'' (44.45cm), 5200
-
421ADAPTER; Assy., Inlet Pipe, 15.5'', (39.37cm), 3400, 4200
-
421ADAPTER; Assy., Inlet Pipe, 13.50'' (34.29cm), 2000, 3100, 3500, 5100
-
421NOT SOLD SEPARAT; Adapter Assy., Inlet Pipe, 13.50'' (34.29cm), 4000 Except 4200, Replaces P/N C5NN-5B255-A
-
421NOT SOLD SEPARAT; Adapter Assy., Inlet Pipe, 13.50'' (34.29cm), 3400, Replaces P/N C5NN-5B255-A
-
431CLAMP; Assy., Inlet Pipe, 2'' I.D.
-
441SHIELD; Assy., Heat, 5100, 5200 Gasoline;NHNA Only.
-
ARTUBE; Pipe, Outlet, 18-3/4'' Lg., Accessory, U.S., Used W/Mufflers W/2'' Outlet;NHNA Only.
-
1EXHAUST SYSTEM PIPE; Pipe, Vertical Muffler Outlet, W/4 Post Rollbar, U.S., 3400, 3550, 4400, 4500;NHNA Only.;No Longer Serviced.
-
1SUPPORT; Assy., Muffler, Narrow Orchard;NHNA Only.
-
1EXHAUST SYSTEM PIPE; Pipe, Muffler Outlet, Narrow Orchard;NHNA Only.
-
1CLAMP; Muffler to Pipe to Support, Narrow Orchard
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, , Narrow Orchard 5/16''
-
1NUT 5/16'' - 18, Gr 5; G5, 5/16''-18, Narrow Orchard
-
1CARRIAGE BOLT Sht Sq Nk, 5/16'' - 18 x 1 1/4'', Gr 5; Bolt, Carriage, Short Neck, G5, 5/16''-18 x 1-1/4''
Select All
Select
Ref.
1Qty
1Availability
Part #
C7NN9424ADescription
DUCT; Manifold Assy., Intake, 2000, 3000 & 4000, Includes Ref. 2 & 3Img
Alts
Select
Ref.
1Qty
1Availability
Part #
C7NN9424ADescription
CONDUITE; Manifold Assy., Intake, U.K.- Antwerp, 2000, Includes Ref. 2 & 3Img
Alts
Select
Ref.
1Qty
1Availability
Part #
C9NN9424HDescription
CONDUITE; Manifold Assy., Intake, Replaces C6NE-9424-A, 5100, 5200, Includes Ref. 2 & 3Img
Alts
Select
Ref.
3Qty
1Availability
Part #
379776S43Description
COTTER PIN; Pin, 1/4'' x .88, 2000, 3000 & 4000;No Longer Serviced.Img
Alts
Select
Ref.
3AQty
1Availability
Part #
EDL99456ADescription
COCK; Vent Assy., Air, 5100,5200Img
Alts
Select
Ref.
4Qty
1Availability
Part #
82845235Description
GASKET; Manifold to Cylinder Head, 2000,3000,4000Img
Alts
Select
Ref.
4Qty
1Availability
Part #
82845236Description

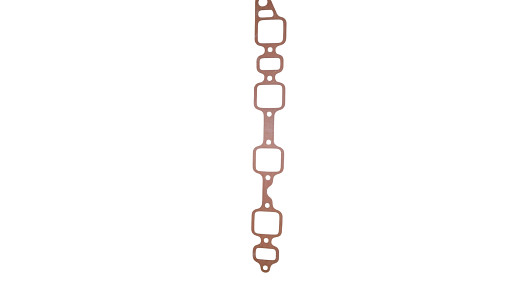

GASKET; Manifold to Cylinder Head, 5100, 5190, 5200Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C5NN9439CDescription
JOINT DE COLLECTEUR; Manifold to Cylinder Head, 4000 L.P.G.;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
5Qty
7/9Availability
Part #
34807S36Description
RONDELLE FREIN; Washer, Lock, 3/8''Img
Alts
Select
Ref.
6Qty
7/9Availability
Part #
88011Description
VIS Hex, 3/8'' - 16 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
7Qty
1Availability
Part #
81806038Description
EXHAUST MANIFOLD; Manifold, Exhaust, Horizontal Exhaust, 2000, 3000 & 4000Img
Alts
Select
Ref.
7Qty
1Availability
Part #
C5NE9430BDescription
COLLECTEUR; Exhaust, Horizontal Exhaust, 5100, 5200Img
Alts
Select
Ref.
8Qty
1Availability
Part #
C5NE9430EDescription
COLLECTEUR; Exhaust, Vertical Exhaust, 2000, 3000 & 4000Img
Alts
Select
Ref.
8Qty
1Availability
Part #
81806040Description
COLLECTEUR; Exhaust, Vertical Exhaust, 5100, 5200Img
Alts
Select
Ref.
9Qty
1Availability
Part #
E8NN9448AADescription
GASKET 1.1mm Thk; Manifold, 2000, 3000 & 4000Img
Alts
Select
Ref.
9Qty
1Availability
Part #
83983680Description

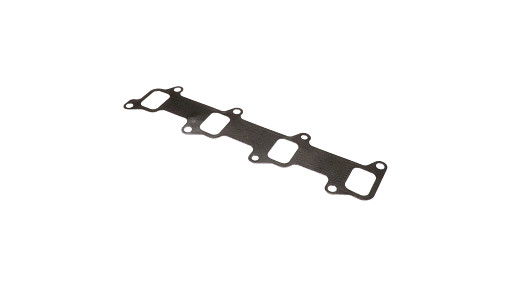

GASKET 1.1mm Thk; Manifold, 5100, 5200Img
Alts
Select
Ref.
10Qty
2Availability
Part #
378881SDescription
WASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''Img
Alts
Select
Ref.
11Qty
ARAvailability
Part #
378881SDescription
WASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''Img
Alts
Select
Ref.
12Qty
1Availability
Part #
280177Description
BOLT Hex, 3/8'' - 16 x 5'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 5''Img
Alts
Select
Ref.
13Qty
5/8Availability
Part #
88044Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''Img
Alts
Select
Ref.
14Qty
1Availability
Part #
C5NE9A462BDescription
SHIELD; Manifold Heat, Horizontal Exhaust OnlyImg
Alts
Select
Ref.
15Qty
2Availability
Part #
44722S8Description
WASHER 5/16'', .354'' x .688'' x .08'' Thk; Horizontal Exhaust Only 5/16'', .354'' x .688'' x .08'' Thk;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
16Qty
2Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, , Horizontal Exhaust Only 5/16''Img
Alts
Select
Ref.
17Qty
2Availability
Part #
88731Description
BOLT Hex, 5/16''- 18 x 3'', Gr 5; Horizontal Exhaust, U.K. Hex, 5/16''-18 x 3'', G5Img
Alts
Select
Ref.
17Qty
2Availability
Part #
88731Description
BOLT Hex, 5/16''- 18 x 3'', Gr 5; U.S. Hex, 5/16''-18 x 3'', G5Img
Alts
Select
Ref.
18Qty
1Availability
Part #
C7NN5245BDescription
RIGID TUBE; Pipe, Inlet, 2000 & 3000Img
Alts
Select
Ref.
19Qty
1Availability
Part #
C7NN5245ADescription
EXHAUST SYSTEM PIPE; Pipe, Inlet, Horizontal Exhaust, 5100 & 5200, W/& L/10 Speed TransmissionImg
Alts
Select
Ref.
19Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pipe, Inlet, Horizontal Exhaust, L/10 Speed TransmissionImg
Alts
Select
Ref.
19Qty
1Availability
Part #
C5NN5245DDescription
TUBE; Pipe, Inlet, Horizontal Exhaust, 5000 W/SpeedImg
Alts
Select
Ref.
19Qty
1Availability
Part #
82009286Description
EXHAUST SYSTEM PIPE; Pipe, Inlet, Horizontal Exhaust, 4000Img
Alts
Select
Ref.
19Qty
1Availability
Part #
86570884Description
PIPE; Muffler Inlet, Horizontal, Narrow Orchard, U.S.Img
Alts
Select
Ref.
20Qty
1Availability
Part #
D6NN5252BDescription
CLAMP; Assy., Pipe to Manf. Outlet, Horizontal Exhaust, 2.12'' IDImg
Alts
Select
Ref.
21Qty
1Availability
Part #
D3NN5N207ADescription
GUARD; Shield Assy., Muffler Inlet Pipe Heat, 2000, 3000Img
Alts
Select
Ref.
22Qty
1Availability
Part #
C7NN5N207BDescription
SHIELD; Assy., Inlet Pipe Heat, 4000 & Narrow OrchardImg
Alts
Select
Ref.
29Qty
1Availability
Part #
C7NN5230GDescription
MUFFLER; Assy., Horizontal Exhaust, 2000, 3000Img
Alts
Select
Ref.
30Qty
1Availability
Part #
C7NN5230HDescription
MUFFLER; Assy., Horizontal Exhaust, 4000Img
Alts
Select
Ref.
30Qty
1Availability
Part #
C5NN5230ADDescription
MUFFLER; Assy., Horizontal Exhaust, Replaces P/N C5NN-5230-F, 5100, 5200Img
Alts
Select
Ref.
30Qty
1Availability
Part #
87790054Description
MUFFLER; Assy., Horizonta, Narrow Orchard, U.S.Img
Alts
Select
Ref.
31Qty
2Availability
Part #
D6NN5252EDescription
COLLIER; Assy., Shield & Muffler to Inlet Pipe, 1-3/4'' IDImg
Alts
Select
Ref.
35AQty
1Availability
Part #
E4NN5230FA17MDescription
SILENCIEUX; Assy., Vertical Exhaust, U.S., 2000 & 3000Img
Alts
Select
Ref.
35AQty
1Availability
Part #
E4NN5230GBDescription
SILENCIEUX; Assy., Vertical Exhaust, 4000 & 5000Img
Alts
Select
Ref.
35BQty
1Availability
Part #
C7NN5230RDescription
MUFFLER; Assy., Vertical Exhaust, Round, U.K. - Antwerp;When Replacing P/N C5NN-5230-BC, Enlarge holes in hoodImg
Alts
Select
Ref.
35BQty
1Availability
Part #
DHPN5230ADescription

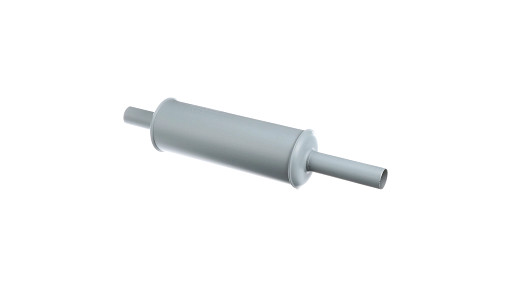

MUFFLER; Assy., Vertical, Economy, Service Only, U.S.;NHNA Only.Img
Alts
Select
Ref.
36Qty
1Availability
Part #
E0NN5N206DA17MDescription

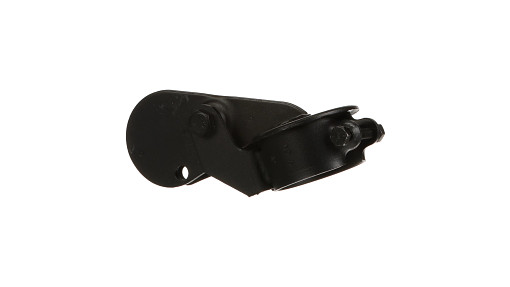

CAP; Rain Cap Assy., Vertical Exhaust, U.S.Img
Alts
Select
Ref.
36Qty
-Availability
Part #
E0NN5N206DA17MDescription
CAP; Rain Cap Assy., Vertical Exhaust, U.K - AntwerpImg
Alts
Select
Ref.
36AQty
1Availability
Part #
D6NN5C208BDescription
COVER; Rain Cap Assy., Vertical Exhaust, U.K.- Antwerp, Replaces P/N C7NN-5C208-BImg
Alts
Select
Ref.
36BQty
2Availability
Part #
40923S8Description
SCREW Hex Wshr Hd, 5/16'' - 18 x 1/2''; Self-Tapping, HWH, 5/16''-18 x 1/2''Img
Alts
Select
Ref.
36BQty
2Availability
Part #
372287S36Description
SCREW Hex, 5/16'' - 18 x 3/4'', W/ LW; & Washer Assy., HH, W/Vertical Exhaust, 5/16''-18 x .75Img
Alts
Select
Ref.
36BQty
1Availability
Part #
372287S36Description
SCREW Hex, 5/16'' - 18 x 3/4'', W/ LW; & Washer Assy., HH, W/Horizontal Exhaust, 5/16''-18 x .75Img
Alts
Select
Ref.
39Qty
1Availability
Part #
86546403Description
DEFLECTOR; Assy., Heat, 3500, 4100, 4400, 4500Img
Alts
Select
Ref.
39Qty
1Availability
Part #
86546403Description
DEFLECTOR; Assy., Heat, 2100, 2110, 3100, 4110, 4140Img
Alts
Select
Ref.
39Qty
1Availability
Part #
C5NN6A683KDescription
DEFLECTOR; Assy., Heat, L/Torque Coverter, 3400, 4200;NHNA Only.Img
Alts
Select
Ref.
39Qty
1Availability
Part #
C5NN6A683MDescription
SPARE PART; Deflector Assy., Heat, Replaces P/N C5NN-6A683-A, U.K.- Antwerp, 2100, 3100;No Longer Serviced.Img
Alts
Select
Ref.
39Qty
1Availability
Part #
C7NN6A622ADescription
DEFLECTOR; Heat, 5100, 5200, Includes: Ref. 39A Thru 39CImg
Alts
Select
Ref.
39AQty
2Availability
Part #
C5NN7N033ADescription
TUBE; Anti-Rattle, Tranmisson Oil Cooler Tube, 2000, 3000 & 4000Img
Alts
Select
Ref.
39BQty
4Availability
Part #
80707Description
WASHER 0.25'' ID x 0.56'' OD x 0.05'' Thk; #12Img
Alts
Select
Ref.
39CQty
4Availability
Part #
33178S43Description
SCREW; Pan Hd., #12-14 x 3/8'', 2000, 3000 & 4000;No Longer Serviced.Img
Alts
Select
Ref.
40Qty
1Availability
Part #
C5NN9A032CDescription
SHIELD; Fuel Tank Heat, U.S., 2000, 3000 & 4000Img
Alts
Select
Ref.
41Qty
2Availability
Part #
88542Description
BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2'', 2000, 3000 & 4000Img
Alts
Select
Ref.
42Qty
1Availability
Part #
EC0ND0NN5B255EDescription
ADAPTER; Assy., Inlet Pipe, 17.50'' (44.45cm), 5200Img
Alts
Select
Ref.
42Qty
1Availability
Part #
D0NN5B255DDescription
ADAPTER; Assy., Inlet Pipe, 15.5'', (39.37cm), 3400, 4200Img
Alts
Select
Ref.
42Qty
1Availability
Part #

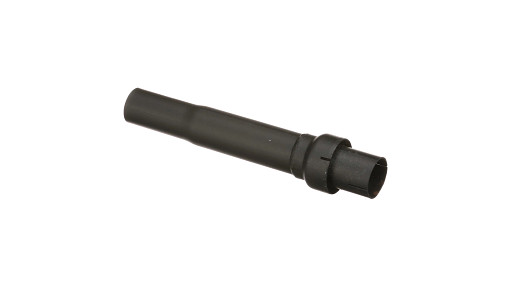

D0NN5B255CDescription
ADAPTER; Assy., Inlet Pipe, 13.50'' (34.29cm), 2000, 3100, 3500, 5100Img
Alts
Select
Ref.
42Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Adapter Assy., Inlet Pipe, 13.50'' (34.29cm), 4000 Except 4200, Replaces P/N C5NN-5B255-AImg
Alts
Select
Ref.
42Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Adapter Assy., Inlet Pipe, 13.50'' (34.29cm), 3400, Replaces P/N C5NN-5B255-AImg
Alts
Select
Ref.
43Qty
1Availability
Part #
D6NN5252BDescription
CLAMP; Assy., Inlet Pipe, 2'' I.D.Img
Alts
Select
Ref.
44Qty
1Availability
Part #
C7NN5A273ADescription
SHIELD; Assy., Heat, 5100, 5200 Gasoline;NHNA Only.Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
C0NN5B299ADescription
TUBE; Pipe, Outlet, 18-3/4'' Lg., Accessory, U.S., Used W/Mufflers W/2'' Outlet;NHNA Only.Img
Alts
Select
Ref.
Qty
1Availability
Part #
D3NN5255ADescription
EXHAUST SYSTEM PIPE; Pipe, Vertical Muffler Outlet, W/4 Post Rollbar, U.S., 3400, 3550, 4400, 4500;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
Qty
1Availability
Part #
D6NN5D219ADescription
SUPPORT; Assy., Muffler, Narrow Orchard;NHNA Only.Img
Alts
Select
Ref.
Qty
1Availability
Part #
C7NN5255DDescription
EXHAUST SYSTEM PIPE; Pipe, Muffler Outlet, Narrow Orchard;NHNA Only.Img
Alts
Select
Ref.
Qty
1Availability
Part #
D6NN5252EDescription
CLAMP; Muffler to Pipe to Support, Narrow OrchardImg
Alts
Select
Ref.
Qty
1Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, , Narrow Orchard 5/16''Img
Alts
Select
Ref.
Qty
1Availability
Part #
9635082Description
NUT 5/16'' - 18, Gr 5; G5, 5/16''-18, Narrow OrchardImg
Alts
Select
Ref.
Qty
1Availability
Part #
280827Description
CARRIAGE BOLT Sht Sq Nk, 5/16'' - 18 x 1 1/4'', Gr 5; Bolt, Carriage, Short Neck, G5, 5/16''-18 x 1-1/4''Img
Alts
