3930H - 3 CYL HIGHWAY TRA... 01 - ENGINE 06F02 - TURBOCHARGER, MAN...
06F02 - TURBOCHARGER, MANIFOLD & RELATED PARTS - 4630, 3930 & 4630 EMISSIONIZED
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87801413
    TURBOCHARGER; Turbocharger Assy., 3930, 4630;Used W/ Emissionised Engine.
  • 1
    1
    87801413R
    REMAN-TURBOCHARGER TURBOCHARGER; Reman for New PN 87801413
  • 1
    1
    87801413C
    CORE-TURBOCHARGER TURBOCHARGER; Return Number, Turbocharger Assy., 3930, 4630;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 1
    1
    87801482
    TURBOCHARGER; Turbocharger Assy., 4630, Refer to Fig. 06H01
  • 1
    1
    87801482R
    REMAN-TURBOCHARGER TURBOCHARGER; Turbocharger
  • 1
    1
    87801482C
    CORE-TURBOCHARGER TURBOCHARGER; Return Number, Turbocharger Assy., 4630; (Prod Date) Between 01-Jun-1994 and 01-Nov-1997
  • 2
    1
    87800051
    GASKET; Gasket; (Prod Date) From 01-Jun-1994
  • 3
    4
    E8HN6N606AA
    NUT; Nut, 3/8''-24; (Prod Date) From 01-Jun-1994
  • 4
    4
    87801551
    STUD; Stud, 3/8''-16-24 x 1-11/16''; (Prod Date) From 01-Jun-1994
  • 5
    1
    87800044
    MANIFOLD; Manifold, Exhaust; (Prod Date) From 01-Jun-1994
  • 5
    1
    87801400
    MANIFOLD; Manifold, Exhaust;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 6
    1
    87801658
    GASKET 0.5mm Thk; Gasket, Exhaust Manifold;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 6
    1
    E8NN9448AA
    GASKET 1.1mm Thk; Gasket, Exhaust Manifold; (Prod Date) From 01-Jun-1994
  • 7
    6
    81868740
    BOLT Hex, 3/8 - 16 x 1.25, Gr 5; Bolt, Cap, Flg Hd, G5, 3/8''-16 x 1-1/4''; (Prod Date) From 01-Jun-1994
  • 7
    6
    82847563
    CAPTIVE WASHER SCREW; Screw, Cap, Flg Hd, USR, 3/8''-16 x 2-1/2'';Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 8
    1
    87801694
    TUBE 8 mm OD x 441, 140.2 mm L; Tube Assy., Oil Supply; (Prod Date) From 01-Jun-1994
  • 9
    1
    87801024
    BOLT Oil Supply Tube Connector, M12 x 1.5 x 24mm, Cl 8.8; Bolt, Banjo, HH, M12 x 1.5 x 24; (Prod Date) From 01-Jun-1994
  • 10
    2
    87801445
    WASHER 12.3mm ID x 17mm OD x 1.75mm Thk; Washer, Flat; (Prod Date) From 01-Jun-1994
  • 11
    1
    86004S36
    HYD CONNECTOR 1/8'' NPT x 5/16'' - 24 NPT; Connector, 5/16'' x 1/4''; (Prod Date) From 01-Jun-1994
  • 12
    1
    87800201
    HYD TUBE 16 mm OD x 533, 49 mm L; Tube Assy., Oil Return; (Prod Date) From 01-Jun-1994
  • 13
    1
    E9NN6N652AA
    GASKET; Gasket; (Prod Date) From 01-Jun-1994
  • 14
    2
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; BOLT, Hex, M8 x 25, 8.8; (Prod Date) From 01-Jun-1994
  • 14
    7
    87800977
    BOLT; Bolt, Cap, Flg Hd, G5, 3/8''-16 x 1.13'';Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 15
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''; (Prod Date) From 01-Jun-1994
  • 16
    1
    128828
    90 ELBOW 90 Degree, 7/8''-14, 37 Degree x 1/2''-14, NPTF; Elbow; (Prod Date) From 01-Jun-1994
  • 17
    4
    F1NN6N861AA
    HOSE CLAMP; Clamp, Hose, 40-55mm Dia.; (Prod Date) From 01-Jun-1994
  • 17A
    2
    82012725
    HOSE CLAMP #44, M32-44; CLAMP, HOSE, #44, M32-44; (Prod Date) From 01-Jun-1994
  • 18
    2
    81868456
    HOSE 50.80 mm ID; (Prod Date) From 01-Jun-1994
  • 19
    1
    87800215
    TUBE 53 mm DIA x 141 mm L; Tube Assy.; (Prod Date) From 01-Jun-1994
  • 19
    1
    87801585
    AIR INTAKE TUBE 53.8 mm DIA x 147 mm L; Tube Assy.;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 20
    1
    87800224
    MANIFOLD; Manifold, Intake; (Prod Date) From 01-Jun-1994
  • 20
    1
    87801587
    DUCT; Manifold, Intake;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 21
    1
    82013162
    PIPE 63.5 mm OD, 224, 186 mm Length; Pipe Assy., Muffler Inlet;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998
  • 21
    1
    82009475
    PIPE; Pipe Assy., Muffler Inlet; (Prod Date) From 01-Jul-1996
  • 21
    1
    82009475
    PIPE; Pipe Assy., Muffler Inlet; (Prod Date) Between 01-Jun-1994 and 30-Jun-1996
  • 22
    2
    P0301622
    BOLT; Screw, Cap, HH, G5, 3/8''-16 x 3/4'';NHNA Only.; (Prod Date) From 01-Jun-1994
  • 23
    2
    P8070031
    WASHER; Washer, Flat, 3/8'';NHNA Only.; (Prod Date) From 01-Jun-1994

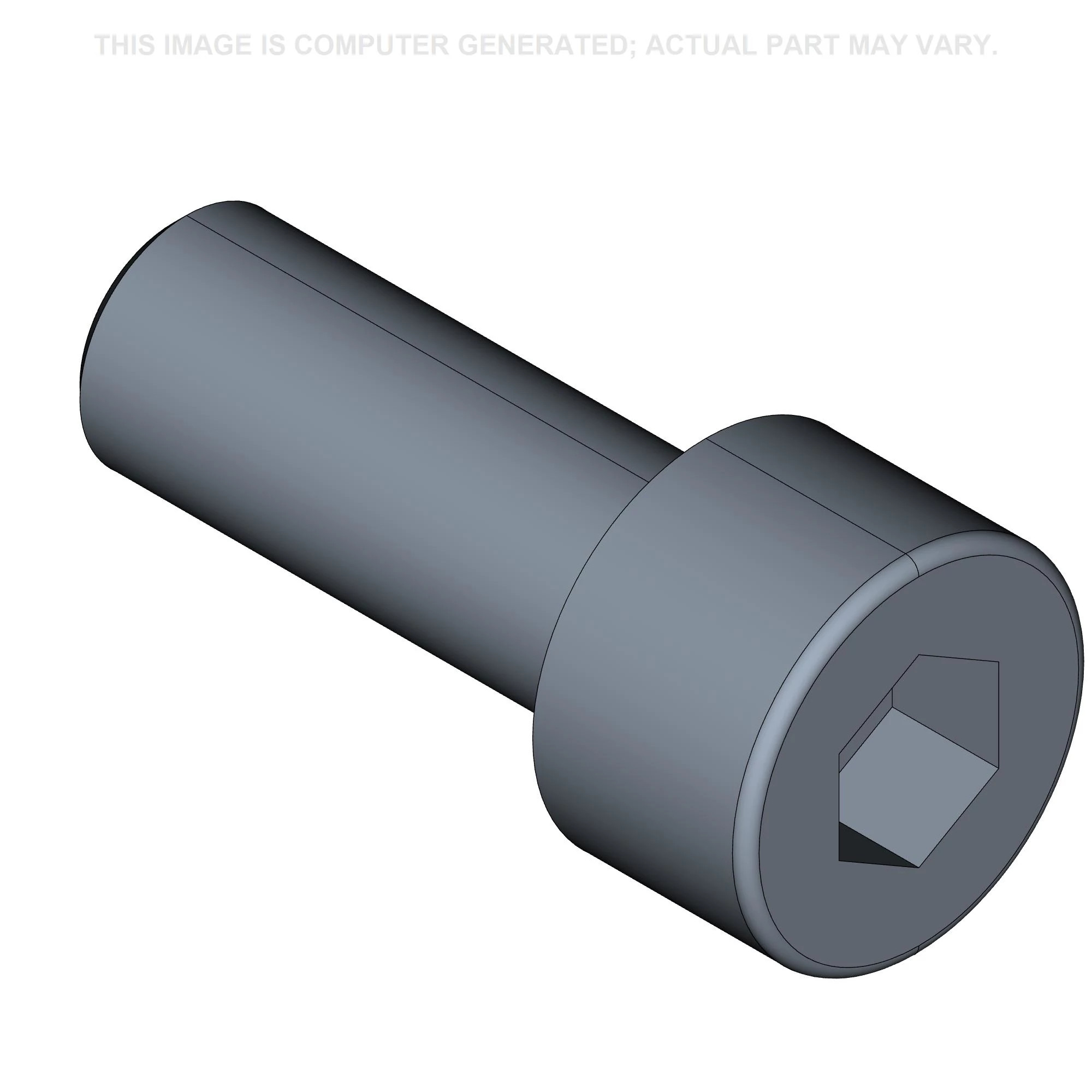

  • 24
    4
    14306321
    HEX SOC SCREW M8 x 20mm, Cl 8.8; SCREW, Hex Soc Hd, M8 x 20, 8.8; (Prod Date) From 01-Jun-1994
  • 25
    1
    86512612
    KIT; Kit, Horizontal Exhaust, Includes: Ref. 26 thru 32; (Prod Date) From 01-Jun-1994
  • 26
    1
    86513779
    GASKET 0.43mm Thk; Gasket;NHNA Only.; (Prod Date) From 01-Jun-1994
  • 27
    1
    86512613
    EXHAUST SYSTEM PIPE; Pipe Assy., Muffler Inlet; (Prod Date) From 01-Jun-1994
  • 28
    2
    D6NN5252E
    CLAMP; Clamp & U-Bolt Assy., Includes: Ref. 29 & 30; (Prod Date) From 01-Jun-1994
  • 29
    2
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''; (Prod Date) From 01-Jun-1994
  • 30
    2
    9628503
    NUT 3/8'' - 16, Gr 5; NUT, G5, 3/8''-16;NHNA Only.; (Prod Date) From 01-Jun-1994
  • 31
    1
    E5NN5230AA17M
    MUFFLER; Muffler Assy., Horizontal; (Prod Date) From 01-Jun-1994
  • 32
    1
    E5NN5A254AB
    PLATE; Muffler Bracket, Support; (Prod Date) From 01-Jun-1994
  • 33
    1
    E7NN9439DA
    CYLINDER HEAD GASKET; Gasket, Intake Manifold, 4630; (Prod Date) From 01-Jun-1994

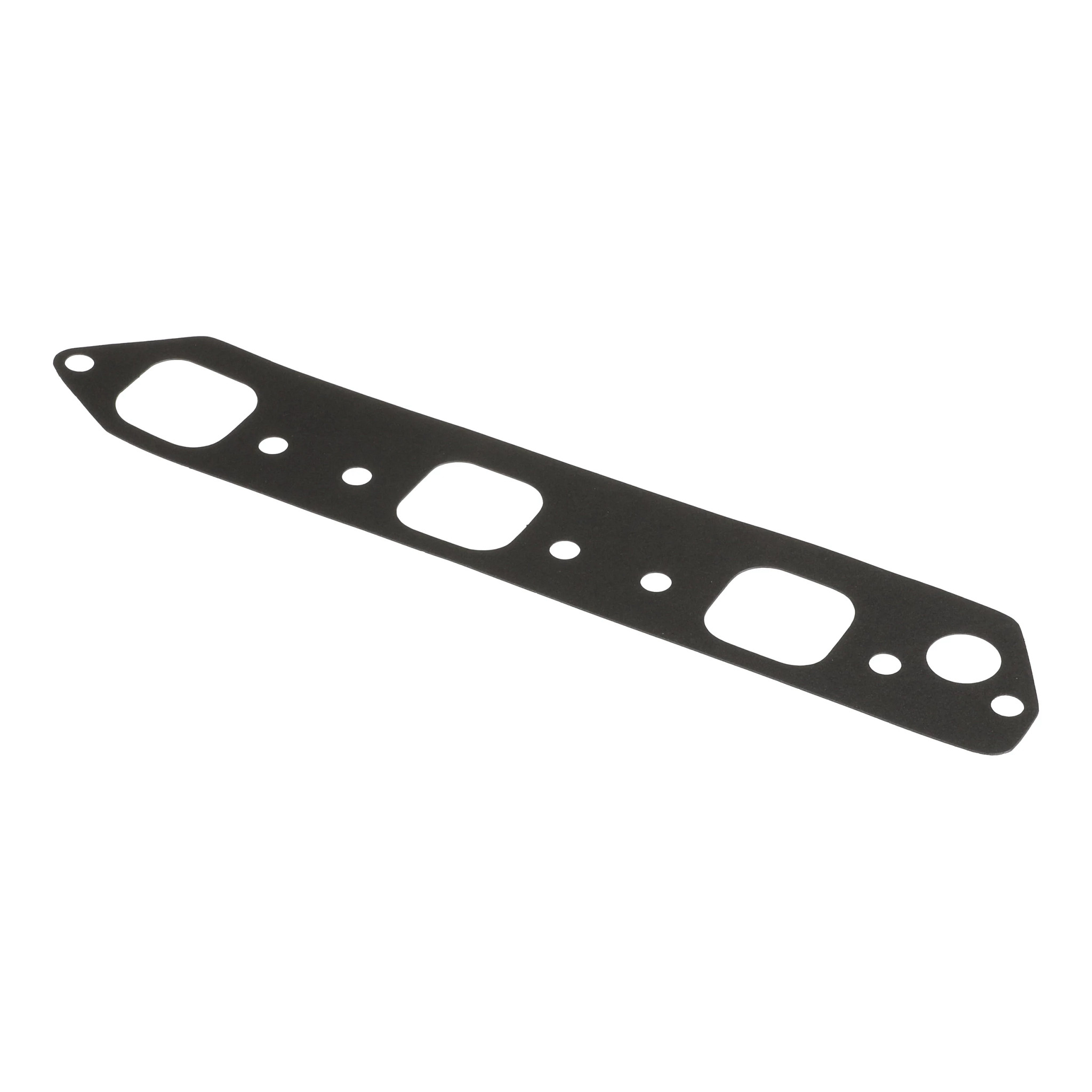

  • 33
    1
    87801547
    GASKET; Gasket, Intake Manifold, 3930 & 4630;Used W/ Emissionised Engine.; (Prod Date) From 01-Jan-1998

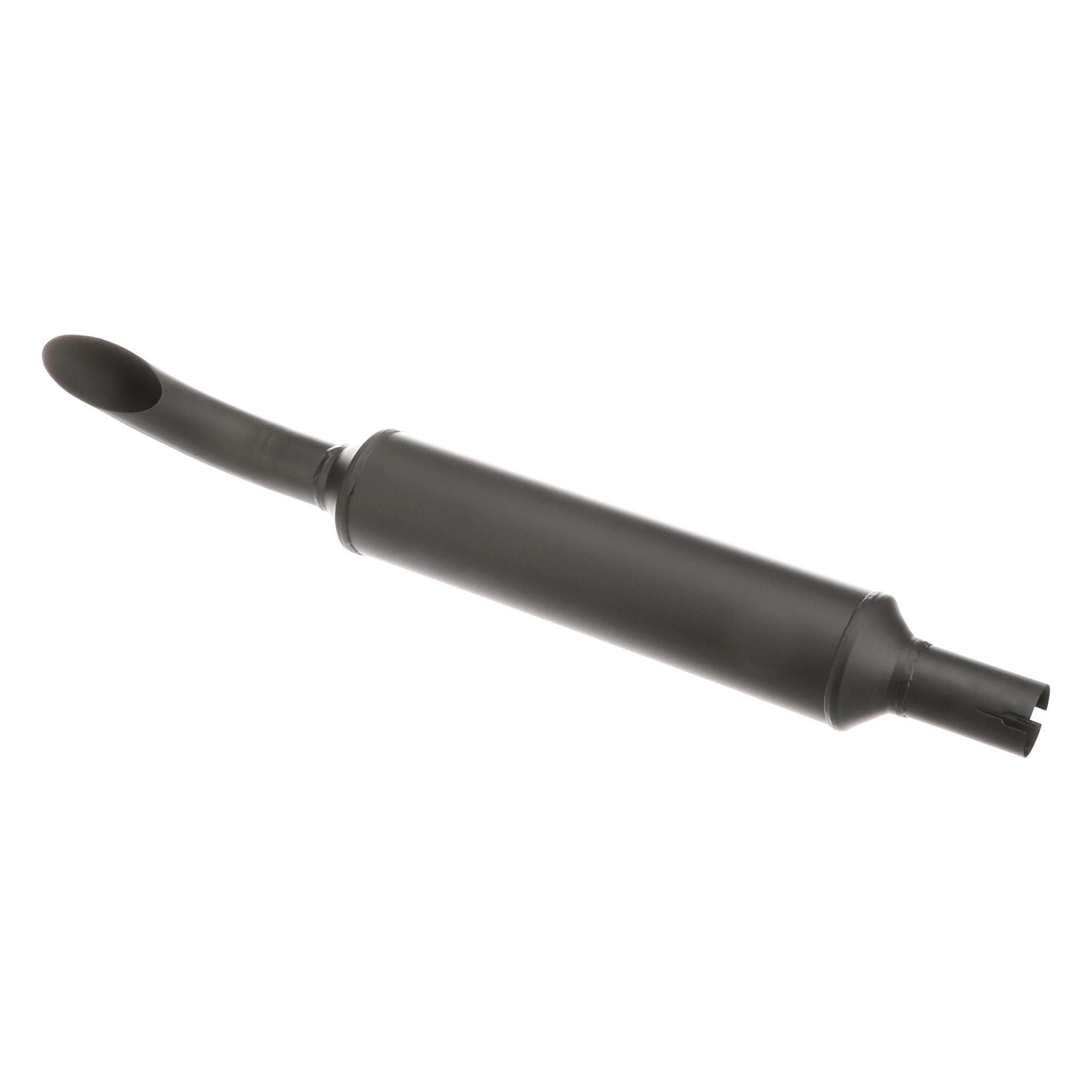

  • 34
    1
    82002422
    MUFFLER; Muffler Assy., Turbo; (Prod Date) From 01-Jun-1994
