06D02[05] - EXHAUST VERTICAL MUFFLER, WITHOUT DUST EJECTOR - AFTER SN: S33149M
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    4895133
    GASKET 0.5mm Thk; Turbocharger
  • 2
    1
    82989087
    TUBE; EXHAUST TUBE 5610S
  • 3
    1
    87637107

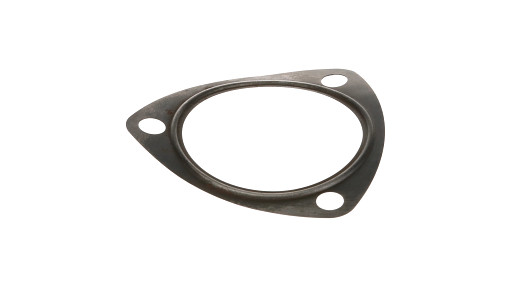

    MANIFOLD GASKET 0.2mm Thk; Seal Elbow Exhaust Silencer;5610S, 6610S
  • 3
    1
    2852071
    GASKET 0.5mm Thk; 7610S
  • 4
    1
    82989217

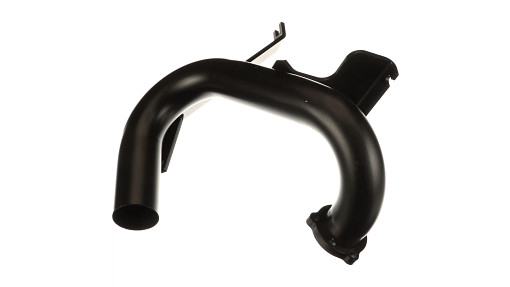

    EXHAUST SYSTEM PIPE; TUBE ASSY. EXHAUST;5610S, 6610S
  • 4
    1
    82988884
    EXHAUST SYSTEM PIPE; TUBE ASSY EXHAUST;7610S
  • 6
    1
    73338705
    MUFFLER; Muffler Assy. & Guard, Incl 5, 11, 12, 18
  • 8
    1
    82980514
    CLAMP 32mm - 50mm;
  • 9
    1
    73338710
    HOSE; Hose Ejector
  • 10
    1
    83910870
    CLAMP 70.1mm ID;
  • 11
    4
    120103
    BOLT M8 x 1.25 x 16mm, Cl 8.8;
  • 12
    4
    10571779
    LOCK WASHER Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM;
  • 13
    3
    82880843

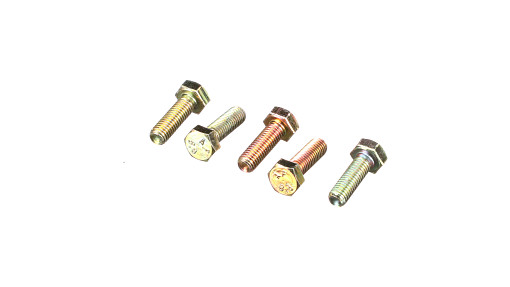

    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8; 5610S, 6610S
  • 13
    4
    82880843
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8; 7610S
  • 14
    7
    10571779
    LOCK WASHER Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM; 5610S
  • 14
    3
    10571779
    LOCK WASHER Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM; 6610S
  • 14
    4
    10571779
    LOCK WASHER Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM; 7610S
  • 15
    2
    9804264

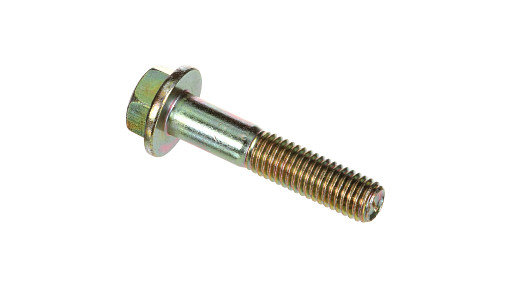

    FLANGE BOLT M10 x 50mm, 26mm Thd, Cl 8.8;
  • 16
    1
    83955887
    BOLT Hex, M12 x 1.75 x 25mm, Gr 8.8; 5610S, 6610S
  • 17
    1
    81825893
    WASHER 1/2'' ID x 1.062'' OD x 0.095'' Thk; (13 x 27 x 2.5 mm);5610S, 6610S
  • 19
    4
    83958007
    NUT M8, G8; 5610S
  • 20
    2
    83925047

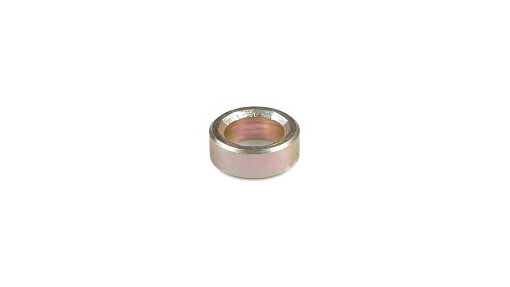

    SPACER 12.7mm ID x 19mm OD x 7.1mm L;
